Modern Wheels on Horizontal Dropouts

I painfully (62 miles of a rear wheel which refused to stay centered in the dropouts)discovered modern wheelsets (used in vertical dropout applications) don't seem to come with the knurled nuts on either side of the hub. Without em, the wheel simply cannot be locked into horizontal dropout applications.
Anyone know of modern (ala 24/20 spoke) wheelsets that come with the knurled nuts on em?
I gave hardware style star washers a try (hey...the dropouts paint was chewed off by then anyway)with very marginal success.
Ranger63 is offline
Old 07-08-16, 01:01 PM
  #2
yipyipyip
Senior Member

Join Date: Jul 2014
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have had this problem. Dropout screws or moving the wheel to the very back of the dropout helps. Otherwise: close the quick release really really really hard.
yipyipyip is offline
Old 07-08-16, 01:13 PM
  #3
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 7,014

Bikes: Fuji Touring, Novara Randonee

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1659 Post(s)
Liked 882 Times in 551 Posts
Originally Posted by yipyipyip View Post
Otherwise: close the quick release really really really hard.

+1


OP, what kind of hub do you have?
pdlamb is offline
Old 07-08-16, 01:18 PM
  #4
2lo8
Senior Member

Join Date: Jun 2016
Posts: 625
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've had loys of modern hubs with steel toothed endcaps for the rear. Anything with chrome on the ends of the hub usually have steel toothed rings pressed onto the endcaps, for example Bitex hubs which I have used in horizontal dropouts with good skewers. The Shimano wheels with traditional cup and cone hubs also should have steel locknuts given their traditional construction.
2lo8 is offline
Old 07-08-16, 01:20 PM
  #5
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,331

Bikes: Klein, Merckx, Trek

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 3049 Post(s)
Liked 1,086 Times in 622 Posts
When vertical dropouts became the standard, quick releases also went to external cam. Horizontal dropouts work better with internal cams like DuraAce - try just changing skewers on your existing wheels.


Last edited by DiabloScott; 07-08-16 at 01:25 PM.
DiabloScott is offline
Old 07-08-16, 02:06 PM
  #6
caloso
Senior Member

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 40,391

Bikes: Specialized Tarmac, Canyon Exceed, Specialized Transition, Ellsworth Roots, Ridley Excalibur

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2749 Post(s)
Liked 2,502 Times in 1,159 Posts
Yep. A good internal cam QR will do the trick. Never had an issue with slippage using a Campy Centaur or Shimano Ultegra QR.
caloso is offline
Old 07-08-16, 02:11 PM
  #7
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,810

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 1467 Post(s)
Liked 817 Times in 551 Posts
Originally Posted by diabloscott View Post
when vertical dropouts became the standard, quick releases also went to external cam. Horizontal dropouts work better with internal cams like duraace - try just changing skewers on your existing wheels.

+1
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 07-08-16, 02:42 PM
  #8
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,324 Times in 833 Posts
Axle lock nut ends need to have teeth (or raised ring with a sharp edge) themselves of Hardened steel.

thats how the older wheel hubs came.
fietsbob is offline
Old 07-08-16, 03:24 PM
  #9
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,161

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1375 Post(s)
Liked 917 Times in 637 Posts
Originally Posted by 2lo8 View Post
...I have used in horizontal dropouts with good skewers.
Good internal cam skewers properly tightened is the key IMO.
dsbrantjr is offline
Old 07-08-16, 03:29 PM
  #10
2lo8
Senior Member

Join Date: Jun 2016
Posts: 625
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
As fietsbob said, the hubs themselves should have steel toothed surfaces. Skewers when used properly are only meant to provide clamping forces. Clamping forces you can get with a decent external cam skewer is you're willing to deal with having to use lots of force on the lever. It's the friction between the surfaces of the endcap/locknut and the dropout that should prevent the hub from moving.
2lo8 is offline
Old 07-08-16, 03:57 PM
  #11
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,331

Bikes: Klein, Merckx, Trek

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 3049 Post(s)
Liked 1,086 Times in 622 Posts
Originally Posted by 2lo8
As fietsbob said, the hubs themselves should have steel toothed surfaces.

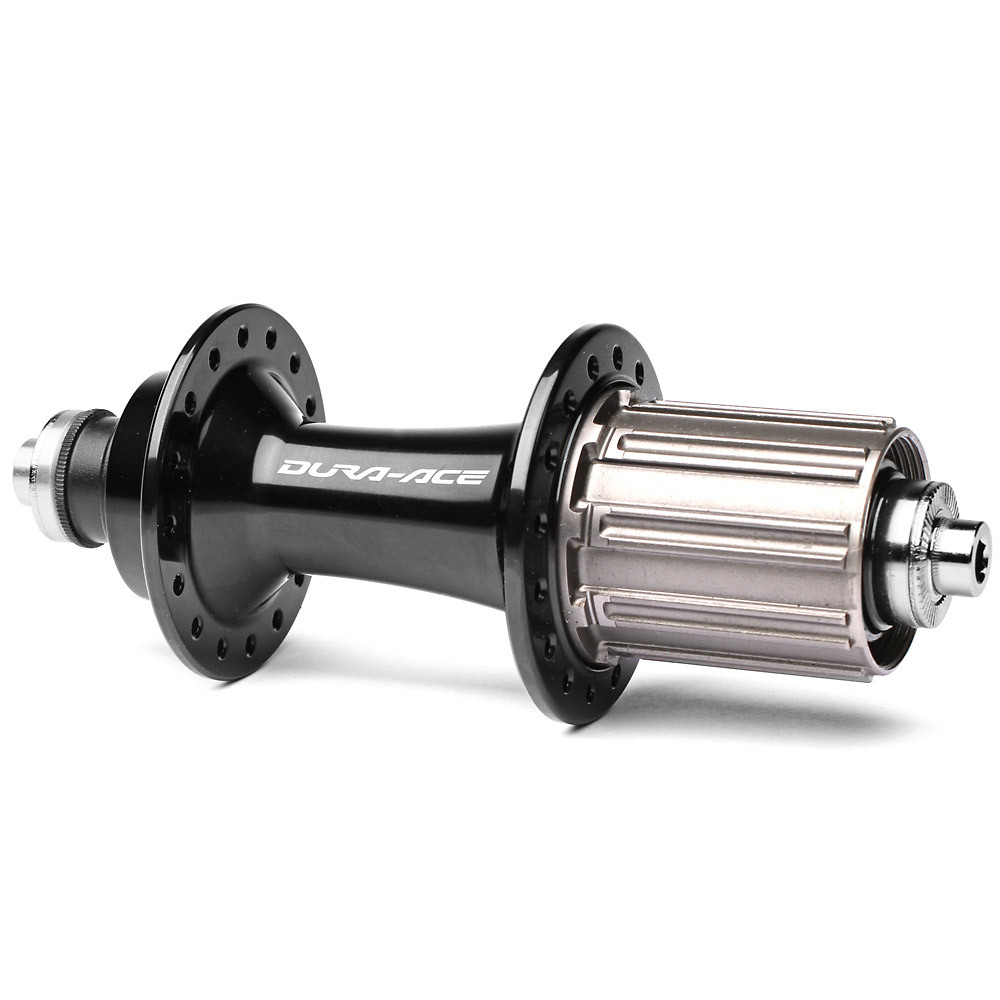

I've seen a lot of front hubs that didn't have the teeth - but most road rear hubs seem to have them...



Even modern ones:




Except for disk brake hubs.

DiabloScott is offline
Old 07-08-16, 04:02 PM
  #12
2lo8
Senior Member

Join Date: Jun 2016
Posts: 625
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That's because front dropouts are verticalish and you don't pedal with front wheel on any bike that isn't ordinary.
2lo8 is offline
Old 07-08-16, 05:33 PM
  #13
Ranger63
Senior Member
Thread Starter

Ranger63's Avatar

Join Date: Apr 2007
Location: western new york
Posts: 720

Bikes: mid 80s Ross Centaur converted to Alfine 11 09 motobecane imortal force, 83 Ross Paragon,81 Schwinn LeTour Tourist, 91 Paramount, 93 GT converted to city bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
These are Ritchey OCR Pros that I snagged off my old CF Motobecane. That said: Two local LBS went thru every one of their upper end (24/20 etc)wheelsets and not one had the knurled nuts.
Ranger63 is offline
Old 07-08-16, 05:37 PM
  #14
Ranger63
Senior Member
Thread Starter

Ranger63's Avatar

Join Date: Apr 2007
Location: western new york
Posts: 720

Bikes: mid 80s Ross Centaur converted to Alfine 11 09 motobecane imortal force, 83 Ross Paragon,81 Schwinn LeTour Tourist, 91 Paramount, 93 GT converted to city bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
As Tom Lonzi of Toms Pro Bike said: Rich; the newer wheels don't need the knurled nut because the dropouts from about the mid 90s on, were vertical. The folks at Campus Wheelworks showed me several new hubs with the knurled nut setups..all in 32 or 36 drillings.
Ranger63 is offline
Old 07-08-16, 05:42 PM
  #15
Ranger63
Senior Member
Thread Starter

Ranger63's Avatar

Join Date: Apr 2007
Location: western new york
Posts: 720

Bikes: mid 80s Ross Centaur converted to Alfine 11 09 motobecane imortal force, 83 Ross Paragon,81 Schwinn LeTour Tourist, 91 Paramount, 93 GT converted to city bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Looks like wheel building time..If the hubs are available (and the ones shown here appear to be) in 24/20 drillings with knurled nuts that's the way I'll have to go. Guess I'll run the old school 32 hole mavic Cx2s till I can put the parts together.
Ranger63 is offline
Old 07-08-16, 08:11 PM
  #16
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,958

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 3122 Post(s)
Liked 1,245 Times in 834 Posts
Originally Posted by Ranger63 View Post
Looks like wheel building time..If the hubs are available (and the ones shown here appear to be) in 24/20 drillings with knurled nuts that's the way I'll have to go. Guess I'll run the old school 32 hole mavic Cx2s till I can put the parts together.
Or you could try a couple of internal-cam skewers and see if you still have a problem before going to the time and expense of a new wheelset.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 07-09-16, 12:31 AM
  #17
Ranger63
Senior Member
Thread Starter

Ranger63's Avatar

Join Date: Apr 2007
Location: western new york
Posts: 720

Bikes: mid 80s Ross Centaur converted to Alfine 11 09 motobecane imortal force, 83 Ross Paragon,81 Schwinn LeTour Tourist, 91 Paramount, 93 GT converted to city bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The first 'fix' I went for was an internal cam QR. and it was tightened so a impression was left on the palm when closing
I also tried substituting star washers for the missing knurled nuts
Dialed in the adjusting screws which I figured would provide a stop
First series of hard strokes from a stop and the wheel had moved. (I made up a spacer so it would be easy to check on the space between tire and chainstay.
I reinstalled the old school knurled nut Mavic Cxp 22s, took the bike out and did out of the saddle climbs on the bike...not a smidge of movement.
Apparently those nuts are just thick enough to provide a measure of equal tension on either side of the dropout.

Last edited by Ranger63; 07-09-16 at 12:36 AM.
Ranger63 is offline
Old 07-10-16, 12:35 PM
  #18
Ranger63
Senior Member
Thread Starter

Ranger63's Avatar

Join Date: Apr 2007
Location: western new york
Posts: 720

Bikes: mid 80s Ross Centaur converted to Alfine 11 09 motobecane imortal force, 83 Ross Paragon,81 Schwinn LeTour Tourist, 91 Paramount, 93 GT converted to city bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hubs are ritchey Zeros
However; having had two high end LBS go thru their stock of modern (stuff from 2000 on) wheelsets, nothing they had that was compatible with the vertical dropout had the needed knurled nut and nothing they had in stock with the knurled nut came in less than 32 spoke setups.
Ranger63 is offline
Old 07-10-16, 04:57 PM
  #19
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Posts: 4,306
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 347 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Shimano wheelset and Mavic wheelsets don't slip in my frame's horizontal dropouts, the Shimano is 24 spoke and the Mavic is 20 spoke.
Mr IGH is offline
Old 07-11-16, 04:04 AM
  #20
Ranger63
Senior Member
Thread Starter

Ranger63's Avatar

Join Date: Apr 2007
Location: western new york
Posts: 720

Bikes: mid 80s Ross Centaur converted to Alfine 11 09 motobecane imortal force, 83 Ross Paragon,81 Schwinn LeTour Tourist, 91 Paramount, 93 GT converted to city bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Re: Shimano and Mavic wheelsets.
If they don't have the knurled nuts on the hubs I'd say you lucked out.
Ranger63 is offline
Old 07-11-16, 07:34 AM
  #21
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,331

Bikes: Klein, Merckx, Trek

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 3049 Post(s)
Liked 1,086 Times in 622 Posts
Originally Posted by Mr IGH View Post
Shimano wheelset and Mavic wheelsets don't slip in my frame's horizontal dropouts, the Shimano is 24 spoke and the Mavic is 20 spoke.
Perhaps you lack Ranger's
torque-producing power.
DiabloScott is offline
Old 07-11-16, 07:58 AM
  #22
joejack951
Senior Member

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 12,067

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1227 Post(s)
Liked 70 Times in 50 Posts
Originally Posted by Ranger63 View Post
The first 'fix' I went for was an internal cam QR. and it was tightened so a impression was left on the palm when closing
How about trying tightening it with some real force? Forget the 'impression on the hand' approach. Have the skewer lever open 90 degrees and tighten the nut on the other side as much as you can by hand first. Now close the lever. Any improvement?
joejack951 is offline
Old 07-11-16, 08:31 AM
  #23
corrado33
Senior Member

Join Date: Jun 2013
Location: Bozeman
Posts: 4,094

Bikes: 199? Landshark Roadshark, 198? Mondonico Diamond, 1987 Panasonic DX-5000, 1987 Bianchi Limited, Univega... Chrome..., 1989 Schwinn Woodlands, Motobecane USA Record, Raleigh Tokul 2

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1130 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ranger63 View Post
I painfully (62 miles of a rear wheel which refused to stay centered in the dropouts)discovered modern wheelsets (used in vertical dropout applications) don't seem to come with the knurled nuts on either side of the hub. Without em, the wheel simply cannot be locked into horizontal dropout applications.
Anyone know of modern (ala 24/20 spoke) wheelsets that come with the knurled nuts on em?
I gave hardware style star washers a try (hey...the dropouts paint was chewed off by then anyway)with very marginal success.
Few different things you can do, even without the knurling.

Surly monkey nuts.


Or any sort of horizontal dropout chain tensioner.
Surly Tugnuts

https://surlybikes.com/parts/drivetrain/tuggnut


DMR Chain Tugs, 10mm - Pair in Tree Fort Bikes Axle/Chain Tensioner

These products are made to prevent rear wheels from slipping via mechanical means.

EDIT: Apologies for all of the surly content, honestly they were just the first thing that came up when I googled horizontal dropout chain tensioner. And they seem to be highly regarded on other SS forums.

Last edited by corrado33; 07-11-16 at 08:35 AM.
corrado33 is offline
Old 07-11-16, 08:56 AM
  #24
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,958

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 3122 Post(s)
Liked 1,245 Times in 834 Posts
Originally Posted by Ranger63 View Post
The first 'fix' I went for was an internal cam QR. and it was tightened so a impression was left on the palm when closing
I also tried substituting star washers for the missing knurled nuts
Dialed in the adjusting screws which I figured would provide a stop
First series of hard strokes from a stop and the wheel had moved. (I made up a spacer so it would be easy to check on the space between tire and chainstay.
I reinstalled the old school knurled nut Mavic Cxp 22s, took the bike out and did out of the saddle climbs on the bike...not a smidge of movement.
Apparently those nuts are just thick enough to provide a measure of equal tension on either side of the dropout.
I don't trust the results with the star washers -- did you try a test with the internal-cam skewer, but no star washers or spacers?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 07-11-16, 08:58 AM
  #25
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,896

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5273 Post(s)
Liked 1,915 Times in 1,255 Posts
Originally Posted by diabloscott View Post
when vertical dropouts became the standard, quick releases also went to external cam. Horizontal dropouts work better with internal cams like duraace - try just changing skewers on your existing wheels.

+ 1.
bikemig is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
