Suntour Power Shift Lever Issue

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Suntour Power Shift Lever Issue

Old 07-20-16, 01:43 PM
  #1
EamonPVD
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Suntour Power Shift Lever Issue

Hey All! I've got a problem with these Suntour Power Shift levers.

SunTour parts catalog (1976)

When I engage them to shift they ratchet right back into neutral position. every time. Anyone had any similar issues or know how to fix the problem?

Many thanks!
EamonPVD is offline
Old 07-20-16, 01:53 PM
  #2
2lo8
Senior Member

Join Date: Jun 2016
Posts: 628
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm guessing either the mechanism isn't working as intended and the ratchet is slipping, or something is backwards.

You're supposed hear the ratchet when pulling against the spring. The spring in the derailer shouldn't be able to make ratchet sounds. Pulling on the cable from the derailer side should not result in ratchet noises, the ratchet should be engaged and the cable acting against friction.
2lo8 is offline
Old 07-20-16, 02:03 PM
  #3
EamonPVD
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi! Yea the derailleur is not making the ratcheting noises. When I engage the levers to shift gears, they (the levers) are just ratcheting back to neutral.
EamonPVD is offline
Old 07-20-16, 02:08 PM
  #4
2lo8
Senior Member

Join Date: Jun 2016
Posts: 628
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is it the derailer spring pulling on the cable, and pulling the shifter causing the ratcheting noise?

Basically, when you let go of the shifter, the shifter doesn't stay there and makes ratcheting noises when it moves after you let go?

These shifters are designed to only make ratcheting noises when your hands are moving the lever.
2lo8 is offline
Old 07-20-16, 02:47 PM
  #5
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,818

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 632 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is the lever slipping smoothly or ratcheting back?

If they're slipping smoothly, there may not be enough friction in the shift mechanism. There needs to be sufficient friction to overcome the derailleur's return spring. If the derailleur's return spring wins that tug o' war, the shifter slips. To add friction and prevent the shift lever from slipping, tighten screw #16 in the diagram a little bit. If adding a bit of friction by tightening the screw doesn't fix the problem, the shifters may be assembled incorrectly or damaged.

If the shifters are ratcheting backward, I suspect something might not be assembled correctly.
SkyDog75 is offline
Old 07-20-16, 03:18 PM
  #6
EamonPVD
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
okay! so yes! the previous owner had reassembled the levers on the wrong sides of the clamp which is why they were slipping when actuated and ratcheting in the wrong direction! thanks all.
EamonPVD is offline
Old 03-19-19, 03:18 PM
  #7
SquireBlack
Member

SquireBlack's Avatar

Join Date: Apr 2018
Location: Portland, Oregon, USA
Posts: 46

Bikes: '66 Lygie, '02 Rivendell Atlantis, '03 Air Friday, '17 Raleigh Willard

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

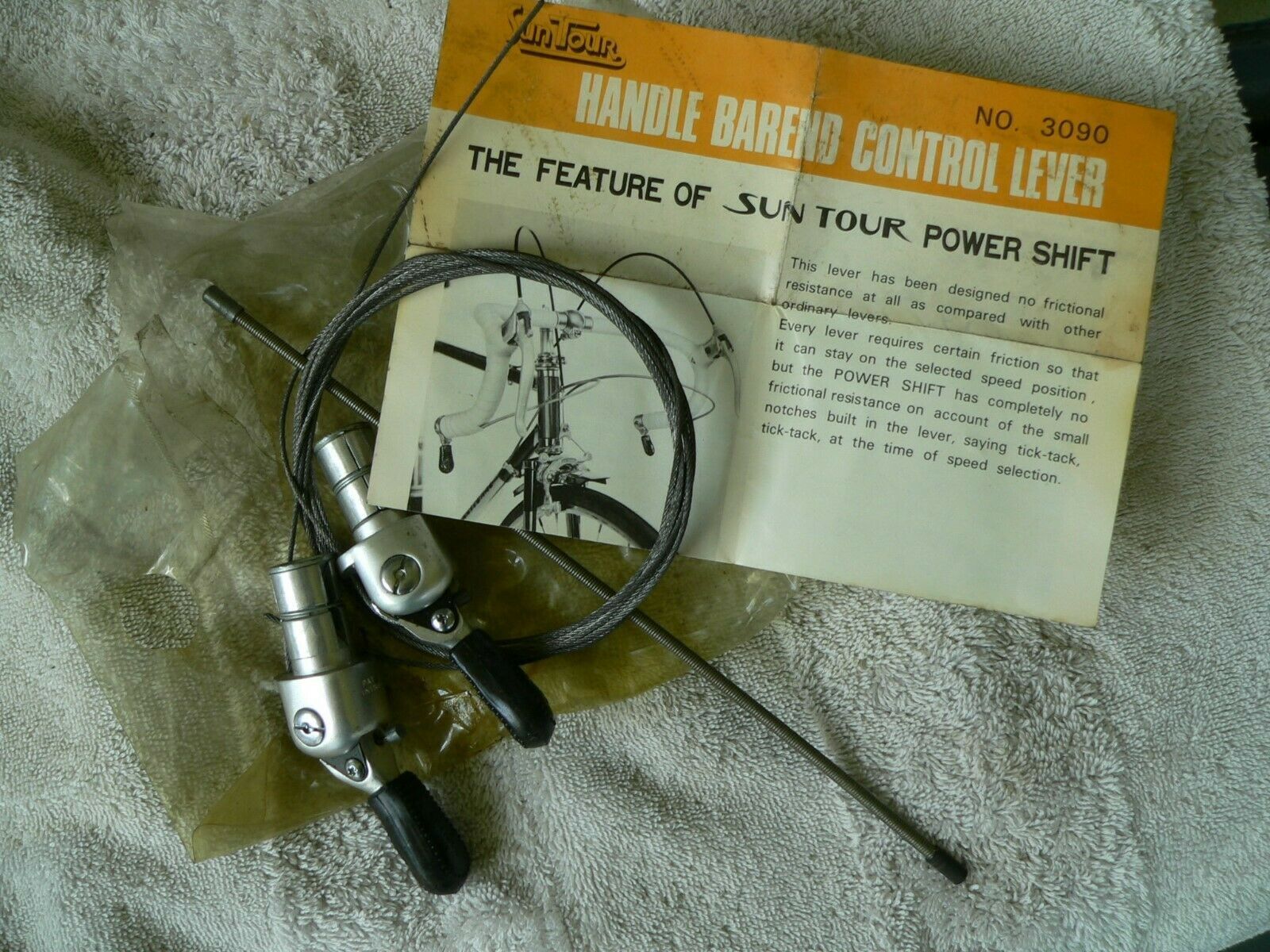

I've just bought what seem to be a set of NOS bar-end Power Shift levers. They were seized with the dried-out grease.



When I clean and re-assemble them, what should be lubricated, ad what should not be lubriucated?

Is there someone here who would want the original galvanized shifter cables? I'm planning on using modern stainless steel cables.
SquireBlack is offline
Old 03-20-19, 06:56 AM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,150

Bikes: Several, mostly not name brands.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1584 Post(s)
Likes: 0
Liked 1 Time in 1 Post
It's not entirely clear what the problem is. If the lever is slipping, you need to tighten the tension bolt (#16 in the illustration):



If it's something else, try to explain more clearly.
JohnDThompson is offline
Old 03-21-19, 09:32 PM
  #9
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,882
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by SquireBlack View Post
I've just bought what seem to be a set of NOS bar-end Power Shift levers. They were seized with the dried-out grease.

When I clean and re-assemble them, what should be lubricated, ad what should not be lubriucated?

Is there someone here who would want the original galvanized shifter cables? I'm planning on using modern stainless steel cables.
If you're going to post something like this, you should start your own thread. Replying to 3-year-old threads makes things very confusing.

I would put a little light grease on the ratchet mechanism and some heavier grease on the threads and wedges of the expanding clamp.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
