Schwinn Super Sport BB cable guide?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Schwinn Super Sport BB cable guide?

Old 10-22-16, 10:32 PM
  #1
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Schwinn Super Sport BB cable guide?

Hey bike gurus! I'm a newbie on BF so I hope I posted this thread in the correct location. Dear honorable vintage bicycle mechanics! Looking for expertise on how an original 1987 Schwinn Super Sport BB CABLE GUIDE SHOULD LOOK. I've included a pic of the bike I looked at but turned it down due to the questionable BB issue. Seller was asking $180. Is this a repairable problem? Or, did the bike not have any cable guides originally?


Last edited by danarello; 11-14-16 at 11:24 PM. Reason: add photo
danarello is offline
Old 10-23-16, 04:28 AM
  #2
Greenfieldja
Senior Member

Join Date: Aug 2007
Location: Belgium
Posts: 1,032
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
It was not uncommon in the 80's and prior for bikes to not have a bottom bracket cable guide other than a groove in the metal of the bottom bracket shell.

Should you desire to install a plastic cable guide one can be retro-fitted by using epoxy, double stick foam tape, or you can drill and tap the bottom bracket shell to accept a small screw to hold the plastic guide in place.

-j
Greenfieldja is offline
Old 10-23-16, 05:49 AM
  #3
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,177

Bikes: I'd rather not count how many, thank you

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
No pic in your original posting for us to see, but an '87 SS would have had a gray colored plastic guide attached to the outside bottom of the BB with a single short Phillips head screw.


I don't have an original one at hand, but do have a couple Shimano replacement ones, you can have one for the cost of postage. rccardr@cox.net if interested.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 10-23-16, 07:45 AM
  #4
Slash5
Senior Member

Join Date: Feb 2014
Location: Southern Ontario
Posts: 1,890
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
If it's the plastic guide then LBS will have them for a couple of dollars.
Slash5 is offline
Old 10-23-16, 08:37 AM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,347

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
By 1987 many bikes had gone to under the shell guides. Where the chainstay stop is located tells you in the BB guide is above or below the shell. If below what others have said is the way. If the chainstay stop is above the stay then the Bb guide(s) need to also be above. Typically a chrome steel clamp around band. These can have a casing stop (or two) or a inner only guide (or two) or one of each, depending on the front der's cable handling. As always the lack of data prevents complete answers, PHOTO. Andy.
Andrew R Stewart is offline
Old 10-31-16, 12:55 PM
  #6
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)

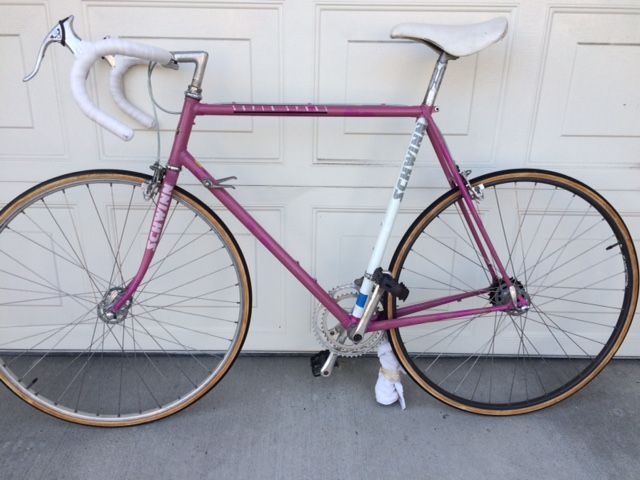

Here is a pic! Sorry for delay.I really liked the bike but was worried about the cables rubbing against the BB shell.If its an easy fix I'm buying the bike! Seller is asking $180
danarello is offline
Old 10-31-16, 02:11 PM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,347

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
d- While the photo isn't bad to get a general idea as to the bike's size and color it's lacking in any detail WRT the under BB guide issues. Can you flip the bike over and get a close up of the questioned area? Andy
Andrew R Stewart is offline
Old 11-10-16, 10:23 PM
  #8
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
I'm trying to include a photo of the underside of the BB shell of the Schwinn Super Sport which is still available on CL. Unfortunately, I took a picture with my iphone and sent to my email, then save it to my computer. I can't figure out how to post it on this thread. Basically, the cables just wrap around the BB shell. there should be a plastic cable guide under there but it is missing. There is a small hole in the bottom bracket. It doesn't look like it is threaded.
danarello is offline
Old 11-10-16, 11:23 PM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,347

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
Some of the plastic shell guides have a stud or plug that fits into a smooth hole. Very few production bikes had their cables running on bare shells due to the paint damage. Those that did had some form of cable retention, tunnel or loop to keep the cable running along a set path. Missing any of these suggests that a plastic guide is also missing. But the solution or experiment is pretty low cost. try a plastic guide. Andy.
Andrew R Stewart is offline
Old 11-14-16, 07:41 AM
  #10
rydabent
Senior Member

Join Date: Apr 2010
Location: Lincoln Ne
Posts: 7,464

Bikes: RANS Stratus TerraTrike Tour II

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1286 Post(s)
Originally Posted by Greenfieldja View Post
It was not uncommon in the 80's and prior for bikes to not have a bottom bracket cable guide other than a groove in the metal of the bottom bracket shell.

Should you desire to install a plastic cable guide one can be retro-fitted by using epoxy, double stick foam tape, or you can drill and tap the bottom bracket shell to accept a small screw to hold the plastic guide in place.

-j
This is the correct answer.
rydabent is offline
Old 11-14-16, 11:20 PM
  #11
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
87 Schwinn SS

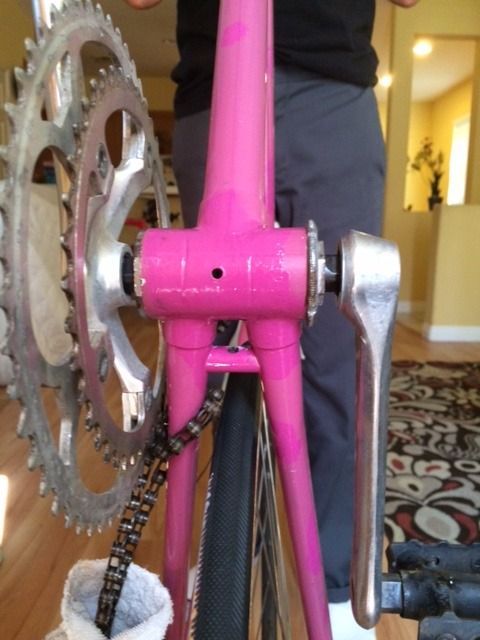

I hope this images copies ok. this photo, if it is there is worth a thousand words. This is my problem that I need to remedy. Photo shows the underside of bottom bracket shell where cable guide is missing.

PS You gotta love the Miami Vice pink/magenta paint!

Last edited by danarello; 11-14-16 at 11:23 PM. Reason: Just for fun
danarello is offline
Old 11-14-16, 11:24 PM
  #12
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,879
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 401 Post(s)
Still no image, but this is probably what you need:

__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 11-14-16, 11:43 PM
  #13
well biked
biked well

well biked's Avatar

Join Date: Jul 2005
Posts: 7,249
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
The 87 Schwinn Super Sport does have the shift cables running under the bb shell, not on top. As already stated in the thread, there are a few ways to install a plastic guide if need be.
well biked is offline
Old 11-14-16, 11:49 PM
  #14
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Required Photo finally available

Originally Posted by Andrew R Stewart View Post
d- While the photo isn't bad to get a general idea as to the bike's size and color it's lacking in any detail WRT the under BB guide issues. Can you flip the bike over and get a close up of the questioned area? Andy

danarello is offline
Old 11-14-16, 11:51 PM
  #15
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
bingo! thank you!
danarello is offline
Old 11-15-16, 08:26 PM
  #16
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Schwinn SS BB CABLE GUIDE in question

I think I have a good picture of the issue. I would like to buy a cable guide for this bike I am planning on purchasing next week. Any advice would be appreciated.

danarello is offline
Old 11-15-16, 08:28 PM
  #17
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Done. I posted the pic on this thread. Thanks
danarello is offline
Old 07-16-17, 07:59 PM
  #18
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
1987 Schwinn super Sport BB cable guide

From a reliable source I think the cable guide originally was metal with a screw that attaches to the bottom of the BB shell. the plastic one I was given by Doc was too big to fit into the hole.






danarello is offline
Old 07-16-17, 09:23 PM
  #19
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
87 schwinn BB cable guide

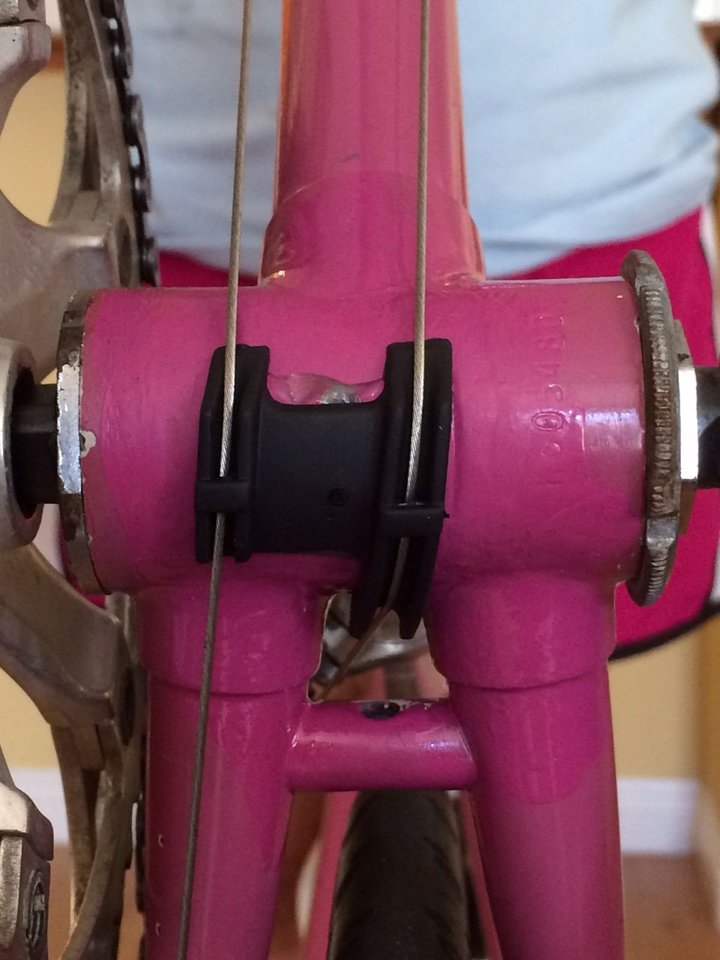

Here is another pic after paint touch up.

danarello is offline
Old 07-04-18, 04:52 PM
  #20
danarello
Senior Member
Thread Starter

danarello's Avatar

Join Date: Sep 2016
Location: Southern California
Posts: 170

Bikes: 2013 Pinarello FPQuattro Ultegra; 1987 Schwinn Super Sport; 1989 Schwinn Tempo

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
BB shell cable guide problem solved!

Thank you Doc for the cable guide. I did end up grinding the plastic insert off and used 2-sided sticky

Works great.
tape to attach it to the underside of the BB shell.
danarello is offline
