Kinked cable inside Shimano ST-M050 shifter

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Kinked cable inside Shimano ST-M050 shifter

Old 11-22-16, 11:08 PM
  #1
canklecat
Me duelen las nalgas
Thread Starter

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,988

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 4256 Post(s)
Liked 2,205 Times in 1,423 Posts
Kinked cable inside Shimano ST-M050 shifter

For the past few weeks I've been experiencing glitches downshifting the front derailer on the triple chain ring of my 1992 Univega. The upshift was fine, but on the downshift it would skip over the middle chainring en route from the largest to smallest.

First I cleaned the shifter by removing the dust cap and using some WD-40 and mineral spirits to clean out any congealed older lubes. The pawl seemed to move snappily and the sear surfaces were clean. With the cable de-tensioned the shifter seemed to function properly.

But the glitch continued.

So I removed the cable from the front derailer and redid all the usual adjusments from scratch. But the original cable position in the clamp and high/low limit settings all appeared to be appropriate.

And the glitch continued.

I finally pulled the cable from the housings and shifter to clean everything up and noticed a kink in the cable about an inch or so from the cable end stop. The kink was hidden inside the shifter. I tried to straighten the kink enough to get through a ride Sunday but the same shifting problem persisted.

At this point I'm assuming the kink is causing the problem. I would have thought the front derailer spring tension was enough to yank the cable past a slight kink but apparently not. So my next step is to replace the old cable and cable housing.

But before I replace it, can you think of any way the cable could have become kinked inside the shifter in normal installation and operation? I want to avoid this happening again. I have no idea who worked on the bike before -- I've had it only three months -- so I don't know whether this kink occurred sometime during normal operation of the bike or whether a DIY handyperson might have made a mistake.

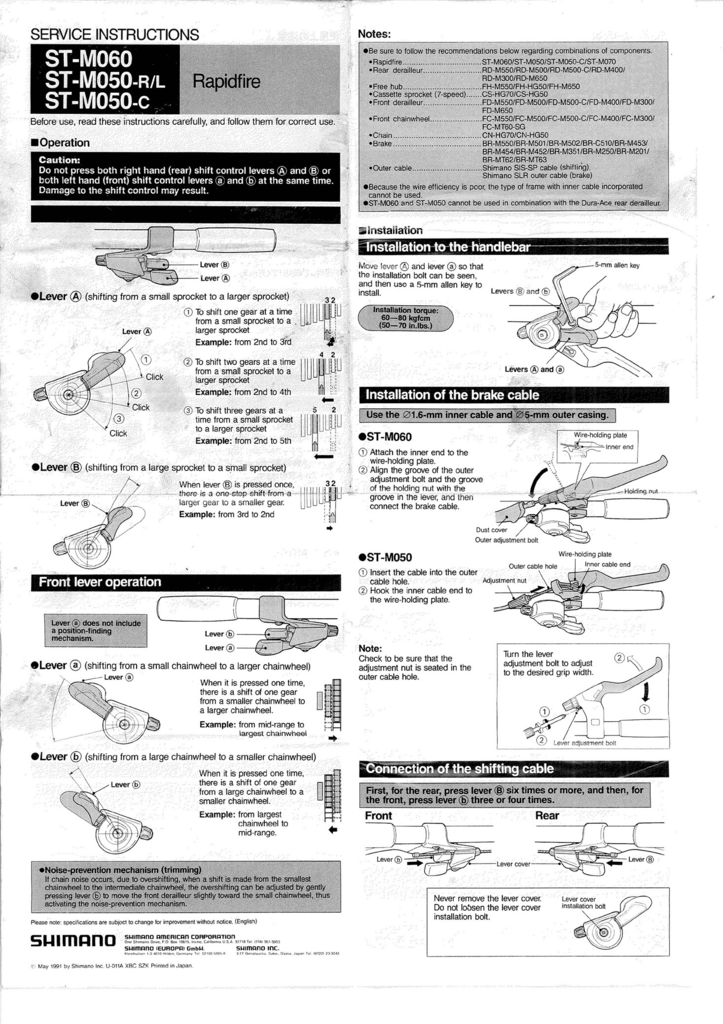

Here's a diagram of the shifter.
