Merlin Pressed-In (pressfit?) bottom bracket

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Merlin Pressed-In (pressfit?) bottom bracket

Reply

Old 03-03-17, 08:34 AM
  #1
VintageDude
Senior Member
Thread Starter

VintageDude's Avatar

Join Date: Jun 2012
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Merlin Pressed-In (pressfit?) bottom bracket

Hi folks - I have an eye on a nice, early Merlin titanium road bike in my size that has a pressed-in bottom bracket.

What I'd like to know is whether I should avoid this bike due to that BB or if that BB type is serviceable and isn't considered a real liability. At this point, the BB runs smooth and there's no play in it. Do they simply loosen over time/miles?

Any info on these would be really appreciated.

I'm aware of the costs of switching out the BB shell for a threaded one and that isn't something I'm interested in.

Thank you!

VintageDude is offline
Reply With Quote
Old 03-03-17, 09:11 AM
  #2
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,239
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Think you need to do some research on costs before you buy the bike, the early pressed in BB sounded interesting, and a quick Google search bought this thread up from here http://www.bikeforums.net/bicycle-me...placement.html it's only a couple of years old, so should still be relevant.

Thinking what it will do, is severely limit you to the choice of cranks you can put on it, so would be aware of that.
jimc101 is offline
Reply With Quote
Old 03-03-17, 09:26 AM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 9,709

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1116 Post(s)
Agree that future crank replacement will be the real potential limit with this BB. As to retaining the current crank that's no problem These BBs used common radial contact cartridge bearings that were pressed in (don't remember if they were also located by retainer rings or retaining compound but these are just another hurdle to get over) and can be serviced/replaced by qualified/experienced people with little real concerns.


My Burley tandem used much the same set up and I replaced those bearings before with acceptable results a few times (I sold Burley for many years and did this on a few bikes). Really it's the spindle that controls the situation. Andy.
Andrew R Stewart is offline
Reply With Quote
Old 03-03-17, 10:13 AM
  #4
VintageDude
Senior Member
Thread Starter

VintageDude's Avatar

Join Date: Jun 2012
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
They still accept any square taper crankset though, right? Just nothing beyond that? Thanks.
VintageDude is offline
Reply With Quote
Old 03-03-17, 10:25 AM
  #5
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 34,273

Bikes: 8

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 4705 Post(s)
Measure, I see no dimensions... as to what is the size of the bearing it is that fits.

is there a snap ring? a pressed in BB can be pressed out also,
with an Arbor press

There are 17mm BB axles from Phil Wood , Chromo-stainless or Ti,
a 17mm ID bearing and a sleeve over the axle between those bearings,
presses into that BB shell , and there is your new BB..


...

Last edited by fietsbob; 07-12-18 at 10:34 AM.
fietsbob is online now
Reply With Quote
Old 03-03-17, 01:15 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 9,709

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1116 Post(s)
Originally Posted by fietsbob View Post
Measure, I see no dimensions... as to what is the sze of the bearing it is that fits.


When the time to replace the bearings comes the "size" will be labeled on the "rubber" seal. (as example 6802 or 6001). Andy
Andrew R Stewart is offline
Reply With Quote
Old 03-03-17, 01:20 PM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 34,273

Bikes: 8

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 4705 Post(s)
Nobody starts off with dimensions when they post, it seems.
fietsbob is online now
Reply With Quote
Old 03-03-17, 01:25 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 9,709

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1116 Post(s)
Originally Posted by fietsbob View Post
Nobody starts off with dimensions when they post, it seems.

I completely agree and I suspect both an ignorance and assumption (that all info is on line) leads many to neglect info. I made a comparison to asking a Dr for help but not telling them detail...


But in this case the OP wasn't looking for bearing replacement help. He was trying to understand the options he has (or more in this case the options he doesn't have). I have no problem with the data he supplied for the question he asked. Andy
Andrew R Stewart is offline
Reply With Quote
Old 03-03-17, 01:35 PM
  #9
VintageDude
Senior Member
Thread Starter

VintageDude's Avatar

Join Date: Jun 2012
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
People - be nice please. As I stated in my initial post, "Hi folks - I have an eye on a nice, early Merlin titanium road bike in my size that has a pressed-in bottom bracket." I didn't say I had the bike in my possession. What I'm really looking for are people who have owned Merlin road bikes or similar (Klein is another good example with the pressed in BB from early 90s) and if they would recommend steering clear of these because they come loose over time and their repair/replace/adjustment is more pain that it's worth, OR... if the BBs are reliable and there really isn't a strong history of chronic problems with them. Thanks again.
VintageDude is offline
Reply With Quote
Old 03-03-17, 01:45 PM
  #10
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 9,709

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1116 Post(s)
VD- I thought I was being non judgmental in my replies. Sorry if I wasn't


I haven't owned a Merlin but have serviced many over the years including some with the press fitted BB. (So to with some early Fishers and the tandem work I already mentioned). None of these suffered any issues unique to the design or assembly. All have had wear and age/exposure in time. Exactly what you would expect/suspect in a well done system.


It was only when the bearings finally did need replacement that the non typical assembly required other the usual methods of service. Not really hard just not common process and tools. Which is why many shops these days that are looking at volume in their service dept. might shy away from this work.




This says nothing about the products (but a lot about some shops focus).


So to recap, in my experience these Bb prove to be very reliable and long lasting but are just steel and "rubber" and suffer the same wear in time that all Bbs do. As long as you're happy with the current crank I see no reason to not consider this bike. Andy.
Andrew R Stewart is offline
Reply With Quote
Old 03-03-17, 01:48 PM
  #11
andr0id
Senior Member

andr0id's Avatar

Join Date: Feb 2009
Posts: 2,526
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1419 Post(s)
A friend bought one of these frames about a year ago. I'm pretty sure he had the bearing serviced after he got it.
It's perfectly fine as long as you're willing to stay retro and run square taper cranks. This is just one of my friends many bikes, so he is cool with that, he has a newer Trek with fancy 11 speed stuff on it.
andr0id is offline
Reply With Quote
Old 03-03-17, 03:40 PM
  #12
VintageDude
Senior Member
Thread Starter

VintageDude's Avatar

Join Date: Jun 2012
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Andrew - You were non-judgmental, no problems at all. Thank you for your help - much appreciated.
VintageDude is offline
Reply With Quote
Old 03-05-17, 03:53 AM
  #13
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 7,594

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
It occurs to me it should be possible to have external bearing cups machined so it can take a Hollowtech, GXP, or Ultra/PowerTorque crank.

Certainly a lot cheaper than replacing the BB shell.
Kimmo is offline
Reply With Quote
Old 08-08-17, 12:17 PM
  #14
tamnalan
Junior Member

Join Date: Aug 2017
Location: Dayton OH
Posts: 16

Bikes: BF Pakit, Early 90s Merlin road bike, some old Cannondales & Fuji road bikes

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
I have a '92 Merlin road bike with a Grease Guard bottom bracket. I bought the frame new, I've put a ton of miles on it and I still love it. That bottom bracket is easily serviced and the frame has a lovely ride, particularly if you're into longer distance stuff. The only downside is the bottom bracket's square taper design I suppose. My frame has straight gauge tubing -- it's not the extralight.


I remember being a little nervous about that bottom bracket design when I bought the frame, but it's been fine. It comes apart with typical home garage shop tools and the bearings are easy to find.

Last edited by tamnalan; 08-08-17 at 12:26 PM.
tamnalan is offline
Reply With Quote
Old 08-08-17, 12:32 PM
  #15
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 34,273

Bikes: 8

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 4705 Post(s)
Car drivetrain has lots of press fit cartridge bearings.

Grease guard is patented.. Sun tour paid a fee to use it, but they went out of business.
Nobody else approached the patent holders, since.
fietsbob is online now
Reply With Quote
Old 08-08-17, 06:45 PM
  #16
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 30,904

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 933 Post(s)
Phil Wood sells outboard bearing bottom brackets that acccept Shimano Hollowtech II cranks and they have a "press fit" model specifically as a retrofit for older Klein frames but say any frame that use press fit 6003 bearings can also accept it. Check it out.

Last edited by HillRider; 08-10-17 at 08:28 AM.
HillRider is offline
Reply With Quote
Old 08-10-17, 08:19 AM
  #17
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 9,709

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1116 Post(s)
Originally Posted by HillRider View Post
Phil Wood sells outboard bearing bottom brackets that except Shimano Hollowtech II cranks and they have a "press fit" model specifically as a retrofit for older Klein frames but say any frame that use press fit 6003 bearings can also accept it. Check it out.

I learned something new, thanks. Leave it to Phil! Andy
Andrew R Stewart is offline
Reply With Quote
Old 07-11-18, 04:15 AM
  #18
Patriot1
Retired loving & Life!

Patriot1's Avatar

Join Date: Feb 2018
Location: Western NC
Posts: 328

Bikes: (1) 1986 Schwinn Peloton, 2 Trek 920’s, (2) Giant Sedonas

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Originally Posted by tamnalan View Post
I have a '92 Merlin road bike with a Grease Guard bottom bracket. I bought the frame new, I've put a ton of miles on it and I still love it. That bottom bracket is easily serviced and the frame has a lovely ride, particularly if you're into longer distance stuff. The only downside is the bottom bracket's square taper design I suppose. My frame has straight gauge tubing -- it's not the extralight.


I remember being a little nervous about that bottom bracket design when I bought the frame, but it's been fine. It comes apart with typical home garage shop tools and the bearings are easy to find.

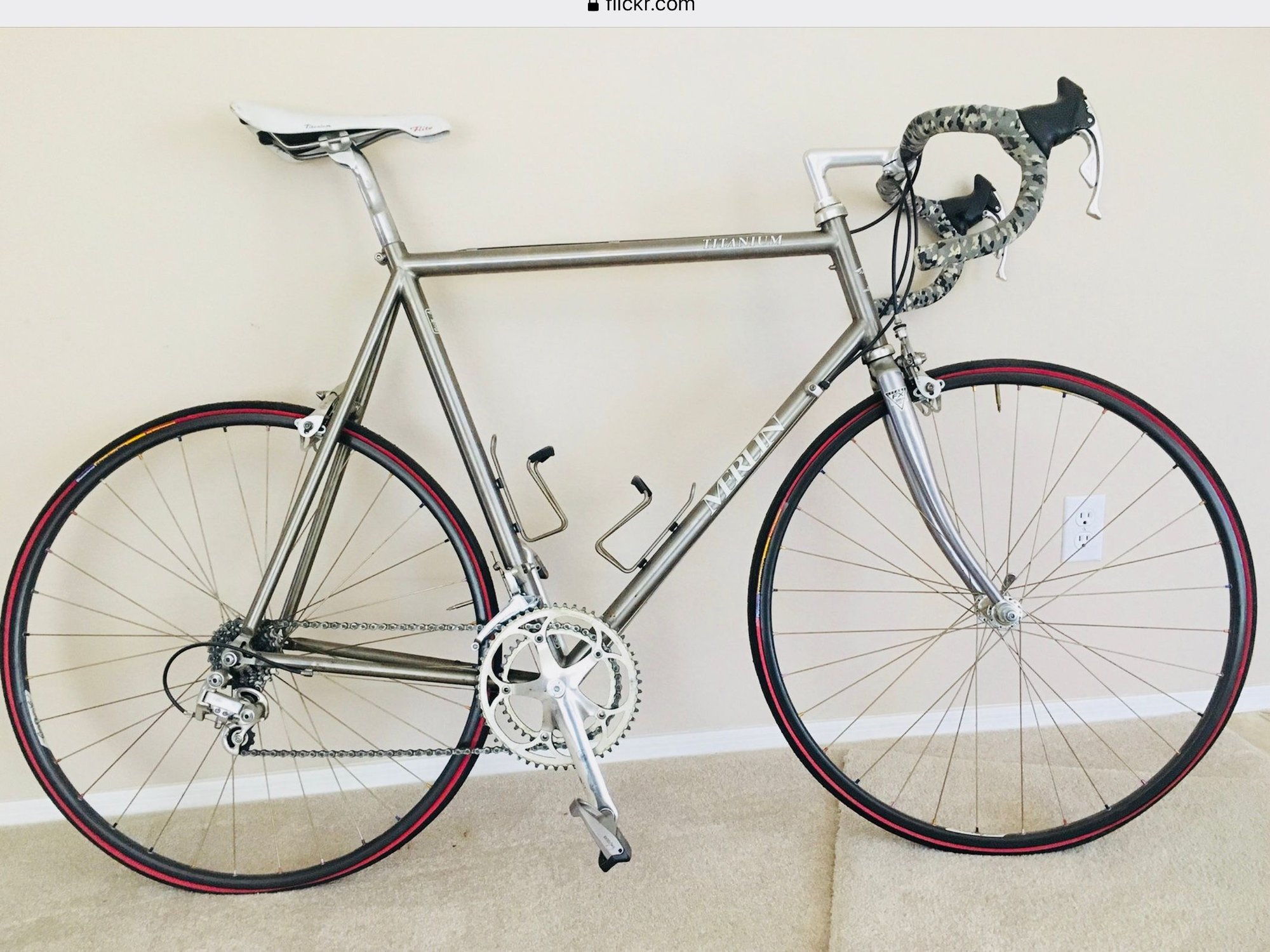

I just scooped up this 1992 61cm Merlin Road in what what the owner described as less than 200 miles and in perfect conditon.
I sent you a PM and look forward to discussing this new to me Merlin Ti. It’s nice to know from someone who actually owns a Merlin Road that IF I need to replace the BB bearings it’s not that big a deal.


61 cm 1992 Merlin Road







__________________








“The Lord will fight for you, you need only to be still” Exodus 14:14

Last edited by Patriot1; 07-11-18 at 04:48 AM.
Patriot1 is offline
Reply With Quote
Old 07-11-18, 08:45 AM
  #19
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 4,186

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Welcome to Merlin Metalworks

https://www.wtb.com/blogs/wtb/154264...bottom-bracket
dedhed is offline
Reply With Quote
Old 07-12-18, 06:26 AM
  #20
Patriot1
Retired loving & Life!

Patriot1's Avatar

Join Date: Feb 2018
Location: Western NC
Posts: 328

Bikes: (1) 1986 Schwinn Peloton, 2 Trek 920’s, (2) Giant Sedonas

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Thank you! Hopefully I won’t need to replace the BB, but if so this will help for sure!
__________________








“The Lord will fight for you, you need only to be still” Exodus 14:14
Patriot1 is offline
Reply With Quote
Old 07-12-18, 10:46 AM
  #21
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 34,273

Bikes: 8

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 4705 Post(s)
I edited 5th post above.. I have a a One Off Touring bike ,
snap ring BB shell , for a pressed in BB, (gentile tap with a soft face mallet )

frame part, came from Burly Tandem , Stoker end...
it has only 1 hole in the shell between the bearings
and that has a Zirk grease nipple in it....

Shell, a sleeve with Grooves in the inside edges for a snap ring ..
the BB, would be reasonable to replace if needed..

One just may need a visit to a shop with the press...
to press the old BB bearing assembly out..
In my case, overcoming the loc tite..


....

Last edited by fietsbob; 07-12-18 at 12:30 PM.
fietsbob is online now
Reply With Quote
Old 07-12-18, 11:37 AM
  #22
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,627
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2133 Post(s)
Originally Posted by HillRider View Post
Phil Wood sells outboard bearing bottom brackets that acccept Shimano Hollowtech II cranks and they have a "press fit" model specifically as a retrofit for older Klein frames but say any frame that use press fit 6003 bearings can also accept it. Check it out.
Kleins used a larger diameter BB than Merlin, and no one makes a pressed in external for the small Merlin diameter. With a 24mm spindle, I don't know if there would be room for an adequately strong press sleave - it would have to be around 2mm thick.

The Merlin system works well, you can buy the bearing and get a new spindle in JIS or ISO in most any length from Phil Wood. So while you are restricted to square taper, it is really just about any square taper. I don't think it is much an issue.
Kontact is online now
Reply With Quote
Old 07-12-18, 12:15 PM
  #23
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 34,273

Bikes: 8

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 4705 Post(s)
rather than Outside, I have a sleeve as a spacer between the bearing inner races...
it slipped over the straight square taper axle..

24mm hollowtech would need a threaded bb shell .. or probably oversize..

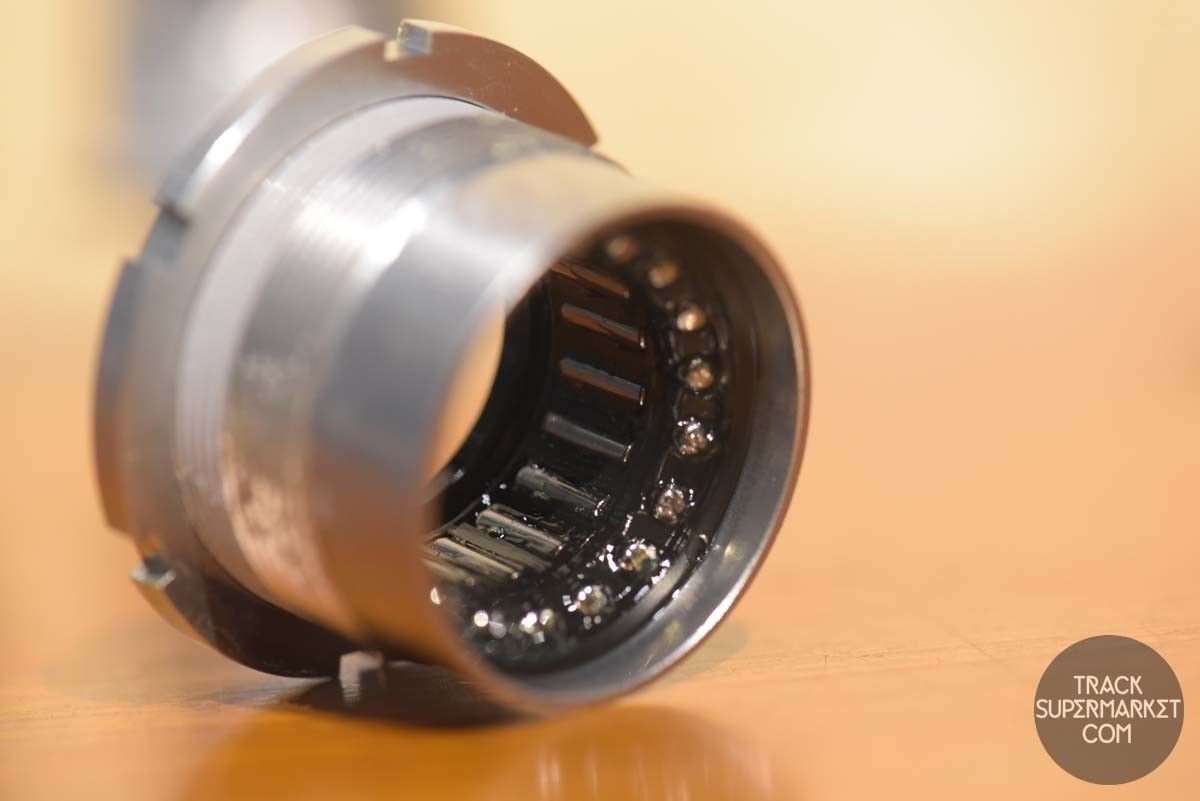

"Bullsye" Roger Durham , who held the patent for a tube spindle attached to the right crank arm ,
... to have an internal BB, used a combination of roller bearings for the loading and ball bearings for the thrust sideways .
to fit it all into a normal type of Frame..
no bearings were very large but there were a lot of them..




...

Last edited by fietsbob; 07-12-18 at 12:26 PM.
fietsbob is online now
Reply With Quote
Old 07-12-18, 01:38 PM
  #24
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,627
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2133 Post(s)
Originally Posted by fietsbob View Post
rather than Outside, I have a sleeve as a spacer between the bearing inner races...
it slipped over the straight square taper axle..


"Bullsye" Roger Durham , who held the patent for a tube spindle attached to the right crank arm ,
... to have an internal BB, used a combination of roller bearings for the loading and ball bearings for the thrust sideways .
to fit it all into a normal type of Frame..
no bearings were very large but there were a lot of them..
I don't know what the first bit means.

But the tube spindle thing is exactly how a Dura Ace Octalink tube spindle BB works.

Kontact is online now
Reply With Quote
Old 07-12-18, 02:04 PM
  #25
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 34,273

Bikes: 8

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 4705 Post(s)
yea but the patent had to lapse first.. now it's fair game..

like sun tour's patented slant pantograph Rear Derailleur design ,
now that has expired , everyone is using it..


cartridge bearings have an inner race. and an outer race.





.....

Last edited by fietsbob; 07-12-18 at 02:09 PM.
fietsbob is online now
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Terms of Service
