Going from 7SPD freewheel to cassette

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Going from 7SPD freewheel to cassette

Old 04-09-17, 04:25 PM
  #1
Pilky
Senior Member
Thread Starter

Pilky's Avatar

Join Date: Aug 2007
Location: Massachusetts
Posts: 112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Going from 7SPD freewheel to cassette

Hi all.

I am looking to purchase new wheels for my 2006 Trek 3700. I understand that this is an entry level bike and normally wouldn't wast the money but it has sentimental value so I don't mind putting money into it.

Today I replaced the 7SPD Acera rear derailleur with a 9SPD Deore and installed a new KMC Z72 7/8 SPD chain.

The bike shifts much better and road great today. The 7SPD freewheel will probably need to be changed next time around but I would like to upgrade to a cassette as I can see the axle has a slight bend to it.

I'm looking for suggestions or some direction towards a new wheelset and cassette. The current wheels are 26" Matrix 550.

Could I choose any 26" wheelset and slap on a 7SPD cassette and be good to go? I would be ok going to 8SPD if I had to but would prefer to stay with 7SPD so I don't have to change the shifters.


Pilky is offline
Old 04-09-17, 04:42 PM
  #2
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,049

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 121 Post(s)
Tagged: 1 Thread(s)
Quoted: 4342 Post(s)
Likes: 0
Liked 1 Time in 1 Post
There weren't many 7s cassette hubs out there, and I don't know if you'll find one new these days.

You can go with an 8s hub, be sure to match the axle (lock nut) width so you don't have o spread the frame. Then you can fit a 7s cassette if it's the right generation -- older 7s cassettes used a threaded outer sprocket, newer hubs have all the sprockets slide on and retain via a lockring. Of course, you'll need to fill the cassette with extra spacers.

What some people in your situation, is buy an 8s cassette, not use the outermost sprocket, respace so it indexes right, and add a spacer behind so the overall width is right. I suspect hat you'll end up going this route if you go ahead with a change to a cassette system.

Of course, moving to 8 or 9s, will entail new levers, but if you spring for the hub, you'll be ready for that change later on.

OTOH - axles are cheap, and freewheels available, so in your shoes, I'd likely stay with what I have until I were ready to jump to 9s later on.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 04-09-17, 04:50 PM
  #3
Pilky
Senior Member
Thread Starter

Pilky's Avatar

Join Date: Aug 2007
Location: Massachusetts
Posts: 112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I appreciate your reply, those are some great options.

I just ran downstairs and measured (with a standard tape measure) the rear drop outs and got 5 1/4" which I'm assuming is probably the standard 135mm spacing?

From your advice it sounds like my best bet is either to make the jump to 8SPD or just stay with the inferior 7SPD freewheel and replace the axle as needed.

I read some other posts from people asking a similar question as mine and some mentioned having to re-dish the wheel? Is this something I would have to do if I went to an 8SPD cassette?
Pilky is offline
Old 04-09-17, 05:26 PM
  #4
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,802

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked 25 Times in 22 Posts
Just shy of 135mm but close enough.
As mentioned, all you'll find is >7 speed hubs.
What you do is get a 4.5mm spacer (designed for this) and put it on before your 7 speed cassette.
Shifters match the "pull ratio" correctly.
You can probably find less expensive than these-
Wheels Manufacturing 7-Speed Cassette Spacers

IF you want to, at this time, you can go to 8 or 9 speed.
You'd need new shifters and for the 9 speed a new chain also.
Since you need a new cassette anyway, the prices aren't much different from 7>9.
I like 9 speed because it seems to have a much broader range of cog combinations vs 7 or 8.
Bill Kapaun is online now
Old 04-09-17, 05:29 PM
  #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,485

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Likes: 0
Liked 20 Times in 19 Posts
7-speed cassettes are still available from many sources, including Amazon and Harris Cyclery ( Bicycle Cassette Gear Clusters from Harris Cyclery) In fact, trying a couple of older LBS's in your area may turn up some NOS ones.

A 7-speed cassette can be fitted to any 8/9/10-speed freehub body by adding a 4.5 mm spacer either under the largest cog or between the smallest cog and the lockring. These spacers are also available from Harris among others.
HillRider is online now
Old 04-09-17, 05:37 PM
  #6
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,802

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked 25 Times in 22 Posts
Originally Posted by HillRider View Post
7-speed cassettes are still available from many sources, including Amazon and Harris Cyclery ( Bicycle Cassette Gear Clusters from Harris Cyclery) In fact, trying a couple of older LBS's in your area may turn up some NOS ones.

A 7-speed cassette can be fitted to any 8/9/10-speed freehub body by adding a 4.5 mm spacer either under the largest cog or between the smallest cog and the lockring. These spacers are also available from Harris among others.
It doesn't work that way.
Since the spacer fits over the FH body, it HAS to be larger than the lock ring.
Bill Kapaun is online now
Old 04-09-17, 05:39 PM
  #7
Pilky
Senior Member
Thread Starter

Pilky's Avatar

Join Date: Aug 2007
Location: Massachusetts
Posts: 112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This is great news!

So if I understand correctly, I can order a set of 135MM 7,8,or 9SPD wheels and either fit a 7SPD cassette with spacer or go all the way to 8 or 9SPD without one.

Will the front chain rings and derailleur care if I convert to 8 or 9SPD?
Pilky is offline
Old 04-09-17, 06:03 PM
  #8
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 471

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by Bill Kapaun View Post
It doesn't work that way.
Since the spacer fits over the FH body, it HAS to be larger than the lock ring.
No it doesn't.
blamester is offline
Old 04-09-17, 09:16 PM
  #9
sunburst
Senior Member

sunburst's Avatar

Join Date: Jan 2008
Location: NorCal - bay area
Posts: 1,569

Bikes: Giant, Trek, 6x Peugeots, Specialized, Nishiki, bike friday

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Likes: 0
Liked 1 Time in 1 Post

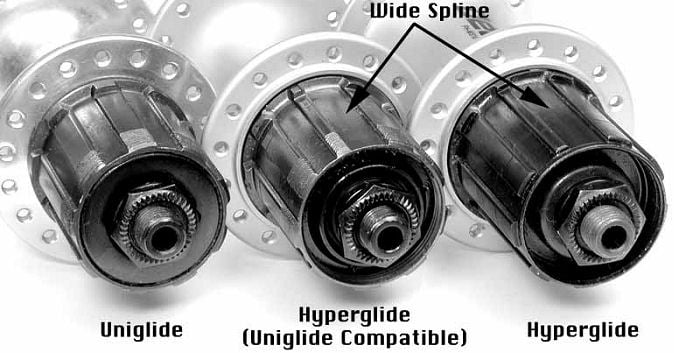

I'm new to freehubs, at least, understanding them, as I've mainly worked on freewheel bikes.

Someone gave me a couple of sets of old, used, freehub wheels. No idea the age. I've got a 7-speed cassette (from somewhere) in my spare parts bin that I had planned on using. How do I tell what speeds my freehub was designed for? Is there some dimension I can measure that indicates this? These are 130mm OLD, 700c road wheels.
sunburst is offline
Old 04-09-17, 09:27 PM
  #10
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,802

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked 25 Times in 22 Posts
Originally Posted by sunburst View Post
I'm new to freehubs, at least, understanding them, as I've mainly worked on freewheel bikes.

Someone gave me a couple of sets of old, used, freehub wheels. No idea the age. I've got a 7-speed cassette (from somewhere) in my spare parts bin that I had planned on using. How do I tell what speeds my freehub was designed for? Is there some dimension I can measure that indicates this? These are 130mm OLD, 700c road wheels.
If the cogs are sloppy loose when you tighten the lock ring, you have a >7 speed hub.
There's around 3-4mm difference in the FH body length.
Bill Kapaun is online now
Old 04-09-17, 10:05 PM
  #11
corrado33
Senior Member

Join Date: Jun 2013
Location: Bozeman
Posts: 4,135

Bikes: 199? Landshark Roadshark, 198? Mondonico Diamond, 1987 Panasonic DX-5000, 1987 Bianchi Limited, Univega... Chrome..., 1989 Schwinn Woodlands, Motobecane USA Record, Raleigh Tokul 2

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1125 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bill Kapaun View Post
It doesn't work that way.
Since the spacer fits over the FH body, it HAS to be larger than the lock ring.
Originally Posted by blamester View Post
No it doesn't.
I agree with Bill. Spacer goes first, then cassette. Plus, the lockring is supposed to mesh with the textured part of the last cog, and now what I think about it, putting the spacer last wouldn't work at all... The lockring doesn't have a long enough threaded section to accommodate a spacer. And if they meant put it between the last and 2nd to last cog, it'd throw off the indexing and the chain would fall...

Putting the spacer last would also throw off the chainline.

So for the OP, spacer goes first... then cassette, then lockring.

Last edited by corrado33; 04-09-17 at 10:08 PM.
corrado33 is offline
Old 04-09-17, 11:30 PM
  #12
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,322

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Generally you put the 4.5mm spacer first, but you don't have to. You can split the difference and run a 2.5mm, 3.0mm, etc. spacer first and fill up the rest of the space between the small cog and the lock ring with another spacer. The only reason to do this is to improve chainline and I've done it on more than I bike... typically going from a 3x to a 2x (mtb) and installing a bash ring in the large chainring spot. I did have reservations about not having the texture on the small ring, but no issues of the lock ring coming loose after I torqued it a few years ago.

For the OP. Just get any 26" rear wheel, (8-10 speed freehub) with a 135mm OLD, get the 4.5mm cassette spacer, and slap on any 7 speed cassette. Any other speed will require a shifter change. Your 9 speed derailleur will be fine with a 7 speed cassette... mine are.

John

Last edited by 70sSanO; 04-09-17 at 11:33 PM.
70sSanO is offline
Old 04-09-17, 11:41 PM
  #13
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,099

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 943 Post(s)
Liked 2 Times in 2 Posts
You could use an old sprocket from an old dissassembled cassette, or even the plastic spacers of an old cassette as a spacer - just make a combo to match about 4.5 mm.

Improved shifting, uless the old RD was worn/damaged, is probably mostly due to putting a new, not stretched chain.
Bike Gremlin is offline
Old 04-10-17, 06:46 AM
  #14
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,485

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Likes: 0
Liked 20 Times in 19 Posts
Originally Posted by Bill Kapaun View Post
It doesn't work that way.
Since the spacer fits over the FH body, it HAS to be larger than the lock ring.
It does work and I've done it that way. The spacer only has to be smaller than the smallest cog. I used it on a 13x26 7-speed cassette and it worked just fine. It won't work on an 11T small cog and perhaps not on a 12T but I've never tried it. In the past, cassettes starting with 13T cogs were common but, unfortunately, that's no longer true.

Putting the spacer outside of the cassette avoided having to remove the long pins holding the largest 6 cogs together as their heads interfered with putting the spacer behind the cassette.
HillRider is online now
Old 04-10-17, 03:57 PM
  #15
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 3,010

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by HillRider View Post
It does work and I've done it that way. The spacer only has to be smaller than the smallest cog. I used it on a 13x26 7-speed cassette and it worked just fine. It won't work on an 11T small cog and perhaps not on a 12T but I've never tried it. In the past, cassettes starting with 13T cogs were common but, unfortunately, that's no longer true.

Putting the spacer outside of the cassette avoided having to remove the long pins holding the largest 6 cogs together as their heads interfered with putting the spacer behind the cassette.
EXACTLY my experience; right down to the 7 speed 13-26 cassette.
nfmisso is online now
Old 04-10-17, 08:10 PM
  #16
Pilky
Senior Member
Thread Starter

Pilky's Avatar

Join Date: Aug 2007
Location: Massachusetts
Posts: 112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for all the help with this, everyone; I really appreciate all the responses. It's exciting to learn what I can do with this bike.


My plans for it now are to find a 26" wheelset that is equal to or better than what I have now and to make the jump to 9SPD and get new cassette, shifters, and chain.
Pilky is offline
Old 04-11-17, 08:14 AM
  #17
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,818

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 632 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
It would be easy to keep your 7-speed setup and make the move to a freehub:

1) Find an 8/9/10 speed 26" (559) wheelset. (Or if you're mechanically inclined, you can unlace your rear wheel's spokes and replace the freewheel hub with a freehub model.)

2) Pick up a 7-speed cassette. Niagara Cycle lists a bunch of 'em on their web site: 7-speed Cassettes.

3) Install the 7-speed cassette on the 8/9/10 speed hub with a 4.5 mm spacer behind it.

...but you could also make the jump to 9- or 10-speed while you're at it.
SkyDog75 is offline
Old 04-11-17, 12:59 PM
  #18
kuroba
Senior Member

kuroba's Avatar

Join Date: Sep 2015
Location: Chile
Posts: 472
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 0 Times in 0 Posts
My LBS got creative and used a spare chainring as a spacer, I have a 7sp casette on 8/9/10 hubs.

kuroba is offline
Old 04-11-17, 05:37 PM
  #19
Pilky
Senior Member
Thread Starter

Pilky's Avatar

Join Date: Aug 2007
Location: Massachusetts
Posts: 112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by kuroba View Post
My LBS got creative and used a spare chainring as a spacer, I have a 7sp casette on 8/9/10 hubs.

Attachment 559015
Very cool!


Sky,
I consider myself mechanically inclined but I'm not sure it's worth taking the time to tear these wheels down being that they're low end wheels.

I think my best bet is to upgrade the wheels to something better and while I'm at it go 8 or 9SPD.

Any advice when it comes to selecting wheels. There isn't a whole lot out there for 26" but there are some choices. I just don't know what makes a one wheel better than another.
Pilky is offline
Old 04-11-17, 10:54 PM
  #20
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,099

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 943 Post(s)
Liked 2 Times in 2 Posts
What makes a good wheel is: good hub, good spokes and nipples, good rim, well built.
I'd go with a Shimano Deore rear hub (among the most durable at a modest price), Mavic XM 117 (double walled, aluminium with steel eyelets for nipples), DT Swiss double butted spokes and DT swiss brass nipples.
All with 36 holes (and 36 spokes).
Do it properly yourself, or ask a good wheelbuilder for help, or for them to do it.
Bike Gremlin is offline
Old 04-12-17, 04:29 PM
  #21
AlexCyclistRoch
The Infractionator

AlexCyclistRoch's Avatar

Join Date: Mar 2016
Location: Rochester, NY
Posts: 2,208

Bikes: Classic road bikes: 1986 Cannondale, 1978 Trek

Mentioned: 9 Post(s)
Tagged: 1 Thread(s)
Quoted: 875 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by sunburst View Post
I'm new to freehubs, at least, understanding them, as I've mainly worked on freewheel bikes.

Someone gave me a couple of sets of old, used, freehub wheels. No idea the age. I've got a 7-speed cassette (from somewhere) in my spare parts bin that I had planned on using. How do I tell what speeds my freehub was designed for? Is there some dimension I can measure that indicates this? These are 130mm OLD, 700c road wheels.
8 speed or greater.
AlexCyclistRoch is offline
Old 04-12-17, 10:53 PM
  #22
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,099

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 943 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by AlexCyclistRoch View Post
8 speed or greater.
Freehub body height determines the number of speeds it's for. Also, grooves on the freehub body are important. There are old and new standard - uniglide and hyperglide.



For speed numbers, 7 speed ones are "shorter", only about 30 mm long from the sprocket limiter near the hub flange (the heightened part of the freehub body).
Bike Gremlin is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Mr. Beanz
Clydesdales/Athenas (200+ lb / 91+ kg)
9
03-28-11 02:55 PM
Micky T
Singlespeed & Fixed Gear
0
07-02-08 03:08 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
