Help finding pedal locknut

Old 05-24-17, 01:09 PM
  #1
Seizedpost
Bench vise user
Thread Starter

Join Date: Jul 2015
Posts: 532

Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Help finding pedal locknut

Hello all,
The local hardware store has failed to help me. I'm getting desperate.
I stripped a pedal locknut on my 1959 Maino. The old pedals measure as standard thread, they look like standard thread, and I can manage to get a standard pedal on the drive side, but can't quite coax one onto the NDS. I am riding with mismatched pedals.

The nut fits into a 7/16" wrench. It threads onto an M7 x 1.0 bolt, but an M7 x 1.0 nut does not fit the spindle. I measured the length of five threads on the spindle, peak to peak, and as near as I can tell it's around 4.4mm, making each thread .88mm, or around 29 tpi. The pedal spindle's diameter is just a hair under 7mm.

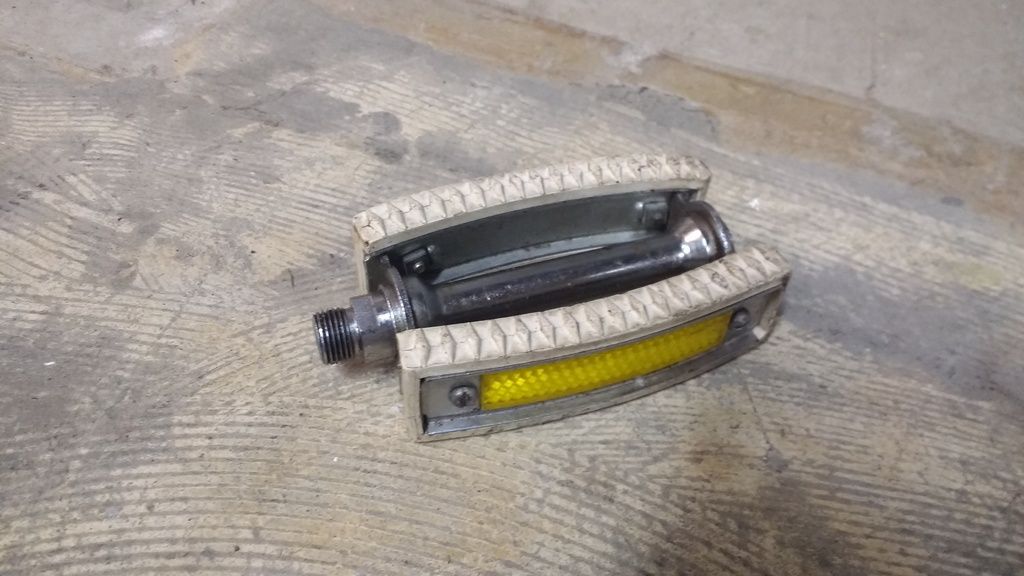

Has anyone seen a pedal like this?



Worst case, it should be easy enough to retap the crank and get any old pedals, but I need one nut! This shouldn't be so hard.
Seizedpost is offline
Old 05-24-17, 01:16 PM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,315 Times in 826 Posts
Mixed Imperial/Metric world out there .. pedal flats are 15mm on 9/16x20tpi pedals , unless its French,
then its 14mm thread

I just see a complete pedal. not missing anything.. remember 1 of the pedals is left hand thread, the other right hand.
fietsbob is offline
Old 05-24-17, 01:24 PM
  #3
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,702

Bikes: old clunker

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 102 Times in 80 Posts
Word salad. Can't tell if this is about the outer cone locknut, or about the pedal/crank interface, or something else.
AnkleWork is offline
Old 05-24-17, 01:25 PM
  #4
Seizedpost
Bench vise user
Thread Starter

Join Date: Jul 2015
Posts: 532

Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The problem is the locknut that holds the bearing cone in place. Would it help if I posted a picture of that? It's just a little thin nut.
Seizedpost is offline
Old 05-24-17, 02:20 PM
  #5
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,658

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 555 Times in 420 Posts
Originally Posted by Seizedpost View Post
The problem is the locknut that holds the bearing cone in place. Would it help if I posted a picture of that? It's just a little thin nut.
Then why would you not be able to fit the pedal to the crank if it's an internal pedal part?
Your post is very confusing.
Bill Kapaun is offline
Old 05-24-17, 02:27 PM
  #6
hueyhoolihan
Senior Member

Join Date: Dec 2010
Location: Above ground, Walnut Creek, Ca
Posts: 6,681

Bikes: 8 ss bikes, 1 5-speed touring bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
if i had a bolt and i wanted to buy a nut that fitted it, i would take the bolt (the pedal axle) to the hardware store or LBS and find a nut that fitted it.

if in the event i couldn't find a nut that fitted it, i would look for a new bolt (the pedal axle, or a pedal in this case) that could serve as a substitute.
hueyhoolihan is offline
Old 05-24-17, 02:44 PM
  #7
Seizedpost
Bench vise user
Thread Starter

Join Date: Jul 2015
Posts: 532

Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The threads on the spindle, where it attaches to the crank, are very slightly differnet from modern standard ones. This is not my main issue. It is an unnecessary detail that I should have omitted.

This is my main issue, let me start over.

I stripped a pedal locknut (the nut that keeps the bearing cone from moving) on my 1959 Maino.

The nut fits into a 7/16" wrench. It threads onto an M7 x 1.0 bolt, but an M7 x 1.0 nut does not fit the spindle. I measured the length of five threads on the spindle, peak to peak, and as near as I can tell it's around 4.4mm, making each thread .88mm, or around 29 tpi. The pedal spindle's diameter is just a hair under 7mm.
I want to replace this locknut.
Seizedpost is offline
Old 05-24-17, 02:54 PM
  #8
dperreno
Senior Member

Join Date: May 2008
Location: Beverly Hills, MI
Posts: 590

Bikes: '72 Fuji Finest, '80 Austro-Daimler Inter 10, '06 Fuji Team Issue, '06 Salsa Las Cruces, Nashbar Frame single speed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Are you sure that the spindle (from 1959) uses metric threads? Have you tried the next closest inch sized nut?
dperreno is offline
Old 05-24-17, 03:16 PM
  #9
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,658

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 555 Times in 420 Posts
Try 1/4-28.
Bill Kapaun is offline
Old 05-24-17, 03:20 PM
  #10
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 2,991

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 383 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I am GUESSING that the thread is 9/32 - 32

https://www.mscdirect.com/product/details/04840914

You may have to make your own locknut. I'd start with a thin #10/32 or M5 nut, drill it out, then tap.

Hopefully it is 1/4-28 as Bill suggests.
nfmisso is offline
Old 05-24-17, 03:59 PM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,524

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2566 Post(s)
Liked 1,186 Times in 756 Posts
The thread could be 7mm x 0.75; that's what other Italian pedals have used, e.g. Campagnolo, Gipiemme, Ofmega, etc.
JohnDThompson is offline
Old 05-24-17, 05:49 PM
  #12
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,447

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 572 Times in 340 Posts
Just a guess: Is the nut for the NDS pedal left hand threaded. Never saw this but I reckon it's possible.
Moe Zhoost is offline
Old 05-24-17, 05:55 PM
  #13
Seizedpost
Bench vise user
Thread Starter

Join Date: Jul 2015
Posts: 532

Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
No, the cones and locknuts are all right hand threaded. Only the threads where it attaches to the crank on the nds are left threaded.

Before I place an online order, does anyone have an extra M7 x .75 nut they could put in an envelope and send me? I can send payment through Paypal.
Seizedpost is offline
Old 05-24-17, 06:30 PM
  #14
hueyhoolihan
Senior Member

Join Date: Dec 2010
Location: Above ground, Walnut Creek, Ca
Posts: 6,681

Bikes: 8 ss bikes, 1 5-speed touring bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
with a bike that old the size could be incompatible with any readily available modern sizes.

i would look elsewhere on the bike for a similar sized nut. maybe you'll get lucky and find one that could be sacrificed.

i had some old Whitworth nuts and bolts on my '61 MGA.
hueyhoolihan is offline
Old 05-24-17, 08:31 PM
  #15
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,658

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 555 Times in 420 Posts
Is there a machine shop (or auto parts store?) that has a thread gauge you can use?
Bill Kapaun is offline
Old 05-24-17, 08:50 PM
  #16
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,833

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1056 Post(s)
Liked 254 Times in 191 Posts
Originally Posted by Bill Kapaun View Post
Try 1/4-28.
Agree.

The wrench would be 7/16 (which would point to a 1/4 bolt), or it could be 11 mm which is ~6.9/16ths, which would point to a 7mm bolt. 7mm is not a metric standard (there is a DIN standard for a 7mm bolt, but ISO and JIS don't list it if I'm reading the right tables). So this points to a 1/4" thread.

If the major diameter is just under 7mm (which is 0.2756"), it sounds like a 1/4"
And while 28 tpi is close to 25.4 tpi (1mm thread), it's even closer to the 29tpi you measured.

And 1/4-28 is a standard nut size: UNF.
WizardOfBoz is offline
Old 05-25-17, 08:05 AM
  #17
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,315 Times in 826 Posts
My MKS 'Dutch' pedals have a reflector in the rubber blocks , and can be serviced and adjusted .

I added to the factory grease , and re adjusted them when I got them, new.

.... in replacement, function, it's 'Like that'..





fietsbob is offline
Old 05-25-17, 08:20 AM
  #18
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,658

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 555 Times in 420 Posts
Originally Posted by WizardOfBoz View Post
Agree.

The wrench would be 7/16 (which would point to a 1/4 bolt), or it could be 11 mm which is ~6.9/16ths, which would point to a 7mm bolt. 7mm is not a metric standard (there is a DIN standard for a 7mm bolt, but ISO and JIS don't list it if I'm reading the right tables). So this points to a 1/4" thread.

If the major diameter is just under 7mm (which is 0.2756"), it sounds like a 1/4"
And while 28 tpi is close to 25.4 tpi (1mm thread), it's even closer to the 29tpi you measured.

And 1/4-28 is a standard nut size: UNF.
I don't know if it's a "standard", but my thread gauge set has a 7x1.0mm thread.
Bill Kapaun is offline
Old 05-25-17, 08:36 AM
  #19
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,833

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1056 Post(s)
Liked 254 Times in 191 Posts
Bill, I had never run across an M7, and on the one chart I looked at it was listed under DIN, but not ISO or JIS standards. I looked at a few other charts, and it appears there are both coarse (1mm) and fine (.75mm) pitches in 7mm. Can't find the chart I was looking at now, of course. M6 and M8 are way more common I think.

In any case, I think you were right: this is likely a 1/4-28 thread. Be interested to hear back.
WizardOfBoz is offline
Old 05-25-17, 11:30 AM
  #20
Seizedpost
Bench vise user
Thread Starter

Join Date: Jul 2015
Posts: 532

Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fietsbob View Post
My MKS 'Dutch' pedals have a reflector in the rubber blocks , and can be serviced and adjusted .

I added to the factory grease , and re adjusted them when I got them, new.

.... in replacement, function, it's 'Like that'..
:
As I stated earlier, much to everyone's confusion, the threads on the pedals I am trying to repair are very slightly different from standard. I would need to retap the threads in my crank to replace them. It's looking like that would be easier than replacing this nut though.
Would the outside diameter of an M7 x .75 bolt be the same as an M7 x 1 bolt? The pedal spindle has a slightly larger diameter than the M7 x 1.0 bolt I compared it to.
It is definitely not 1/4-28, the pedal spindle's OD is larger than the 1/4-28 bolt I compared it with.
Seizedpost is offline
Old 05-25-17, 12:22 PM
  #21
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,658

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 555 Times in 420 Posts
Originally Posted by WizardOfBoz View Post
Bill, I had never run across an M7, and on the one chart I looked at it was listed under DIN, but not ISO or JIS standards. I looked at a few other charts, and it appears there are both coarse (1mm) and fine (.75mm) pitches in 7mm. Can't find the chart I was looking at now, of course. M6 and M8 are way more common I think.

In any case, I think you were right: this is likely a 1/4-28 thread. Be interested to hear back.
I was a bit surprised there was a 7mm. I have no idea if it's "standard", but apparently common enough to put on a thread gauge that seems to be missing a couple sizes I would consider "more standard".
BTW- A 5x.8mm seems extremely close to a 10-32.
Attached Images
File Type: jpg
Bill Kapaun is offline
Old 05-25-17, 03:04 PM
  #22
Seizedpost
Bench vise user
Thread Starter

Join Date: Jul 2015
Posts: 532

Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I got a 5/16-24 nut to work. I had to force it a little, it isn't the correct size, but it fits. I don't feel great about doing it wrong, but at least it's fixed.
Seizedpost is offline
Old 05-25-17, 03:15 PM
  #23
AlexCyclistRoch
The Infractionator

AlexCyclistRoch's Avatar

Join Date: Mar 2016
Location: Rochester, NY
Posts: 2,202

Bikes: Classic road bikes: 1986 Cannondale, 1978 Trek

Mentioned: 9 Post(s)
Tagged: 1 Thread(s)
Quoted: 875 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
On this side of the Atlantic, M7 and M9 are extremely rare sizes. Also, the pitch would be either .75, .8, or 1.0. Somebody with a pitch micrometer and an optical comparater (as well as a thread/pitch guide) could tell you what you have. On the Imperial side, .88 mmpt is really close to 28 tpi.
AlexCyclistRoch is offline
Old 05-25-17, 03:55 PM
  #24
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,216

Bikes: 1998 Pinarello Asolo, 1992 KHS MontaŮa pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 377 Times in 218 Posts
Not to derail the thread, but CitroŽn has used 7 x 1 bolts and nuts in their cars for years.
Reynolds is offline
Old 05-25-17, 05:20 PM
  #25
AlexCyclistRoch
The Infractionator

AlexCyclistRoch's Avatar

Join Date: Mar 2016
Location: Rochester, NY
Posts: 2,202

Bikes: Classic road bikes: 1986 Cannondale, 1978 Trek

Mentioned: 9 Post(s)
Tagged: 1 Thread(s)
Quoted: 875 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Reynolds View Post
Not to derail the thread, but CitroŽn has used 7 x 1 bolts and nuts in their cars for years.
Figures. They used to make wheels with no center hole, as well. BTW, I think that a year or 2 passes between Citroen sightings where I live.
AlexCyclistRoch is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
