Paired-hole hubs, a closer look...

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Paired-hole hubs, a closer look...

Old 06-13-17, 11:15 PM
  #1
Self Evident
Member
Thread Starter

Join Date: Nov 2013
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Paired-hole hubs, a closer look...

This is actually just an incidental and beside the point story that sprang from a recent undertaking while working on an extraneous secondary sidetracked offshoot of a tangtially semi-related ancillary but also not an entirely indicental task that all grew out of a primary project whose objective was to build a new rear wheel, where I considered, and then confirmed, something that had not occurred to me previously - that not all paired-hole hubs (phh's) are the same. Specifically, the spoke-hole offset from one flange to the other is not as I would have expected.

(side note: unless indicated otherwise, as used here-in, "hole" means "spoke hole")

In a normal/simple/standard hub, the holes between the flanges are offset so that if both flanges were right next to each other, the holes on one side would be evenly spaced between the holes of the other. This is so that, collectively, all the holes in the hub are evenly spaced, and will match up with holes in the rim.

With phh's, however, the individial holes are not evenly spaced, because they're in pairs. But I thought that the pairs themselves might be evenly spaced between the two sides of the hub. But, they are not. Instead, opposing pairs are *almost* directly across from one another, so that if the flanges where right next to each other, the holes would overlap a bit. At least, that is the case with the three of such hubs that I have. But, more than that, they are not even offset the same, and thus the holes don't overlap the same, even when the angle between the paired holes are the same on both hubs.

Originally, two of these hubs came from wheels that also had cooresponding paired-hole rims. I'm guessing that is the why for the offsets between the flanges. But I have no real idea other than idle speculation. In anycase, here's the actual "closer look":



Ok, what the holy heck??? The pics are showing up here WAY larger than what I uploaded to photobucket. Oh well... It is a CLOSER look!

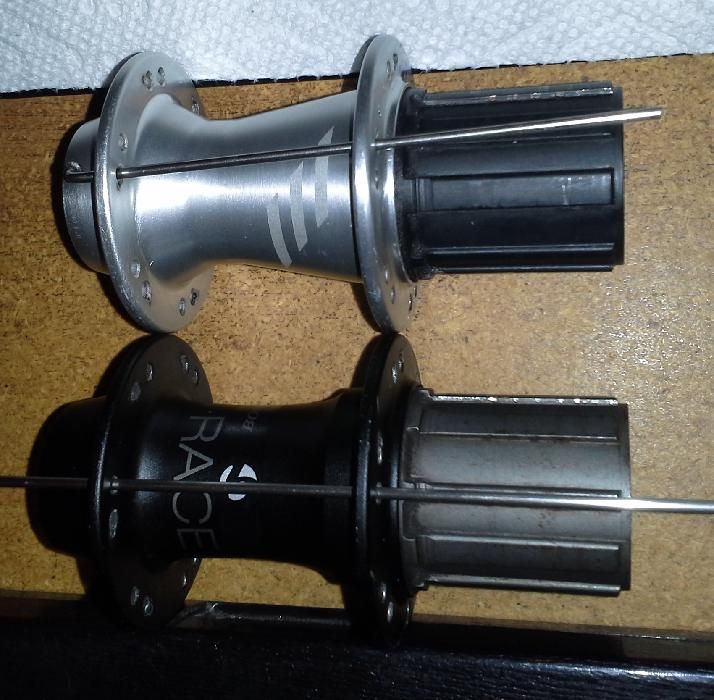

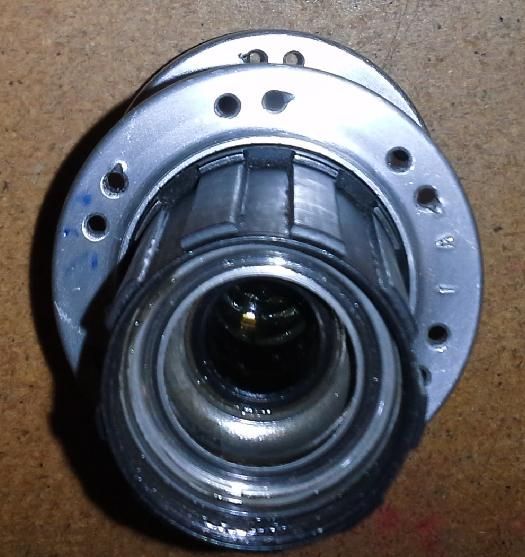

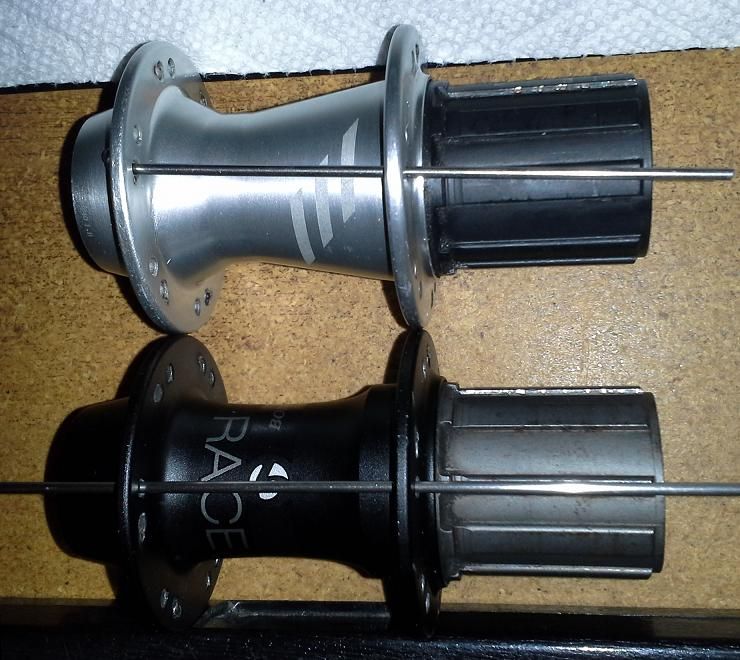

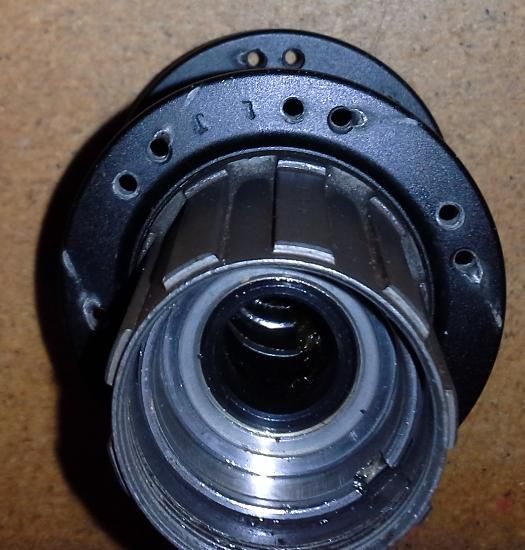

Anyway, as can be seen, the silver hub has the holes "closer" together. And in the black hub, the holes are offset such that the left from one flange lines up with the right of the other. Also, the flange-to-flange offset between hubs is in opposite directions.

Anyway, are any others familiar with paired-hole hubs and their hole spacing? Specifically, is one of the two offsets pictured common? It's not a big deal, as it should be evident from the pics that I don't intend to use these hubs again. Altho, as a completely different topic, and just for curiosity, is it possible to replace bearing cups in hubs? If so, I'm guessing the hard part would be finding the right part...

Last edited by Self Evident; 06-13-17 at 11:20 PM. Reason: minor grammar & spellling...
Self Evident is offline
Old 06-13-17, 11:37 PM
  #2
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 35,964

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 124 Post(s)
Tagged: 1 Thread(s)
Quoted: 4361 Post(s)
Likes: 0
Liked 15 Times in 15 Posts
Looking at hub drill patterns without the context of the corresponding rim hole pattern is pointless.

In the case of your hubs, they might be made for a rim that has groups of 4 holes with normal spacing, then a blank zone between these groups, so it looks sort of like this; o o o o........ o o o o........ o o o o........ etc.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 06-14-17, 02:23 AM
  #3
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,180
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 84 Times in 63 Posts
Originally Posted by Self Evident View Post
... is it possible to replace bearing cups in hubs? ...

For Shimano, or similarly constructed hubs, the DS cup is part of the freehub body. The body can be replaced, or the cup replaced with one from another body.


The NDS cup can be knocked out from the opposite side using a drift punch - if the cup overhangs the central cavity. Hubs with slender center shells, it can be hard to get enough purchase to drive the cup out. I once plugged a cup by welding a piece in to be able to knock it out.


Originally Posted by Self Evident View Post
... I'm guessing the hard part would be finding the right part...

Yeah. I've never been able to find cups only. But there's a decent cross-compatibility, so finding a donor hub doesn't ahve to be that daunting.



Originally Posted by Self Evident View Post
Anyway, are any others familiar with paired-hole hubs and their hole spacing? Specifically, is one of the two offsets pictured common?....

Haven't handled enough of them to claim authorithy. But it doesn't seem to matter much either way.


IMo the finer details and consequences of hole arrangment is entirely dwarfed by the fact that it's usually done on wheels with fairly low spoke counts.
And for a comparable quality of build, a low-count wheel will have lesser margins than a wheel with more spokes.
dabac is offline
Old 06-14-17, 08:23 AM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,551

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7317 Post(s)
Liked 920 Times in 581 Posts
Schmidt just introduced a semi radial light weight, paired, almost straight pull front hub (dynamo), paired straight pull (no J bend)spokes.

but intended rims are to be regularly spaced..

Boutique wheels , include Campag, spokes in groups of 3, (not 4)..






....

Last edited by fietsbob; 06-14-17 at 09:29 AM.
fietsbob is offline
Old 06-14-17, 09:25 AM
  #5
Self Evident
Member
Thread Starter

Join Date: Nov 2013
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by FBinNY View Post
Looking at hub drill patterns without the context of the corresponding rim hole pattern is pointless.
I understand, and agree if I was looking to build, that a specific rim would need to be considered before considering spoke length. However, the question was, "Specifically, is one of the two offsets pictured common?" Regardless of any rim that may ultimately be mated with such a hub, I am simply curious if there is a common, or more common, radial/phase offset between the flanges of paired-hole hubs.

Originally Posted by dabac View Post
I once plugged a cup by welding a piece in to be able to knock it out.
That's creative!


Originally Posted by dabac View Post
IMo the finer details and consequences of hole arrangment is entirely dwarfed by the fact that it's usually done on wheels with fairly low spoke counts.
Yea, this is mostly academic at this point, as I don't intend to use either of the hubs above again. Altho, I might lace them up into the same rim & spokes (not at the same time, of course), just to see if there is any practical difference. I know, that doesn't sound very practical...
Self Evident is offline
Old 06-14-17, 09:34 AM
  #6
andr0id
Senior Member

andr0id's Avatar

Join Date: Feb 2009
Posts: 2,522
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1421 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Self Evident View Post
I understand, and agree if I was looking to build, that a specific rim would need to be considered before considering spoke length. However, the question was, "Specifically, is one of the two offsets pictured common?" Regardless of any rim that may ultimately be mated with such a hub, I am simply curious if there is a common, or more common, radial/phase offset between the flanges of paired-hole hubs.
Most rims don't have the left hole and right hole exactly in the same location, so the holes are going to be in a line. As such, you need offset holes in the hub or you'd have to use and keep track of different length spokes.

Big pain in the arse, no real benefit. So why would any mfg do it?
andr0id is offline
Old 06-14-17, 09:38 AM
  #7
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 35,964

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 124 Post(s)
Tagged: 1 Thread(s)
Quoted: 4361 Post(s)
Likes: 0
Liked 15 Times in 15 Posts
Originally Posted by Self Evident View Post
.... "Specifically, is one of the two offsets pictured common?" Regardless of any rim that may ultimately be mated with such a hub, I am simply curious if there is a common, or more common, radial/phase offset between the flanges of paired-hole hubs......
Using words like "common" to describe what is already a very uncommon arrangement doesn't make logical sense. Any hub not drilled in the classic zigzag pattern, is already uncommon. I consider all hubs of this type single purpose and part of a non-standard wheel design.

For better or worse, (mostly worse) we're seeing more unique non-standard designs throughout the bike world, moving bicycles and their sub-parts from an era of fixable with a few spare parts and mechanic skill, to one of modular design where entire assemblies are trashed and replaced rather than repaired.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 06-14-17, 12:23 PM
  #8
Self Evident
Member
Thread Starter

Join Date: Nov 2013
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by FBinNY View Post
Using words like "common" to describe what is already a very uncommon arrangement doesn't make logical sense. Any hub not drilled in the classic zigzag pattern, is already uncommon. I consider all hubs of this type single purpose and part of a non-standard wheel design.
While not the most common, paired-hole hubs, or rims, are hardly "very" uncommon. But they are definately going to become more uncommon to me. While I've rebuilt several (replaced rims or hub with same size part), I've never really been a fan. Can't say why exactly. Oh well. Anyway, I do aggree with the observation of how things are

Originally Posted by FBinNY View Post
moving ... from an era of fixable with a few spare parts and mechanic skill, to one of modular design where entire assemblies are trashed and replaced rather than repaired
. And not just with bicycles - with everything. I always try to fix, mend, or repurpose if possible, altho possibly past the point of diminished returns. For instance, I have a collection of old rims that I just can't bring myself to toss in the recycle bin. I mean, they've got to be good for something!
Self Evident is offline
Old 06-14-17, 08:03 PM
  #9
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,742

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17951 Post(s)
Liked 1,633 Times in 1,193 Posts
Originally Posted by Self Evident View Post
For instance, I have a collection of old rims that I just can't bring myself to toss in the recycle bin. I mean, they've got to be good for something!
...people make garden fences and gates out of them here.
3alarmer is online now
Old 06-14-17, 10:23 PM
  #10
Self Evident
Member
Thread Starter

Join Date: Nov 2013
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 3alarmer View Post
...people make garden fences and gates out of them here.
That sounds interesting! Can you point me towards some examples? I searched the forum & only got this thread...
Self Evident is offline
Old 06-15-17, 12:50 AM
  #11
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,742

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17951 Post(s)
Liked 1,633 Times in 1,193 Posts






...the majority of people use the whole wheel, but you get a cleaner geometric look if you just use the bare rims.
