Rim Valve Stem Hole

Hey Folks,

Please don't scream at me..... If preformed correctly could a 'Presta' valve stem hole be drilled to accept the 'Schrader' type stem?

I'm building new wheels using DT Swiss TK540 36h 700c rims, new mid Shimano hubs, and triple butted spokes. Maybe I should man-up and enter the world of 'Presta', but I have a few good Schrader tubes stored up. Besides I just like the Schrader and never had a problem with them.

Thanks.....
MePoocho is offline   Reply With Quote
Old 10-12-17, 12:17 PM   #2
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.
Posts: 10,133
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
If the rim is wide enough, no problem.
Bill Kapaun is offline   Reply With Quote
Old 10-12-17, 12:46 PM   #3
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 8
Posts: 29,035
Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 3158 Post(s)
Occasionally the rim manufacturer drills them schrader, and the bike company includes the reducer and fits P/V tubes.

so the bike owner can use either tube, and in some cases like Schwalbe,
they use a ring nut on the P/V stems stepped to center the valve stem in the larger hole.

A Tapered Hand Reamer is my ideal tool for enlarging the hole , they're cheap, and cut in a not too fast rate of speed
making over doing it less likely.





.....
fietsbob is offline   Reply With Quote
Old 10-12-17, 01:01 PM   #4
SquidPuppet
Calamari Marionette Ph.D

SquidPuppet's Avatar

Join Date: Dec 2013
Location: Coeur d' Alene
Bikes: Gas Pipe Nerdcycles
Posts: 6,979
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1807 Post(s)
Quote:
Originally Posted by MePoocho View Post
Maybe I should man-up and enter the world of 'Presta',

For many years I avoided Presta valves because they were "skinny" and "weird". Now I strongly prefer them. I keep and USE the small knurled nut that stabilizes the valve against the rim. Seems most folks toss those in the trash. I can easily force the pump head onto the valve without driving the valve into the rim, without needing a second hand to support the valve. It's especially helpful when dealing with a fully deflated tube.
SquidPuppet is offline   Reply With Quote
Old 10-12-17, 01:27 PM   #5
Aubergine
Senior Member

Join Date: Nov 2015
Location: Seattle and Reims
Bikes: Too many to list
Posts: 1,101
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
I have frequently drilled out the valve holes for Schraeder valves.

Having a Schraeder hole can actually be a good thing for touring in particular, because it allows you to use whatever tubes you find along the way. My touring bikes all have Schraeder holes with reducers for my presta valve tubes.
Aubergine is offline   Reply With Quote
Old 10-12-17, 02:08 PM   #6
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Bikes: 2008 Novara Randonee - love it. Would have more bikes if I had time to ride them all. Previous bikes: 1968 Motobecane Mirage, 1972 Moto Grand Jubilee (my fav), Jackson Rake 16, 1983 C'dale ST500.
Posts: 6,901
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 253 Post(s)
It's important that the rim valley be wide enough, otherwise one can experience flats from tube distortion and stress around the valve, as well as tire seating problems at the valve. If one uses the nut it's very important to keep tires properly inflated. The reason is that with poor inflation the tube can migrate, pulling on the valve base and causing a flat because the valve stem is forced to stay in place.

Last edited by cny-bikeman; 10-13-17 at 06:54 AM.
cny-bikeman is offline   Reply With Quote
Old 10-12-17, 02:20 PM   #7
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder
Posts: 4,685
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 752 Post(s)
Does anyone have a source for schraeder hole to presta valve adopters? Are they common in bike shops?

This has me thinking - I should make another (very politically incorrect!) "damsel in distress" adopter; a presta pump to schraeder valve adopter to carry and use to help others roadside. (When we used that term in the '70s, it was highly unlikely we would ever meet a stranded woman riding presta valves. Only the hardcore rode presta and there weren't many of use.)

Ben
79pmooney is offline   Reply With Quote
Old 10-12-17, 02:30 PM   #8
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 8
Posts: 29,035
Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 3158 Post(s)
Yup common as hen's teeth... NB..

DIY, a short piece of hose, a schrader thumblock head , and the valve stem from a Presta tube would be convenient..



Silca machines a simple schrader to presta adapter, but since it opens the schrader valve
removing the presta pump would let all the air out..

much more common the schrader adapter, to screw onto a presta stem.



...



...

Last edited by fietsbob; 10-12-17 at 02:33 PM.
fietsbob is offline   Reply With Quote
Old 10-12-17, 02:30 PM   #9
MePoocho
Senior Member
Thread Starter

MePoocho's Avatar

Join Date: Jun 2017
Bikes:
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Good-Stuff one and all. Kinda reinforces what I thought.. Good input.

Any comments on the DT Swiss TK540 36h 700c rims? Sure, they are heavy, but supposed to be built like a brick poop house. I need durability more that light weight.

Gotta tell you that as a new poster this site is really great. Good knowledgeable people and quick responses.
MePoocho is offline   Reply With Quote
Old 10-12-17, 03:35 PM   #10
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 35,425
Mentioned: 105 Post(s)
Tagged: 1 Thread(s)
Quoted: 3762 Post(s)
Drilling the hole is easy and few if any rims are so narrow that you can't drill it.

But that's only half the story. On narrow rims, there may not be enough width for the thickness of the two tire beads and the wider valve. I've seen some tires with slightly thick beads which barely cleared a PV, on typical road rims. So before drilling, pince the tire together at the valve and see if there's some room to play with there.

Of course, nothing stops you from using a PV after you've drilled the larger hole, so it's not something that you'd regret doing if it dosn't work out.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 10-12-17, 03:54 PM   #11
MePoocho
Senior Member
Thread Starter

MePoocho's Avatar

Join Date: Jun 2017
Bikes:
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
FBinNY,

Yes, you are spot on about the narrow rims. My existing rims are such. I am amazed that a Schrader makes makes the drill. (Pun)

The rims I am getting are Swiss TK540 36h 700c and appear to have a flatter profile at the nipple exit area, so I should be OK. If not, I'll bite the bullet become 'Presta-nized'. Sooner that later that may become inevitable. Seems like the 'marketing-suits' nudge us in the directions that they think we should be going in all venues.

Always enjoy your input.
MePoocho is offline   Reply With Quote
Old 10-12-17, 03:59 PM   #12
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 35,425
Mentioned: 105 Post(s)
Tagged: 1 Thread(s)
Quoted: 3762 Post(s)
BTW - the smallest perfect drill size for a kiss fit SV hole is "N"
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 10-12-17, 04:03 PM   #13
MePoocho
Senior Member
Thread Starter

MePoocho's Avatar

Join Date: Jun 2017
Bikes:
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Excellent...! I have a 'lettered' index and a cross reference table.

Thanks.
MePoocho is offline   Reply With Quote
Old 10-12-17, 04:10 PM   #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 8
Posts: 29,035
Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 3158 Post(s)
I don't see any actual getting out and measuring the rims in question..

IDK Why this forum is so anti measuring?

Assume that every one has a DT Swiss TK540 . in the room next to them?
fietsbob is offline   Reply With Quote
Old 10-12-17, 04:40 PM   #15
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 35,425
Mentioned: 105 Post(s)
Tagged: 1 Thread(s)
Quoted: 3762 Post(s)
Quote:
Originally Posted by fietsbob View Post
I don't see any actual getting out and measuring the rims in question..

IDK Why this forum is so anti measuring?

Assume that every one has a DT Swiss TK540 . in the room next to them?
Nobody is anti-measuring. I just explain the considerations, then it's up to those concerned to measure.

In any case the technology is limited, and we can't measure over the internet.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 10-12-17, 05:47 PM   #16
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400
Posts: 3,736
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
https://www.amazon.com/Schrader-Pres.../dp/B000XNZU1S
dedhed is offline   Reply With Quote
Old 10-12-17, 06:52 PM   #17
veloz
Senior Member

Join Date: Aug 2016
Bikes:
Posts: 112
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)

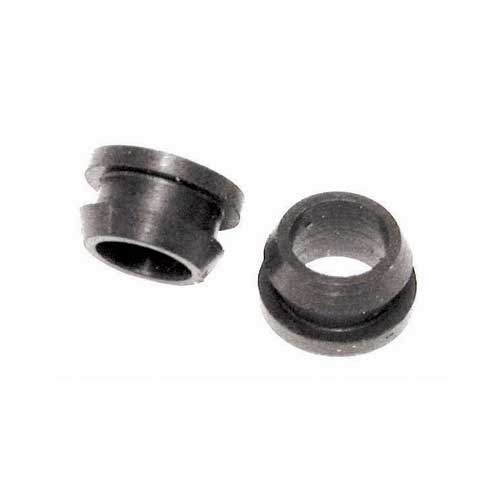

Wheels Manufacturing sells 2 lengths of Schraeder to Presta bushings. Your LBS can get them or order direct http://wheelsmfg.com/products/presta-stem-savers.html
veloz is offline   Reply With Quote
Old 10-12-17, 07:51 PM   #18
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: Metro Indy, IN
Bikes: RANS V3 ti, RANS V3 cromo, RANS Screamer
Posts: 14,418
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 267 Post(s)
Instead of a drill, a hand reamer can be used to enlarge the holes.
__________________
RANS V3 Ti, RANS V3 Cromo, RANS Screamer
JanMM is offline   Reply With Quote
Old 10-12-17, 08:04 PM   #19
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Bikes:
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Quote:
Originally Posted by 79pmooney View Post
Does anyone have a source for schraeder hole to presta valve adopters? Are they common in bike shops?

This has me thinking - I should make another (very politically incorrect!) "damsel in distress" adopter; a presta pump to schraeder valve adopter to carry and use to help others roadside. (When we used that term in the '70s, it was highly unlikely we would ever meet a stranded woman riding presta valves. Only the hardcore rode presta and there weren't many of use.)

Ben
This is more compact than a length of hose......

https://www.amazon.com/Adapter-SCHRA...alve+converter
elcraft is offline   Reply With Quote
Old 10-12-17, 09:09 PM   #20
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Bikes: Several, mostly not name brands.
Posts: 18,299
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 801 Post(s)
Quote:
Originally Posted by 79pmooney View Post
Does anyone have a source for schraeder hole to presta valve adopters?
They should be readily available in bike shops and elsewhere.



https://www.walmart.com/ip/Schrader-...&wl13=&veh=sem
JohnDThompson is offline   Reply With Quote
Old 10-13-17, 12:08 AM   #21
dabac
Senior Member

Join Date: Mar 2008
Bikes:
Posts: 7,257
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Quote:
Originally Posted by 79pmooney View Post
Does anyone have a source for schraeder hole to presta valve adopters? Are they common in bike shops?
They’re common.

Remember that to get any tube/valve benefit from them, they have to be mounted in the layer of the rim closest to the tube.
Mounting one in the layer facing the hub is only good for avoiding grit and water getting into the rim by the gap around the valve stem.
dabac is offline   Reply With Quote
Old 10-13-17, 06:38 AM   #22
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Bikes: Catrike 559 I own some others but they don't get ridden very much.
Posts: 27,970
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Quote:
Originally Posted by 79pmooney View Post
Does anyone have a source for schraeder hole to presta valve adopters? Are they common in bike shops?
How many do you need? I think that I've still got a few down in my shop. Mine are rubber grommets and a bit of a trick to install the first time. PM me an address and I'll mail a couple to you.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline   Reply With Quote
Old 10-13-17, 08:09 AM   #23
WizardOfBoz
Senior Member

WizardOfBoz's Avatar

Join Date: Aug 2015
Bikes: 1980 Schwinn Paramount, 2014 Trek Domane 6.9
Posts: 1,011
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 325 Post(s)
Why not use presta tubes, and put a Schader adapter on the end of the presta valve?
1) You don't have to drill into a rim that is probably pretty weight-optimized to begin with
2) You get to keep the presta knurled nut which, as squidpuppet points out, is useful in being able to fill your tire
3) As an added advantage, if you go fast enough, your presta locknut will keep the valve stem from opening up due to centrifugal force (this actually happened with some high velocity wheels - the Schrader valve opened up a little and leaked).

If you want to proceed with drilling make sure that you have enough "meat" in the rim. If the proper drill will end up taking some metal off the rim sides, I'd not do it. If that's ok and you drill, I'd be very careful to deburr the hole on both sides.

Here's the adapter I'm talking about, though:


WizardOfBoz is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 04:01 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    get answers from real people!
Click to start entering your question.
I HAVE A QUESTION
