Chain lubricants and wear

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Chain lubricants and wear

Old 01-01-18, 11:44 AM
  #101
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
Depending on roller wear, some of those tools (except the Shimano one) would give a "false alarm" sooner than the ruler would confirm it.
0.5% is a rule of thumb recommendation for chain replacement if wanting to prolong cassette sprocket wear and replacement.

Spin doctor pictures of "0.75" and "1.0" aren't measured over the same links. Not all the links wear the same in my experience. One of the reasons I prefer using a ruler over at least 10" length.

1/16" over 12" is just over 0.5% elongation, not 0.7%.

EDIT:
This is interesting, what I mentioned (found the pics, finally). Using a tool between inner and outer plates gave different reading. This tool usually shows "1" when the ruler confirms a chain is worn. The chain wasn't too clean, but the reading mismatch depending on whether the inner or outer plates were used as a reference was consistent along the chain length.




Last edited by Bike Gremlin; 01-01-18 at 11:56 AM.
Bike Gremlin is offline
Old 01-01-18, 11:52 AM
  #102
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by Slaninar View Post
1/16" over 12" is just over 0.5% elongation, not 0.7%.
I calculated "one part out of 144 parts"... oops!
Steve
EDIT: I feel more confident with one of these gauges rather than eyeballing a ruler.
sweeks is offline
Old 01-01-18, 12:08 PM
  #103
davei1980
Senior Member

davei1980's Avatar

Join Date: Jul 2017
Location: E Wa
Posts: 584

Bikes: 2011 Specialized Langster and guest starring a few others

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I read the article written by John Allen on SheldonBrown.com which includes an ancient recipe for "factory lube" using paraffin and tallow.

Tallow is a tad hard to come by in my house but I have paraffin and coconut oil on hand, think I could mix the two and wind up with the "factory, sticky-wax effect" John Allen describes?

Should I just try it and let you guys know?
davei1980 is offline
Old 01-01-18, 01:13 PM
  #104
Racing Dan
Senior Member

Racing Dan's Avatar

Join Date: Aug 2015
Posts: 1,294
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 742 Post(s)
Likes: 0
Liked 7 Times in 6 Posts
Originally Posted by Slaninar View Post
Depending on roller wear, some of those tools (except the Shimano one) would give a "false alarm" sooner than the ruler would confirm it.
0.5% is a rule of thumb recommendation for chain replacement if wanting to prolong cassette sprocket wear and replacement.

Spin doctor pictures of "0.75" and "1.0" aren't measured over the same links. Not all the links wear the same in my experience. One of the reasons I prefer using a ruler over at least 10" length.

1/16" over 12" is just over 0.5% elongation, not 0.7%.

EDIT:
This is interesting, what I mentioned (found the pics, finally). Using a tool between inner and outer plates gave different reading. This tool usually shows "1" when the ruler confirms a chain is worn. The chain wasn't too clean, but the reading mismatch depending on whether the inner or outer plates were used as a reference was consistent along the chain length.



On a severely worn chain, only every other roller engages the sprocket. On a dirty chain It can be spotted directly as every other roller will get a different metallic color, rather than black and greasy.

Last edited by Racing Dan; 01-01-18 at 01:16 PM.
Racing Dan is online now
Old 01-01-18, 01:17 PM
  #105
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Racing Dan View Post
On a severely worn chain, only every other roller engages the sprocket. It can be spotted directly on the chain as every other roller will get a different metallic color, rather than black and greasy.
Yes, all the elongation happens between the two pairs of outer links. Explained it in detail with pics and videos here.

I still think the reason for the errors of the tool in the pic is that outer plates allow it to sit a bit diagonally. Something to look out for when using such tools for wear measurement.

Last edited by Bike Gremlin; 01-01-18 at 01:22 PM.
Bike Gremlin is offline
Old 01-01-18, 01:31 PM
  #106
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by Slaninar View Post
Depending on roller wear, some of those tools (except the Shimano one) would give a "false alarm" sooner than the ruler would confirm it.
I'd rather change chains too early than wear out my gears prematurely.

Originally Posted by Slaninar View Post
Spin doctor pictures of "0.75" and "1.0" aren't measured over the same links.
I think we're splitting hairs here. I checked 4 or 5 random places on the chain and got similar readings. I think it's a reasonably safe assumption that all the links wear at about the same rate.
The ruler test can always be done as the "definitive" wear gauge after "screening" with one of the other gauges.
Steve
sweeks is offline
Old 01-01-18, 01:39 PM
  #107
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by sweeks View Post
I'd rather change chains too early than wear out my gears prematurely.


I think we're splitting hairs here. I checked 4 or 5 random places on the chain and got similar readings. I think it's a reasonably safe assumption that all the links wear at about the same rate.
The ruler test can always be done as the "definitive" wear gauge after "screening" with one of the other gauges.
Steve
Just note the two pics in the edited version of my post above. Something to look out for IMO.

For chain checkers - the "non-Shimano" ones are good as a warning when to start double checking with a ruler. Shimano one is a more precise option. Relying only on the imprecise checkers will result in just what you say: preservation of chainrings, but (often) needless change of a chain that is still good (but, of course, not new).

Each gets to decide for themselves which is the best option for them.
Bike Gremlin is offline
Old 01-01-18, 01:43 PM
  #108
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by Slaninar View Post
Each gets to decide for themselves which is the best option for them.
We agree!
Steve
sweeks is offline
Old 01-01-18, 03:11 PM
  #109
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,405

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1699 Post(s)
Liked 63 Times in 43 Posts
Originally Posted by davei1980 View Post
I read the article written by John Allen on SheldonBrown.com which includes an ancient recipe for "factory lube" using paraffin and tallow.

Tallow is a tad hard to come by in my house but I have paraffin and coconut oil on hand, think I could mix the two and wind up with the "factory, sticky-wax effect" John Allen describes?

Should I just try it and let you guys know?
You could give it a try, in the name of science. Or stick with the tried and true, and get some of this stuff:

Cosmoline for Sale - Cosmoline Direct Rust Preventives, Sprays & More
JohnDThompson is offline
Old 01-01-18, 03:46 PM
  #110
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by Slaninar View Post
Yes, all the elongation happens between the two pairs of outer links.
Over the number of links included by the gauge, wouldn't the length increase be pretty much the same on average?
FWIW, I put the Shimano tool in 10 consecutive gaps and got the same "worn" result each time.
Steve
sweeks is offline
Old 01-01-18, 05:11 PM
  #111
davei1980
Senior Member

davei1980's Avatar

Join Date: Jul 2017
Location: E Wa
Posts: 584

Bikes: 2011 Specialized Langster and guest starring a few others

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by JohnDThompson View Post
You could give it a try, in the name of science. Or stick with the tried and true, and get some of this stuff:

Cosmoline for Sale - Cosmoline Direct Rust Preventives, Sprays & More
I will try the Coconut/Paraffin homebrew and report back you via this thread with the results... I love the way new chains feel and that is the effect I am going for!!!

That said, not sure how far in to the wax vs oil debate I wish to wade!
davei1980 is offline
Old 01-01-18, 10:13 PM
  #112
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
FWIW, here are images of the chain with a ruler: one at the "zero" point and the other at 12 inches out. I think by any measure, this chain can be replaced.
Steve
Attached Images
File Type: jpg
Chain Wear Origin.JPG (521.9 KB, 93 views)
File Type: jpg
Chain Wear 12 inces.JPG (490.0 KB, 91 views)
sweeks is offline
Old 01-01-18, 10:49 PM
  #113
Shimagnolo
Senior Member

Shimagnolo's Avatar

Join Date: May 2008
Location: Zang's Spur, CO
Posts: 8,756
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1572 Post(s)
Liked 65 Times in 45 Posts
Originally Posted by Slaninar View Post
For chain checkers - the "non-Shimano" ones are good as a warning when to start double checking with a ruler. Shimano one is a more precise option.
The recently-released Pedros chain checker works on the same principle as the Shimano, and costs a lot less: https://pedros.com/products/tools/ca...ecker-plus-ii/
Shimagnolo is offline
Old 01-02-18, 12:53 AM
  #114
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by sweeks View Post
Over the number of links included by the gauge, wouldn't the length increase be pretty much the same on average?
FWIW, I put the Shimano tool in 10 consecutive gaps and got the same "worn" result each time.
Steve
Depends on a chain/chainring combo. I'd prefer if the tools were made a bit longer - to compensate for any tool wear and error. Having said that - the tools err on the "safe side", so the only downside is replacing the chain a bit earlier than necessary. That's good for bike shops, manufacturers - and most consumers don't mind/bother.
Bike Gremlin is offline
Old 01-02-18, 06:11 AM
  #115
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by Slaninar View Post
I'd prefer if the tools were made a bit longer - to compensate for any tool wear and error.
I agree. It's not like these tools have to be portable. When I take the old chain off, I'll hang it next to the new one and snap an image to show the elongation over the whole length!

@Shimagnolo: I found the Shimano gauge on eBay for $21. But the Pedro's tool looks interesting.
Steve
sweeks is offline
Old 01-02-18, 02:11 PM
  #116
Bandrada
Bandolero

Bandrada's Avatar

Join Date: Dec 2013
Location: Land of Enhancement
Posts: 402

Bikes: ...

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 2921 Post(s)
Liked 4 Times in 4 Posts
I've been rocking a new formula from Pedros. It's a medium dry lube, supposedly made from bees wax. It's called Slick Wax. The old formula used to clump and coagulate after a time, especially in cold weather, but the new formula is pretty good. Personally, I think it's less (more?) than a medium dry lube, but I don't mind because I use high pressure air, and re-lube before almost every ride when it's really dry like it is now. It held up nicely over the summer in higher elevations, where it's a little more wet, but in super dry conditions it sheds like crazy.

I think I still prefer a 1/2 and 1/2 mix of dumonde lite and medium for my all-round riding, but Pedros sent me a jug for free.
Bandrada is offline
Old 01-06-18, 05:24 PM
  #117
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,161

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by sweeks View Post
When I take the old chain off, I'll hang it next to the new one and snap an image to show the elongation over the whole length!
Here are those images. About 4mm of elongation over the entire chain.
Steve
Attached Images
File Type: jpg
File Type: jpg
Chain Length Old vs New top.jpg (702.7 KB, 59 views)
sweeks is offline
Old 01-07-18, 02:19 AM
  #118
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
0.5% elongation along 52" is about 6 mm elongation.
Bike Gremlin is offline
Old 01-07-18, 04:04 AM
  #119
europa
Grumpy Old Bugga

europa's Avatar

Join Date: Oct 2006
Location: Adelaide, AUSTRALIA
Posts: 4,232

Bikes: Hillbrick, Malvern Star Oppy S2, Europa (R.I.P.)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Likes: 0
Liked 1 Time in 1 Post
As I said on a similar thread, use those chain check tools (if you have one, if not, use a ruler) until it starts telling you the chain's worn out. THEN you start using a ruler to do it properly.

Why? Because the chain check tool is quick and easy and it's never going to tell you the chain is fine when it is badly worn.
europa is offline
Old 01-07-18, 04:15 AM
  #120
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by europa View Post
As I said on a similar thread, use those chain check tools (if you have one, if not, use a ruler) until it starts telling you the chain's worn out. THEN you start using a ruler to do it properly.

Why? Because the chain check tool is quick and easy and it's never going to tell you the chain is fine when it is badly worn.
+1

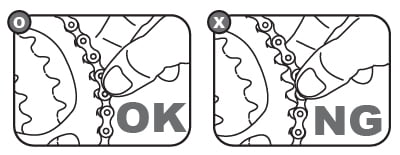

Though, as qick and easy as a chain checker tool, lifting the chain off a largest chainring is also a quick way to test.

Bike Gremlin is offline
Old 01-07-18, 04:35 AM
  #121
europa
Grumpy Old Bugga

europa's Avatar

Join Date: Oct 2006
Location: Adelaide, AUSTRALIA
Posts: 4,232

Bikes: Hillbrick, Malvern Star Oppy S2, Europa (R.I.P.)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Slaninar View Post
+1

Though, as qick and easy as a chain checker tool, lifting the chain off a largest chainring is also a quick way to test.

Bbbbbut, you get greasy fingers

It wasn't long ago that this was the only method promoted to the great unwashed.
europa is offline
Old 01-07-18, 04:44 AM
  #122
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,089

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by europa View Post
Bbbbbut, you get greasy fingers

It wasn't long ago that this was the only method promoted to the great unwashed.
It's not my fault your drivetrain is dirty!
But you could use a paper (tissue).
Bike Gremlin is offline
Old 01-07-18, 07:22 AM
  #123
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Posts: 7,506

Bikes: 2008 Novara Randonee - love it. Previous bikes:Motobecane Mirage, 1972 Moto Grand Jubilee (my fave), Jackson Rake 16, 1983 C'dale ST500.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by europa View Post
As I said on a similar thread, use those chain check tools (if you have one, if not, use a ruler) until it starts telling you the chain's worn out. THEN you start using a ruler to do it properly.

Why? Because the chain check tool is quick and easy and it's never going to tell you the chain is fine when it is badly worn.
Unless one rides hundreds of miles per week or has a stable of bikes a ruler is plenty quick and easy. Most who have chain checkers just like having another tool. If saving time was truly a big concern among BF folks we would not see 5 pages of posts on this and even less earth-shaking topics.
__________________
There's no such thing as a routine repair.

Don't tell me what "should" be - either it is, it isn't, or do something about it.

If you think I'm being blunt take it as a compliment - if I thought you were too weak to handle the truth or a strong opinion I would not bother.

Please respect others by taking the time to post clearly so we can answer quickly. All lowercase and multiple typos makes for a hard read. Thanks!
cny-bikeman is offline
Old 01-07-18, 08:24 AM
  #124
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,278

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1162 Post(s)
Liked 32 Times in 24 Posts
Hmmmm.

I'm thinking that if I paid myself a reasonable hourly wage for the time I've spent reading chain lube threads I could easily pay for chain replacements for the rest of my life.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 01-07-18, 09:29 AM
  #125
Bandrada
Bandolero

Bandrada's Avatar

Join Date: Dec 2013
Location: Land of Enhancement
Posts: 402

Bikes: ...

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 2921 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by Retro Grouch View Post
Hmmmm.

I'm thinking that if I paid myself a reasonable hourly wage for the time I've spent reading chain lube threads I could easily pay for chain replacements for the rest of my life.
I gotta say, BF probably has the best collection of chain lube threads. More than one person would ever, should ever, want to know. It's a real gold mine.
Bandrada is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
