What brakes are these?

Reply

Old 12-01-17, 11:21 AM
  #1
Watchbird
Senior Member
Thread Starter

Join Date: Sep 2009
Location: OC, SoCal
Posts: 62

Bikes: Peugeot PX-10, Miyata 1000LT, 1000, 610; Univega Gran Turismo, Competizione; Nishiki Riviera GT, Raleigh Portage, Super Grand Prix; Specialized Expedition, Sequoia; TREK 728, 620, 520; Bianchi Brava, Bill Davidson, Centurion Pro Tour 15

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
What brakes are these?

I bought a vintage bike off Craigslist and it came with these calipers. I can't find any markings anywhere on them. Can anyone identify them?

Thanks for your help. I hope this is the right thread, I wasn't sure where to post this question.
Attached Images
File Type: jpg
Watchbird is offline
Reply With Quote
Old 12-01-17, 11:47 AM
  #2
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,482

Bikes: Raleigh Supercourse

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
I believe they are Avid Tri-Align.

Avid Tri Align Cantilever Brakeset: Long/Short, Tri Dangle, Red, MINT - Bike Recyclery

Last edited by brian3069; 12-01-17 at 01:25 PM.
brian3069 is offline
Reply With Quote
Old 12-01-17, 01:00 PM
  #3
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,557

Bikes: 8

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 6170 Post(s)
V type., but use plain post pads..
fietsbob is offline
Reply With Quote
Old 12-01-17, 01:07 PM
  #4
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Posts: 31,981

Bikes: everywhere

Mentioned: 50 Post(s)
Tagged: 1 Thread(s)
Quoted: 3545 Post(s)
Originally Posted by fietsbob View Post
V type., but use plain post pads..
These are classified as cantilevers, not V-brakes.
LesterOfPuppets is offline
Reply With Quote
Old 12-01-17, 01:11 PM
  #5
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 1,990

Bikes: '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 742 Post(s)
Cantilevers not calipers. V brakes is correct too. Knowing the "vintage" bike these came off of might go a long way to figuring out what they are. Google for a catalog of that year and bike brand. Many times they specify the brake brand on the specs page or in the write up about that particular model.
Iride01 is offline
Reply With Quote
Old 12-01-17, 01:20 PM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,557

Bikes: 8

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 6170 Post(s)
I split them up into the same categories as the classical mechanics of the basic lever as described in Greek 2000 + years ago ..

pivot is the fulcrum, pad is the work done, effort is the end, where the cable is attached, pulling around the pivot.

type 1: work_fulcrum_effort.. type 2: fulcrum_work_effort.. power is the relative length ratios.







Last edited by fietsbob; 12-01-17 at 01:24 PM.
fietsbob is offline
Reply With Quote
Old 12-01-17, 01:25 PM
  #7
Moose
Senior Member

Join Date: Jul 2001
Posts: 1,397
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
V-brakes mount to the same posts but the term V-brake commonly refers to what are also known as linear pull or direct pull brakes which are configured differently. The cable housing connects directly to the brake rather than using a cable stop and a straddle cable like the cantilevers that are pictured in the OP. Those are not V-brakes.

These are V-brakes:

https://www.google.com/search?q=v+br...iw=320&bih=492
Moose is offline
Reply With Quote
Old 12-01-17, 01:30 PM
  #8
Moose
Senior Member

Join Date: Jul 2001
Posts: 1,397
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
I think the OP was concerned about specific make and model and not so much general term for his brakes anyway…

First answer was correct:

https://www.google.com/search?rlz=1C....0.VPJnwcmRu7k
Moose is offline
Reply With Quote
Old 12-01-17, 01:34 PM
  #9
Moose
Senior Member

Join Date: Jul 2001
Posts: 1,397
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Originally Posted by fietsbob View Post
I split them up into the same categories as the classical mechanics of the basic lever as described in Greek 2000 + years ago ..

pivot is the fulcrum, pad is the work done, effort is the end, where the cable is attached, pulling around the pivot.

type 1: work_fulcrum_effort.. type 2: fulcrum_work_effort.. power is the relative length ratios.






I want some of what you are smoking.
Moose is offline
Reply With Quote
Old 12-01-17, 01:54 PM
  #10
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,557

Bikes: 8

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 6170 Post(s)
Its very basic engineering, kids ... how Rome was built. https://en.wikipedia.org/wiki/Lever










....

Last edited by fietsbob; 12-01-17 at 02:00 PM.
fietsbob is offline
Reply With Quote
Old 12-01-17, 01:58 PM
  #11
Moose
Senior Member

Join Date: Jul 2001
Posts: 1,397
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Originally Posted by fietsbob View Post
Its very basic engineering, kids ... how Rome was built.
That may be so but it is a very strange way to answer the OP's question. In fact, the information in your post is just about completely irrelevant to this thread.
Moose is offline
Reply With Quote
Old 12-01-17, 02:01 PM
  #12
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Posts: 31,981

Bikes: everywhere

Mentioned: 50 Post(s)
Tagged: 1 Thread(s)
Quoted: 3545 Post(s)
Originally Posted by Moose View Post
I think the OP was concerned about specific make and model and not so much general term for his brakes anyway…

First answer was correct:
Yep, pretty sure they're Tri-Align brakes. I think a couple of other brands had similar brakes BITD, but Avids were the most common.
LesterOfPuppets is offline
Reply With Quote
Old 12-01-17, 02:01 PM
  #13
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,557

Bikes: 8

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 6170 Post(s)
just brand names and pictures is all you need..
fietsbob is offline
Reply With Quote
Old 12-01-17, 02:02 PM
  #14
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Posts: 31,981

Bikes: everywhere

Mentioned: 50 Post(s)
Tagged: 1 Thread(s)
Quoted: 3545 Post(s)
Originally Posted by Moose View Post
V-brakes mount to the same posts but the term V-brake commonly refers to what are also known as linear pull or direct pull brakes which are configured differently. The cable housing connects directly to the brake rather than using a cable stop and a straddle cable like the cantilevers that are pictured in the OP. Those are not V-brakes.

These are V-brakes:

https://www.google.com/search?q=v+br...iw=320&bih=492

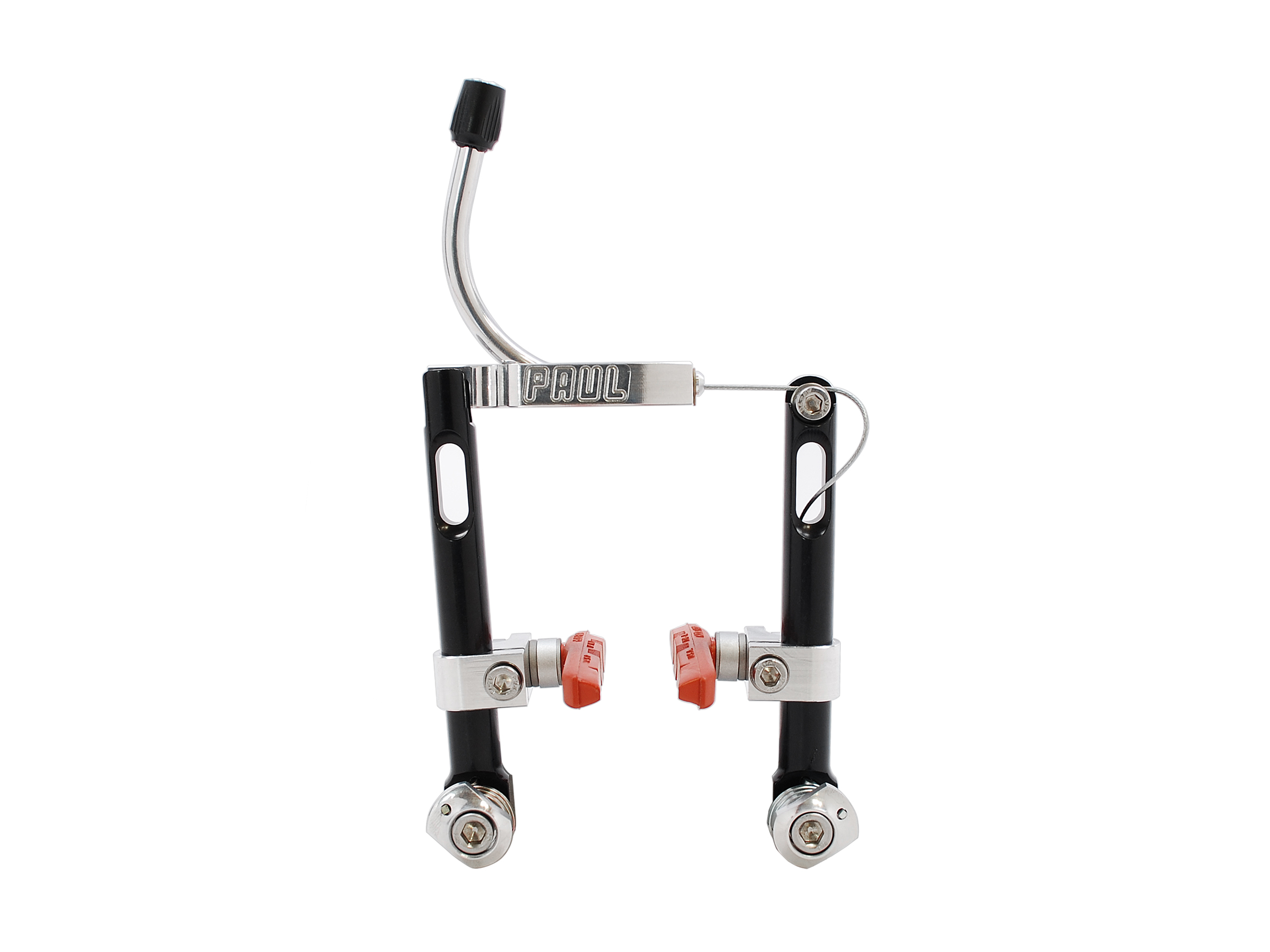

and if you want V-brakes that look similar to the OP cantis, there's Paul Motolites.

LesterOfPuppets is offline
Reply With Quote
Old 12-01-17, 02:30 PM
  #15
Watchbird
Senior Member
Thread Starter

Join Date: Sep 2009
Location: OC, SoCal
Posts: 62

Bikes: Peugeot PX-10, Miyata 1000LT, 1000, 610; Univega Gran Turismo, Competizione; Nishiki Riviera GT, Raleigh Portage, Super Grand Prix; Specialized Expedition, Sequoia; TREK 728, 620, 520; Bianchi Brava, Bill Davidson, Centurion Pro Tour 15

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
First answer is correct

Originally Posted by brian3069 View Post
Thanks! That's what they are! I never would have found them by myself. By the way, they came off of a 1986 Raleigh Alyeska which was sold with Dia-compe 960 cantilevers.
Watchbird is offline
Reply With Quote
Old 12-01-17, 04:21 PM
  #16
Moose
Senior Member

Join Date: Jul 2001
Posts: 1,397
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Originally Posted by LesterOfPuppets View Post
and if you want V-brakes that look similar to the OP cantis, there's Paul Motolites.
Avid apparently made a Tri Align V Brake as well...though the Pauls are much nicer.

Moose is offline
Reply With Quote
Old 12-01-17, 04:25 PM
  #17
Moose
Senior Member

Join Date: Jul 2001
Posts: 1,397
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Originally Posted by fietsbob View Post
just brand names and pictures is all you need..
Your input is very vague. Just what are you talking about here? Are you just trying to run up your post count?
