Ryde Andra 40 Rim Binding Nipples

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Ryde Andra 40 Rim Binding Nipples

Old 01-21-18, 11:34 AM
  #1
touringiscool
Junior Member
Thread Starter

Join Date: Jul 2016
Location: UK
Posts: 18

Bikes: Surly Ogre in Black, Carrera Subway

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ryde Andra 40 Rim Binding Nipples

I am Having trouble with the Ryde Andra 40 Rim because the nipples are binding in the wall of the rim causing the nipples to shear while tightening. It would seem that the nipple recesses are drilled to deep causing the nipples to bind in the rim.

Also one of the nipples pulled through the rim suggesting that the aluminium is too soft a metal for the application or the holes in the rim are too large.

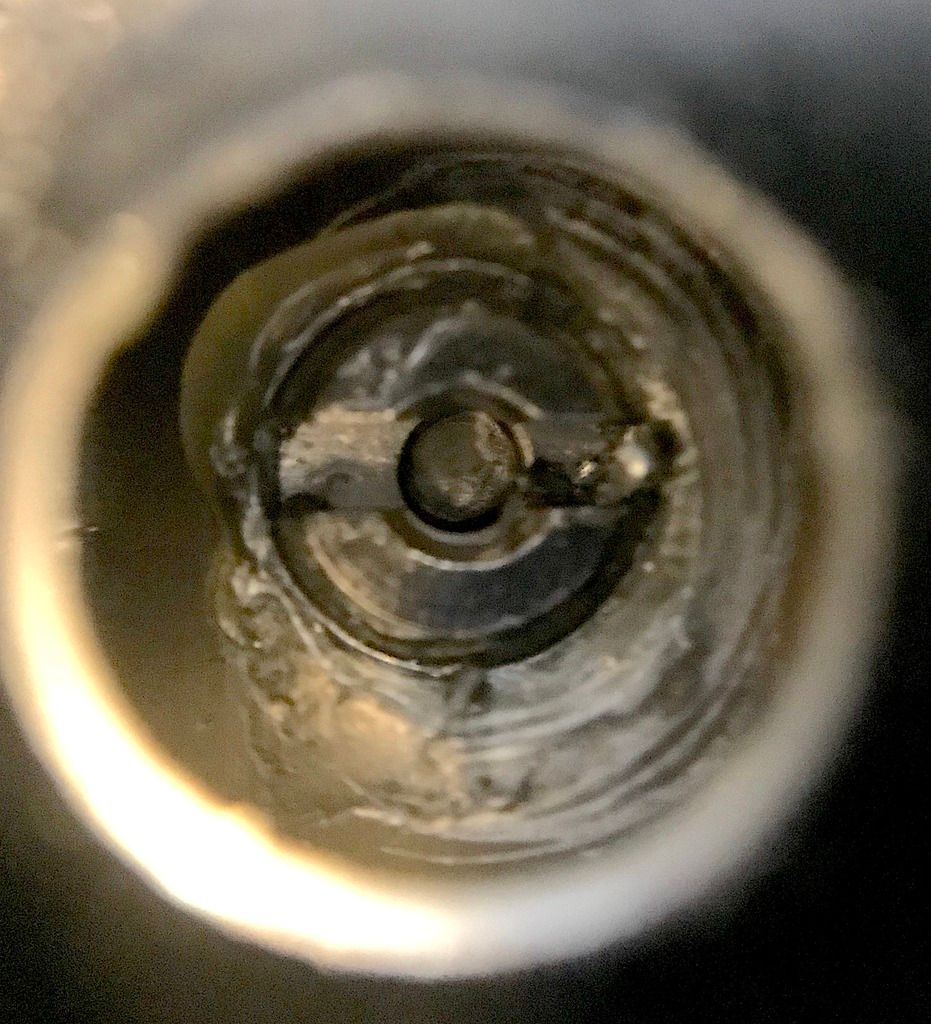

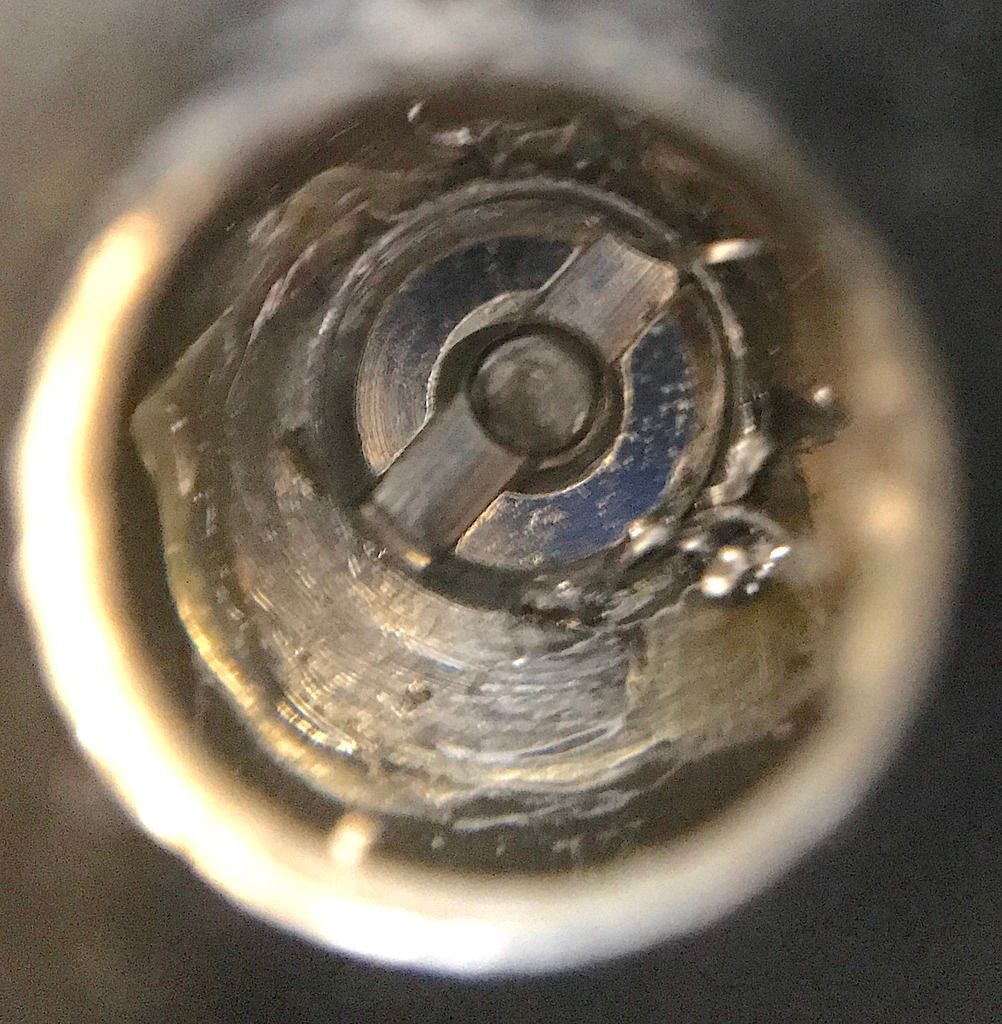

In the pictures you can see the swarf created by the edge of the nipple head cutting into the wall of the rim.

I wonder if anyone else has the same issue, could the nipples need nipple washers or is this a manufacturing fault?



touringiscool is offline
Old 01-21-18, 11:50 AM
  #2
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,657

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 660 Post(s)
Liked 168 Times in 126 Posts
Did the wheel come this way? I'm guessing maybe there's too much tension of the spokes.
Steve
sweeks is offline
Old 01-21-18, 12:54 PM
  #3
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,456
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 112 Times in 98 Posts
Their website claims that the rim will withstand 140k of tension so I don't think you over tightened the spokes. Sounds like you may have bought a dud. See what the manufacturer says.
davidad is offline
Old 01-21-18, 04:50 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,821

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2885 Post(s)
Liked 1,124 Times in 797 Posts
I think what you see in the photos is a result of using a power nipple driver with a bit too much glee. All 3 nipples show the top of the head being cut down by a powered bit. Cut down the nipple head enough and it breaks sooner then it should. As nipples have a smooth contact surface WRT the rim I highly doubt a nipple would cause said rim damage.


I very much suspect a wheel building screw up.


So a few questions- Are the nipples brass or AL? When you say "shear" do you mean break into two pieces? Or do you mean that the spoke wrench slips and rounds off the nipple flats? Andy
Andrew R Stewart is online now
Old 01-22-18, 07:15 AM
  #5
touringiscool
Junior Member
Thread Starter

Join Date: Jul 2016
Location: UK
Posts: 18

Bikes: Surly Ogre in Black, Carrera Subway

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
They were brass nipples. No power driver was used. The maximum tension on the nipples was 130KgF. I'm wondering if the holes were to big.
touringiscool is offline
Old 01-22-18, 08:10 AM
  #6
Bike Gremlin
Mostly harmless

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,173

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Liked 45 Times in 30 Posts
Appologies in advance for an obvious and stupid question, but just in case: were the nipples (and spoke threads) lubricated before tightening?
Bike Gremlin is offline
Old 01-22-18, 09:43 AM
  #7
touringiscool
Junior Member
Thread Starter

Join Date: Jul 2016
Location: UK
Posts: 18

Bikes: Surly Ogre in Black, Carrera Subway

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nipples were lubricated
touringiscool is offline
Old 01-22-18, 11:56 AM
  #8
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,101

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 2794 Post(s)
Liked 740 Times in 519 Posts
The words "crowbar" and "sandbox" come to mind.

BUT, since this rim seems to be popular for e-bikes and really heavy loads, it's possible yours was in fact drilled for larger spokes and nipples than normal. Double-check your ordering info to see if it had 4.5mm or 5.5mm spoke holes.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 01-22-18 at 12:23 PM.
