Do 31.8 clamp bands for brake levers exist?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Do 31.8 clamp bands for brake levers exist?

Old 03-05-18, 04:10 PM
  #1
Celeste Mike
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Philadelphia
Posts: 107

Bikes: '87 Bianchi Campione d'Italia, '87 Schwinn Tempo, '88 Cannondale ST400, '84 Trek 620, '83ish Diamond Back Ridge Runner, '97 Specialized Stumpjumper M2

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 11 Times in 7 Posts
Do 31.8 clamp bands for brake levers exist?



I'm talking about the type of clamp band on the left in the above photo. This part would be easy to swap out, but I can't find any evidence of them existing in 31.8. The reason being I'm wondering if there's a way I could put Guidonnet brake levers on carbon bullhorns.

These levers: GearInches.com » Guidonnet
on these bullhorns: https://www.aliexpress.com/item/Fixe...810471849.html

I know it's unconventional but surely I'm not the first person to wanna put weird brakes on a thick bar. Any help or suggestions is much appreciated.
Celeste Mike is offline
Old 03-05-18, 04:35 PM
  #2
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,461
Mentioned: 192 Post(s)
Tagged: 0 Thread(s)
Quoted: 11363 Post(s)
Liked 880 Times in 691 Posts


I've seen 31.8 interrupter brakes, but I don't think they're band mounted. The mounts are usually cast aluminum.

One could probably make a custom mounting strap with a bit of tinkering in the workshop. You will have to be able to open the strap enough to get it past your aero wings on the bars.
CliffordK is offline
Old 03-05-18, 04:47 PM
  #3
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 35,964

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 124 Post(s)
Tagged: 1 Thread(s)
Quoted: 4360 Post(s)
Likes: 0
Liked 15 Times in 15 Posts
There's no reason for anyone to make 31.8 clamps for most levers. While the bar is nominally 31.8mm, that's only in the stem clamp area, and it will step down to the standard 23.8mm (15/16") OD for the working length.

You might conceivably need 31.8 clamps for anything clamped immediately on either side of the stem, like computers, but brake levers aren't mounted there.

Of course, some interrupter levers may need the larger clamp if the bar doesn't step down close to the stem.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.

Last edited by FBinNY; 03-05-18 at 04:54 PM.
FBinNY is offline
Old 03-05-18, 04:54 PM
  #4
Celeste Mike
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Philadelphia
Posts: 107

Bikes: '87 Bianchi Campione d'Italia, '87 Schwinn Tempo, '88 Cannondale ST400, '84 Trek 620, '83ish Diamond Back Ridge Runner, '97 Specialized Stumpjumper M2

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by CliffordK View Post


I've seen 31.8 interrupter brakes, but I don't think they're band mounted. The mounts are usually cast aluminum. One could probably make a custom mounting strap with a bit of tinkering in the workshop.
Yeah, I could put interrupters, but I'm really interested in trying these guidonnet levers. Hence the band search. I was thinking it might have to be custom made, which I'm sure someone could do easily, but unfortunately I don't have the tools for it myself.

Originally Posted by CliffordK View Post
You will have to be able to open the strap enough to get it past your aero wings on the bars.
Oh crap, I forgot about that part! *facepalm*
Celeste Mike is offline
Old 03-05-18, 05:03 PM
  #5
Celeste Mike
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Philadelphia
Posts: 107

Bikes: '87 Bianchi Campione d'Italia, '87 Schwinn Tempo, '88 Cannondale ST400, '84 Trek 620, '83ish Diamond Back Ridge Runner, '97 Specialized Stumpjumper M2

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by FBinNY View Post
There's no reason for anyone to make 31.8 clamps for most levers. While the bar is nominally 31.8mm, that's only in the stem clamp area, and it will step down to the standard 23.8mm (15/16") OD for the working length.

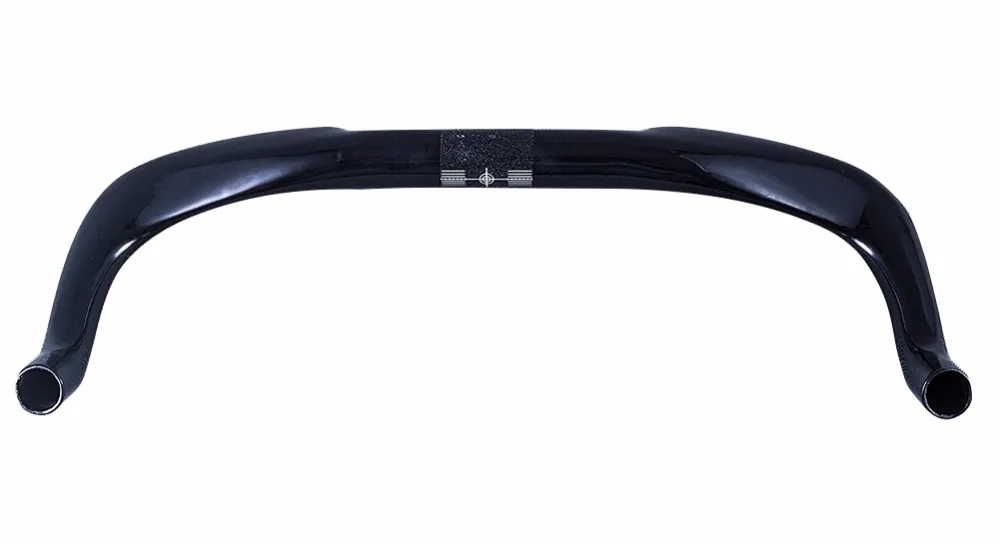

I hear you, but this particular bar doesn't step down:


Although @CliffordK's point about getting past the aero wings presents another problem. :/
Celeste Mike is offline
Old 03-05-18, 05:56 PM
  #6
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,461
Mentioned: 192 Post(s)
Tagged: 0 Thread(s)
Quoted: 11363 Post(s)
Liked 880 Times in 691 Posts
That second bar that you show looks like the "wings" may be removable, or a separate part from the main bars.

Nonetheless, you should be able to pry the clamps open... hopefully. If you found, or had some made that were the right size.

I haven't tried the Dia Compe 139 brakes. They'd have to be a pretty good match for your bars to be useful, although you should have some right/left adjustment and rotational adjustment during the install.
CliffordK is offline
Old 03-05-18, 06:01 PM
  #7
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 35,964

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 124 Post(s)
Tagged: 1 Thread(s)
Quoted: 4360 Post(s)
Likes: 0
Liked 15 Times in 15 Posts
Originally Posted by CliffordK View Post
That second bar that you show looks like the "wings" may be removable, or a separate part from the main bars.

Nonetheless, you should be able to pry the clamps open... hopefully. If you found, or had some made that were the right size.

I haven't tried the Dia Compe 139 brakes. They'd have to be a pretty good match for your bars to be useful, although you should have some right/left adjustment and rotational adjustment during the install.
Yes, the OP can pry the clamps open but that won't solve the problem. They will only work on a bar that's roughly 23.8mm because the band isn't long enough to close and bring the holes into alignment on anything larger.

It's possible that some brand of interrupter lever has an optional 31.8 clamp, but I suspect that the OP's only option is going to be DIY.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 03-05-18, 06:59 PM
  #8
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 2,860

Bikes: Breezer Radar

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1530 Post(s)
Liked 567 Times in 287 Posts
Have custom mades ones made out of 3D printed titanium.
tyrion is online now
Old 03-05-18, 09:12 PM
  #9
Cross Creek
Senior Member

Cross Creek's Avatar

Join Date: Nov 2009
Location: Fayetteville, NC
Posts: 346

Bikes: 2013 Rivendell Sam, 1996 Bianchi Milano, 1994 Trek 820

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use Dia Compe DC135 levers quite often for city and single speed builds. 22.2 and 23.8 clamps are readily available, not always cheaply in the case of the 23.8's. I've mulled over the idea of making sockets tapped for the brake draw bolts that could be glued with high-strength epoxy to the bars. In other words, getting rid of the clamps altogether. The two "hard" spots would be making sure that you put them in exactly the right spot, and making sure that the glue joint is solid and reliable. Brazing the fittings to the bars is another option, but the danger there would be softening/weakening heat-treated bars.
Cross Creek is offline
Old 03-05-18, 09:43 PM
  #10
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,461
Mentioned: 192 Post(s)
Tagged: 0 Thread(s)
Quoted: 11363 Post(s)
Liked 880 Times in 691 Posts
Originally Posted by Cross Creek View Post
I use Dia Compe DC135 levers quite often for city and single speed builds. 22.2 and 23.8 clamps are readily available, not always cheaply in the case of the 23.8's. I've mulled over the idea of making sockets tapped for the brake draw bolts that could be glued with high-strength epoxy to the bars. In other words, getting rid of the clamps altogether. The two "hard" spots would be making sure that you put them in exactly the right spot, and making sure that the glue joint is solid and reliable. Brazing the fittings to the bars is another option, but the danger there would be softening/weakening heat-treated bars.
Interesting concept.

One wouldn't necessarily need to use short bolts. So, one could potentially drill the bars for through bolts.

I'd still want to spread the forces out a bit so some kind of a band would be nice, but one could potentially use a local build-up of carbon fiber as well as a complete wrap, then drill and use a through bolt.

In theory, the bolt could also be fed from the inside of the bars, and thus one would only have to half drill the bars.

Of course, I'd hate to get my brake levers wrong, and have them incapable of doing an emergency stop.
CliffordK is offline
