Ideas for mounting a second water bottle cage?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Ideas for mounting a second water bottle cage?

Old 04-09-18, 05:05 PM
  #1
IslandTimePE
dirtroadcycling.ca
Thread Starter

Join Date: Apr 2011
Location: Charlottetown, PE
Posts: 99

Bikes: 2016 Giant Revolt, 1985 Miyata Two Ten, 1987 Steve Bauer Chinook, 2005 Giant Rainier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ideas for mounting a second water bottle cage?

My newest old bike is a 1985 Miyata Two-Ten that I have tweaked to use as an all-surface ride. The Two-Ten has essentially the same great triple butted steel touring frame as it's higher end Six Ten and One Thousand siblings with one glaring exception.....the Two-Ten has only one set of water bottle bosses. I would love to be able to mount a second bottle cage. I use a Camelbak for longer ride but don't like to use it if I am just out for a couple hours; a second bottle is enough.

In the past, I have resorted to pipe clamps and scrap inner tube rubber in a pinch to mount extra cages on other bikes, but I believe this Miyata merits a more elegant solution if I can find one.



I've looked around online and have seen a few options - saddle mounted cages, etc. But most seem either pretty clunky or flimsy (I ride a fair amount of dirt and gravel)...or both.

I know some people cut frames to weld in new bottle bosses. Not sure I am brae enough for that or can find someone experienced in making this modification in my neck of the woods. Besides, the frame and paint are in pretty good shape.

So, does anyone know of something better than pipe clamps? If not, are there specific clamps that can be used that are a little less conspicuous than the regular hardware store types?

Thanks!
Attached Images
File Type: jpg
IslandTimePE is offline
Old 04-09-18, 05:12 PM
  #2
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,553

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 4900 Post(s)
Liked 1,715 Times in 952 Posts

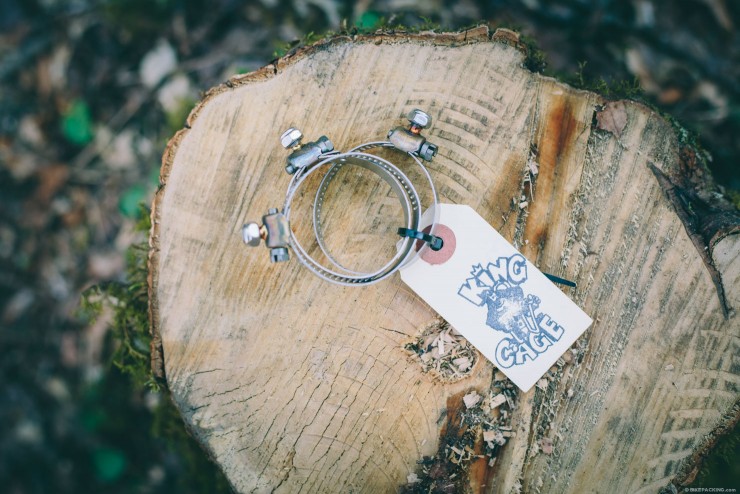

I would go with the KingCage Universal Support Bolt which is basically a pipe clamp with a 5mm stud welded onto it. Then you can mount whatever cage you want, at whatever height you want. And not terrible at 6 bucks apiece. You can put a strip of rubber under the clamp if you're worried about the paint. I don't like many of the other cage mounts, as the make the cage stick out like an inch from the tube.


__________________
DrIsotope is offline
Old 04-09-18, 05:22 PM
  #3
wnylogo
Senior Member

Join Date: Jun 2008
Location: Massachusetts
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I bought the Wolf Tooth double bottle adapter and it is working out really well. This could be another option for you. I've been using it for over a year on both pavement and trails. Haven't had any problems yet.

https://www.wolftoothcomponents.com/...e-cage-adapter
wnylogo is offline
Old 04-09-18, 05:23 PM
  #4
Bigbus
Very Senior Member

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,211

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 340 Times in 241 Posts
Why not just drill and tap a couple more holes in the frame where you want it, maybe diagonally across from the existing one. I did that on my old Huffy for extra water carrying. I still haven't figured out a spot on my latest bike for a second bottle because it's a FS and there just aren't any open areas on the frame.
Bigbus is offline
Old 04-09-18, 05:25 PM
  #5
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,166

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1377 Post(s)
Liked 917 Times in 637 Posts
[url=https://recklesscognition.wordpress.com/2009/01/13/methods-for-attaching-water-bottle-cages-without-screws-and-bosses/[/url]
Adding Water Bottle Cages to Bicycles without Braze
dsbrantjr is offline
Old 04-09-18, 05:33 PM
  #6
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,325 Times in 834 Posts
twofish.biz Twofish Unlimited




https://twofish.biz/attach-a-water-bo...k-cage-adapter


Last edited by fietsbob; 04-10-18 at 10:34 AM.
fietsbob is offline
Old 04-09-18, 05:37 PM
  #7
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,325 Times in 834 Posts
Originally Posted by Bigbus View Post
Why not just drill and tap a couple more holes in the frame where you want it, maybe diagonally across from the existing one. I did that on my old Huffy for extra water carrying. I still haven't figured out a spot on my latest bike for a second bottle because it's a FS and there just aren't any open areas on the frame.

Old huffys used thick wall steel tubes, like water pipes of old..

a Riv-Nut is the way you put a threaded insert into thin wall steel of better bikes..
fietsbob is offline
Old 04-09-18, 05:53 PM
  #8
IslandTimePE
dirtroadcycling.ca
Thread Starter

Join Date: Apr 2011
Location: Charlottetown, PE
Posts: 99

Bikes: 2016 Giant Revolt, 1985 Miyata Two Ten, 1987 Steve Bauer Chinook, 2005 Giant Rainier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks all. The King Cage and Wolf Tooth solutions look like they might be sturdy enough to stand up.
IslandTimePE is offline
Old 04-09-18, 06:00 PM
  #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,999

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1723 Post(s)
Likes: 0
Liked 617 Times in 452 Posts
There are bottle cages that clamp to the seatpost or brackets for a cage that attach to the saddle rails. Both type avoid damaging the paint and don't require drilling holes.
HillRider is offline
Old 04-09-18, 07:10 PM
  #10
dh024
Senior Member

Join Date: Jun 2007
Location: Calgary, Alberta
Posts: 314
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 6 Times in 4 Posts
Like these:
https://www.adventurecycling.org/cyc...-cage-adaptor/
dh024 is offline
Old 04-09-18, 07:35 PM
  #11
phtomita
Senior Member

Join Date: Jan 2018
Location: Redmond, WA
Posts: 723

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Liked 89 Times in 65 Posts
I like this clamp adapter (there are some with adapter for smaller tube size). I have this installed on my head tube, left side. Great to reach with your right hand, left hand gives you a not natural angle to hold it. It also helps my brake cable to stay 'in place' on my Tri-A

https://www.ebay.com/itm/Bike-Handle...ADfcfEGtY3TG3g
Attached Images
File Type: jpg

Last edited by phtomita; 04-10-18 at 02:14 PM.
phtomita is offline
Old 04-09-18, 07:39 PM
  #12
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,208

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1564 Post(s)
Liked 595 Times in 343 Posts
Originally Posted by Bigbus View Post
Why not just drill and tap a couple more holes in the frame where you want it, maybe diagonally across from the existing one. I did that on my old Huffy for extra water carrying. I still haven't figured out a spot on my latest bike for a second bottle because it's a FS and there just aren't any open areas on the frame.
I definitely wouldn't try that on any butted tubing bike. Actually, I'm a little surprised it worked with your Huffy.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 04-09-18, 08:42 PM
  #13
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,475

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Likes: 0
Liked 171 Times in 85 Posts
A pair of DMR Hinged Clamps. Rock solid.


Vintage_Cyclist is offline
Old 04-09-18, 09:54 PM
  #14
TallRider
Senior Member

TallRider's Avatar

Join Date: Oct 2005
Location: Fresno, CA
Posts: 4,454
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
Zefal used to make a plastic clamp that mounted on traditional-diameter steel down-tubes and seat-tubes. I have them on multiple bikes.
They no longer produce these, instead opting for a universal-size with zipties.
Gizmo Universal - Universal bottle cage
TallRider is offline
Old 04-10-18, 04:16 AM
  #15
IslandTimePE
dirtroadcycling.ca
Thread Starter

Join Date: Apr 2011
Location: Charlottetown, PE
Posts: 99

Bikes: 2016 Giant Revolt, 1985 Miyata Two Ten, 1987 Steve Bauer Chinook, 2005 Giant Rainier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Vintage_Cyclist View Post
A pair of DMR Hinged Clamps. Rock solid.
Perfect! Makes sense; same idea as the downtube cable stop I had to install to switch the bike from downtube shifters. And available from Wiggle to boot; easy to get them shipped to Canada.
IslandTimePE is offline
Old 04-10-18, 06:42 AM
  #16
blue192
Senior Member

blue192's Avatar

Join Date: May 2008
Location: Ottawa
Posts: 476

Bikes: Norco Scene 1, Khs Westwood, Jamis Allegro 3x

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 52 Times in 33 Posts
Something like this would allow you to mount on the down tube or handlebar securely... https://www.mec.ca/en/product/5018-9...Go-Bottle-Cage
blue192 is offline
Old 04-10-18, 07:00 AM
  #17
jimmie65
Proud hobo biker

jimmie65's Avatar

Join Date: Nov 2014
Location: Schertz - New Braunfels area
Posts: 804

Bikes: 2019 Surly Ogre, 2016 Giant Anyroad 2, Lightspeed Roadrunner trike, SE Tripel (in process)

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Here's what I'm using (for a fork mount, but would be fine on the downtube):



https://smile.amazon.com/gp/product/B003SOROKE/
jimmie65 is offline
Old 04-10-18, 07:34 AM
  #18
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 4,529
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,211 Times in 858 Posts
Originally Posted by phtomita View Post
I like this clamp adapter (there are some with adapter for smaller tube size). I have this installed on my head tube, left side. Great to reach with your right hand, left hand gives you a not natural angle to hold it. It also helps my brake cable to stay 'in place' on my Tri-A

https://www.ebay.com/itm/Bike-Handle...ADfcfEGtY3TG3g
can the affixed piece be repositioned for orientation? Turned 90 ?
__________________
-Oh Hey!
Troul is offline
Old 04-10-18, 08:58 AM
  #19
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,568
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 510 Post(s)
Liked 388 Times in 308 Posts
One more option. https://velo-orange.com/collections/...tle-cage-clamp
Crankycrank is offline
Old 04-10-18, 09:02 AM
  #20
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,404

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3080 Post(s)
Liked 1,504 Times in 1,025 Posts
Originally Posted by DrIsotope View Post
I would go with the KingCage Universal Support Bolt which is basically a pipe clamp with a 5mm stud welded onto it. Then you can mount whatever cage you want, at whatever height you want. And not terrible at 6 bucks apiece. You can put a strip of rubber under the clamp if you're worried about the paint. I don't like many of the other cage mounts, as the make the cage stick out like an inch from the tube.



This +1. Andy
Andrew R Stewart is offline
Old 04-10-18, 10:26 AM
  #21
phtomita
Senior Member

Join Date: Jan 2018
Location: Redmond, WA
Posts: 723

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Liked 89 Times in 65 Posts
Originally Posted by Troul View Post
can the affixed piece be repositioned for orientation? Turned 90 ?
Yes, you can turn it.
Very solid - before used to have in the handlebar (modern bike) - and now moved it down to the head tube for my Tri-A.
phtomita is offline
Old 04-10-18, 11:51 AM
  #22
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 4,529
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,211 Times in 858 Posts
Originally Posted by Troul View Post
can the affixed piece be repositioned for orientation? Turned 90 ?
also meant to ask if theres a larger diameter option ie: 51mm+
__________________
-Oh Hey!
Troul is offline
Old 04-10-18, 01:51 PM
  #23
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,724

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 374 Times in 281 Posts
Two choices: handlebar mount or saddle mount. Walmart used to sell a handlebar mount, not sure if they still do it.
wrk101 is offline
Old 04-10-18, 02:06 PM
  #24
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,325 Times in 834 Posts
Specialized used to offer a nice handlebar bottle cage, on my bike i has as a kid, in the 50's, I had a double bottle mount on the handlebars..


Of course you could just put a bigger capacity bottle in.. Zefal makes som Liter sized..
fietsbob is offline
Old 04-10-18, 02:07 PM
  #25
phtomita
Senior Member

Join Date: Jan 2018
Location: Redmond, WA
Posts: 723

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Liked 89 Times in 65 Posts
Originally Posted by Troul View Post
also meant to ask if theres a larger diameter option ie: 51mm+
I never saw with larger diameter. It is 31.8 mm and vicinity only.
phtomita is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
