Secondary retention washers

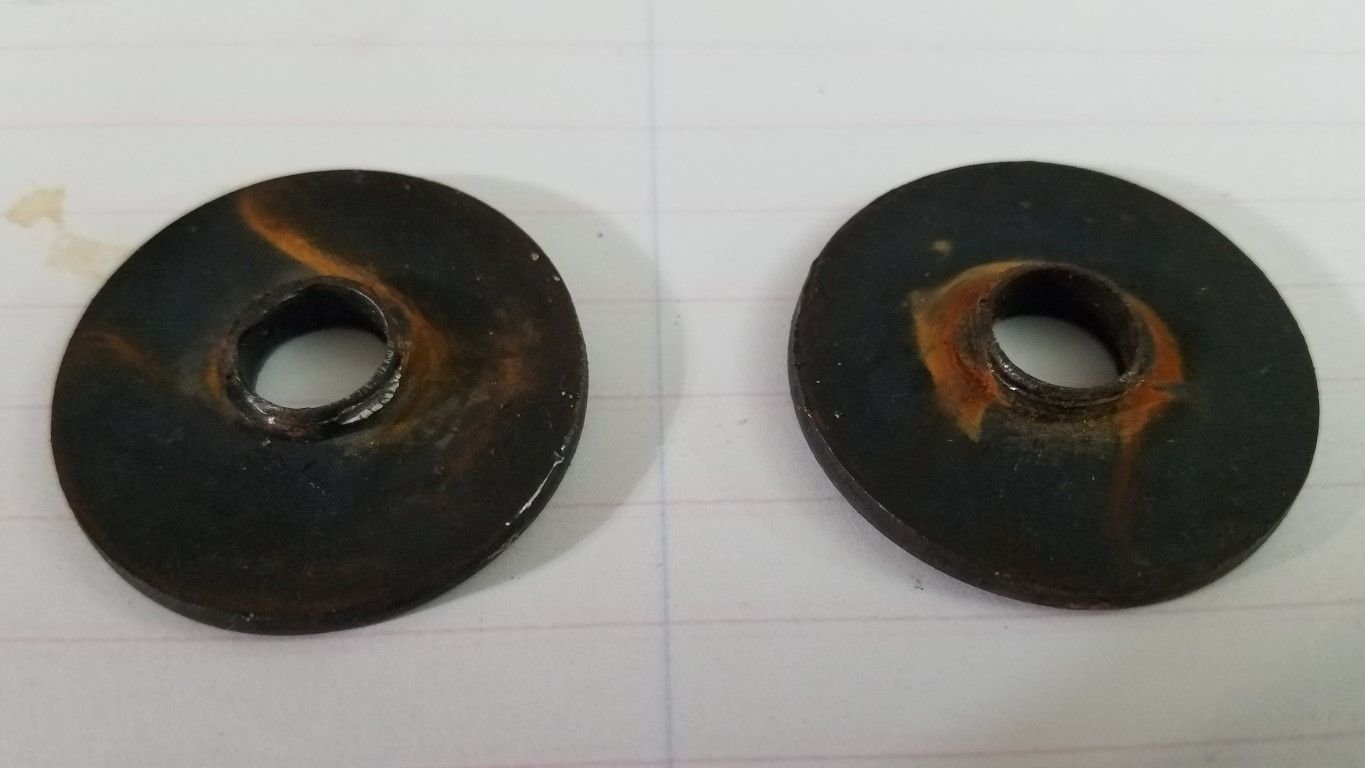

The attached image shows a type of secondary retention device I'm not familiar with. It's just a washer with a flange. Can anyone tell me the theory behind how it works?
The flange doesn't seem to quite fit within the dropout slots. I'm at a loss as to how to reinstall these washers, and have ordered some tabbed retention washers instead. https://cimg2.ibsrv.net/gimg/bikefor...0d54d92898.jpg |
The fork tips won't allow them to slide in, but there should be a circle milled into the dropouts that the flange will sit into. The flange will not slide in with the axle, it has to be inserted axially after the axle in seated. |
Originally Posted by aggiegrads
(Post 20314334)

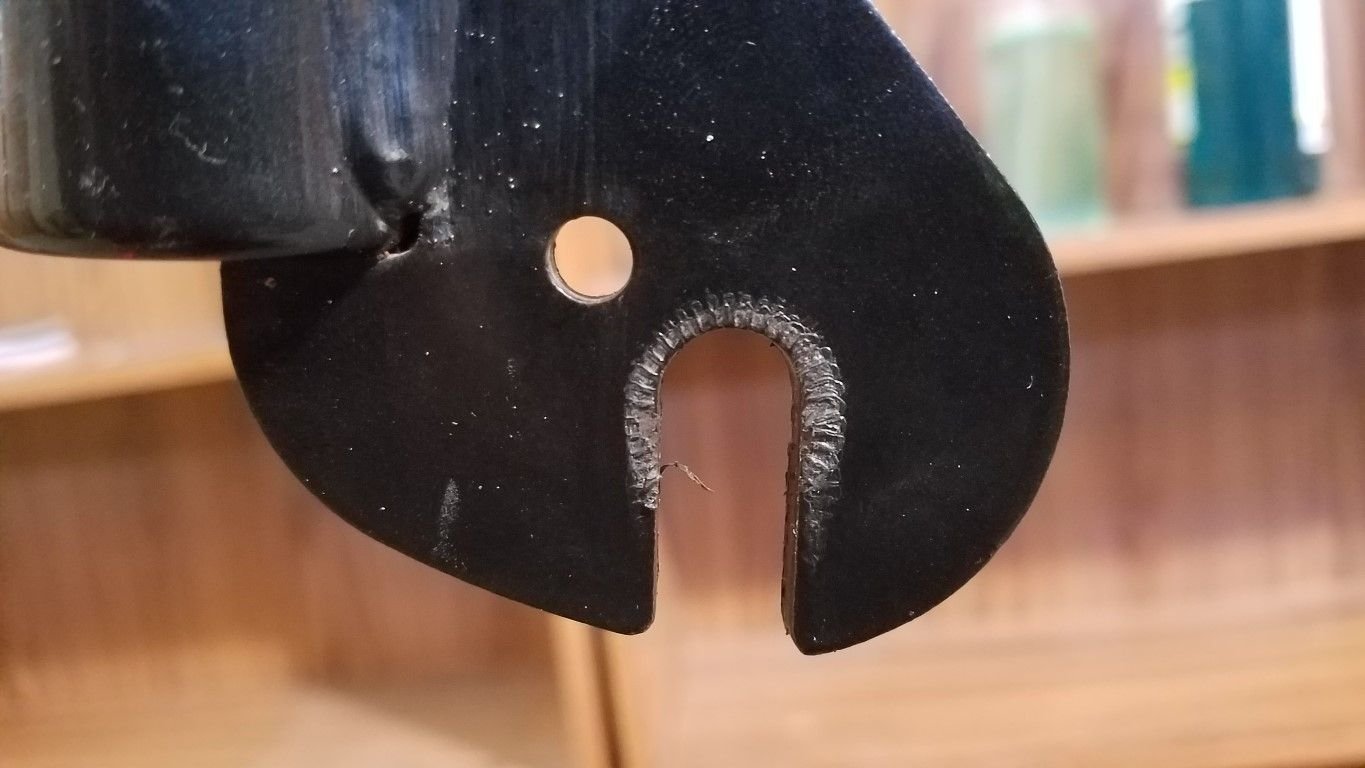

The fork tips won't allow them to slide in, but there should be a circle milled into the dropouts that the flange will sit into. The flange will not slide in with the axle, it has to be inserted axially after the axle in seated. It's a low-end bike. Maybe it was just built wrongly at the factory. https://cimg2.ibsrv.net/gimg/bikefor...0aedd8c4c0.jpg https://cimg3.ibsrv.net/gimg/bikefor...83b5305cc1.jpg |
All is resolved. A friend of mine had some spare, tabbed retention washers. We put those on. They fit the fork perfectly.
|
