Road double brake lever question

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Road double brake lever question

Old 05-06-18, 08:28 AM
  #1
hybridbkrdr
we be rollin'
Thread Starter

hybridbkrdr's Avatar

Join Date: Oct 2009
Location: Quebec, Canada
Posts: 1,665
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Road double brake lever question

I went to a charity bike sale and bought nothing. But, seeing some old road bikes with double brake levers made me think I wanted another bike like that. Canadian Tire has a road bike called the CCM Sutherland. I think it's very cool but it has disc brakes. Since it's kind of cheap, I know the brakes are very likely mechanical.
CCM Sutherland 700c Road Bike | Canadian Tire

I found some double brake levers at Niagaracycle from Sun Race.
https://www.niagaracycle.com/categor...ers-sl-pr-misc
So, does anyone know if the amount of cable pull on these brake levers would be compatible with mechanical disc brakes?

(By the way, I know some people will debate whether the bike is worth it. It's $600 Canadian dollars but $400 Canadian on sale. That's only $311 USD but it would only be a rain/winter bike with 700x35c studded tires in the winter.)
hybridbkrdr is offline
Old 05-06-18, 08:56 AM
  #2
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,322

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Those levers have the nickname of suicide levers because if you needed to stop quickly you couldn't get enough leverage. This is especially true if they start to come a little loose, then some brake lever travel is just twisting.

You can get inline brakes, interrupters, that work quite well and allow you to stop as well as drop brakes.

John
70sSanO is offline
Old 05-06-18, 09:11 AM
  #3
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,289
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
+1 ^^^. We used to just remove the suicide levers since they were near useless and just got in the way. The newer version in the link looks to be about the same and no better than the older versions. Cross/Interrupter levers example here. https://www.bikenashbar.com/cycling/...s%20&%20Frames
Crankycrank is offline
Old 05-06-18, 09:22 AM
  #4
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 586

Bikes: Cannondale Saeco Machhine De Caffe. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
So, does anyone know if the amount of cable pull on these brake levers would be compatible with mechanical disc brakes?

i remember they weren't exactly compatible to old brakes, lol

ok if you're cruising with your hands on the flat, mild braking, but for emergencies?! forget about it
le mans is offline
Old 05-06-18, 09:39 AM
  #5
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,204

Bikes: 8

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 6336 Post(s)
Cable out the top, old style brake levers pull length falls in between road aero hidden cable short pull, and V brake levers long pull..

so neither , its a medium pull ..

aero road and top mount interrupter levers are a better effective brake if thinking disc, go road pull..
fietsbob is online now
Old 05-06-18, 09:45 AM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,204

Bikes: 8

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 6336 Post(s)
Canadien winter go for straight bars and fit Pogies over them for warmer hands..

I like drum brakes (better than disc) brakes, which I have on my studded tire bike.. an old MTB.
fietsbob is online now
Old 05-06-18, 10:30 AM
  #7
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 586

Bikes: Cannondale Saeco Machhine De Caffe. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)

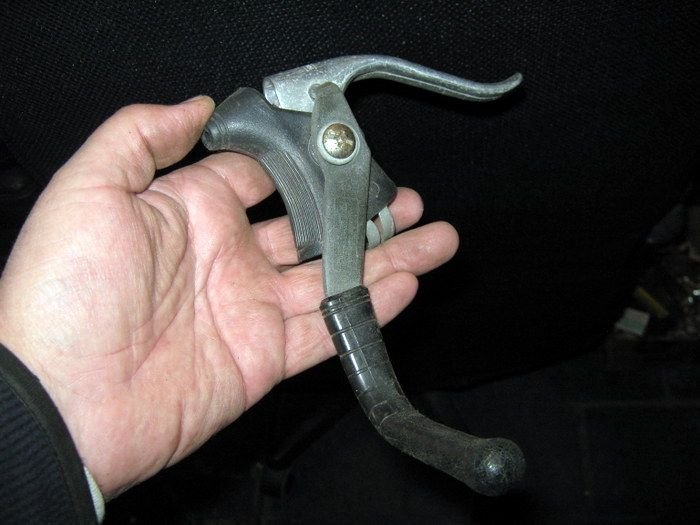

I got heaps of these levers lying around, still on scrap bikes too

this one is made by Shimano, looks like a better design with the extension lever attached to the main lever [might test them]

[if you're hell bent on using em, look for a quality set!]
le mans is offline
Old 05-07-18, 10:57 AM
  #8
hybridbkrdr
we be rollin'
Thread Starter

hybridbkrdr's Avatar

Join Date: Oct 2009
Location: Quebec, Canada
Posts: 1,665
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Originally Posted by fietsbob View Post
Cable out the top, old style brake levers pull length falls in between road aero hidden cable short pull, and V brake levers long pull..

so neither , its a medium pull ..

aero road and top mount interrupter levers are a better effective brake if thinking disc, go road pull..
OK, road pull. Thanks for the info. Actually, I didn't realize that old style was seen as dangerous. (I actually bought long pull cross levers for my touring bike which I intend to build this summer.)
hybridbkrdr is offline
Old 05-08-18, 10:44 AM
  #9
MarcoBianchi
Senior Member

MarcoBianchi's Avatar

Join Date: Jul 2014
Location: Saragossa. Spain
Posts: 242

Bikes: Peugeot Mont Blanc . Bianchi 28c 1980. Coppi Giro di Lombardia. Vitoria Vintage 1990. Orbea Luarca 1977. Trek 950.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
I would recommend Tektro RL720, or something like that.
MarcoBianchi is online now
