Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

My DIY dropout tool

Old 05-06-18, 01:39 PM
  #1
Kentonk
Member
Thread Starter

Join Date: Oct 2017
Posts: 48
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 1 Time in 1 Post
My DIY dropout tool

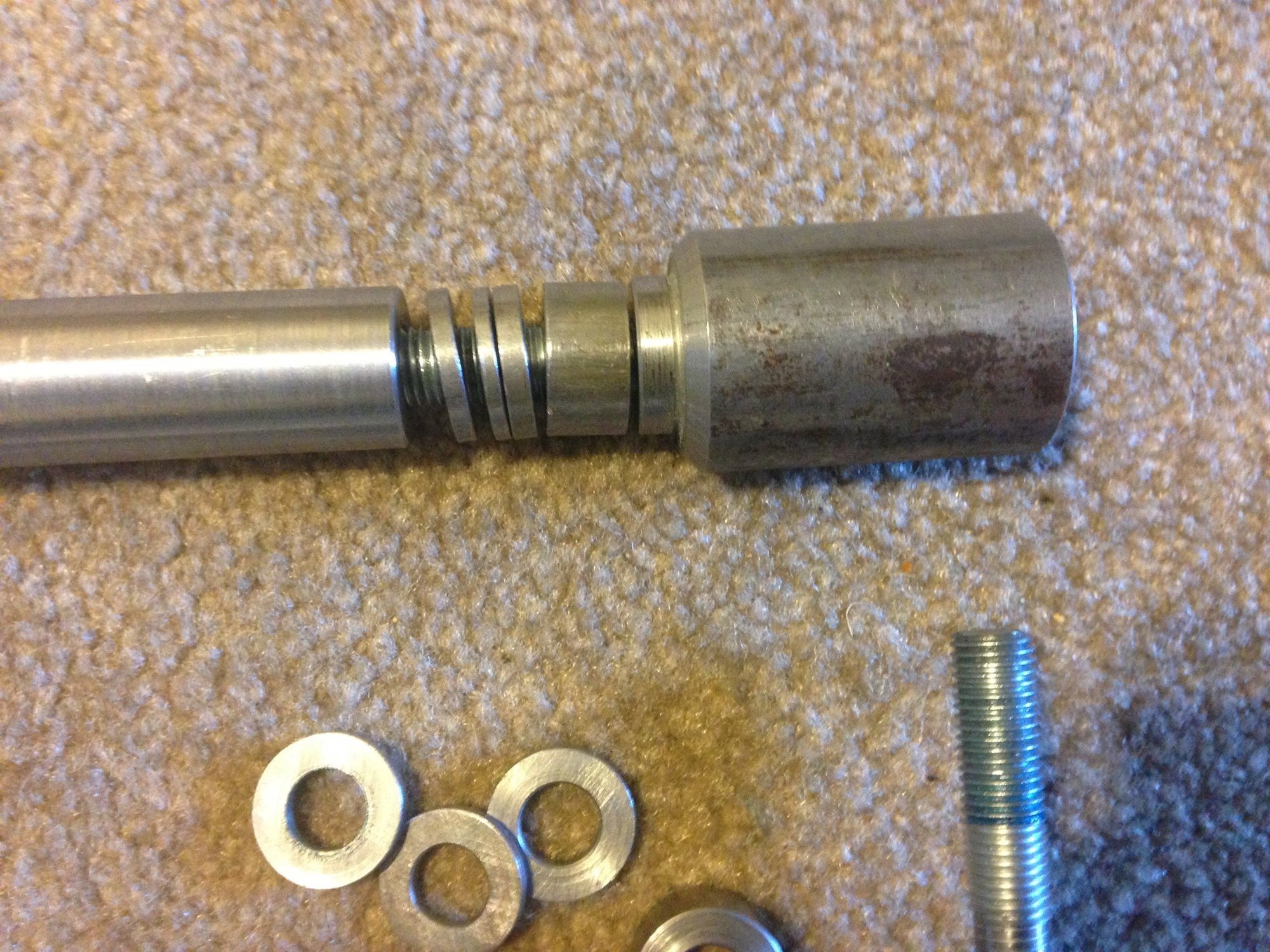

Just wanted to show my homemade dropout alignment tool. Used some scrap stock I had and machined it on the lathe. I had to buy a bit of M10 threaded rod. I modeled off the Campy tool, and made it adjustable for 100, 120, 126, 130, and 135 spacings, and lathed down portion of the threaded rod to fit in 9mm front dropouts. Works so much better than the axel shannanigins I've done before!

Kentonk is offline
Old 05-06-18, 01:52 PM
  #2
tonyfourdogs
Senior Member

tonyfourdogs's Avatar

Join Date: Oct 2017
Location: Devon, UK
Posts: 243

Bikes: Marin Palisades Trail (1991)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That is very cool! Much nicer looking than RJ's version, and probably a bit more precise/ reliable too.
tonyfourdogs is offline
Old 05-06-18, 04:54 PM
  #3
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,227

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Liked 95 Times in 72 Posts
Very cool. I like the shape - nice aesthetics. Clever spacing, too.

One point, though. Only important if you are talking to someone who's used a lathe. These are properly referred to as "turned down", not "lathed down". One uses a lathe to turn a workpiece. If you have a milling machine, you can mill down a workpiece, but you can't use a lathe to lathe down a workpiece.

That said, I have a lathe and haven't made anything like this. Nice!
WizardOfBoz is offline
Old 05-06-18, 05:49 PM
  #4
Hatchet
Senior Member

Join Date: Oct 2017
Location: Buffalo, NY
Posts: 242
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Very cool. Thanks for sharing!
Hatchet is offline
Old 05-07-18, 01:00 AM
  #5
Kentonk
Member
Thread Starter

Join Date: Oct 2017
Posts: 48
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by WizardOfBoz View Post
Very cool. I like the shape - nice aesthetics. Clever spacing, too.

One point, though. Only important if you are talking to someone who's used a lathe. These are properly referred to as "turned down", not "lathed down". One uses a lathe to turn a workpiece. If you have a milling machine, you can mill down a workpiece, but you can't use a lathe to lathe down a workpiece.

That said, I have a lathe and haven't made anything like this. Nice!
Hehe, your right, turned down. I'm always bad at terminology.
Kentonk is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Camilo
Classic & Vintage
8
04-22-13 04:52 PM
atkohn
Bicycle Mechanics
3
12-16-12 12:45 PM
rootboy
Classic & Vintage
62
11-30-12 07:58 AM
godfather74
Road Cycling
28
04-06-12 01:58 PM
Soil_Sampler
Singlespeed & Fixed Gear
22
04-27-11 10:47 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
