Front wheel on backwards?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Front wheel on backwards?

Reply

Old 05-13-18, 05:00 PM
  #1
Odyssey42
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Front wheel on backwards?

Let me state at the outset that I am a total noob. I have recently acquired a Fuji Sundance 2000FS 26" Men's Bike, but I think something is wrong with the front. It doesn't turn like I remember (from my bike riding days some decades earlier). Shouldn't the brakes be in front of the fork?

If so, and if it should be turned around, how does one go about it? Do you remove all the gear from the handlebars, turn the fork around, and re-install the gear? Or is it easier than that?

If not, are there special tools needed to remove the gear? Any cautions to be observed? Other guidance?

Thanks for any assistance.
Odyssey42 is offline
Reply With Quote
Old 05-13-18, 05:05 PM
  #2
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 461

Bikes: Cannondale Saeco Machhine De Caffe, Mistral Le Mans, Indi 500, Wheeler Crossline, Diamondback Axis Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
a pic would be handy

once i saw a bike advertised on Gumtree, the forks were turned inward and the handle bar was where it should be :-D
le mans is offline
Reply With Quote
Old 05-13-18, 05:15 PM
  #3
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 461

Bikes: Cannondale Saeco Machhine De Caffe, Mistral Le Mans, Indi 500, Wheeler Crossline, Diamondback Axis Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
i'm thinking about fitting the rear side pull brakes [on a project i'm doing] on the inside of the seat stays because i want to fit tail lights on the right seat stay tube so there won't be any obstructions
le mans is offline
Reply With Quote
Old 05-13-18, 05:28 PM
  #4
prathmann
Senior Member

Join Date: Nov 2008
Location: Bay Area, Calif.
Posts: 7,150
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 605 Post(s)
It's certainly possible that the bike was assembled with the fork backwards. If you extend a straight line along the head tube the fork is normally raked forward a bit - either by having a bend toward the bottom end of the fork or by angling the fork blades forward at the crown.

If it is backwards the difficulty of the fix will depend some on how the cables run. You may be able to fix things just by loosening things at the stem and turning the fork while keeping the handlebars fixed. But you may find that the cables get in the way and that you also need to remove some cables, then turn the fork, and reattach the cables.
prathmann is online now
Reply With Quote
Old 05-13-18, 05:43 PM
  #5
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,369

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Did you consider looking at a couple other bikes to see how they are?
Bill Kapaun is offline
Reply With Quote
Old 05-13-18, 05:52 PM
  #6
TimothyH
- Soli Deo Gloria -

TimothyH's Avatar

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 10,908

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 148 Post(s)
Tagged: 0 Thread(s)
Quoted: 4761 Post(s)

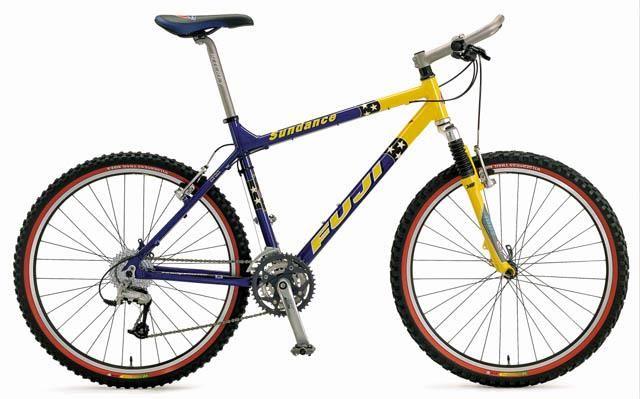

A photo of a 2000 Fuji Sundance is at https://www.bicyclebluebook.com/sear....aspx?id=45480.

Brakes are in front of the fork. I don't know any bike with brakes behind the fork.
TimothyH is offline
Reply With Quote
Old 05-14-18, 03:39 AM
  #7
dsaul
Senior Member

Join Date: Jan 2013
Posts: 713
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Yes. The brakes should be on the front. Loosen the stem bolt and rotate the fork/handlebars until they face the correct direction. You may have to disconnect the front brake cable and re-route it.
dsaul is offline
Reply With Quote
Old 05-14-18, 09:11 AM
  #8
SquidPuppet
Calamari Marionette Ph.D

SquidPuppet's Avatar

Join Date: Dec 2013
Location: Coeur d' Alene
Posts: 7,963

Bikes: 3 Chinese Gas Pipe Nerdcycles and 2 Chicago Electroforged Boat Anchors

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2337 Post(s)

assist
SquidPuppet is offline
Reply With Quote
Old 05-14-18, 10:22 AM
  #9
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 35,002

Bikes: 8

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 4899 Post(s)
Originally Posted by Odyssey42 View Post
Let me state at the outset that I am a total noob. I have recently acquired a Fuji Sundance 2000FS 26" Men's Bike, but I think something is wrong with the front. It doesn't turn like I remember (from my bike riding days some decades earlier). Shouldn't the brakes be in front of the fork?

If so, and if it should be turned around, how does one go about it? Do you remove all the gear from the handlebars, turn the fork around, and re-install the gear? Or is it easier than that?

If not, are there special tools needed to remove the gear? Any cautions to be observed? Other guidance?

Thanks for any assistance.
You got the bike in a box? and did not turn the fork around, but left it backwards when you put the handlebars on?

You are ready to go work at walmart (or many other discount mass market big box stores)
their people have no more skills than that, and you can see them for sale there, in that condition..
fietsbob is online now
Reply With Quote
Old 05-14-18, 10:39 AM
  #10
TimothyH
- Soli Deo Gloria -

TimothyH's Avatar

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 10,908

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 148 Post(s)
Tagged: 0 Thread(s)
Quoted: 4761 Post(s)
Originally Posted by SquidPuppet View Post

assist
It's actually a cool looking bike in an Evil Knievel/Sunoco kind of way.
TimothyH is offline
Reply With Quote
Old 05-14-18, 11:05 AM
  #11
Odyssey42
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Please excuse my absence. Got called out, so just hit "Post" on my way out the door.

Although I have been trying to include a picture (that would be an "image" right?) When I upload it, I would expect to be uploading a file, but I get an error message that says that I don't have enough points to post a URL (even though I don't think an uploaded photo is a URL). Am I doing something wrong?

BTW, no way I could get a job at Walmart. I don't ever know how to even start assembling things. I got the bike second hand, and so cannot take credit for the assembly.

It seems pretty clear from the comments that it is on backwards, so will reverse it. At which place do I disconnect the cables (i.e., where is best place to disconnect, right at the brake hand grip)?

Thanks for your patience.
Odyssey42 is offline
Reply With Quote
Old 05-14-18, 11:20 AM
  #12
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,287

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
There are 2 options... Go check out youtube videos or take the bike to a local bike shop to make sure everything works.

I would never attempt to guide someone with a self proclaimed lack of any mechanical ability on how to loosen handlebars, disconnect brakes, re-assemble, and then send that person out on the road/trail.

John
70sSanO is offline
Reply With Quote
Old 05-14-18, 11:55 AM
  #13
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,628
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2139 Post(s)
Originally Posted by le mans View Post
i'm thinking about fitting the rear side pull brakes [on a project i'm doing] on the inside of the seat stays because i want to fit tail lights on the right seat stay tube so there won't be any obstructions
This will likely change the reach from the caliper to rim, making the regular brake unusable.
Kontact is offline
Reply With Quote
Old 05-14-18, 12:17 PM
  #14
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 30,967

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 961 Post(s)
Originally Posted by Kontact View Post
This will likely change the reach from the caliper to rim, making the regular brake unusable.
Yes. that's exactly what I was picturing and wondered if the pads could be adjusted enough to compensate. Also, if he tries it, be CERTAIN to reverse the pad holders so the closed end still faces forward.
HillRider is offline
Reply With Quote
Old 05-14-18, 12:50 PM
  #15
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 461

Bikes: Cannondale Saeco Machhine De Caffe, Mistral Le Mans, Indi 500, Wheeler Crossline, Diamondback Axis Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
it does put the caliper at a non parallel angle slightly to the seat stays, but there's lots of adjustment for the pads :-)

it's the old brake type to suit 27" wheels, more than enough reach

i may not have to do that, see how those tail lights fit, was just a thought
le mans is offline
Reply With Quote
Old 05-14-18, 12:50 PM
  #16
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Posts: 30,878

Bikes: everywhere

Mentioned: 40 Post(s)
Tagged: 1 Thread(s)
Quoted: 2911 Post(s)
Originally Posted by Odyssey42 View Post
Please excuse my absence. Got called out, so just hit "Post" on my way out the door.

Although I have been trying to include a picture (that would be an "image" right?) When I upload it, I would expect to be uploading a file, but I get an error message that says that I don't have enough points to post a URL (even though I don't think an uploaded photo is a URL). Am I doing something wrong?

BTW, no way I could get a job at Walmart. I don't ever know how to even start assembling things. I got the bike second hand, and so cannot take credit for the assembly.

It seems pretty clear from the comments that it is on backwards, so will reverse it. At which place do I disconnect the cables (i.e., where is best place to disconnect, right at the brake hand grip)?

Tighten the stem bolts. 5Nm torque is usually adequate.

Thanks for your patience.
You shouldn't have to disconnect any cables.

Loosen the two stem bolts that pinch the stem onto the steerer tube of the fork.
Turn the fork so that it and the stem are facing forward. Just turn the fork in the direction so that the front brake cable doesn't wrap around.
Re-tighten the stem bolts. 5Nm torque should be adequate.
LesterOfPuppets is offline
Reply With Quote
Old 05-14-18, 01:01 PM
  #17
Odyssey42
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by LesterOfPuppets View Post
You shouldn't have to disconnect any cables.

Loosen the two stem bolts that pinch the stem onto the steerer tube of the fork.
Turn the fork so that it and the stem are facing forward. Just turn the fork in the direction so that the front brake cable doesn't wrap around.
Re-tighten the stem bolts. 5Nm torque should be adequate.
Lester. Spot on! Your clear and simple language guidance was exactly what I hoped for.

All done!

P.S. I do actually know which end of a screwdriver fits in the slot of a screw, but have always found that it sped things up to "dumb down" a bit, and the appropriate responses were always much clearer.

Many thanks to all for their valuable contributions.
Odyssey42 is offline
Reply With Quote
Old 05-14-18, 01:13 PM
  #18
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 461

Bikes: Cannondale Saeco Machhine De Caffe, Mistral Le Mans, Indi 500, Wheeler Crossline, Diamondback Axis Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Originally Posted by TimothyH View Post
It's actually a cool looking bike in an Evil Knievel/Sunoco kind of way.

nearly as cool lookin' as my diamondback axis sport
le mans is offline
Reply With Quote
Old 05-14-18, 03:14 PM
  #19
Odyssey42
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
This bike is 16.5" with 26 x 1.95" tires. What is the maximum height rider (with seat all the way up) it can be reasonably ridden by?
Odyssey42 is offline
Reply With Quote
Old 05-14-18, 06:12 PM
  #20
02Giant
Home School Valedictorian

02Giant's Avatar

Join Date: Jan 2011
Location: Iowa
Posts: 2,438

Bikes: 13 Orbea Orca 02 Giant Cypress 88 Mongoose ATB

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 593 Post(s)
Originally Posted by Odyssey42 View Post
This bike is 16.5" with 26 x 1.95" tires. What is the maximum height rider (with seat all the way up) it can be reasonably ridden by?
Do not exceed the minimum insertion line on the seat post.
__________________
Excuse me if I have some place in my mind
Where I go time to time
02Giant is offline
Reply With Quote
Old 05-14-18, 10:43 PM
  #21
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 461

Bikes: Cannondale Saeco Machhine De Caffe, Mistral Le Mans, Indi 500, Wheeler Crossline, Diamondback Axis Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Originally Posted by Odyssey42 View Post
This bike is 16.5" with 26 x 1.95" tires. What is the maximum height rider (with seat all the way up) it can be reasonably ridden by?
you can go online "bike size calculator" to find out what size suits you, height.. leg length etc

for a mountain bike it will be smaller than a roadie/hybrid


16.5" seat tube - mountain bike? small to medium size

Last edited by le mans; 05-14-18 at 10:46 PM.
le mans is offline
Reply With Quote
Old 05-16-18, 06:30 PM
  #22
RubeRad
Keepin it Wheel

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 7,702

Bikes: Surly CrossCheck, Moto Fantom29 ProSL hardtail

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Originally Posted by Odyssey42 View Post
This bike is 16.5" with 26 x 1.95" tires. What is the maximum height rider (with seat all the way up) it can be reasonably ridden by?
7 foot 8

Oh wait, you said "reasonably".

MTB with sloping top tubes have notoriously un-standardized, un-useful measurements. That said, I'd guess 16.5" would be a "medium" intended for average height adult males, like 5'7-5'11" or so. But longer seatpost/stem can stretch that. Just look for the min-insertion/max-extension line on the seatpost, if that's showing then you don't have enough post in the frame and the seatpost might get bent. (cheap seatposts might not have that engraved line though, in which case you have no choice but to take yer chances. I'd say rule of thumb, try to have at least 1/3 of the post in the frame)
RubeRad is offline
Reply With Quote
Old 05-16-18, 08:18 PM
  #23
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,074

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Originally Posted by TimothyH View Post
I don't know any bike with brakes behind the fork.

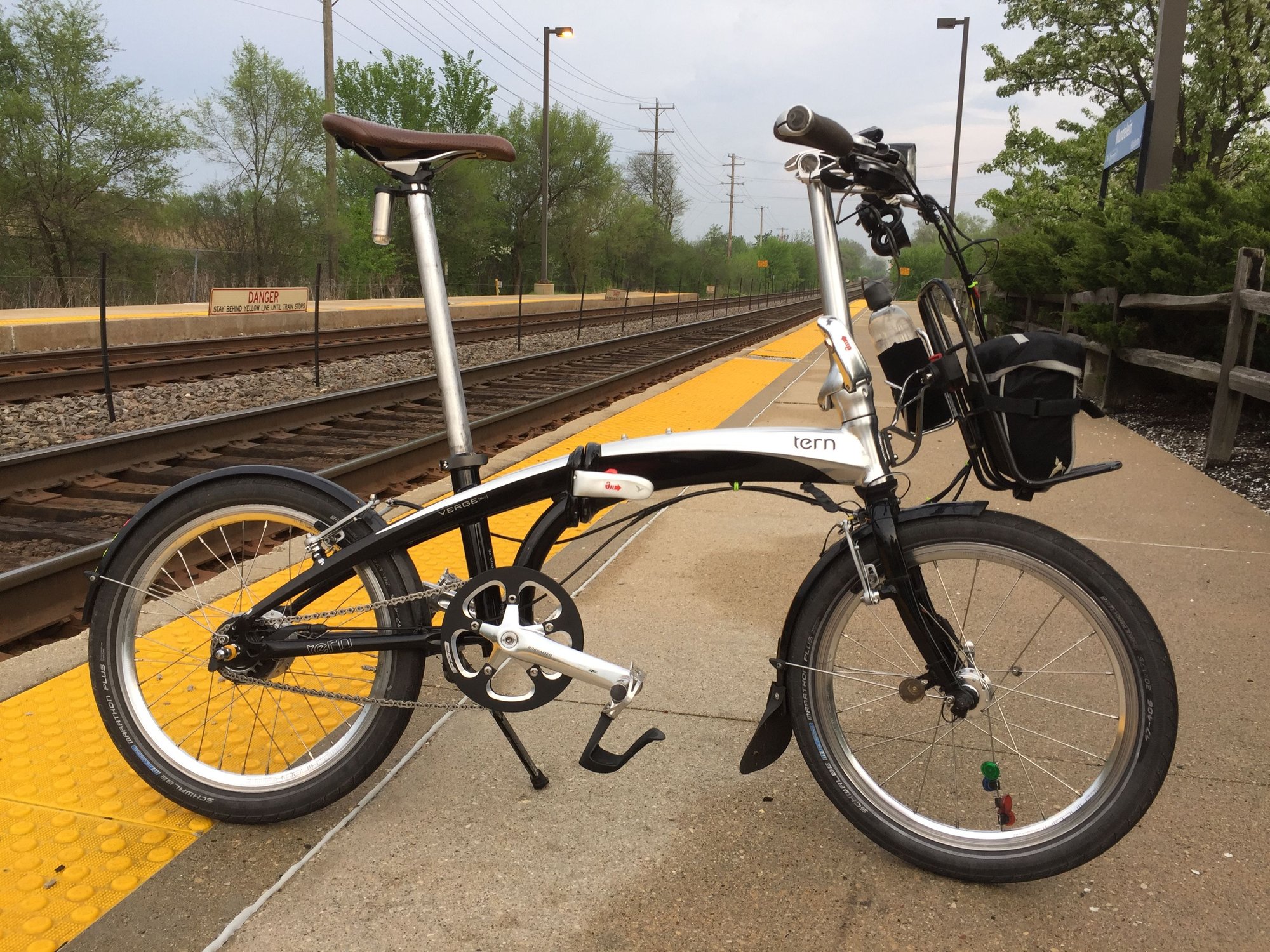

My Tern Verge S11i has its front brake behind the fork. I suspect this is mainly for "style", as it makes adjustment of the brake shoes somewhat more difficult. Most of Tern's models that have rim brakes have the front brake in this position.
Steve

First outing after a 4-month break (no pun intended) for ankle surgery!
sweeks is offline
Reply With Quote
Old 05-16-18, 08:27 PM
  #24
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: Metro Indy, IN
Posts: 14,972

Bikes: RANS V3 ti, RANS V-Rex, RANS Screamer

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Originally Posted by sweeks View Post
My Tern Verge S11i has its front brake behind the fork. I suspect this is mainly for "style", as it makes adjustment of the brake shoes somewhat more difficult. Most of Tern's models that have rim brakes have the front brake in this position.
Steve
The fork is backwards! The fork is backwards! Nevermind.........................That is disconcerting with the brake posts/brakes on backwards from the norm.
__________________
RANS V3 Ti, RANS V-Rex, RANS Screamer
JanMM is offline
Reply With Quote
Old 05-16-18, 08:34 PM
  #25
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,074

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Originally Posted by JanMM View Post
That is disconcerting with the brake posts/brakes on backwards from the norm.
I've gotten used to it. But you can see the angle the brake shoes are at relative to the arms. Now that I look at the bike, it's the same for the back brake... the small diameter wheels are a big part of the reason for this geometry I think.
sweeks is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
