Quill Syem Flex

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Quill Syem Flex

Old 05-21-18, 09:06 PM
  #1
GTryder
Senior Member
Thread Starter

GTryder's Avatar

Join Date: Apr 2013
Location: Prince Albert, SK - Canada
Posts: 300

Bikes: 1993 Trek 520 Touring, 2009 Globe SF 2, 2011 Giant Dash 3, 2011 GT Traffic 3.0, 2011 GT Traffic 5.0, 2012 GT Aggressor 3.0, 2014 Surface 604 Element

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Quill Syem Flex

I'm having issues with flexing and creaking on a Treck 520 flat bar conversion, using a generic alloy "made in China" adjustable quill stem. The stem is currently "slammed" to the lowest position and the flexing worsens when raised. The frame is a small with a short head tube. The adjustable angle bolts are tight as are the face plate bolts. I'm wonder if a quality solid stem such as a Nitto would solve the issue. I would prefer a removable face plate, since brake cables and bar-end shifters are now installed.

Last edited by GTryder; 05-21-18 at 09:07 PM. Reason: typo
GTryder is offline
Old 05-22-18, 06:53 AM
  #2
rhenning
Senior Member

Join Date: Apr 2006
Posts: 3,610
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Likes: 0
Liked 87 Times in 64 Posts
Make sure the clamp and all the other bolts on that adjustable stem are tight. Lots of places on those stems for loose parts to flex. Roger
rhenning is offline
Old 05-22-18, 06:59 AM
  #3
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,202

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1561 Post(s)
Liked 573 Times in 333 Posts
Is there a bolt under the handlebar?

Truthfully, I'm not a fan of adjustable stems. If it was my bike I'd find the handlebar position that I like, then go shopping for a fixed stem that would mimic that position.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 05-22-18, 08:16 AM
  #4
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,662

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1259 Post(s)
Liked 506 Times in 384 Posts
I have a couple of adjustable stems, and some are definitely better than others. Two that I like are on two of our Trek hybrids -- one came OEM on a 2015 Verve and the other is an aftermarket Zoom stem on a 2006 model 7100. Both of these stems are solid and flex-free. It's probably coincidence that both are oversized 25.4mm stems (for 1-1/8" threaded headsets). The adjustment mechanism works fluidly and tightens securely. Both of these stems feel just the same as a fixed stem once you've tightened the clamp.

I have a third adjustable stem, 22.2mm size, but it's a cheaper no-name one that came on a parts bike that I bought. The stem, despite being tightened securely, has flex/wobble in the adjustment mechanism. It's definitely not going anywhere (I don't believe it to be unsafe), but it also doesn't inspire confidence. I use that stem consistent with Retro Grouch's advice above -- I find the position I like with it and replace it with a fixed stem of a similar height and angle.

I wouldn't write-off adjustable stems entirely, but less expensive ones can leave something to be desired. And, unfortunately, some of the better ones also look a little beefier (and less attractive).

Please post pictures, either now or after your new stem, of your whole bike. I'd love to see your project!
hokiefyd is offline
Old 05-22-18, 09:09 AM
  #5
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,324 Times in 833 Posts
It is an adjustable angle stem ..

so why not find a fixed angle stem to eliminate the flexing due to separate parts moving in relation to each other?

Or just live with it , as is..

I have an ITM CNC machined adjustable angle threadless stem.. FWIW.. mated with ITM butterfly bars..
there is not complete silence.




...




...

Last edited by fietsbob; 05-22-18 at 09:13 AM.
fietsbob is offline
Old 05-22-18, 09:31 AM
  #6
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Posts: 7,510

Bikes: 2008 Novara Randonee - love it. Previous bikes:Motobecane Mirage, 1972 Moto Grand Jubilee (my fave), Jackson Rake 16, 1983 C'dale ST500.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
The position shown is not very low, even if it's the lowest you can put the stem in that bike, and indeed an adjustable stem will have more flex. I would suggest you get a rigid stem that puts the bars in the same position as the adjustable one. But I'm wondering what you do on the bike that would put much stress on the bars.
__________________
There's no such thing as a routine repair.

Don't tell me what "should" be - either it is, it isn't, or do something about it.

If you think I'm being blunt take it as a compliment - if I thought you were too weak to handle the truth or a strong opinion I would not bother.

Please respect others by taking the time to post clearly so we can answer quickly. All lowercase and multiple typos makes for a hard read. Thanks!
cny-bikeman is offline
Old 05-22-18, 10:02 AM
  #7
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,324 Times in 833 Posts
A TIG Welded Steel quill stem will be as flex less as possible..
fietsbob is offline
Old 05-23-18, 07:08 AM
  #8
GTryder
Senior Member
Thread Starter

GTryder's Avatar

Join Date: Apr 2013
Location: Prince Albert, SK - Canada
Posts: 300

Bikes: 1993 Trek 520 Touring, 2009 Globe SF 2, 2011 Giant Dash 3, 2011 GT Traffic 3.0, 2011 GT Traffic 5.0, 2012 GT Aggressor 3.0, 2014 Surface 604 Element

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Originally Posted by hokiefyd View Post
I have a couple of adjustable stems, and some are definitely better than others. Two that I like are on two of our Trek hybrids -- one came OEM on a 2015 Verve and the other is an aftermarket Zoom stem on a 2006 model 7100. Both of these stems are solid and flex-free. It's probably coincidence that both are oversized 25.4mm stems (for 1-1/8" threaded headsets). The adjustment mechanism works fluidly and tightens securely. Both of these stems feel just the same as a fixed stem once you've tightened the clamp.

I have a third adjustable stem, 22.2mm size, but it's a cheaper no-name one that came on a parts bike that I bought. The stem, despite being tightened securely, has flex/wobble in the adjustment mechanism. It's definitely not going anywhere (I don't believe it to be unsafe), but it also doesn't inspire confidence. I use that stem consistent with Retro Grouch's advice above -- I find the position I like with it and replace it with a fixed stem of a similar height and angle.

I wouldn't write-off adjustable stems entirely, but less expensive ones can leave something to be desired. And, unfortunately, some of the better ones also look a little beefier (and less attractive).

Please post pictures, either now or after your new stem, of your whole bike. I'd love to see your project!
My wife's bike has a good threadless adjustable stem, so I'm aware that they do exist
Thanks for all the replies; I'm now quite certain the stem is the problem, and it has served its purpose to determine proper fit - time to replace with a rigid stem.

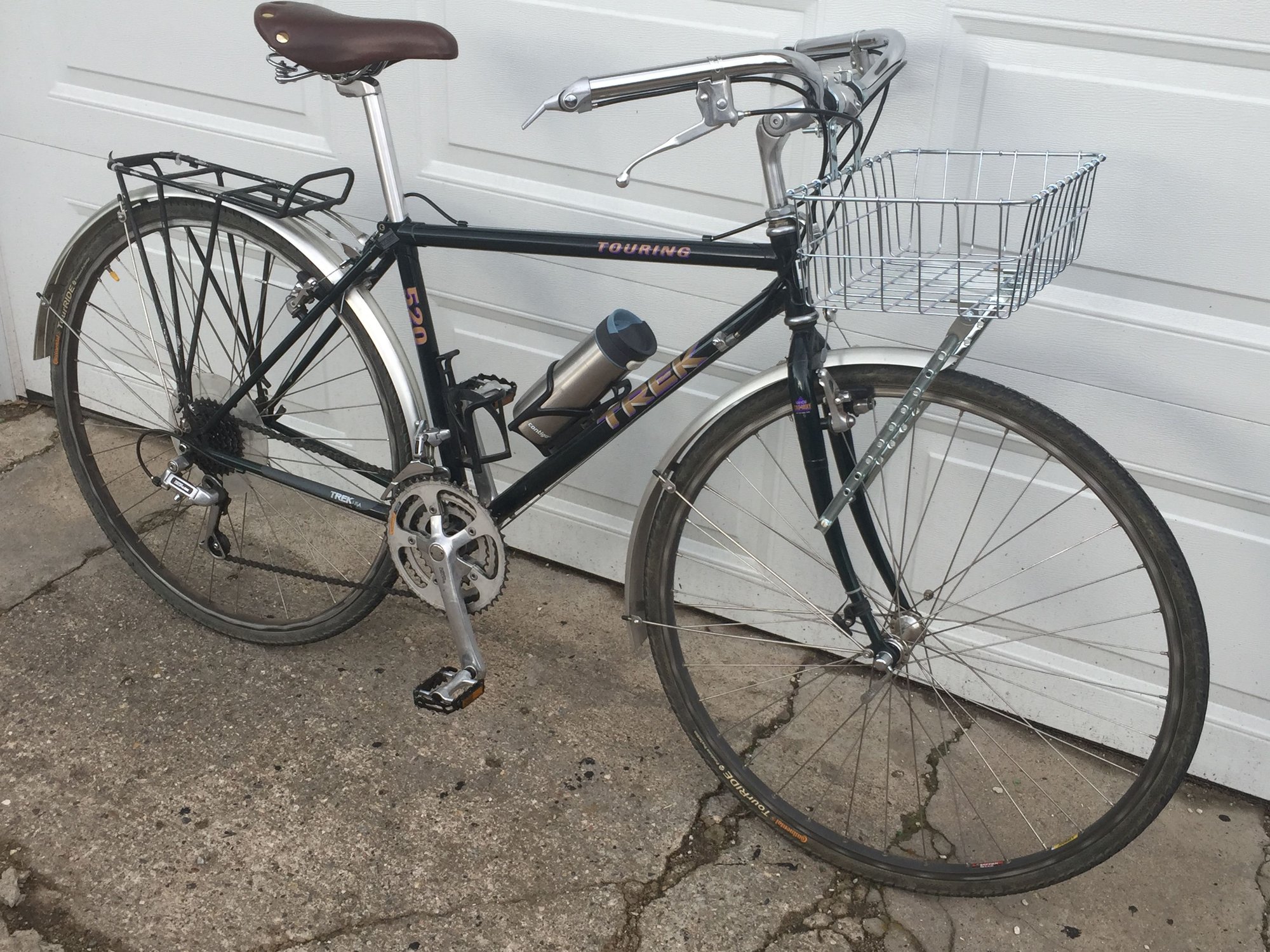

Here's a picture of the complete bike - still a work in progress (needs bar wrap or grips which will fit over the shift cables), a bell & lights. Also stripping the worn black anodize off the rear rack and polishing.

Last edited by GTryder; 05-26-18 at 07:07 AM. Reason: typo
GTryder is offline
Old 05-23-18, 07:12 AM
  #9
GTryder
Senior Member
Thread Starter

GTryder's Avatar

Join Date: Apr 2013
Location: Prince Albert, SK - Canada
Posts: 300

Bikes: 1993 Trek 520 Touring, 2009 Globe SF 2, 2011 Giant Dash 3, 2011 GT Traffic 3.0, 2011 GT Traffic 5.0, 2012 GT Aggressor 3.0, 2014 Surface 604 Element

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Originally Posted by cny-bikeman View Post
The position shown is not very low, even if it's the lowest you can put the stem in that bike, and indeed an adjustable stem will have more flex. I would suggest you get a rigid stem that puts the bars in the same position as the adjustable one. But I'm wondering what you do on the bike that would put much stress on the bars.
Just riding, I can feel side to side flex and hear the creaking. Becomes more evident when standing on pedals to negotiate rough roads or climbing.
GTryder is offline
Old 05-23-18, 09:00 AM
  #10
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,324 Times in 833 Posts
https://velo-orange.com/collections/...ceplate-31-8mm
fietsbob is offline
Old 05-23-18, 09:13 AM
  #11
wgscott
Occam's Rotor

Join Date: Jul 2013
Posts: 7,196
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,279 Times in 1,137 Posts
Get a quality one. I had a stem like that fail when my kid was on a bike. He was not happy (but fortunately managed to avoid a disaster).
wgscott is offline
Old 05-23-18, 10:59 AM
  #12
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,662

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1259 Post(s)
Liked 506 Times in 384 Posts
Originally Posted by GTryder View Post
Here's a picture of the complete bike - still a work in progress (needs bar wrap or grips which will fit over the shift cables), a bell & lights.
It looks great; thanks for sharing!
hokiefyd is offline
Old 05-23-18, 11:07 AM
  #13
GTryder
Senior Member
Thread Starter

GTryder's Avatar

Join Date: Apr 2013
Location: Prince Albert, SK - Canada
Posts: 300

Bikes: 1993 Trek 520 Touring, 2009 Globe SF 2, 2011 Giant Dash 3, 2011 GT Traffic 3.0, 2011 GT Traffic 5.0, 2012 GT Aggressor 3.0, 2014 Surface 604 Element

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Beautiful, but my bars are 25.4mm.
GTryder is offline
Old 05-23-18, 11:08 AM
  #14
GTryder
Senior Member
Thread Starter

GTryder's Avatar

Join Date: Apr 2013
Location: Prince Albert, SK - Canada
Posts: 300

Bikes: 1993 Trek 520 Touring, 2009 Globe SF 2, 2011 Giant Dash 3, 2011 GT Traffic 3.0, 2011 GT Traffic 5.0, 2012 GT Aggressor 3.0, 2014 Surface 604 Element

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Originally Posted by wgscott View Post
Get a quality one. I had a stem like that fail when my kid was on a bike. He was not happy (but fortunately managed to avoid a disaster).
Definitely going to replace it.
GTryder is offline
Old 05-23-18, 11:13 AM
  #15
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,708

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3008 Post(s)
Liked 1,611 Times in 1,068 Posts
Quill stems flex more than the far more massive stems for threadless steerers. A good non-adjustqable quill stem will be a lot stiffer (and quieter) than any adjustable stem. Fietsbob is right; a TIG welded steel stem will be stiffer than any aluminum stem. Removable face plates on quill stems is a big ask. No reason it cannot be done, but the choices are very few.

Ben (a rider of quill stems for over 50 years)
79pmooney is offline
Old 05-23-18, 11:16 AM
  #16
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,708

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3008 Post(s)
Liked 1,611 Times in 1,068 Posts
Originally Posted by GTryder View Post

Beautiful, but my bars are 25.4mm.
Ask around for a shim. They are common. Manufacturers would much rather make just one large diameter stem and provide a cheap shim than have to make (and force shops to stock) two different stems for each length offered.

Ben
79pmooney is offline
Old 05-23-18, 11:21 AM
  #17
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,324 Times in 833 Posts
Originally Posted by GTryder View Post

Beautiful, but my bars are 25.4mm.
1.25"(31,75mm) outside, 1" (25.4mm) inside* shims are made available for this reason.

it is a split tube 1/8" thick tube wall..(3.175mm) machined, and quite nice..

if you had 26mm bars you just get a different shim with a 26mm *ID.




....

Last edited by fietsbob; 05-23-18 at 11:24 AM.
fietsbob is offline
Old 05-23-18, 01:37 PM
  #18
GTryder
Senior Member
Thread Starter

GTryder's Avatar

Join Date: Apr 2013
Location: Prince Albert, SK - Canada
Posts: 300

Bikes: 1993 Trek 520 Touring, 2009 Globe SF 2, 2011 Giant Dash 3, 2011 GT Traffic 3.0, 2011 GT Traffic 5.0, 2012 GT Aggressor 3.0, 2014 Surface 604 Element

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
I'm well aware of shims, and will use one if needed.
GTryder is offline
