How do I identify which series mech I have?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How do I identify which series mech I have?

Old 06-24-18, 01:30 PM
  #1
Jay.Money
Senior Member
Thread Starter

Join Date: Jul 2007
Location: Toronto
Posts: 203

Bikes: The Grocery Getter.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
How do I identify which series mech I have?

I’m building up a gravel bike using an old Miyata 610 and 105 components from a newer (but still old) road bike.

Deraillers are indexed and I’d like to figure out which bar end shifters or even brifters I can use.

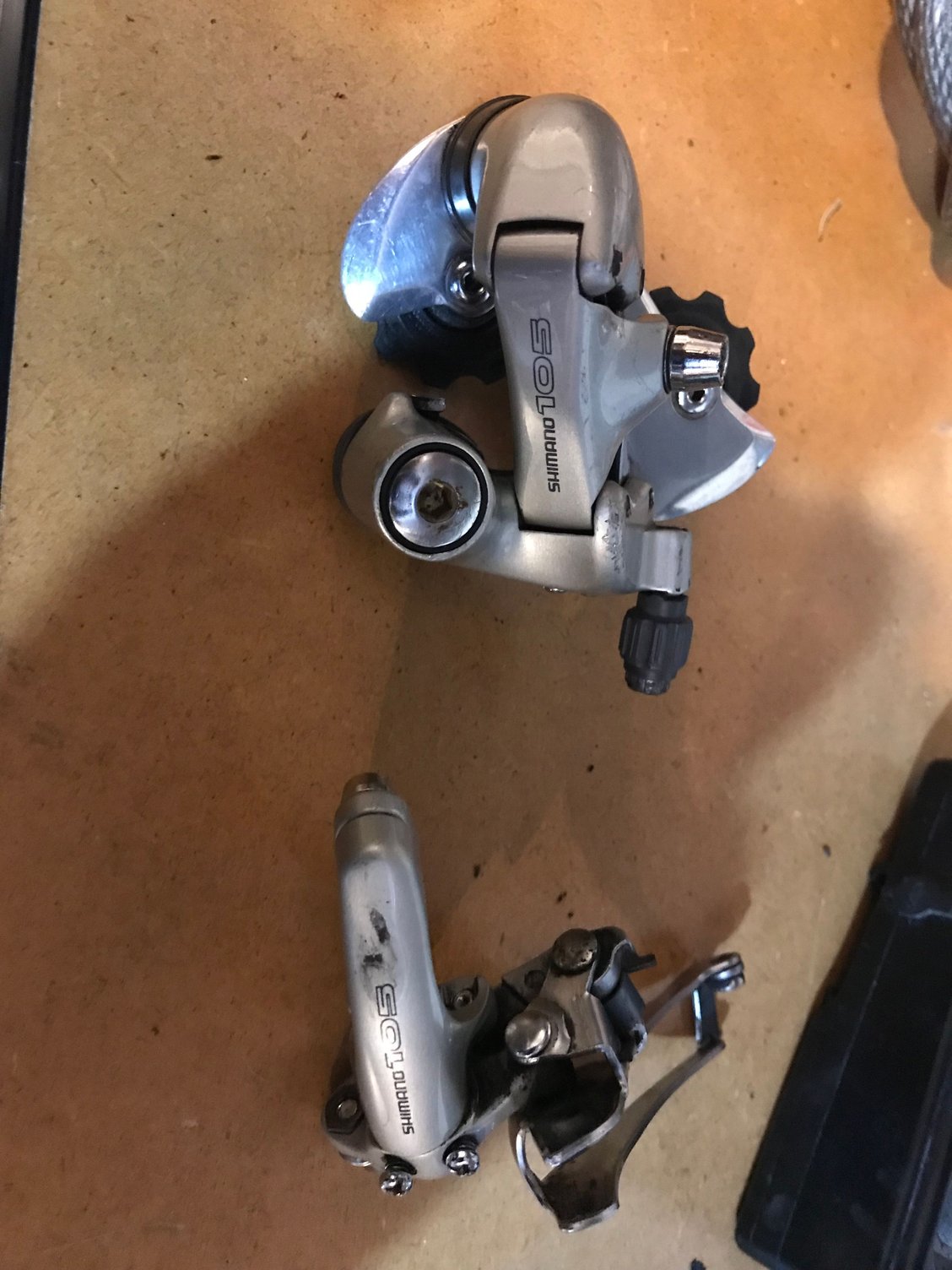

Heres a pick. What are the keys to deciphering the era / model?
Jay.Money is offline
Old 06-24-18, 02:01 PM
  #2
Raiden
Senior Member

Join Date: Feb 2007
Location: Central CA
Posts: 1,411

Bikes: A little of everything

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not sure if they did it with that generation, but the model number (RD-xxxx and FD-xxxx) should be stamped on the other side of the upper knuckle of the rear derailer (like, turn the unit over and swing the pulleys out like the bike is using a low gear, it should reveal the numbers), and the shiny cage of the front derailer (edit: or inside the seat tube clamp), respectively. Off the top of my head I think those are 8 speed RD/FD5500 parts from the very early 90s.

Last edited by Raiden; 06-24-18 at 03:25 PM.
Raiden is offline
Old 06-24-18, 02:06 PM
  #3
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,448
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 109 Times in 95 Posts
https://www.pinkbike.com/photo/8255490/ If this is the bike, it is a touring bike. It came with a triple up front and either 6 or 7 speeds in the back.
davidad is offline
Old 06-25-18, 08:36 AM
  #4
Bike tinker man
Senior Member

Join Date: Dec 2014
Location: Retired to Penang Malaysia originally from UK
Posts: 336

Bikes: My 1978 Raleigh from new, 1995 Trek, & constant changing & rebuilding of other bike projects.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Shimano parts as mentioned will have full ID numbering systems then you look up on Google / Shimano / technical specs it will tell you everything you need to know, sometimes reading the model number maybe awkward as you have to turn RD over then open it as if its on the largest cog, it should also have a small pair of letters stamped somewhere, again look these up as Shimano date stamp year & month for everything, it should also have country of manufacture.
Bike tinker man is offline
Old 06-25-18, 12:20 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,374

Bikes: Lots. Just...lots.

Mentioned: 177 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 773 Times in 381 Posts
Those are Shimano 105 1055 series. Can shift anything from 6 to 10 speeds, will index with all of the usual Shimano shifters.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 06-25-18, 01:26 PM
  #6
Jay.Money
Senior Member
Thread Starter

Join Date: Jul 2007
Location: Toronto
Posts: 203

Bikes: The Grocery Getter.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by rccardr View Post
Those are Shimano 105 1055 series. Can shift anything from 6 to 10 speeds, will index with all of the usual Shimano shifters.
Bam! I like your answer and confidence.
Jay.Money is offline
Old 06-25-18, 03:46 PM
  #7
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 3,606
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 744 Times in 539 Posts
Originally Posted by Jay.Money View Post
Bam! I like your answer and confidence.
Yes, those are the best replies!
__________________
-Oh Hey!
Troul is offline
Old 06-25-18, 06:15 PM
  #8
Viich
Hack

Join Date: Sep 2015
Location: Ottawa, Ontario, Canada
Posts: 950

Bikes: 88 Bianchi Strada (currently Sturmey'd), 90's Giant Innova (now with drop bars), FMF Race BMX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 234 Post(s)
Liked 47 Times in 36 Posts
Originally Posted by rccardr View Post
Those are Shimano 105 1055 series. Can shift anything from 6 to 10 speeds, will index with all of the usual Shimano shifters.
except Tiagra 4700, or mtb of 10 or 11 speed.
Viich is offline
Old 06-25-18, 07:53 PM
  #9
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,374

Bikes: Lots. Just...lots.

Mentioned: 177 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 773 Times in 381 Posts
Originally Posted by Viich View Post
except Tiagra 4700, or mtb of 10 or 11 speed.
Of course. Nor DA 740X, or anything 11 speed. As I said, the 'usual' Shimano shifters.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 06-25-18, 07:59 PM
  #10
Jay.Money
Senior Member
Thread Starter

Join Date: Jul 2007
Location: Toronto
Posts: 203

Bikes: The Grocery Getter.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
And by “index with all the usual shifter”, does that put brifters in play? Or index levers only?

Pardon the stupid questions, my first build...
Jay.Money is offline
Old 06-25-18, 10:00 PM
  #11
Bike tinker man
Senior Member

Join Date: Dec 2014
Location: Retired to Penang Malaysia originally from UK
Posts: 336

Bikes: My 1978 Raleigh from new, 1995 Trek, & constant changing & rebuilding of other bike projects.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rccardr View Post
Those are Shimano 105 1055 series. Can shift anything from 6 to 10 speeds, will index with all of the usual Shimano shifters.
I would humbly suggest 6-9 speed inclusive / 10 & 11, totally different ball game, & the same applies for older 5 speeds.
Bike tinker man is offline
Old 06-25-18, 10:34 PM
  #12
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,595
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2148 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Originally Posted by Jay.Money View Post
And by “index with all the usual shifter”, does that put brifters in play? Or index levers only?

Pardon the stupid questions, my first build...
They'll work with 7-10 brifters from Shimano or Microshift. The front derailleur is for a double. The rear has a max 28t cog and a 28t capacity.
Kontact is offline
Old 06-26-18, 02:57 AM
  #13
Bike Gremlin
Mostly harmless ™

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,173

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Liked 45 Times in 30 Posts
Originally Posted by Kontact View Post
They'll work with 7-10 brifters from Shimano or Microshift. The front derailleur is for a double. The rear has a max 28t cog and a 28t capacity.
Except the new Tiagra 4700 10 speed brifters.
