Sugino chainring change

I have a Sugino crankset with 52/40T.
I would like to replace the small chainring to something smaller, 36 or 34. Is that big jump acceptable or is not a good thing?
If it works, where I can find a good chainring to go with the current 52T?

phtomita is offline
Reply With Quote
Old 08-05-18, 12:28 AM
  #2
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,353

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1595 Post(s)
Sugino still makes nice plain chainrings if you want to keep it in the family: https://www.amazon.com/Sugino-34t-11.../dp/B001GSOO4I

Shifting might be slow or difficult with such a big gap, though. I'd be tempted to replace both as a set with a pair of ramped and pinned rings that will work well together, such as a 48/34 or 50/34. Here's what I did with a similar crank:

__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 08-05-18, 07:15 AM
  #3
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 28,798

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
52/36 is a common chainring configuration today.

A bike with a crank as old as yours is likely to have friction shifters. That's a good thing. I wouldn't anticipate any shifting problems. Friction shifting is your friend/
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Reply With Quote
Old 08-05-18, 07:26 AM
  #4
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO, Scottsdale, AZ
Posts: 1,340

Bikes: 2016 Fuji Tread, 1983 Trek 620

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
I think a 36 will work easily. It may depend on your rear derailleur, as well as the difference in sizes on your rear cassette/freewheel. I read somewhere that a 20 tooth difference in front is absolute max.
andrewclaus is offline
Reply With Quote
Old 08-05-18, 08:30 AM
  #5
davidad
Senior Member

Join Date: Feb 2009
Posts: 5,590
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 248 Post(s)
https://sheldonbrown.com/cribsheet-bcd.html
davidad is offline
Reply With Quote
Old 08-05-18, 09:08 AM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 35,818

Bikes: 8

Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 5137 Post(s)
34 50 16t difference, is popular .. sugino still makes the punch cut chainrings,

but a lot of others, now, offer a 110 BCD chainring in 7075-T6, a harder alloy which is machined..

and adds shifting pins to the inside face of the big ring.. helping the up-shift..

QBP , thru bike shops, offers a stainless steel , good for the 110-34t ..extra long wearing,

and also the outers as suggested above for the 110-50t..
fietsbob is offline
Reply With Quote
Old 08-05-18, 10:40 AM
  #7
cpach
Senior Member

Join Date: Oct 2009
Location: Santa Cruz, CA
Posts: 1,075

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 197 Post(s)
You need to measure the bolt circle diameter. Most older road cranks had a BCD of 130mm, for which technically the smallest possible ring is 38t.

That's a cool looking crank so I can understand trying to keep it as original as possible while expanding the utility of the bike. That said, if you just want to get lower gearing with relatively little importance to the vintage look, it's probably cheapest/easiest to just buy an inexpensive modern compact crank.

If it turns out that the BCD of that crank won't accommodate a sufficiently small chainring, you want to maintain a vintage-ish look, and price isn't much of an object, I recommend https://velo-orange.com/collections/...rankset-34x48t .

Last edited by cpach; 08-05-18 at 10:43 AM.
cpach is offline
Reply With Quote
Old 08-05-18, 11:23 AM
  #8
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 5,832

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Originally Posted by Retro Grouch View Post
52/36 is a common chainring configuration today.

.../
52/36 was a common chainring configuration 50 years ago. Every Peugeot UO-8 came out of the box with that setup. I don't know that the OP is running for derailleurs and shifters but adding 2 more teeth to the ring difference shouldn't make shifts much harder. At least not if his current setup has no issue with those old-school rings he shows in his pic with no ramps or pins.

Try the 34. Worst case - the shifting will be a little sluggish. You could then replace the outside ring with a 50, get the common difference back and slightly reduce your top gear ratios. (And after the fact outer chainring swaps is easier. No juggling to get the ring past the spider while the crank is still on the bike.) Another fix, if the current front derailleur is an older one would be to go to a current model designed to handle a compact.

(Aside: This is where I do not like the new website. I don't know where the OP lives or the other bikes in his stable. Often that helps in coming up with helpful answers.)

Ben
79pmooney is offline
Reply With Quote
Old 08-05-18, 11:33 AM
  #9
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 5,832

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Originally Posted by cpach View Post
You need to measure the bolt circle diameter. Most older road cranks had a BCD of 130mm, for which technically the smallest possible ring is 38t.

...
cpach, I am near certain that is a 110 BCD crankset. 110 BCD was something Sugino made thousands of in a number of models. (Thank you, Sugino.)

OP, measure the distance between adjacent bolts. If they are 65mm apart, you have a 110 BCD crankset. Very, very common on less than high end road bikes. Many of the "sport" bikes of the '80s and '90s came with 110 BCD. Google Sugino 110 BCD and you will get pages of hits.

Ben
79pmooney is offline
Reply With Quote
Old 08-05-18, 11:35 AM
  #10
Jon T
Senior Member

Join Date: Jun 2017
Location: West Orange County, CA
Posts: 609

Bikes: '84 Peugeot PH10LE

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 219 Post(s)
I use friction shifters. My front is a triple 26-42-50. No problems whatsoever going up or down. No pins or ramps either.
Jon
Jon T is offline
Reply With Quote
Old 08-05-18, 12:52 PM
  #11
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 5,832

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Originally Posted by Jon T View Post
I use friction shifters. My front is a triple 26-42-50. No problems whatsoever going up or down. No pins or ramps either.
Jon
Friction shifters? Those shifters with multi-platform capabilities? Those shifters that improve dexterity skills and cognitive brain processes? (Right on!) My current bikes are 7-speed and 9-speed with friction on one and SunTour Power (ratchet) on the other. Triples like yours. 53-42-28 and 52-42-26. The rings are ramped and pinned which I really don't like. (Chain hits the pin and tries to shift up with small-small cross-overs which I used instead of double shifting for short flattish spells on tough hills and sometimes falls off the middle ring when the derailleur is trimmed for no rub in the large cog. I"d rather the old Sugino "dumb" rings. My hands have the required education.

Ben
79pmooney is offline
Reply With Quote
Old 08-05-18, 08:01 PM
  #12
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 193

Bikes: '86 Nishiki Tri-A,'16 Trek FX 7.4,'77 Sekai GT2700

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Thank you for all inputs. Very glad to know I can try a smaller inner chainring.

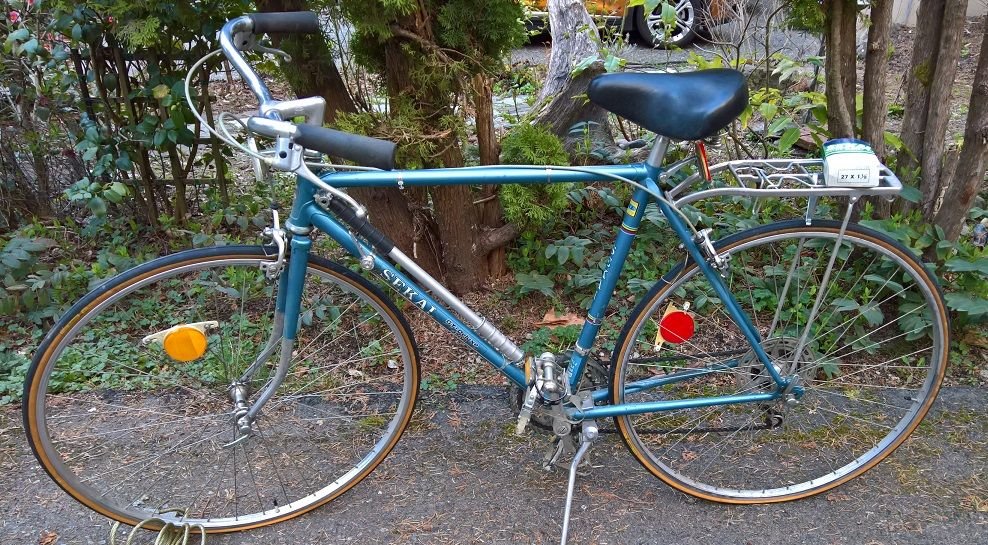

The bike I am cleaning up is the Sekai GT 2700 with hi tensile tubing, Suntour Cyclone RD and FD - it was sitting in the garage since March

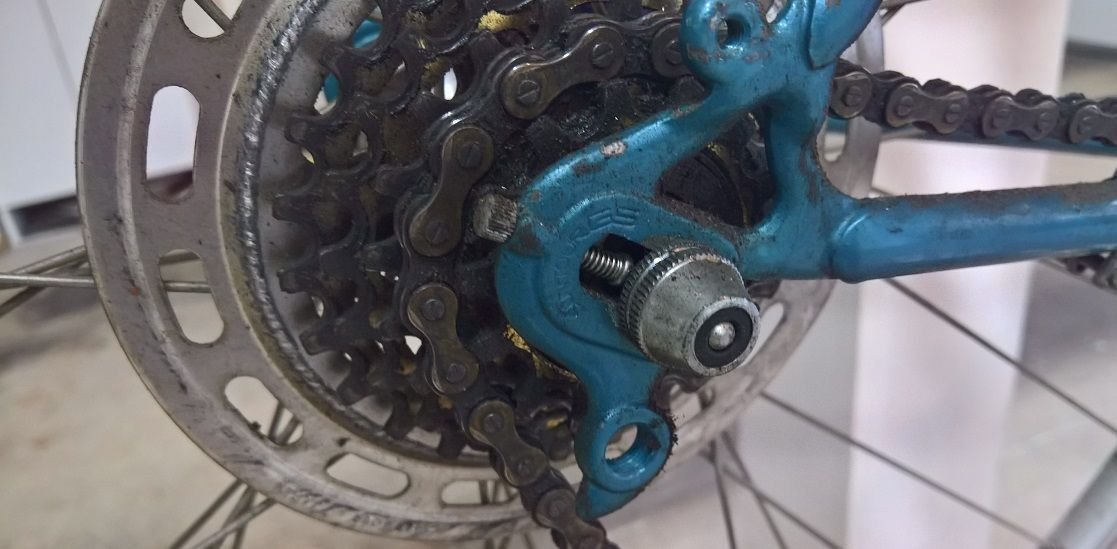

I was removing the freewheel and it is a 5 speed one, if not wrong 14-26. Is possible to replace it with something with more speeds - 6 or 7?
Thank you again


phtomita is offline
Reply With Quote
Old 08-05-18, 10:39 PM
  #13
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,353

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1595 Post(s)
From the looks of it, that spoke protector has earned its spot on the bike.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 08-06-18, 06:34 AM
  #14
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 19,481

Bikes: Several, mostly not name brands.

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 1328 Post(s)
Originally Posted by phtomita View Post
I was removing the freewheel and it is a 5 speed one, if not wrong 14-26. Is possible to replace it with something with more speeds - 6 or 7?
An "Ultra-Six" spaced freewheel should be a drop-in replacement for the five speed freewheel. A seven speed freewheel would likely require moving spacers around on the axle to get clearance for the smallest sprocket, and then re-dishing the wheel to keep the rim centered over the locknuts. It may also be necessary to re-space the rear dropouts on the frame.
JohnDThompson is offline
Reply With Quote
Old 08-06-18, 11:38 AM
  #15
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 193

Bikes: '86 Nishiki Tri-A,'16 Trek FX 7.4,'77 Sekai GT2700

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Thank you John, this is starting to be a fun project and lot of learning
phtomita is offline
Reply With Quote
Old 08-06-18, 11:41 AM
  #16
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 35,818

Bikes: 8

Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 5137 Post(s)
5 speed freewheels remain in production to keep existing bikes running..

more "speeds" requires greater width..

the above ultra 6 is putting you in competition with collectors
and auction prices for those long ago discontinued freewheels
will cost more than your bike's value..

So I'd say, very overspending on a simple transportation bike..



.....

Last edited by fietsbob; 08-06-18 at 11:48 AM.
fietsbob is offline
Reply With Quote
Old 08-07-18, 12:29 AM
  #17
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 193

Bikes: '86 Nishiki Tri-A,'16 Trek FX 7.4,'77 Sekai GT2700

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Thanks for all the inputs.
Yep, after looking that the ultra 6 sp freewheel are more expensive than the bike itself .... time for other option/approach.

I found an used 5 sp freewheel 14-32 really cheap. Will only get it towards end of month.
In meantime, trying to find a cheap 36T or 34T to replace the 42T.
phtomita is offline
Reply With Quote
Old 08-07-18, 01:45 AM
  #18
Stormy Archer
Senior Member

Join Date: Jun 2018
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
You could also measure it and see if it's actually spaced 120mm or 124mm, I think some 5 speed stuff is 124mm spaced.
Stormy Archer is offline
Reply With Quote
Old 08-07-18, 11:28 AM
  #19
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 193

Bikes: '86 Nishiki Tri-A,'16 Trek FX 7.4,'77 Sekai GT2700

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Good to know, my current one is at 120mm. Thank you!
phtomita is offline
Reply With Quote
Old 08-19-18, 07:51 PM
  #20
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 193

Bikes: '86 Nishiki Tri-A,'16 Trek FX 7.4,'77 Sekai GT2700

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)

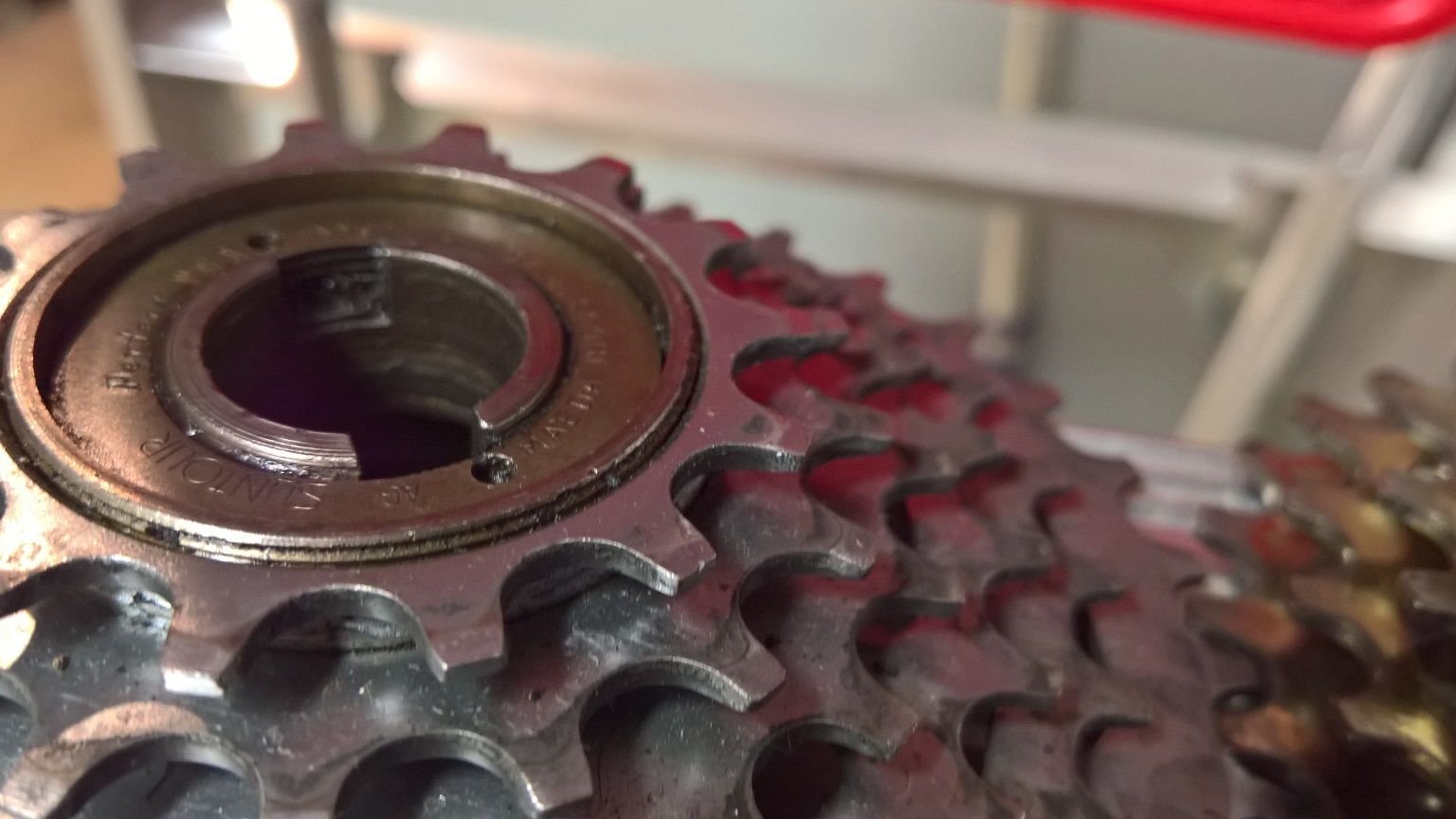

So, the 14-32 freewheel I was supposed to pick up at the middle of the RSVP ride didn't work for the Friday. Back in town stopped by the Recycled Bicycles, close to UW today and found this.

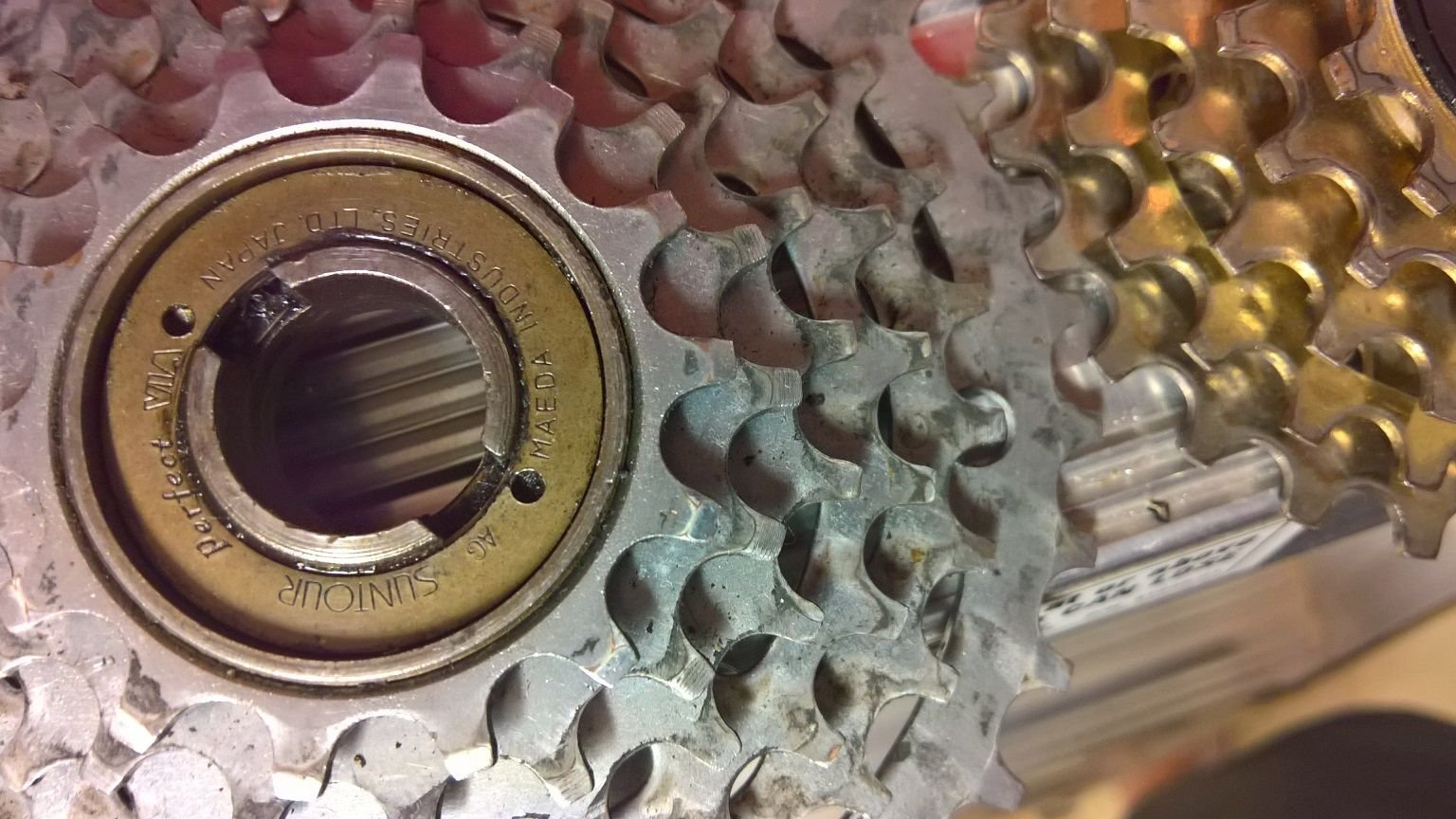

Suntour 6sp 14-17-20-24-28-34 that was cheap and bought it. Getting home, I compared the high with the current 14-26 and it is like 3mm higher.

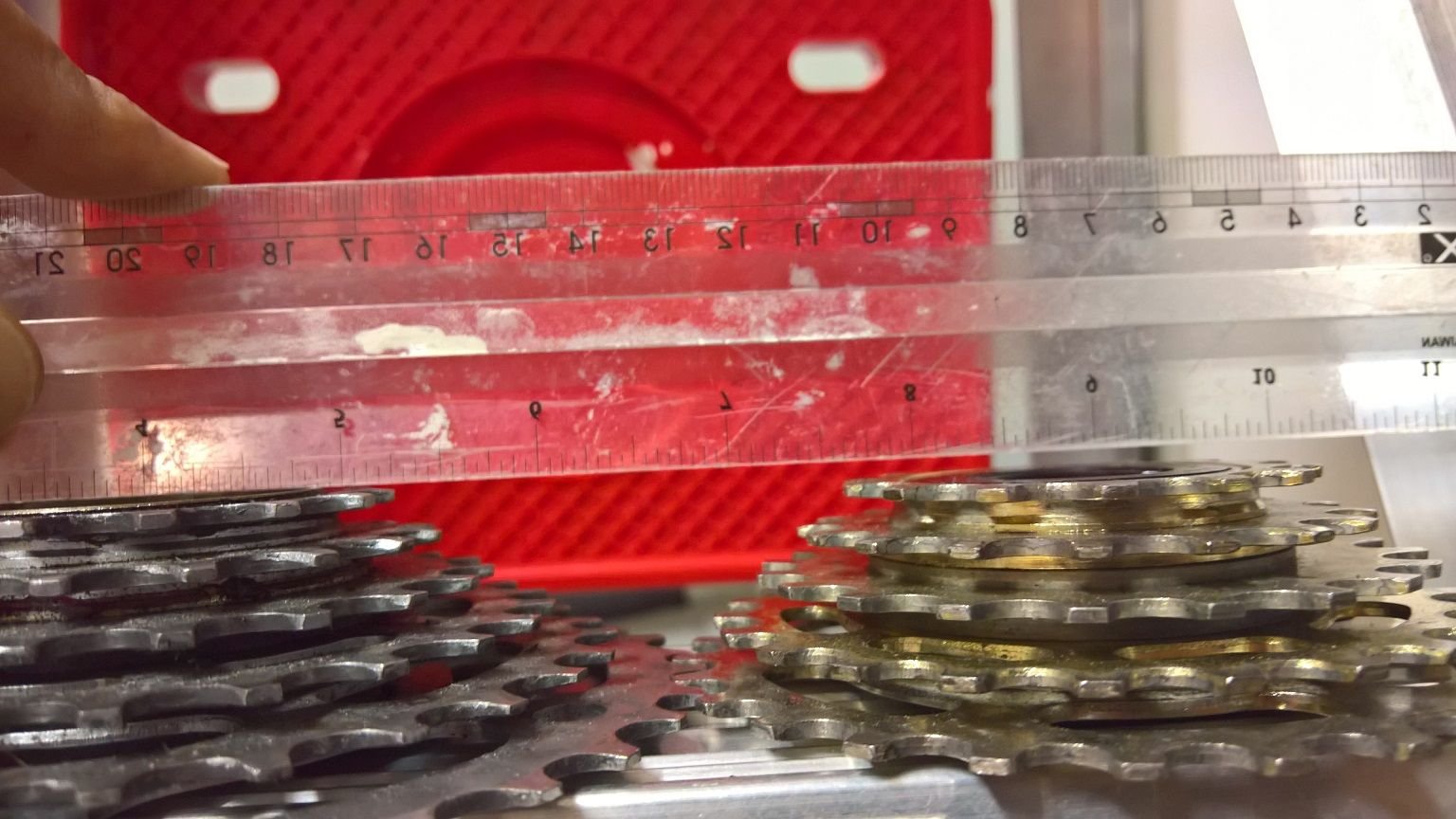

Then, at Sheldon Brown's it says the ultra is like 2mm higher than the regular 5sp, so is this one I got the ultra 6 by any chance?

Then, around 3PM, quick browsing CL I found there is a super $2 a piece garage sale with bunch of cassete/freewheel, chainset/rings - well got there almost at 4PM the end time of garage sale from CL.
On a box full of cassetes I found a 5sp 14-32 that was in pretty bad shape, but at half price end of sale, it is a no brainer - it is taking bath on mineral spirits now.
I asked about the chainrings and I was told someone bought the hole bulk ...




Last edited by phtomita; 08-19-18 at 10:36 PM.
phtomita is offline
Reply With Quote
Old 08-20-18, 07:32 AM
  #21
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,042

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 979 Post(s)
The 6-speed freewheel you picture is a "standard" 6, not an Ultra, and requires a 126 mm hub and frame spacing. You could either force a 126 mm hub into your current frame or "cold set" (read bend) it to accept the wider hub without a struggle. You can use your current hub by adding 6 mm of spacers to the non-drive side and recentering the axle. That will reduce the axle protrusion on each side by 3 mm but the resulting 2.5 mm should be adequate. You, will, of course, have to redish the rim.

It will be a lot simpler to find a decent 5-speed freewheel. Here is one source for a new one for only $11:

https://www.universalcycles.com/shop...SABEgLpT_D_BwE
HillRider is offline
Reply With Quote
Old 08-20-18, 09:49 AM
  #22
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 193

Bikes: '86 Nishiki Tri-A,'16 Trek FX 7.4,'77 Sekai GT2700

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Thank you HillRider - I actually got an 5sp 14-32 used for $1 on a garage sale and have it inside mineral spirits. I disassembled it yesterday and the internal parts looked ok on a visual inspection.
phtomita is offline
Reply With Quote

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
