Building carbon wheel: what's my margin of error on ERD measurement?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Building carbon wheel: what's my margin of error on ERD measurement?

Reply

Old 08-09-18, 01:23 PM
  #1
spectastic
commu*ist spy
Thread Starter

spectastic's Avatar

Join Date: Aug 2012
Location: inside my body
Posts: 4,333

Bikes: a few

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
Building carbon wheel: what's my margin of error on ERD measurement?

I busted a rear rim, which has an ERD of 541 mm according to the supplier. I'm going to reuse the old hub and most of the old spokes that appear to still be good. A lot of the rims I'm seeing now are ~544 mm ERD, meaning my spokes are going to be ~1.5 mm short. That's no big deal right? I mean I remember working on the wheels before, and they appeared seized up, like I couldn't tighten them anymore without twisting the spokes altogether. so 1.5 mm shouldn't be a problem, right? at what point does it start to be a problem? 2-3 mm?

also, I'm reusing most of the spokes, but replacing some of the spokes that appear even slightly off. would it be a big deal if I use different spokes for the replacements? the young's modulus for the spokes might be different, despite having similar tensions..
spectastic is offline
Reply With Quote
Old 08-09-18, 01:27 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 36,259

Bikes: 8

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 5247 Post(s)
AFAIK spokes are sold in increments of 2mm length differences..
fietsbob is offline
Reply With Quote
Old 08-09-18, 01:33 PM
  #3
spectastic
commu*ist spy
Thread Starter

spectastic's Avatar

Join Date: Aug 2012
Location: inside my body
Posts: 4,333

Bikes: a few

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
Originally Posted by fietsbob View Post
AFAIK spokes are sold in increments of 2mm length differences..
..no more like 1 mm
spectastic is offline
Reply With Quote
Old 08-09-18, 03:37 PM
  #4
davidad
Senior Member

Join Date: Feb 2009
Posts: 5,596
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Plug the dimensions into a spoke calculator and see for yourself.
davidad is offline
Reply With Quote
Old 08-09-18, 04:02 PM
  #5
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,380

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Originally Posted by spectastic View Post
I busted a rear rim, which has an ERD of 541 mm according to the supplier. I'm going to reuse the old hub and most of the old spokes that appear to still be good. A lot of the rims I'm seeing now are ~544 mm ERD, meaning my spokes are going to be ~1.5 mm short. That's no big deal right? I mean I remember working on the wheels before, and they appeared seized up, like I couldn't tighten them anymore without twisting the spokes altogether. so 1.5 mm shouldn't be a problem, right? at what point does it start to be a problem? 2-3 mm?

also, I'm reusing most of the spokes, but replacing some of the spokes that appear even slightly off. would it be a big deal if I use different spokes for the replacements? the young's modulus for the spokes might be different, despite having similar tensions..
Carbon wheels can vary in ERD due to the way they're made. I would not order spokes until I had rims in hand that I could measure.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 08-09-18, 04:06 PM
  #6
spectastic
commu*ist spy
Thread Starter

spectastic's Avatar

Join Date: Aug 2012
Location: inside my body
Posts: 4,333

Bikes: a few

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
i don't understand, you're saying the ERD is measured differently by different people?.. or simply that the ERD is different between different rims? the ERD measurements i received came from the sellers, so i'm inclined to trust their information.
spectastic is offline
Reply With Quote
Old 08-09-18, 05:00 PM
  #7
spectastic
commu*ist spy
Thread Starter

spectastic's Avatar

Join Date: Aug 2012
Location: inside my body
Posts: 4,333

Bikes: a few

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
assuming i got the right measurements for the hub, provided that the hub is laced radially on the left and 2x on the right.. I went to 3 different calculators and got these recommendations

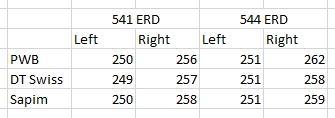

spoke calculator recommendations


I remember measuring both drive side and non drive side spokes, and they both measured 258.. Could it be possible that the manufacturer of the wheel tried to shave some cost by using the same spokes for the drive and non-drive sides? it could help explain why some of my spokes were bottomed out and contorted from tightening.

I'll have to go back to confirm that all of the contorted spokes came from the non-drive side. but 8 mm (??) that's f*k ton of extra spoke! I could not see this when i took the wheel apart, because they didn't put spoke holes on the outer rim, but I'd imagine with 8 mm of extra spoke, you wouldn't be able to get a centered wheel that's also properly tensioned..

so if this were the case, I could just reuse the 258 spokes i have and put them on the drive side, while I buy 251 mm spokes for the ND side. is this a sound plan? I'd try buying and measuring, but everything is coming from overseas, and I have an important race in 6 weeks. this needs to happen soon. Plus, I trust the diagrams and calculators more than my own measuring skills anyway.

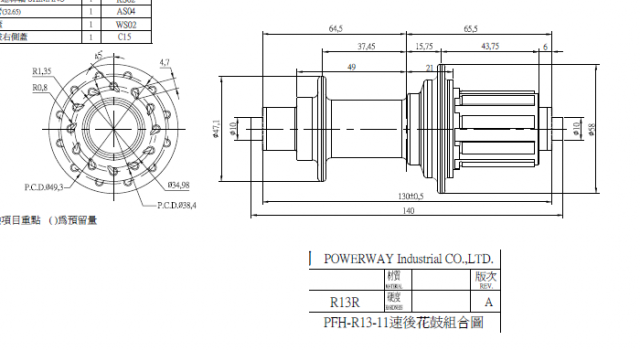

PFH R13 diagram
spectastic is offline
Reply With Quote
Old 08-09-18, 05:04 PM
  #8
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 6,939
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 387 Post(s)
Originally Posted by spectastic View Post
i don't understand, you're saying the ERD is measured differently by different people?.. or simply that the ERD is different between different rims? the ERD measurements i received came from the sellers, so i'm inclined to trust their information.
Bad strategy. I never trust manufacturers data, and I have lots experience to justify that.
Dan Burkhart is offline
Reply With Quote
Old 08-09-18, 08:05 PM
  #9
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,380

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Originally Posted by spectastic View Post
i don't understand, you're saying the ERD is measured differently by different people?.. or simply that the ERD is different between different rims? the ERD measurements i received came from the sellers, so i'm inclined to trust their information.
The latter. The ERD can vary in production, so it's always wise to measure your rims yourself.

If you're too impatient to do that, you risk having to buy another set of spokes if the rims you get are off-spec. Suit yourself.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 08-10-18, 02:45 AM
  #10
dabac
Senior Member

Join Date: Mar 2008
Posts: 7,734
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Measuring a spoke w/o knowing how it sat in the nipple means you dont know what your margins are. I wouldnt want to do that.
If I had to, Id ALSO mark off spoke penetration before disassembly to find out the unseen length of the spoke.
After unhooking a spoke from the hub Id then screw it onto a nipple to see how much further it could go.

There is also some ambiguity in what measurement ERD actually refers to. Rim manufacturers tend to use the surface that the nipple rests against as ERD, while other sources say to use the desired position of the tip of the nipple as ERD.

dabac is offline
Reply With Quote
Old 08-10-18, 05:26 AM
  #11
Slaninar
Bike Gremlin

Slaninar's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 3,968

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 901 Post(s)
Measure ERD and calculate the optimal spoke length. I use this spoke length calculator.

It gives results that require rounding up - to the nearest even, or odd size - whichever you can source. So 280.1 would go with 281 (odd) and 282 (even) spokes. Not with 280!

Se how long the old nipples are. DT Swiss nipples come in 12, 14 and 16 mm lengths.
14 mm ones have thread sitting 1 mm deeper.
16 mm ones have thread sitting 2 mm deeper.

The results given by the calculator I've linked give lengths for using 12 mm nipples. So, in case the new ERD requires spokes that are longer by one, or two mm, you could use matching nipples, in case the old ones aren't already the "long type".

Having spokes 1 mm too short makes lacing more difficult and, once a wheel is finished, will make the thread engagement be a bit further from perfect.

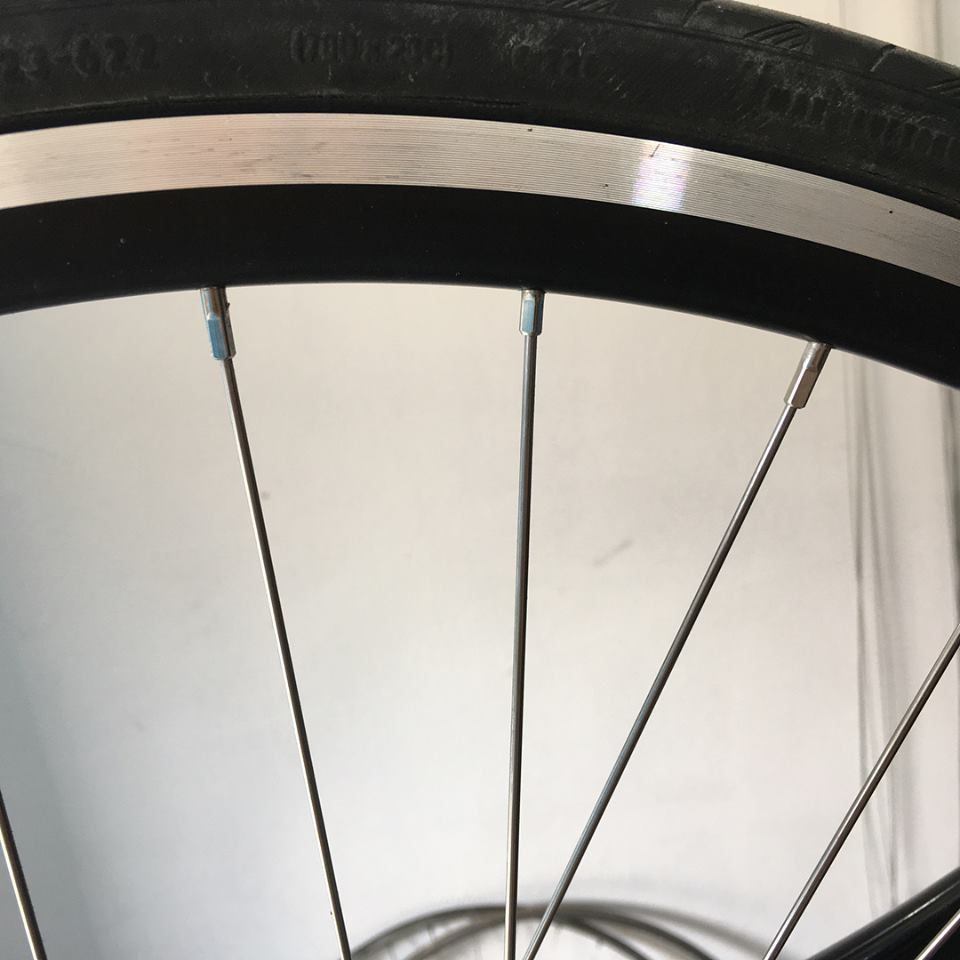

Here's my project - I couldn't find good quality spokes in the needed lengths (Serbian importers do ONE import per year, in the spring and that's it, unless you go with poor quality Chinese spokes - wrote to both Sapim and DT-swiss, which told me to look in Chech and Hungarian shops abroad ), so had to improvise, using 16 mm nipples for the NDS spokes. The wheel works fine.



I've seen wheel manufacturers use same spoke length for both sides of the rear wheel. Which is what I've been forced to do in the picture above. Putting durability over looks - customer had agreed, of course.
If that's the case, you might also want to use different nipple lengths.

Last edited by Slaninar; 08-10-18 at 05:29 AM.
Slaninar is offline
Reply With Quote
Old 08-11-18, 01:36 PM
  #12
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 28,866

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Oh good, I get to be "Analogue Man" again.

By your best judgement you think your existing spokes will be 1.5 mm short. What do you think your alternatives are?

The analogue solution is to try to lace the wheel with the spokes that you have. My bet is that, if your spokes really are 1.5 mm short, you won't even notice. If they turn out to be significantly shorter than that, you are going to have to acquire some different spokes but since you would have had to do that anyway, you're not really out anything. The analogue system can't cost you anything and it might save you some money.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Reply With Quote
Old 08-11-18, 01:49 PM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,263

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1289 Post(s)
RG- How can you expect a young one to even contemplate doing a real life test these days? From what I read here every day the expectation is that answers are easy to be given and the correct one will be obvious, be the first one and work always. Andy (who get's tired of suggesting one's actually trying something themselves) (hopefully readers see the satire in my reply)
__________________
AndrewRStewart
Andrew R Stewart is offline
