Stress risers in head tube

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Stress risers in head tube

Old 08-11-18, 03:30 PM
  #1
Shinkers
Senior Member
Thread Starter

Join Date: Jan 2014
Location: Utah
Posts: 716

Bikes: '88 Trek 1200, '91 Trek 1400

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Stress risers in head tube



I needed to remove some headset cups and didn't have my cup remover on hand so I used the no-no method and tapped them out with a screwdriver.

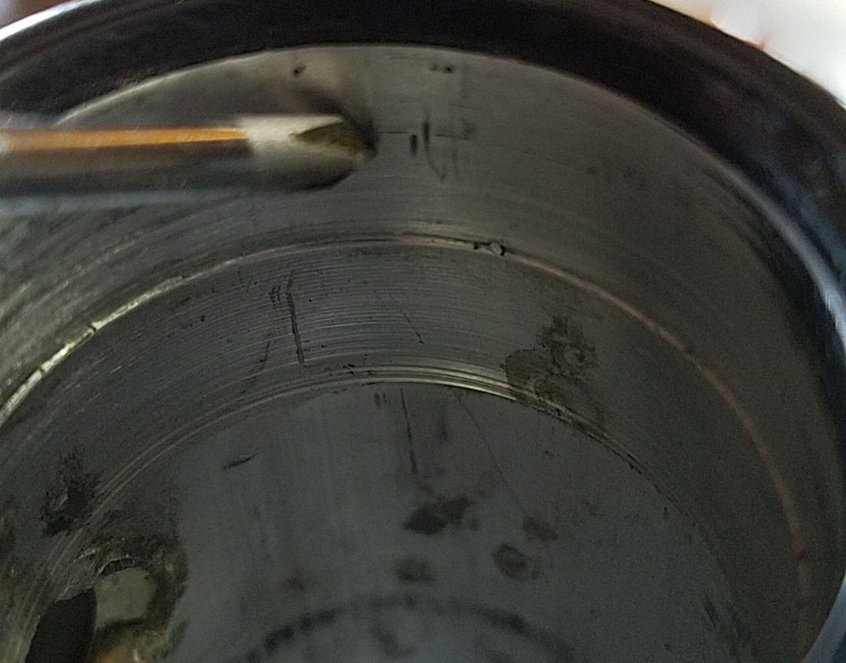

Both cups came out fine, and I thought I was being really careful, but I still ended up with a couple scratches in the top portion of the head tube.

I know the head tube sees a lot of stress, so would these be problematic? I sanded with some 320-800 grit to try and flatten them out a bit but you can still feel them.

My personal feeling is that it's not a problem but what do I know.

Thanks.
Shinkers is offline
Old 08-11-18, 04:29 PM
  #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,517

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Likes: 0
Liked 31 Times in 28 Posts
Agree, not a problem.
HillRider is offline
Old 08-11-18, 05:31 PM
  #3
Shinkers
Senior Member
Thread Starter

Join Date: Jan 2014
Location: Utah
Posts: 716

Bikes: '88 Trek 1200, '91 Trek 1400

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Last question, after sanding just a bit more, I ended up with 33.97 in one spot going down to about 33.7mm at the narrowest spot. My cups are pretty round and 34.05mm.

This amount of ovalization should be negligible right? If I try to push a cup in by hand I can feel the tight spots and the cup can rock a bit, but it still needs a press obviously.

Thanks.
Shinkers is offline
Old 08-11-18, 06:38 PM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6873 Post(s)
Liked 229 Times in 187 Posts
Not yet, it's just a scratch now, give it time ..
fietsbob is offline
Old 08-11-18, 08:55 PM
  #5
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,335

Bikes: old clunker

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Likes: 0
Liked 26 Times in 16 Posts
Originally Posted by Shinkers View Post
Last question, after sanding just a bit more, I ended up with 33.97 in one spot going down to about 33.7mm at the narrowest spot. My cups are pretty round and 34.05mm.

This amount of ovalization should be negligible right? If I try to push a cup in by hand I can feel the tight spots and the cup can rock a bit, but it still needs a press obviously.

Thanks.
In an interference fit, I think the ovalization is more of a problem than the scratches.
AnkleWork is offline
