Ride with a loose headset: risk of some dangerous?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Ride with a loose headset: risk of some dangerous?

Reply

Old 08-12-18, 11:38 PM
  #1
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Ride with a loose headset: risk of some dangerous?

Hi,

I rode some km (maybe 10-15) with a loose headset / with a play in the headset which I now fixed correctly. The headset was just a very little loose in direction front/back.

Now, I have fear that I damaged in this way something, for example: the carbon-fork or the headtube because of the play.

What do you think about this? Do I have now to change the carbon-fork with a new one?

Thank you and sorry for my english.

Last edited by alexva12; 08-13-18 at 12:03 AM.
alexva12 is offline
Reply With Quote
Old 08-13-18, 01:18 AM
  #2
cpach
Senior Member

Join Date: Oct 2009
Location: Santa Cruz, CA
Posts: 1,079

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Mostly it'll have strange effects on the handling and lower bearing life. It could potentially damage the frame or fork but your example seems very unlikely. I wouldn't worry about it.
cpach is offline
Reply With Quote
Old 08-13-18, 04:45 AM
  #3
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Thank you for this reply!

Other opinions? Then Canyon would have to receive the bike back, what I wouldn't since there is no other same models to buy ...
alexva12 is offline
Reply With Quote
Old 08-13-18, 06:19 AM
  #4
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO, Scottsdale, AZ
Posts: 1,340

Bikes: 2016 Fuji Tread, 1983 Trek 620

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Carefully inspect the head tube around the headset cups for damage.

Why was it loose in the first place? Improper service or assembly?
andrewclaus is offline
Reply With Quote
Old 08-13-18, 06:21 AM
  #5
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by andrewclaus View Post
Carefully inspect the head tube around the headset cups for damage.

Why was it loose in the first place? Improper service or assembly?
It was loose because of an improper assembly.

The head tube and the headset cups are visually intact.
alexva12 is offline
Reply With Quote
Old 08-13-18, 06:27 AM
  #6
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO, Scottsdale, AZ
Posts: 1,340

Bikes: 2016 Fuji Tread, 1983 Trek 620

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Then I agree it's probably okay with so few miles on it. Monitor it closely and if it does not loosen up again in the near future, don't worry about it. Maybe have the assembler check it out again, if possible.
andrewclaus is offline
Reply With Quote
Old 08-13-18, 10:05 AM
  #7
cpach
Senior Member

Join Date: Oct 2009
Location: Santa Cruz, CA
Posts: 1,079

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
It's a Canyon, so the assembler is almost certainly the OP.
cpach is offline
Reply With Quote
Old 08-14-18, 11:21 AM
  #8
Viich
Hack

Join Date: Sep 2015
Location: Ottawa, Ontario, Canada
Posts: 659

Bikes: 88 Bianchi Strada, 90's Giant Innova winter bike with drop bars, DeVinci CX monocoque, Cannondale F-400

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
I've seen destroyed carbon head tubes from this, butI don't know how much riding it took.
Viich is offline
Reply With Quote
Old 08-17-18, 10:19 PM
  #9
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Hi,

thank you everyone for the reply. This helps me much!

Anyway, I forgot to say that the headset is *without* fork crown race (https://imgur.com/a/RvcH4Bq) is this a relevant information for to answer my question? Is the answer the same?

Last edited by alexva12; 08-17-18 at 10:46 PM.
alexva12 is offline
Reply With Quote
Old 08-18-18, 01:02 AM
  #10
cpach
Senior Member

Join Date: Oct 2009
Location: Santa Cruz, CA
Posts: 1,079

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
It's unlikely to change much of anything.
cpach is offline
Reply With Quote
Old 08-18-18, 07:30 AM
  #11
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 1,299

Bikes: Old Schwinns for now

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Originally Posted by alexva12 View Post
Hi,

I rode some km (maybe 10-15) with a loose headset / with a play in the headset which I now fixed correctly. The headset was just a very little loose in direction front/back.

Now, I have fear that I damaged in this way something, for example: the carbon-fork or the headtube because of the play.

What do you think about this? Do I have now to change the carbon-fork with a new one?

Thank you and sorry for my english.
Too tight is worse than too loose in my experience because you might not notice it until damage is done. You noticed your loose headset right away and took care of it. Kudos.
FBOATSB is offline
Reply With Quote
Old 08-18-18, 08:08 AM
  #12
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by cpach View Post
It's unlikely to change much of anything.
Originally Posted by FBOATSB View Post
Too tight is worse than too loose in my experience because you might not notice it until damage is done. You noticed your loose headset right away and took care of it. Kudos.
Thanks, so I will ride the bike without be worried .

Have a nice weekend!
alexva12 is offline
Reply With Quote
Old 08-18-18, 02:40 PM
  #13
onyerleft
Senior Member

onyerleft's Avatar

Join Date: Jan 2018
Posts: 316

Bikes: One for each finger.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Don't worry, be happy.
onyerleft is offline
Reply With Quote
Old 08-21-18, 11:32 PM
  #14
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)

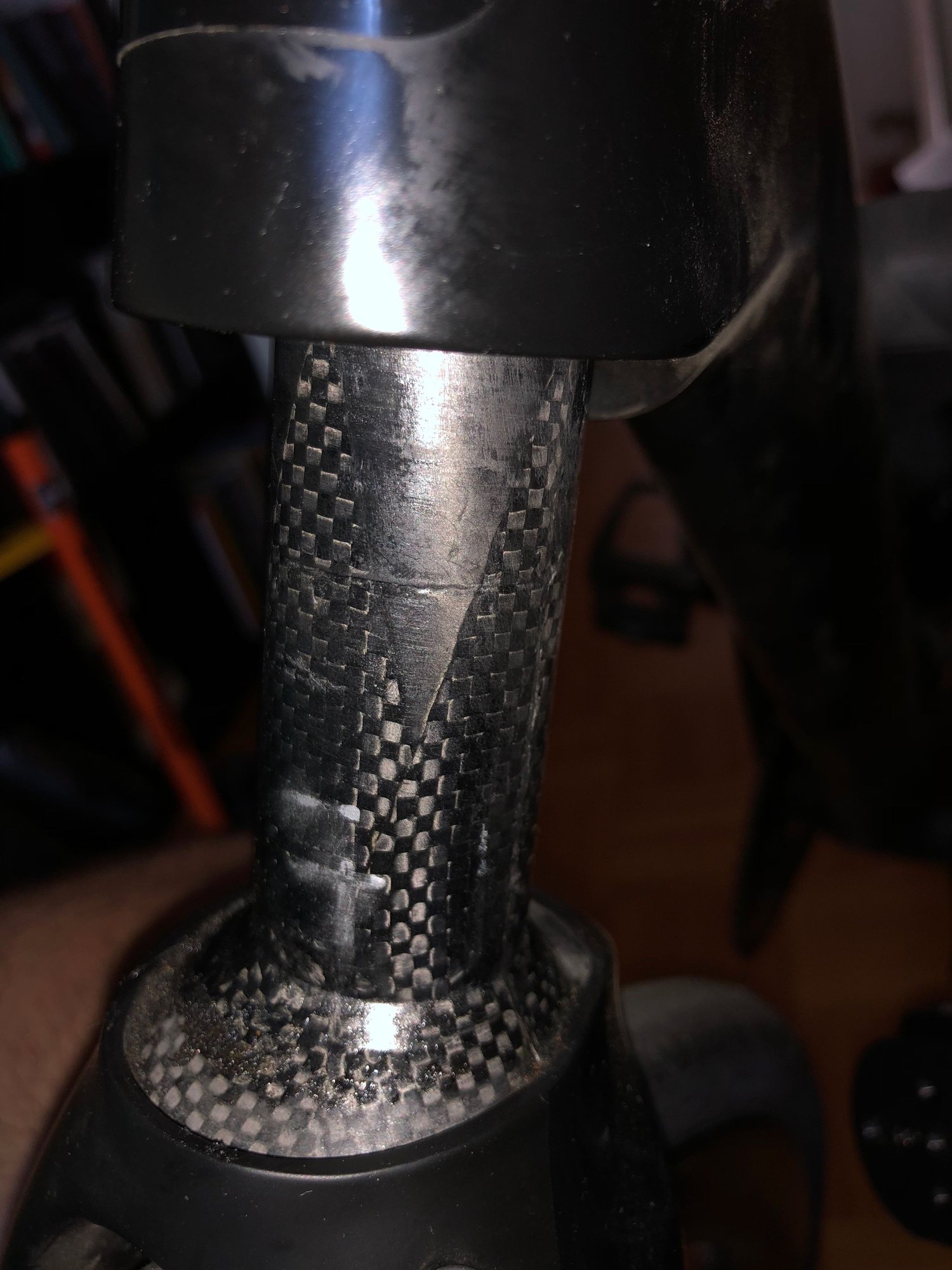

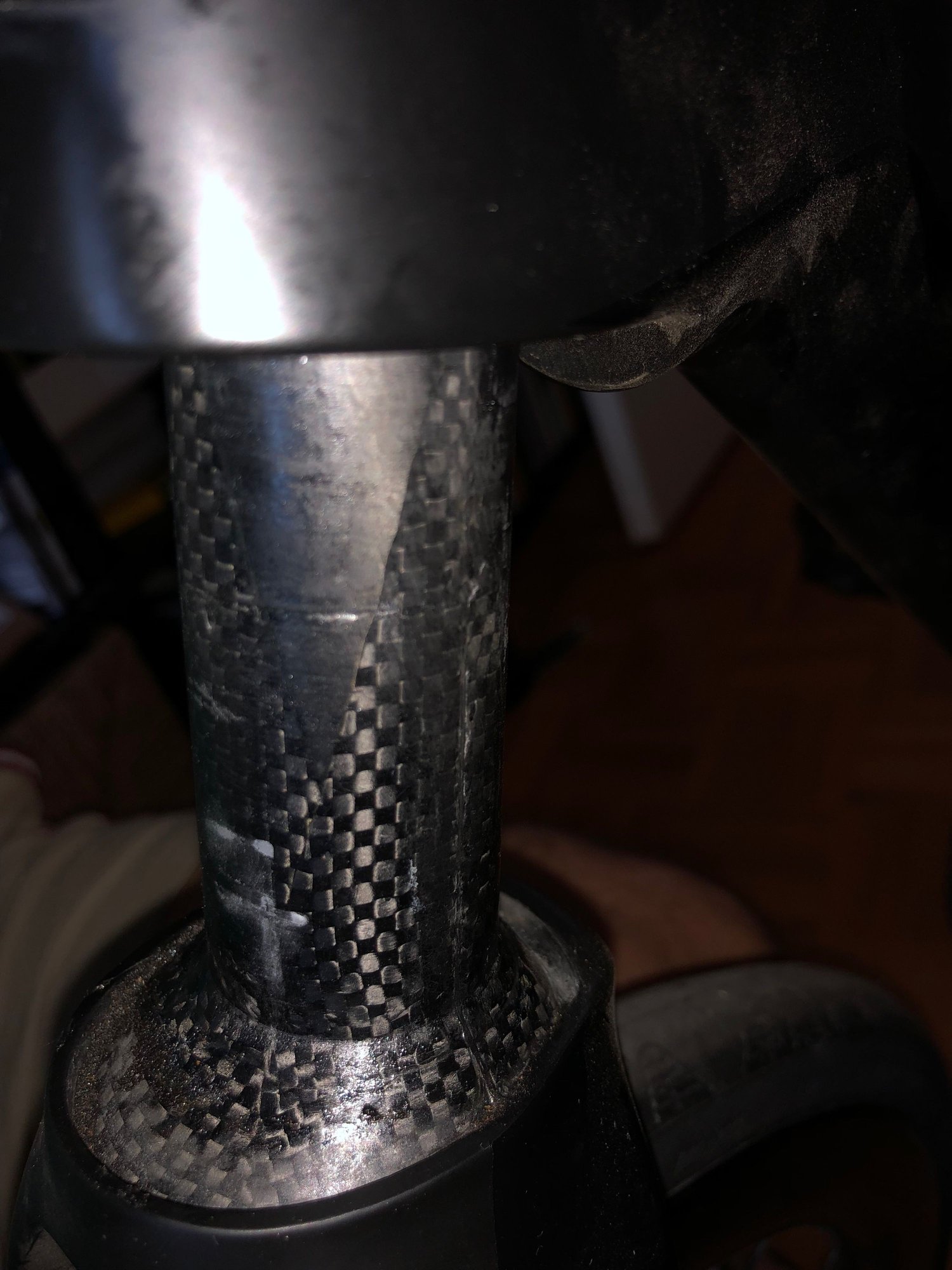

Is it "normal" that the headtube is in such a condition?
The cross-sections are not superficial, but rather a bit deep, it can be "scratched", the fingernail "goes a bit in". The same is for some vertical-sections.









alexva12 is offline
Reply With Quote
Old 08-22-18, 12:53 AM
  #15
cpach
Senior Member

Join Date: Oct 2009
Location: Santa Cruz, CA
Posts: 1,079

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Those are some pretty decent photos: I'd email them to Canyon. To me it looks like an artifact of the molding and probably no big deal, but don't hold me liable for that.
cpach is offline
Reply With Quote
Old 08-22-18, 08:51 AM
  #16
sdmc530
Heft On Wheels

sdmc530's Avatar

Join Date: Nov 2014
Location: South Dakota
Posts: 1,296

Bikes: Specialized,Cannondale

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 333 Post(s)
I will ech what cpach said:

email the maker with the pics....best practice or even better yet if you have a good bike shop in the area have them check it out. They should know what is go/no go wear.
sdmc530 is offline
Reply With Quote
Old 08-24-18, 01:47 PM
  #17
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by sdmc530 View Post
I will ech what cpach said:

email the maker with the pics....best practice or even better yet if you have a good bike shop in the area have them check it out. They should know what is go/no go wear.
Canyon says that the condition is so as it should be: absolutely normal!
That deep cross sections are normal, they come from the process of "baking" (or "cooking"?) of the fork in the chimney (is that the right word?!).
alexva12 is offline
Reply With Quote
Old 08-24-18, 09:50 PM
  #18
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,315

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
So what was Canyon's response to no fork race? That alone would be a cause of concern going forward. Obviously the headset has a sealed bearing so it is not like there are ball bearings digging into the fork flange, but I wouldn't continue to ride it that way. Think about it... if a race wasn't needed on a carbon fork, it wouldn't be needed on any other fork.

John
70sSanO is offline
Reply With Quote
Old 08-24-18, 11:31 PM
  #19
alexva12
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by 70sSanO View Post
So what was Canyon's response to no fork race? That alone would be a cause of concern going forward. Obviously the headset has a sealed bearing so it is not like there are ball bearings digging into the fork flange, but I wouldn't continue to ride it that way. Think about it... if a race wasn't needed on a carbon fork, it wouldn't be needed on any other fork.

John
Hi,

thank you for the reply.

Sorry, but I don't understand: what do you mean with "to no fork race"? What does "race" mean in this context?
alexva12 is offline
Reply With Quote
Old 08-25-18, 12:29 AM
  #20
cpach
Senior Member

Join Date: Oct 2009
Location: Santa Cruz, CA
Posts: 1,079

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Many carbon forks don't have a metal race. This isn't weird.
cpach is offline
Reply With Quote
Old 08-25-18, 10:52 AM
  #21
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,315

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Originally Posted by cpach View Post
Many carbon forks don't have a metal race. This isn't weird.
Well I learned something new today. My steel fork needs a crown race/baseplate/conical spacer (pick one), but a plastic fork doesn't.

John
70sSanO is offline
Reply With Quote
Old 08-25-18, 11:48 AM
  #22
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 1,299

Bikes: Old Schwinns for now

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Cartridge bearings have built in races.
FBOATSB is offline
Reply With Quote
Old 08-25-18, 04:08 PM
  #23
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,315

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Originally Posted by FBOATSB View Post
Cartridge bearings have built in races.
Understand. The one's I've installed, on mountain bikes, have a base plate, or crown race as Cane Creek identifies it... even though it is not a bearing surface.

John
70sSanO is offline
Reply With Quote
