Whipperman Connex Link - Definitive Answer Requested!

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Whipperman Connex Link - Definitive Answer Requested!

Reply

Old 08-15-18, 06:39 PM
  #1
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Whipperman Connex Link - Definitive Answer Requested!

OK, so I use a Shimano HG71 (6/7/8-speed) chain (seven sprockets and three chainrings on my GT Outpost) and I am not sure the KMC Missing Link repair link I carry in my bag will even work with it. A few people have recommended the Wipperman ConneX 6-8-Speed Stainless Steel Link as an alternative.

I just want to have the right part when I need it, and I don't want to spend days and days sweating this. Will the Wipperman ConneX link work with my Shimano chain? And is the 6-8 version correct for my bike?

Some say the KMC I already overpaid for will work fine, but I want something for that roadside chain repair I expect somewhere in my future. The KMC needs a tool; the ConneX apparently does not. I might keep the KMC for re-linking the chain after cleaning and pick up a ConneX for my road repair kit. Whaddya think?
Papa Tom is offline
Reply With Quote
Old 08-15-18, 06:44 PM
  #2
wgscott
VectorPotential sensitive

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 3,544

Bikes: Steel

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1822 Post(s)
I was briefly thinking of doing the same for my 11-speed chain, but was put off by some anecdotal reports of people having the thing come undone. The one good thing about needing a tool to take it apart is that you need a tool to take it apart.

I decided I could always use a chain tool to take a link out and re-splice the chain, which would get me home, even if it was a couple of links too short. I would want to replace a chain if it became problematic on a ride. Having said that, I haven't had a chain go out on me yet, since I started maintaining my bike pro-actively and changing the chain at the first sign of wear.
wgscott is offline
Reply With Quote
Old 08-15-18, 06:58 PM
  #3
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Originally Posted by wgscott View Post
...The one good thing about needing a tool to take it apart is that you need a tool to take it apart....
That's one of the best replies to any question I have ever seen! It's also the first negative comment I've read about the Whipperman ConneX, so thanks.

Personally, the last time I had a chain fail on me was in the late 1990's (on the same bike I ride now), but under harsh mountain biking conditions. I don't ever think about a chain failing when I'm out on an overnight road ride, but that's mostly because, until recently, I assumed either my skill with a chain tool or the KMC link I'd invested in would get me out of any jam. I suppose that now that I only ride roads and bikeways, and now that I'm a grown-up and I keep my bike in better running condition, I am much more likely to have to re-link my chains when I am servicing them in the garage, which makes the KMC just fine.

Still wanna hear what people have to say, though. Right now, there's nine dollars just burning a hole in my pocket and I need to buy something to help me forget that the world is coming to an end.
Papa Tom is offline
Reply With Quote
Old 08-15-18, 07:11 PM
  #4
wgscott
VectorPotential sensitive

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 3,544

Bikes: Steel

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1822 Post(s)
I'm also interested (still). I just bought my first chain with a quick-link (a new Shimano XTR/Dura Ace + Shimano's quick link 11-speed) and it was a total ordeal getting it on, even with the Park tool. My main fear is that link will break and I will crash and burn.
wgscott is offline
Reply With Quote
Old 08-15-18, 07:20 PM
  #5
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,089

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
I've been using Wippermann chains with the Connex link on my road bike (3 x 9) for 16 years with no problems. When the chain is replaced, I've kept the Connex link as a spare or for an emergency repair but have never used it. For about the same length of time I've used SRAM chains with the Powerlink on my mountain bike (3 x 8). Likewise no problems.
I just installed a Powerlink on my wife's bike's original Shimano chain (3 x 7). I'm not expecting trouble. AFAIK, as long as the width of the chain and link are the same (same "speed" in other words) different brands can be mixed and matched.
sweeks is offline
Reply With Quote
Old 08-15-18, 07:36 PM
  #6
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 4,876
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 541 Post(s)
I used Wipperman Connex on my 10 speed Campagnolo chains for years. I had zero problems. They install and remove very easily, but never come off accidentally.

For a broken chain on a ride, you still need a chain tool to push out a pin at the mangled link.

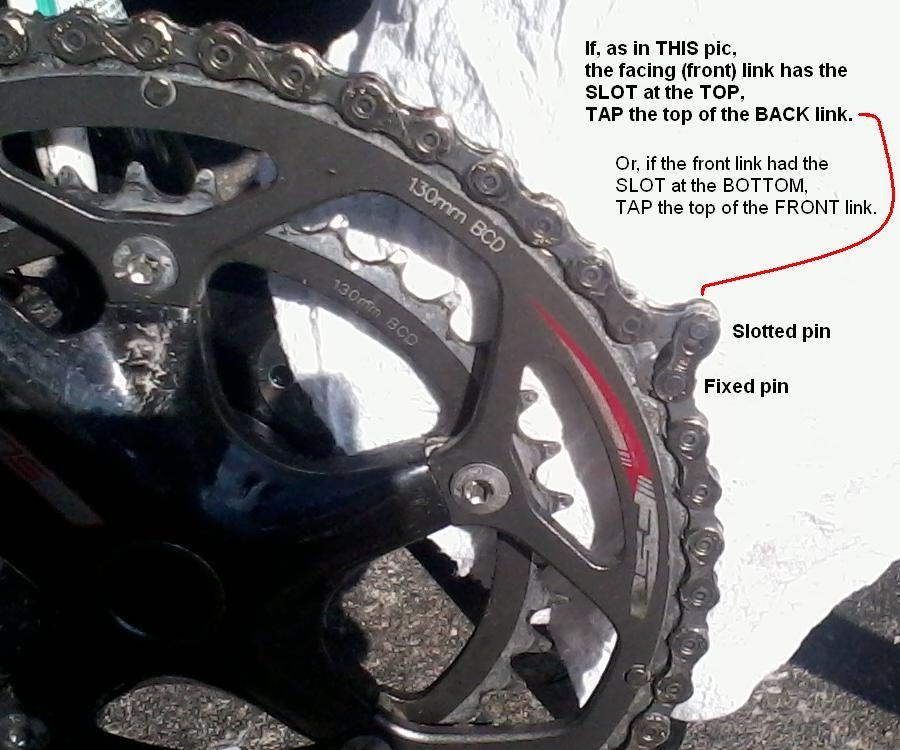

The KMC Missing Link or Sram powerlink doesn't need a link tool to install. The tool is for removing the quick link from your chain. To install, use your fingers to assemble it, then with the link on the top side of the chain, press down on the pedals while holding the brakes to snap it in place.

Last edited by rm -rf; 08-15-18 at 07:40 PM.
rm -rf is offline
Reply With Quote
Old 08-15-18, 07:42 PM
  #7
wgscott
VectorPotential sensitive

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 3,544

Bikes: Steel

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1822 Post(s)
The Shimano one is supposedly the same thing. I just only managed to do it with the tool. I couldn't come close without it. That is why I am interested in the Wipperman link (see, we eventually got this back to the OP).
wgscott is offline
Reply With Quote
Old 08-15-18, 07:56 PM
  #8
Le Mechanic
Senior Member

Join Date: Sep 2015
Location: Denver Colorado
Posts: 109

Bikes: Garneau R1, Mesamods home built gravel/rain commuter bike, 1995 Barracuda A2V modified with Surley single speed dropouts, 1969 Bottecchia junkyard special fixed gear, Cervelo P4, Mesamods 650b klunker

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
I prefer using a quick link on any chain. Makes things much easier to remove the chain and clean it off the bike when things get especially "grungy". I work in the bike industry as a mechanic and I've definitely seen more failed chain pin installs as opposed to quick links as a methodof joining indexed multi speed chains together. KMC, SRAM, Whipperman and now even Shimano all offer decent quick links. I made a video on how to remove and install in the proper orientation about a year ago if anyone is interested...


Le Mechanic is offline
Reply With Quote
Old 08-15-18, 07:58 PM
  #9
motorapido
Senior Member

Join Date: Jun 2012
Location: harrisburg, pennsylvania
Posts: 335

Bikes: 1976 Schwinn Super Le Tour, tricked out with modern components. Shimano Alfine 11 internal gear hub. Dynamo hub. Titanium racks and bottle cages. Mercier Kilo Wide Tire dropbar singlespeed

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Originally Posted by Papa Tom View Post
OK, so I use a Shimano HG71 (6/7/8-speed) chain (seven sprockets and three chainrings on my GT Outpost) and I am not sure the KMC Missing Link repair link I carry in my bag will even work with it. A few people have recommended the Wipperman ConneX 6-8-Speed Stainless Steel Link as an alternative.

I just want to have the right part when I need it, and I don't want to spend days and days sweating this. Will the Wipperman ConneX link work with my Shimano chain? And is the 6-8 version correct for my bike?

Some say the KMC I already overpaid for will work fine, but I want something for that roadside chain repair I expect somewhere in my future. The KMC needs a tool; the ConneX apparently does not. I might keep the KMC for re-linking the chain after cleaning and pick up a ConneX for my road repair kit. Whaddya think?
Kmc does not require a tool. You must patiently and carefully press the sides of the link closely together as you angle the link and press the plates to release them from the groove that retains then. Wipperman disconnects far easier, but you can learn the no tool kmc technique. Wipperman links are much more expensive, generally.
motorapido is offline
Reply With Quote
Old 08-15-18, 08:43 PM
  #10
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 4,459

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
dedhed is offline
Reply With Quote
Old 08-15-18, 08:43 PM
  #11
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 5,936

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Originally Posted by rm -rf View Post
I used Wipperman Connex on my 10 speed Campagnolo chains for years. I had zero problems. They install and remove very easily, but never come off accidentally.

For a broken chain on a ride, you still need a chain tool to push out a pin at the mangled link.
I find it helpful to keep the cut-off links from sizing the chain with a couple of quick links and a chain tool, so mangled links can be cut out and replaced, leaving the chain its original length.
dsbrantjr is offline
Reply With Quote
Old 08-16-18, 05:57 AM
  #12
JonathanGennick
Senior Member

JonathanGennick's Avatar

Join Date: Apr 2007
Location: Munising, Michigan, USA
Posts: 3,799

Bikes: Priority 600, Priority Continuum, Devinci Dexter

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Originally Posted by Papa Tom View Post
OK, so I use a Shimano HG71 (6/7/8-speed) chain (seven sprockets and three chainrings on my GT Outpost) and I am not sure the KMC Missing Link repair link I carry in my bag will even work with it.
Check whether your current link is 7.3 mm wide. Once I was caught out by having a 7.1 mm wide KMC link when my chain was 7.3 mm wide. From what I can see from a Google search, the HG71 chain is 7.3 mm. I used to carry both sizes back in the day, just in case someone I was with snapped a chain.
JonathanGennick is offline
Reply With Quote
Old 08-16-18, 06:32 AM
  #13
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Originally Posted by JonathanGennick View Post
Check whether your current link is 7.3 mm wide. Once I was caught out by having a 7.1 mm wide KMC link when my chain was 7.3 mm wide. From what I can see from a Google search, the HG71 chain is 7.3 mm. I used to carry both sizes back in the day, just in case someone I was with snapped a chain.
Thanks for that advice. I will check. Why can't things just be simple?
Papa Tom is offline
Reply With Quote
Old 08-16-18, 06:34 AM
  #14
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 1,902

Bikes: '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
I question the benefit of carrying around things you have not had any experience with. Though simple in design, at the time of your trouble, will you be able to install it? And once installed, then as you are asking, will it work?. So why not just put one on now and see first hand what it will work like?

I see people struggle with simple things like frame pumps or CO2 inflators when they use them for a roadside repair for their first time. So practicing at home to get some experience will make the roadside efforts more successful instead of a futile act.
Iride01 is offline
Reply With Quote
Old 08-16-18, 09:59 AM
  #15
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 36,781

Bikes: 8

Mentioned: 138 Post(s)
Tagged: 0 Thread(s)
Quoted: 5386 Post(s)
Whipperman answered a question I asked them directly , on company website contact link,

A few hears ago.. that would be very definitave, go to the source.
fietsbob is offline
Reply With Quote
Old 08-16-18, 02:36 PM
  #16
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Originally Posted by Iride01 View Post
I question the benefit of carrying around things you have not had any experience with. .....
Good point, The KMC link was something I bought and never really paid much attention to, as I figured it was not likely to be used in an emergency, but rather during a leisurely servicing of my chain. For this reason, i never even bothered to confirm whether it can be re-used, and to this day, my assumption is that it's a single-use item. For this reason, I have never done a trial run with it.
Papa Tom is offline
Reply With Quote
Old 08-16-18, 07:58 PM
  #17
JonathanGennick
Senior Member

JonathanGennick's Avatar

Join Date: Apr 2007
Location: Munising, Michigan, USA
Posts: 3,799

Bikes: Priority 600, Priority Continuum, Devinci Dexter

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Originally Posted by Papa Tom View Post
Good point, The KMC link was something I bought and never really paid much attention to, as I figured it was not likely to be used in an emergency, but rather during a leisurely servicing of my chain. For this reason, i never even bothered to confirm whether it can be re-used, and to this day, my assumption is that it's a single-use item. For this reason, I have never done a trial run with it.
When I discovered quick links, I bought them for my Shimano chains and put them on right away. That meant breaking perfectly good chains, but the convenience of a link was too much to ignore. Then I packed a spare link in my backpack. Now I just always buy KMC chains to begin with, so a link is a given. As far as single use goes, my thinking on that is for the life of the chain, and I'll otherwise disconnect and reconnect as often as I like.
JonathanGennick is offline
Reply With Quote
Old 08-17-18, 06:20 AM
  #18
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 809

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 198? Masi Nuovo Strada, 1984 Pinarello Turismo

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
I am now using Wippermann chains and Connex links on every bike in my stable, with the sole exception of a 1x11 MTB. Being able to remove the link easily, without a tool, is great. I have never had one come apart except when I was removing it. Unless the link actually fails, I don't see how it could come loose accidentally with any tension on the chain. It does need to be installed properly per the directions, and they have shifted flawlessly on my 10s Campy drivetrains. I can't speak to 11s, don't have any.
speedevil is offline
Reply With Quote
Old 08-17-18, 06:41 AM
  #19
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
I don't think anyone has answered this one: Will the KMC Missing Link work on my Shimano chain? I forgot to mention that, when I bought the link, I was using a KMC chain, but soon replaced it with a Shimano because of some shifting issues.
Papa Tom is offline
Reply With Quote
Old 08-17-18, 08:01 AM
  #20
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,102

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1002 Post(s)
Originally Posted by Papa Tom View Post
I don't think anyone has answered this one: Will the KMC Missing Link work on my Shimano chain?
Assuming you buy the proper matching "speed" (9, 10, whatever), yes it will work fine.
HillRider is offline
Reply With Quote
Old 08-17-18, 09:04 AM
  #21
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Yes, I am sure I have the matching link for a 7-speed chain. Thanks!
Papa Tom is offline
Reply With Quote
Old 08-17-18, 09:36 AM
  #22
ksryder
Senior Member

Join Date: May 2014
Posts: 1,548

Bikes: yes

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Originally Posted by Papa Tom View Post
The KMC needs a tool; the ConneX apparently does not. I might keep the KMC for re-linking the chain after cleaning and pick up a ConneX for my road repair kit. Whaddya think?
You don't need a tool to install the quicklink, just to remove it. (It can sometimes be done without but it's a hassle). If it doesn't snap into place right away, I'll position it on the chain ring and step on the pedal to put enough tension on the chain to snap it into place.

For roadside repairs, you'll need a chain tool but you don't need to worry about removing the quick link (if there's already one on the chain). Just break the chain somewhere else and use the quick link that's in your tool bag. If the chain itself has actually broken, just remove the the broken link and then use the quick link.

I've never actually had a chain break or a quick link fail on the road. (Happened on an old crappy mountain bike once when I bashed a rock. Chain was long overdue anyway). However, I've had derailleurs break, which required me to shorten the chain into an emergency single speed to get home. In that case, I just break the chain somewhere else other than the quick link, shorten it, and use the spare quick link in my tool kit.

HOWEVER, if you really want to be able to remove a quick link on the road -- https://www.wolftoothcomponents.com/...ts/pack-pliers These are quick link pliers, a tire lever, a valve core remover all in one, plus they hold spare quick links.
ksryder is offline
Reply With Quote
Old 08-17-18, 02:13 PM
  #23
Papa Tom
Senior Member
Thread Starter

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 3,760

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Sorry if I wasn't clear from the beginning that I know I don't need to remove the Quicklink in the event of a road emergency. I just figured that a tool would be necessary to install it. I guess not.

So thank you all for answering my questions. I guess I don't need a Whipperman ConneX. I will just hold on to my KMC link and expect that my chain will never break while I am on the road, just as it hasn't in forty years of riding!
Papa Tom is offline
Reply With Quote
Old 08-18-18, 08:12 AM
  #24
Self Evident
Member

Join Date: Nov 2013
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
No Tool needed for quick-link removal.

No tool is needed to remove quick links, even freshly installed brand new ones! The picture below should clearly illustrate the method, but I'll try explaining also.

Basically, using the chainring as a base to rest one of the quick link pins, you tap the side plate that is attached to the other pin of the quick link, and the link will slide apart!

As shown in the pic, get a little slack in the chain so the quick link can be posistioned somewhat vertically over a "valley", ie: between two teeth, of the chainring. Now, the easier way (opposite as shown in the pic below), is to have the "outer" slot (the side facing you) at the bottom of the link, and it's pin resting on the chainring. But either way is possible. Anyway, using a palm sized rock, or a stick, or the end of a frame-pump, or whatever's handy, tap JUST THE SIDE WITH THE UPPER PIN sharply. It may take a few taps to hit ONLY the correct side plate, but otherwise it should open rather easily.


Last edited by Self Evident; 08-18-18 at 08:14 AM. Reason: minor typo
Self Evident is offline
Reply With Quote

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
