Campy part needed

Old 09-28-18, 09:36 PM
  #1
Lightfoot21
Senior Member
Thread Starter

Lightfoot21's Avatar

Join Date: Dec 2010
Posts: 115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Campy part needed

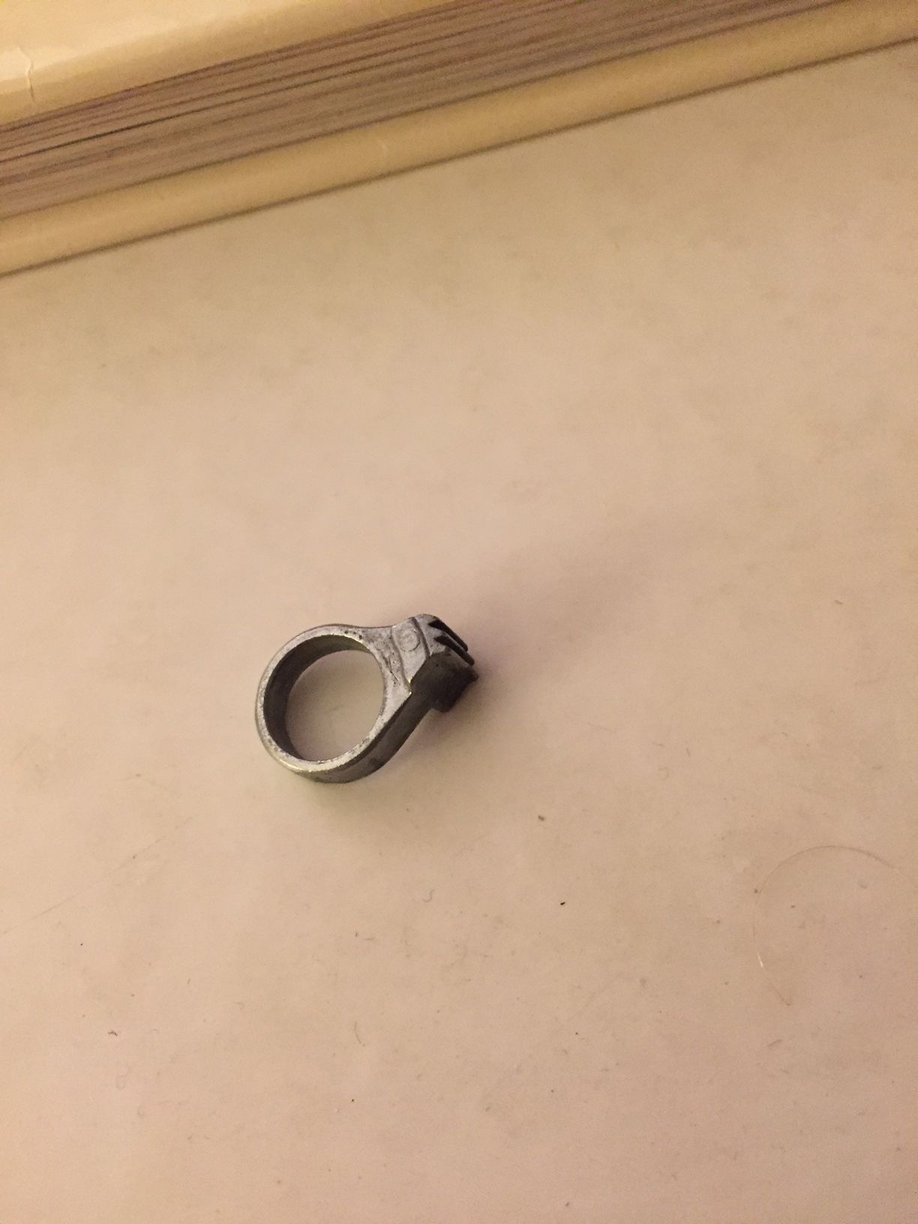

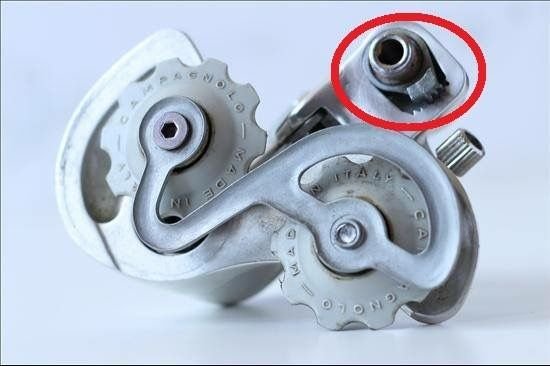

I have an Athena rear derailleur that I want to use on a build, but this particular derailleur lacks a B set screw and instead has a washer like device with teeth on it which sets the angle of the derailleur. I have lost the part and need another. Do any of you have one for sale. Also, if you know, can I use the derailleur without it if I find a washer to take up the space around the derailleur bolt as it goes into the hanger? I'll post two pictures that tell the story. Thanks in advance.
Lightfoot21 is offline
Old 09-29-18, 04:13 AM
  #2
Greenfieldja
Senior Member

Join Date: Aug 2007
Location: Belgium
Posts: 1,032
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The part you are looking for is referred to as "upper body bushing" and is part number 7116112. Your derailleur was made sometime between 1988 but before 1994. From what I can tell, I believe this part/design was unique to Athena.

Happy hunting and good luck

-j
Greenfieldja is offline
Old 09-29-18, 04:19 AM
  #3
Greenfieldja
Senior Member

Join Date: Aug 2007
Location: Belgium
Posts: 1,032
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not the same part number may work just the same:
https://www.ebay.com/itm/NOS-Vintage...YAAOSwVtta0O-B

-j

Last edited by Greenfieldja; 09-29-18 at 04:23 AM.
Greenfieldja is offline
Old 09-29-18, 04:31 AM
  #4
Greenfieldja
Senior Member

Join Date: Aug 2007
Location: Belgium
Posts: 1,032
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
To answer your question about not using the toothed bushing....you of course can try taking up the space with a washer but there will be nothing preventing the derailleur from pivoting into/contacting your rear cogs. This was short lived design. I believe Athena of that era was 7-speed and Campy's index shifting was sub-par.....what shifters are you planning on using?

Edit: The Athena derailleur you have was designed around 6/7 speed system depending on if they were using Record Synchro shift levers and how they were set up. With a friction shifter setup your limit would primarily be the swing of the derailleur.


-j

Last edited by Greenfieldja; 09-29-18 at 04:40 AM.
Greenfieldja is offline
Old 09-29-18, 07:19 AM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,420

Bikes: Several, mostly not name brands.

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1691 Post(s)
Liked 61 Times in 41 Posts
Originally Posted by Greenfieldja View Post
The part you are looking for is referred to as "upper body bushing" and is part number 7116112. Your derailleur was made sometime between 1988 but before 1994. From what I can tell, I believe this part/design was unique to Athena.
"Victory" rear derailleurs also used this toothed bushing.

It always struck me as a poor design. The toothed bushing easily goes missing and renders the whole derailleur useless.
JohnDThompson is online now
Old 09-29-18, 09:17 AM
  #6
Lightfoot21
Senior Member
Thread Starter

Lightfoot21's Avatar

Join Date: Dec 2010
Posts: 115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I really appreciate your responses and expertise. I did buy the item you pointed out on ebay, hoping it will work. I could not see a difference. Thanks for finding the part and letting me know. I am not sure which shifters I will use, but I have some that came with the gruppo so I'll try to use them.
Lightfoot21 is offline
Old 09-29-18, 09:17 AM
  #7
Lightfoot21
Senior Member
Thread Starter

Lightfoot21's Avatar

Join Date: Dec 2010
Posts: 115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks John!
