Bottom bracket spindle lengthwise asymmetry

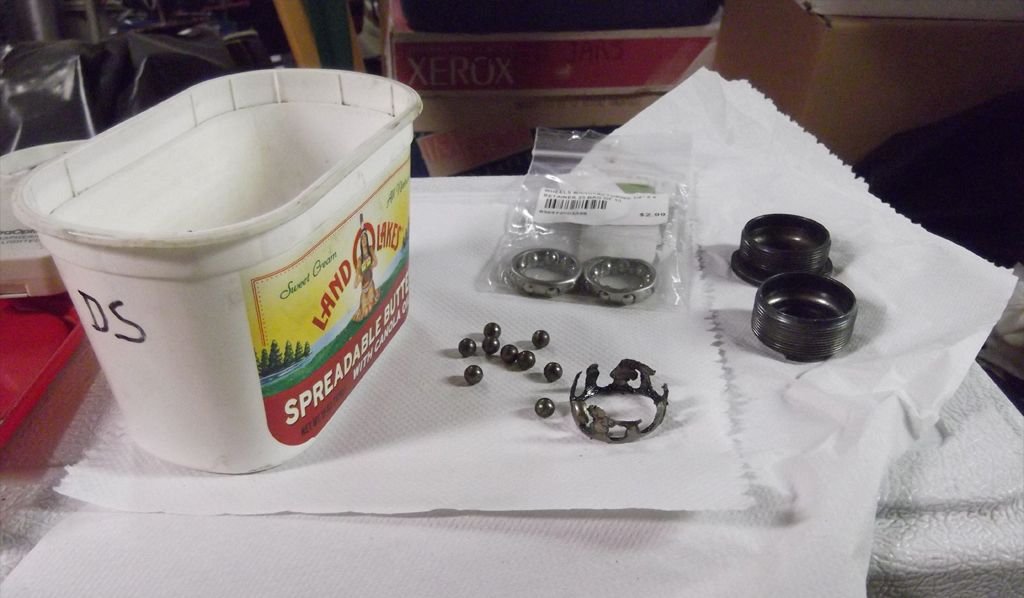

My BB has a square taper spindle and caged 9-ball bearings. (Not a cartridge.) I've been inside my BB three times total, most recently two days ago. The first time I was in there I noticed the spindle cones are each at a different distance from the end. The DS cone is 35mm from the end; the NDS one is 37 or 38mm from the end.

Is this normal, or is this a flaw? And if it's normal, which side should the longer-distance end go on, DS or NDS? And why -- something to do with chainline?

When I got into this BB the first time, I noticed the longer end was on the NDS side, so that's where I've kept it. But now I'm starting to wonder if I reversed it or it was assembled wrong in the first place.

Why? Oh, no reason ...








Last edited by rseeker; 10-09-18 at 04:35 AM.
rseeker is online now
Old 10-01-18, 12:08 AM
  #2
Kovkov
Senior Member

Kovkov's Avatar

Join Date: Nov 2017
Location: Switzerland
Posts: 265

Bikes: 1957 Alpa Special, 1963 Condor Delta, 1967 Tigra Sprint, 1977 Oltenia, 1987 Mondia, 1965 Staco de luxe, 1969 Amberg

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 18 Times in 9 Posts
Perfectly normal. DS is longer to accomodate the chainring(s).
Kovkov is offline
Old 10-01-18, 12:08 AM
  #3
dabac
Senior Member

Join Date: Mar 2008
Posts: 7,903
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 813 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I THINK some cranks were made so that the DS crank put the pedal further out. So with a symmetric bb you got the pedals at different distance from the chainstays. The fix to this was an assymmetric bb with the long end on the NDS.
I might remember wrong. Other manufacturers might have done it differently.
Itís been some years. Had a bike that got different pedal clearance DS/NDS after receiving a modern bb. Might even be that I had to switch to a longer bb to get the arm to clear. This long ago, I remember the cursing clearer than the technical details.
dabac is offline
Old 10-01-18, 12:11 AM
  #4
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,789

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked 26 Times in 22 Posts
It's normal.
Various cranks needed different lengths for the DS. The 3-S is pretty common.

BTW you can remove the cages and fit 11 balls. The new grease will hold them in place.

Scroll down a bit and there's a chart of spindle lengths.
https://www.sheldonbrown.com/bbsize.html
Bill Kapaun is offline
Old 10-01-18, 01:25 AM
  #5
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,886

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1646 Post(s)
Likes: 0
Liked 60 Times in 51 Posts
The right crank location is governed by where the chainline is. Quite close to the BB for a single speed/fixed gear/track bike. A step further out for double cranksets. Yet another for triple cranksets. Mountain bikes require further out so the crankset clears the chainstays. There are other factors that push the right crank further out. The point being that this is not up to the BB manufacturer but is governed by the type of bike, the gearing used, etc. Now the manufacturer does have a choice when it comes to the left, NDS crank. It can make the BB spindle symmetrical so both feet are the same distance apart or it can bring the left crank in, sometimes a lot, relative to the right crank to minimize the distance one's feet are apart. For most, the distance one's feet are apart is not an issue, but for some it is very important. There are riders for whom keeping the feet close together is far more important than how symmetrical the cranks are.

Two popular manufacturers take opposite approaches here. Every BB spindle I have seen from Sugino has been asymmetrical. Every Shimano BB spindle I have seen has been symmetrical. (My knees do far better with the asymmetrical and much narrower Sugino cranksets. The spindle you are looking at is from Sugino or a similar non-symmetrical BB. (If you don't like it, I'll take it off your hands.)

Edit: a reason the longer end on your bike is one the left, NDS could be that the former owner changed cranksets. There are at least two different taper standards for the spindle/crank interface. The tapers are very close but the sizing is quite different so the crank sits in a quite different place. It could be the second crankset sat two far outboard and made for a poor chainline so flipping the spindle meant the right crank now sat further in, improving the chainline. Left crank would to further outboard; odd but it won't hurt the bike at all. The previous owner might also have gone from a triple to a double or from a double to a single and done the same spindle flip to bring the right crank and cog(s) closer inboard.

Ben

Last edited by 79pmooney; 10-01-18 at 01:33 AM.
79pmooney is offline
Old 10-01-18, 04:23 AM
  #6
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 3,627

Bikes: Schwinn Varsity

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1267 Post(s)
Liked 50 Times in 34 Posts

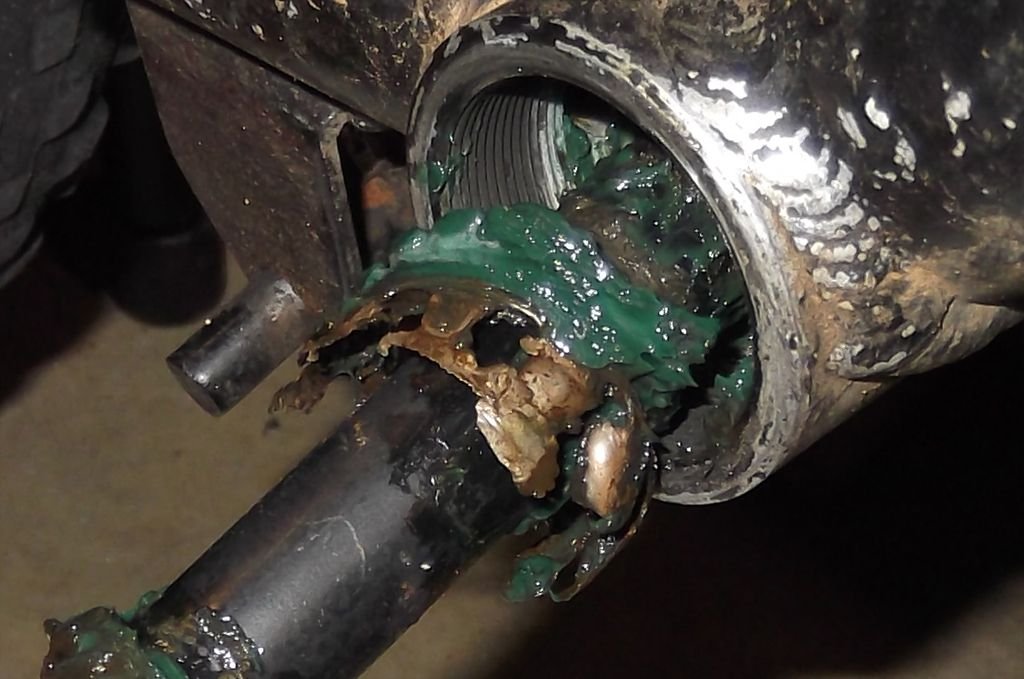

Could have done without the dirty pic... yuk
Longer side goes on drive side.
trailangel is offline
Old 10-01-18, 05:23 AM
  #7
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 235

Bikes: Diamondback Wildwood Classic

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by trailangel View Post
Could have done without the dirty pic... yuk
Longer side goes on drive side.
__________________
JoeTBM (The Bike Man)
I'm a black & white type of guy, the only gray in my life is the hair on my head.
JoeTBM is offline
Old 10-01-18, 05:26 AM
  #8
rseeker
Senior Member
Thread Starter

rseeker's Avatar

Join Date: May 2016
Location: Southeast US
Posts: 565
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 22 Times in 18 Posts
Originally Posted by trailangel View Post
Could have done without the dirty pic... yuk
If that's a community standard I would edit it out. I'm reacting to the close-up a little myself, I can imagine some people being more sensitive.

The bike stays dirty and the paint stays distressed as a theft-resistance measure. If yuk is the reaction .. maybe it's working.

Last edited by rseeker; 10-01-18 at 01:53 PM.
rseeker is online now
Old 10-01-18, 05:31 AM
  #9
rseeker
Senior Member
Thread Starter

rseeker's Avatar

Join Date: May 2016
Location: Southeast US
Posts: 565
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 22 Times in 18 Posts
Originally Posted by 79pmooney View Post
The right crank location is governed by where the chainline is .. etc.
Thanks for the detailed answer.

So I should work out the chainline geometry and Do The Math and it'll probably make sense then.

(If you don't like it, I'll take it off your hands.)
OK, noted. I'd be open to that if it ever comes to retiring that spindle.
rseeker is online now
Old 10-01-18, 05:34 AM
  #10
rseeker
Senior Member
Thread Starter

rseeker's Avatar

Join Date: May 2016
Location: Southeast US
Posts: 565
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 22 Times in 18 Posts
Originally Posted by Bill Kapaun View Post
BTW you can remove the cages and fit 11 balls. The new grease will hold them in place.

Scroll down a bit and there's a chart of spindle lengths.
https://www.sheldonbrown.com/bbsize.html
Great information, thank you.
rseeker is online now
Old 10-01-18, 07:04 AM
  #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,468

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1143 Post(s)
Likes: 0
Liked 24 Times in 22 Posts
Originally Posted by trailangel View Post
Longer side goes on drive side.
Not always. I had an early '90's Trek 7000 mtb, purchased new, that had a square taper cup-and cone bottom bracket and a Shimano LX 110/74 triple crank. When I first overhauled it I found the spindle's longer end was to the non-drive side. I thought Trek had made an assembly mistake but when I reassembled it "properly" the nds crank arm hit the chainstay. In this case having the long end of the spindle to the nds was correct.
HillRider is offline
