Pedal noise

in relation to this previous thread What does this sound point to?

sorry these are so huge. Tried to make them reasonable.

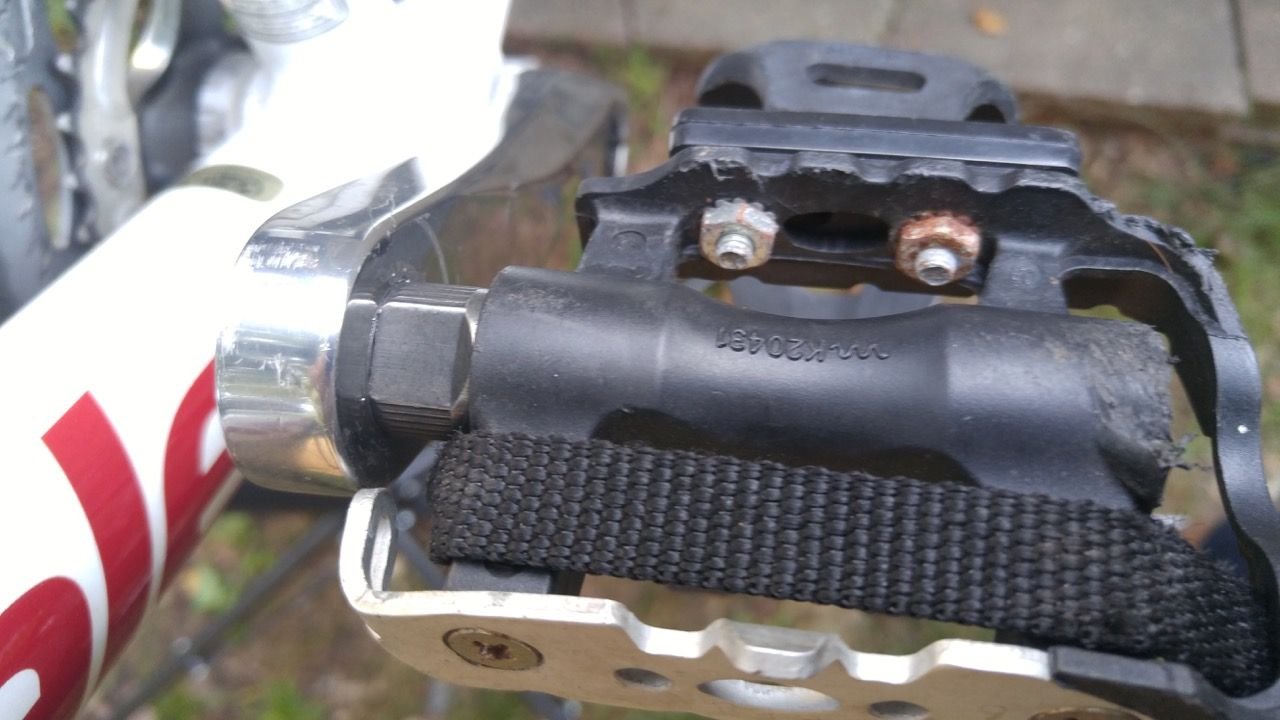

I've removed the left pedal. It definitely feels a little rough on the axle holding the pedal in my hands and slow spinning.
But the pedals seem to be no name. The have a nut on the outside of the axle. I guess a nutdriver in a vise with the pedal wrench on the other side to extract the axle.?
Or am I better off getting new pedals? And if new pedals, any suggestion for inexpensive platform? I assume I can re-use the toe clip traps.



Last edited by metropical; 10-01-18 at 09:07 AM.
metropical is offline
Old 10-01-18, 10:00 AM
  #2
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Posts: 7,510

Bikes: 2008 Novara Randonee - love it. Previous bikes:Motobecane Mirage, 1972 Moto Grand Jubilee (my fave), Jackson Rake 16, 1983 C'dale ST500.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I would just go for new pedals, and search for alloy quill pedals rather than platform if you want the same type as pictured. Rather than depending only on a few recommendations here look for ones that have the features you like, with many good reviews and the price range you desire.
__________________
There's no such thing as a routine repair.

Don't tell me what "should" be - either it is, it isn't, or do something about it.

If you think I'm being blunt take it as a compliment - if I thought you were too weak to handle the truth or a strong opinion I would not bother.

Please respect others by taking the time to post clearly so we can answer quickly. All lowercase and multiple typos makes for a hard read. Thanks!
cny-bikeman is offline
Old 10-01-18, 11:10 AM
  #3
metropical
Senior Member
Thread Starter

Join Date: Mar 2007
Location: NY
Posts: 80

Bikes: CAAD 9 - 6, Fuji Sport 12 w/bent wheel - retired

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 0 Times in 0 Posts
thanks. found these and these. I'm thinking the later if only coz they can be clip or not, should I decide to up my game, as it were.
metropical is offline
Old 10-01-18, 12:55 PM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,225

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 649 Post(s)
Likes: 0
Liked 44 Times in 41 Posts
It is hard to go wrong with MKS, especially if you spring for the dust cap tool so that you can service the bearings, which you should do right away since they often come adjusted too tight and skimpily lubricated, even MKS.
dsbrantjr is offline
Old 10-02-18, 01:37 PM
  #5
metropical
Senior Member
Thread Starter

Join Date: Mar 2007
Location: NY
Posts: 80

Bikes: CAAD 9 - 6, Fuji Sport 12 w/bent wheel - retired

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 0 Times in 0 Posts
well that was a rude awakening. I gather that these types of pedals are made only with loose bearings. Is there such a thing as a comparable pedal with sealed bearings?
metropical is offline
Old 10-02-18, 03:01 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,652

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1729 Post(s)
Likes: 0
Liked 45 Times in 32 Posts
Sure pedals have been made with cartridge bearings (usually called "sealed"). But they tend to be at the upper end of a pedal type price range.

The usual failure (if that's the right term which for the pictured ones isn't IMO) mode is to loose the dust cap and thus have all kinds of crap get into the bearings. Additionally the common cheaply sold plastic bodied pedals are well known for their lack of robustness. The plastic bodies don't secure the steel bearing cups well, crack frequently and don't handle impacts with the ground well. We usually describe plastic pedals as temporary and suggest the rider replace with whatever type they prefer but in all metal.

MKS makes some nice and serviceable examples. But even good pedals suffer when whacked on the ground. Andy (who has sharpened Campy cage quills to a point when sliding out on corners a couple of times)
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-02-18, 03:37 PM
  #7
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,168

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by metropical View Post
thanks. found these and these. I'm thinking the later if only coz they can be clip or not, should I decide to up my game, as it were.
I have a couple pairs of the MKS AR-2 EZ pedals, one of which has over 20,000 miles on them. These have uncaged ball bearings and are pretty easy to service, but they have lousy seals on the inboard side, so I've had to service them a number of times. An "axle vise" is helpful; the only special tools needed are deep-well 10mm and 13mm sockets (for my pedals... the ones you linked to might be different).
I also have a couple pairs of Shimano SPD pedals, which have excellent seals. They are serviceable, but service is rarely needed.
I'd get the Shimano pedals you linked to, al things considered.
sweeks is offline
Old 10-02-18, 07:13 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,652

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1729 Post(s)
Likes: 0
Liked 45 Times in 32 Posts
Drilling a tiny hole in the dust cap center and then using a needle ended grease gun makes grease injection real easy/fast. Hub Buddies use to make a kit to do much of the same, add an injection hole. JA Stein offered a BB version. I've used both and they allow extended life in bad conditions as long as the rider does their part, inject fresh lube periodically. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-02-18, 07:31 PM
  #9
metropical
Senior Member
Thread Starter

Join Date: Mar 2007
Location: NY
Posts: 80

Bikes: CAAD 9 - 6, Fuji Sport 12 w/bent wheel - retired

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 0 Times in 0 Posts
how about these as compared to the Shims?
metropical is offline
Old 10-03-18, 06:39 AM
  #10
metropical
Senior Member
Thread Starter

Join Date: Mar 2007
Location: NY
Posts: 80

Bikes: CAAD 9 - 6, Fuji Sport 12 w/bent wheel - retired

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 0 Times in 0 Posts
in looking further at these as well as Dimension Comps that were recommended, the pegs, though I understand their purpose, will destroy my $ New Bals for my big flat feet.
The Shims and Dimensions look to be less "aggressive".

Here are choices I've found. Any input welcome, especially as to quality and durability. My OEMs made it nearly a decade. At perhaps 50mi/wk avg, should be difficult one would assume.
Leaning toward Forte or Wellgo as both have sealed non-serviceable bearings, which is fine. My OEMs had missing and destroyed dust caps. If I get 5 years out of new pedals as a casual ride, I'd be quite happy at these prices.
If I hadn't already, I ride in size 14 New Bals.
Retrospec Bicycles Classic Road Pedal https://goo.gl/Ew7uwc
Forté ATB Comp Pedals https://goo.gl/mdcrc5
Shimano PD-M324 SPD Pedals https://goo.gl/ChUzJG
Wellgo LU-961 Clip and Strap Pedal https://goo.gl/8hDnHm
All-City Standard Track Pedal https://goo.gl/5yabBw
Dimension Sport Platform Pedals https://goo.gl/KZ5VTD



Last edited by metropical; 10-03-18 at 09:59 AM.
