Rebuilding a wheel using mid-80's parts - Allowable Tension?

I am rehabbing a 1984 Trek 620. The rear wheel came with a Helicomatic hub that I am replacing with a similar vintage Maillard hub (that has normal 1/4" bearings). Both hubs have identical dimensions so I am going to re-build the wheel using the original 27" rim, spokes, and nipples - but with the Maillard hub substituting for the Helicomatic.

My question is - can I safely tension these 2.0 mm straight gauge spokes to a range of 100-120 kgf using this rim?

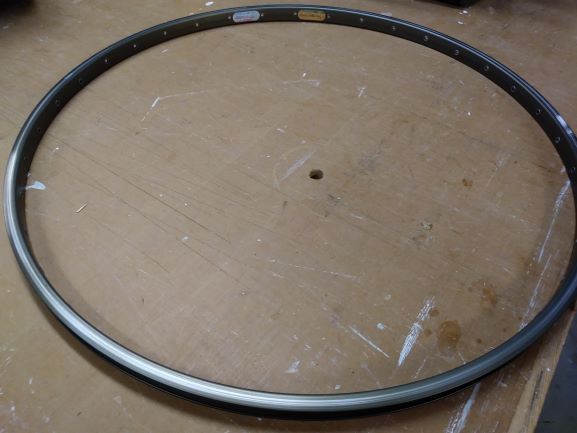

The rim is a 'Matrix Anodic T' heat-treated 36 hole rim that is probably original to the bike. It is flat and without obvious defect or serious rust.

Thanks.



jlaw is offline
Old 10-03-18, 12:57 PM
  #2
TallRider
Senior Member

TallRider's Avatar

Join Date: Oct 2005
Location: Fresno, CA
Posts: 4,433
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 1 Time in 1 Post
You may be able to build up the tension to that point, but you also probably don't need to, especially if it's a 36 spoke wheel.

​​​​ you should also reuse the spokes and exactly the same orientation. So drive side leading spokes on the old Hub should be drive side leading spokes on the new hub.

I think it's the spoke wires will handle 100 just fine. And if they're Rim hasn't been subjected to dangerous high spoke tension, the rim can probably handle it fine as well. That said, I wouldn't go much over a hundred. Modern rims are more designed with higher tension and lower spoke accounts. But 36 spoke wheels that were common in the early eighties on prior don't need as much tension.
TallRider is offline
Old 10-03-18, 01:46 PM
  #3
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 622

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Likes: 0
Liked 35 Times in 21 Posts
Originally Posted by TallRider View Post
You may be able to build up the tension to that point, but you also probably don't need to, especially if it's a 36 spoke wheel.

​​​​ you should also reuse the spokes and exactly the same orientation. So drive side leading spokes on the old Hub should be drive side leading spokes on the new hub.

I think it's the spoke wires will handle 100 just fine. And if they're Rim hasn't been subjected to dangerous high spoke tension, the rim can probably handle it fine as well. That said, I wouldn't go much over a hundred. Modern rims are more designed with higher tension and lower spoke accounts. But 36 spoke wheels that were common in the early eighties on prior don't need as much tension.
Is 90-100 kgf a good target range for this wheel?
jlaw is offline
Old 10-03-18, 02:17 PM
  #4
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 3,010

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by jlaw View Post
Is 90-100 kgf a good target range for this wheel?
Drive side: yes. The NDS will be 2/3 to 3/4 of that.- you can narrow that target range by measuring the projected angle of the spokes, and using trig to calculate the tension ratio. Side to side the tension has to be equal; from that and with the angles, it is a simple calculation to get the tension ratio.
nfmisso is offline
Old 10-03-18, 06:16 PM
  #5
TallRider
Senior Member

TallRider's Avatar

Join Date: Oct 2005
Location: Fresno, CA
Posts: 4,433
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by jlaw View Post
Is 90-100 kgf a good target range for this wheel?
Yes, for the drive-side of the rear wheel. As @nfmisso says.
I usually don't worry about the trig when wheelbuilding, I just build the wheel with consistent tension, true and round, and get the drive-side up to a pre-determined max.
I'd feel comfortable building the drive-side spokes consistently to 100 on your wheel, because this will decline a bit once a tire is mounted and inflated.
TallRider is offline
Old 10-03-18, 07:05 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,652

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1728 Post(s)
Likes: 0
Liked 45 Times in 32 Posts
Before we had fancy dancy tension gages we would pluck a known wheel and match the spoke's tone on the new wheel. You should have a front wheel that serves as a standard to what the rims can handle (with proof of years of miles). Run up the rear's drive side to be at a bit higher tone then the ft wheel is as a start. The LH side will pluck at a lower tone then the ft does. Andy (trying to sound like Fietsbob)

I would think about 100 kgf would be the upper range for these older parts. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-04-18, 06:00 AM
  #7
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 622

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Likes: 0
Liked 35 Times in 21 Posts
Originally Posted by Andrew R Stewart View Post
Before we had fancy dancy tension gages we would pluck a known wheel and match the spoke's tone on the new wheel. You should have a front wheel that serves as a standard to what the rims can handle (with proof of years of miles). Run up the rear's drive side to be at a bit higher tone then the ft wheel is as a start. The LH side will pluck at a lower tone then the ft does. Andy (trying to sound like Fietsbob)

I would think about 100 kgf would be the upper range for these older parts. Andy
Good idea re: checking the existing tension on the (35 year old) front wheel.
jlaw is offline
Old 10-04-18, 08:48 AM
  #8
wschruba
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,570
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
Andy (trying to sound like Fietsbob)
Is he on vacation again?

Aye, high spoke count wheels don't require absurd tension values.
wschruba is offline
Old 10-04-18, 10:30 AM
  #9
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 622

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Likes: 0
Liked 35 Times in 21 Posts
Checked the spokes on the front wheel and they are all in a range from 80 to 100 kgf with most around 90. I like these old 36 spoke wheels - substantial and true - trustworthy.

I will use 100 kgf as my drive side target value and the NDS will be whatever it is in order to have true and round.

Thanks.
jlaw is offline
