How do I attach this rear brake cable?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How do I attach this rear brake cable?

Old 10-07-18, 09:32 AM
  #1
jm88
Member
Thread Starter

Join Date: Jul 2018
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How do I attach this rear brake cable?

With the help of this forum, I decided to replace the broken cantilever brakes on my '90s Trek bike with V-brakes. I got the front ones working great but when routing the cable for the rear ones I ran into a problem. The old cable ran through housing from the brake lever to the front of the top tube where there is a place to hold the housing but then ran all the way back to the brake through a tube around the seat post. If I follow this same route, there is not enough room to connect it to the V brake (see the photos). Ideally, I would need some type of holder to run a short piece of cable through housing from the rear of the tube to the brake like most every other bike I have seen has, but how can I do that since there is no holder welded to the frame back there?



jm88 is offline
Old 10-07-18, 09:53 AM
  #2
JonathanGennick
Senior Member

JonathanGennick's Avatar

Join Date: Apr 2007
Location: Munising, Michigan, USA
Posts: 4,009

Bikes: Priority 600, Priority Continuum, Devinci Dexter

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 635 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Back in the day, that sort of routing was probably a nice feature. I'm not immediately sure how to deal w/it now. I might look into some sort of add-on cable stop to zip-tie or clamp to the top tube.
JonathanGennick is offline
Old 10-07-18, 10:08 AM
  #3
jm88
Member
Thread Starter

Join Date: Jul 2018
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yeah, I was kind of thinking of maybe just zip tying a piece of housing back there but didn't know if that would work. It should, because the cable will still remain tight from the front clamp.
jm88 is offline
Old 10-07-18, 10:10 AM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,624

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
I hope your brake levers are also linear brake cable pull speced. As you know this frame was made in the canti lever era. To add a second and rear located casing stop we would use a "Backstop" or similar clamp on band with stop built in. Like the J&B Importers offered example (their part # 14472 for a 28.6mm diameter tube). Andy


__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-07-18, 10:11 AM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,624

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
Originally Posted by jm88 View Post
Yeah, I was kind of thinking of maybe just zip tying a piece of housing back there but didn't know if that would work. It should, because the cable will still remain tight from the front clamp.
I guess I missed the obvious solution, full length casing. No stops needed at all. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-07-18, 10:21 AM
  #6
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 663

Bikes: Bianchi Ti Megatube, M Alloy Pro, Sprint 76; Amp Research B4; Colnago Crystal; Klein Pulse; Litespeed Catalyst

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 38 Times in 25 Posts
Originally Posted by jm88 View Post
Yeah, I was kind of thinking of maybe just zip tying a piece of housing back there but didn't know if that would work. It should, because the cable will still remain tight from the front clamp.

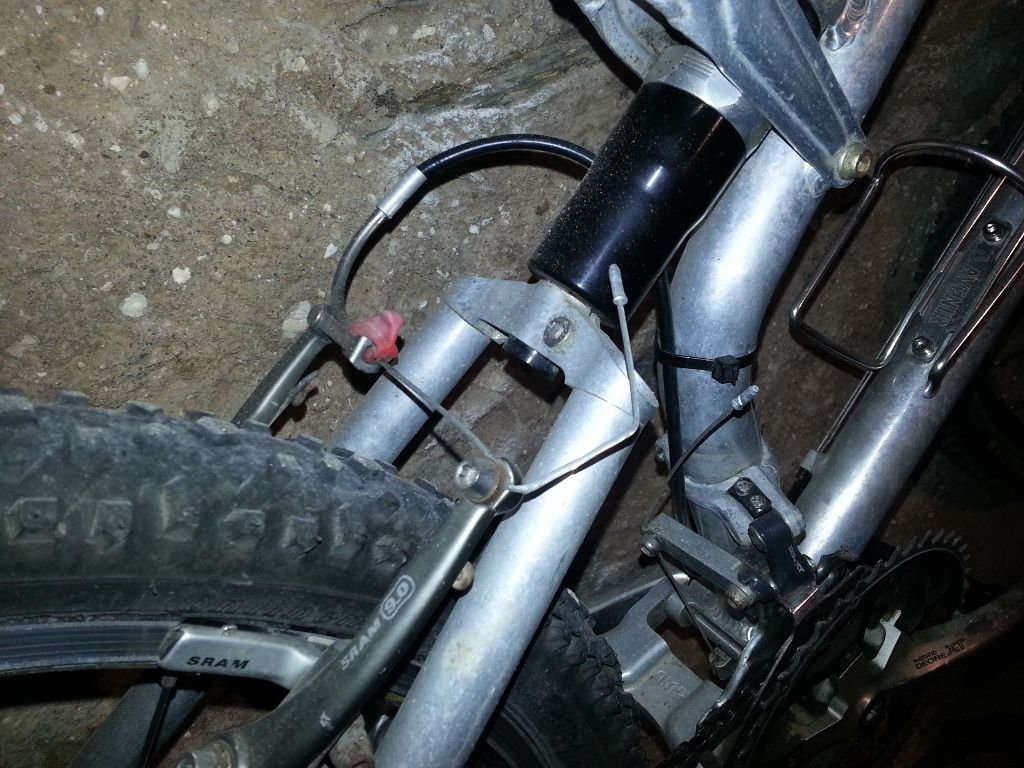

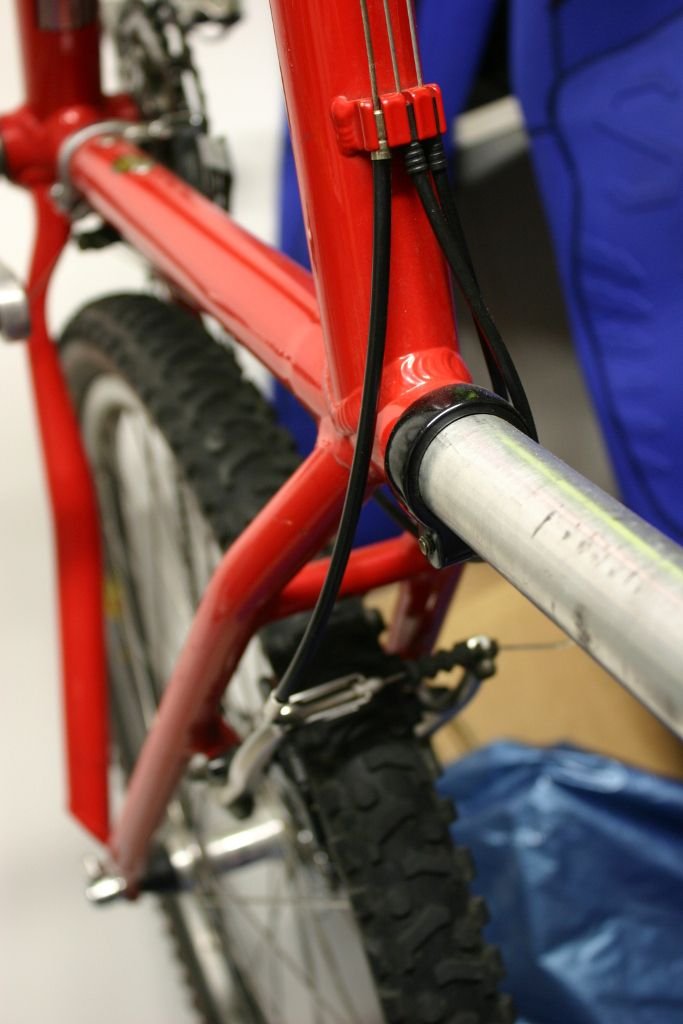

This'll work, I've done it on a dual-suspension mtb. In your case, you may be able to insert a small section of cable housing (from the current stop to the V-brake noodle), and if the cable isn't making any quick bends, could be a very clean solution. Otherwise you may need a longer piece and make a larger S-bend.
ridelikeaturtle is offline
Old 10-07-18, 10:40 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,730

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
Bodging

Housing from the brake lever all the way to the V brake noodle is fine.
(I have a hydraulic rim brake, its hose, from one to the other )

The noodle along side the seat tube was for cantilever brakes , and you are fitting V brakes .
apples and oranges , essentially ..
Butt up a section of flexible brake housing against the back side of the noodle, on the frame..
to the V brake noodle you have..
I'd add a small, flat, washer , with a hole in the center, just big enough for the wire to pass through

and ferrule the housing portion you create..

Could just fit cantilever brakes, most of the stopping power is on the fork.. <Physics> anyhow..


some brake levers have 2 cable pull options , Avid speed dial has a knob.. so a range of adjustment..
but long pull levers can be accomodated.. you just use extra pull to leave more pad/rim clearance.
to be taken up as you pull the hand lever..





.....

Last edited by fietsbob; 10-07-18 at 10:45 AM.
fietsbob is online now
Old 10-07-18, 11:26 AM
  #8
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,021

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 47 Times in 40 Posts
https://www.jensonusa.com/Problem-So...kaAsoQEALw_wcB
dedhed is online now
Old 10-07-18, 08:09 PM
  #9
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 3,235

Bikes: Flyxii FR322, Soma Smoothie, Miyata City Liner, Specialized FSR Comp, Fuji Professional

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1083 Post(s)
Liked 24 Times in 17 Posts
I’ve just run full length housing, zip tied to the top tube.
Steve B. is offline
Old 10-07-18, 09:57 PM
  #10
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,677
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Full length housing with a few zip ties or some of these:
https://www.universalcycles.com/shop...ils.php?id=200
https://www.universalcycles.com/shopping/product_details.php?id=78519

.

Last edited by cobba; 10-07-18 at 10:19 PM.
cobba is offline
Old 10-08-18, 07:25 AM
  #11
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO
Posts: 1,514

Bikes: 2016 Fuji Tread

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Likes: 0
Liked 16 Times in 14 Posts
Originally Posted by jm88 View Post
Yeah, I was kind of thinking of maybe just zip tying a piece of housing back there but didn't know if that would work. It should, because the cable will still remain tight from the front clamp.
Definitely do NOT do this.

And I'll stress the comment about changing the brake levers to get the right pull for linear brakes. That seems to be a common oversight. Hopefully they're not combined with the shifters on this bike.
andrewclaus is offline
Old 10-08-18, 09:57 AM
  #12
jm88
Member
Thread Starter

Join Date: Jul 2018
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by andrewclaus View Post
Definitely do NOT do this.

And I'll stress the comment about changing the brake levers to get the right pull for linear brakes. That seems to be a common oversight. Hopefully they're not combined with the shifters on this bike.
Yes, I do have the proper levers. I didn't realize they sold those clamp on cable stops so I think that will be easiest route Thanks for the help.
jm88 is offline
Old 10-08-18, 05:02 PM
  #13
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 237

Bikes: Diamondback Wildwood Classic

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by jm88 View Post
Yes, I do have the proper levers. I didn't realize they sold those clamp on cable stops so I think that will be easiest route Thanks for the help.
Yep.... just make sure you order one with the proper diameter for the tube you are attaching it to.
__________________
JoeTBM (The Bike Man)
I'm a black & white type of guy, the only gray in my life is the hair on my head.
JoeTBM is offline
Old 10-15-18, 12:12 PM
  #14
jm88
Member
Thread Starter

Join Date: Jul 2018
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

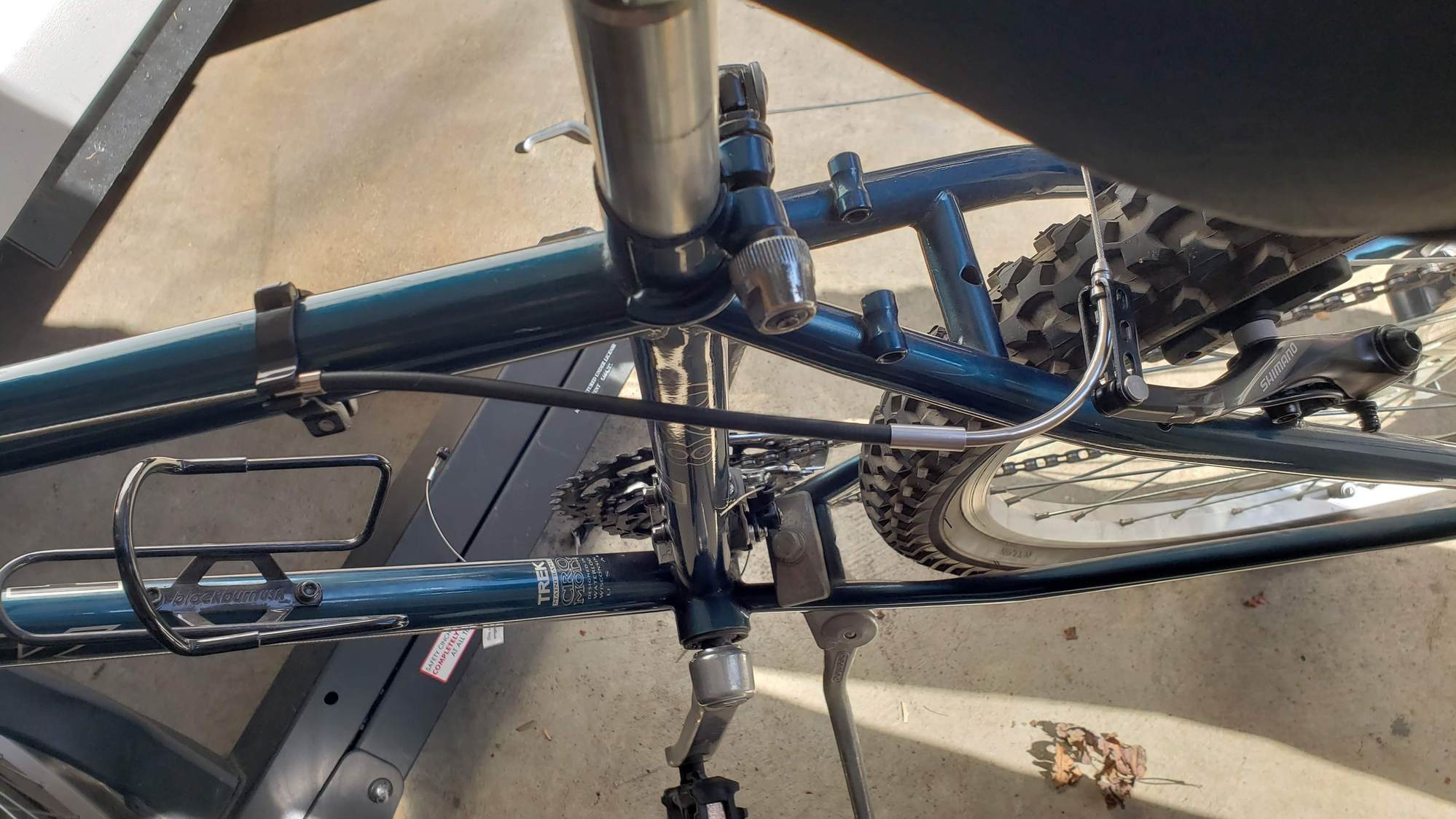

Just thought I would report back on this. I did end up getting this clamp and installing it at the rear of the top tube. I cut about a 6 inch piece of housing and ran it from the clamp to the brakes, but I was wondering if it is ok if the brake pad barely drags against the rim. I think because of the angle of the housing, it is sort of pushing the brake pad against the rim a little if that makes sense. The front one does not have that problem because it is coming from straight up above and there is no pressure, but this one has a little. I could let up a little pressure by allowing some slack, but then the cable running across the tube is loose and bounces around. That needs to be somewhat right, doesn't it?

Originally Posted by Andrew R Stewart View Post
I hope your brake levers are also linear brake cable pull speced. As you know this frame was made in the canti lever era. To add a second and rear located casing stop we would use a "Backstop" or similar clamp on band with stop built in. Like the J&B Importers offered example (their part # 14472 for a 28.6mm diameter tube). Andy


jm88 is offline
Old 10-15-18, 12:37 PM
  #15
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 663

Bikes: Bianchi Ti Megatube, M Alloy Pro, Sprint 76; Amp Research B4; Colnago Crystal; Klein Pulse; Litespeed Catalyst

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 38 Times in 25 Posts


You're effectively (exactly?) recreating the above, and it should work perfectly, as long as you've got the right levers. Have you got photos?
ridelikeaturtle is offline
Old 10-15-18, 05:41 PM
  #16
jm88
Member
Thread Starter

Join Date: Jul 2018
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here is a picture. I think the difference is that yours is running across the top of the bar and so it goes straight down when you go into the brake where mine is about 1/4 of the way down the bar (that is where it lines up with the front cable stop) so it is coming slightly from the side into the brake. Will that hurt anything, or should I try to loop it a little more to see if I can get a downward angle?
jm88 is offline
Old 10-15-18, 08:26 PM
  #17
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,624

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
One should be able to adjust the arm spring balance to combat any casing "spring" effect. Although I would have placed the clamp/stop a cm further back and allowed a tad more casing curve. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-15-18, 08:32 PM
  #18
KLiNCK
Optically Corrected

KLiNCK's Avatar

Join Date: Nov 2011
Location: Toronto, Ontario, Canada.
Posts: 532

Bikes: 2012 Specialized Sirrus , 2012 Specialized Roubaix Comp

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 17 Times in 9 Posts
Originally Posted by jm88 View Post
That will work just fine!
KLiNCK is offline
Old 10-15-18, 11:42 PM
  #19
02Giant
Home School Valedictorian

02Giant's Avatar

Join Date: Jan 2011
Location: Iowa
Posts: 2,688

Bikes: 13 Orbea Orca 02 Giant Cypress 88 Mongoose ATB

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 760 Post(s)
Liked 26 Times in 17 Posts
I would have went back with canti's.
__________________
Excuse me if I, have some place in my mind,
Where I go time to time
02Giant is offline
Old 10-16-18, 12:14 AM
  #20
jm88
Member
Thread Starter

Join Date: Jul 2018
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
One should be able to adjust the arm spring balance to combat any casing "spring" effect. Although I would have placed the clamp/stop a cm further back and allowed a tad more casing curve. Andy
I didn't cut the cable yet and have a lot more housing so I will move it back and mess with the spring. That makes sense! Thank you.
