caliper brake crooked

Reply

Old 10-09-18, 10:03 AM
  #1
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)

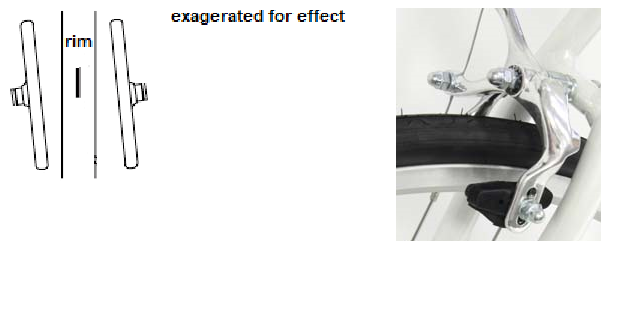

caliper brake crooked

Is there someone I can do, like bending the arms (alloy)? Or shimming? Or is it normal for cheap brake to be slightly crooked?

When I squeeze hard enough...the caliper will deform to align perfectly with the rim. I'am sure this is inefficient.

The crooked brake performed adequatedly...but it could definitely be better.


Last edited by mtb_addict; 10-09-18 at 10:10 AM.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 10:09 AM
  #2
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
what is the chance that the brake mount hole on the frame and fork is drilled crooked?

This is Bikesdirect.

Last edited by mtb_addict; 10-10-18 at 10:37 AM.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 10:13 AM
  #3
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 36,150

Bikes: 8

Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 5224 Post(s)
perhaps you need some lessons in general mechanical problem solving
locally, in person.. ?

you do lean towards cheaper bikes.. *


have you gained experience yet..
in the dividing line between bending and breaking various materials yet?
* considering that it won't be a great loss if it breaks.. while you are learning..

it is a hand feel not an internet opinion..




...

Last edited by fietsbob; 10-09-18 at 10:16 AM.
fietsbob is offline
Reply With Quote
Old 10-09-18, 10:16 AM
  #4
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 3,088

Bikes: Schwinn Varsity

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 981 Post(s)
Crescent wrench alignment tool is the answer.
trailangel is offline
Reply With Quote
Old 10-09-18, 10:52 AM
  #5
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
Originally Posted by trailangel View Post
Crescent wrench alignment tool is the answer.
So, it is okay to bend alloy aluminum? I was afraid it would snap off. I didn't know if aluminum alloy can be bend or not.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 11:01 AM
  #6
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,380

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1604 Post(s)
Best to get brake pads with conical washers to that they can self-adjust to be aligned correctly when installing them.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 10-09-18, 12:38 PM
  #7
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 397

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
What way is it crooked?
Forward /back direction or left /right direction.
This may simply be an adjustment problem.
What sort of a brake is it?
​​​​​​​What is bending when you pull the brakes.
By the way you say it can be more efficient which may not be true.
blamester is offline
Reply With Quote
Old 10-09-18, 12:47 PM
  #8
Jason Curtiss
Senior Member

Jason Curtiss's Avatar

Join Date: Jul 2005
Location: Houston, Texas
Posts: 132

Bikes: Bianchi Intenso

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
I like ThermionScott's idea of a conical washer.
I don't like bending aluminum because it induces fatigue in a material that is not fatigue resistant. The result could sudden and complete failure during use.
How much fatigue would be induced by bending the slotted foundations is difficult to quantify, but I would not take the chance.
Best,
Jason
Jason Curtiss is offline
Reply With Quote
Old 10-09-18, 01:26 PM
  #9
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
Originally Posted by blamester View Post
What way is it crooked?
Forward /back direction or left /right direction.
This may simply be an adjustment problem.
What sort of a brake is it?
What is bending when you pull the brakes.
By the way you say it can be more efficient which may not be true.
It is a caliper brake with single pivot. Looks like the whole unit is crooked to the left. My guess is the holes in the fork and in the brake bridge were drilled off axis.

I notice this crookedness on my other cheap cruiser bikes. But this bike has a much nicer brake (no name brand)...so I was surpriced it is even more crooked.

I guess I should buy some nice Shimano single pivot brake.

But these cheap brakes seems adequate though. And, I get to exercise my hand to get stronger grip strength.

Last edited by mtb_addict; 10-09-18 at 01:30 PM.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 01:31 PM
  #10
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
I also notice the brake is too large for the rim width. It's possible, this bike has the wrong size brake caliper.

The rim is for 25c narrow tires. The brake caliper seems to be for much wider rims for gravel tires.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 01:33 PM
  #11
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
Originally Posted by Jason Curtiss View Post
I like ThermionScott's idea of a conical washer.
I don't like bending aluminum because it induces fatigue in a material that is not fatigue resistant. The result could sudden and complete failure during use.
How much fatigue would be induced by bending the slotted foundations is difficult to quantify, but I would not take the chance.
Best,
Jason
Do they make conical washer for road brake? I never seen them.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 01:39 PM
  #12
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 2,393
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1021 Post(s)
Originally Posted by mtb_addict View Post
But this bike has a much nicer brake (no name brand)
There's no such thing as a nice no-name-brand single-pivot caliper brake.

Originally Posted by mtb_addict View Post
I also notice the brake is too large for the rim width. It's possible, this bike has the wrong size brake caliper.

The rim is for 25c narrow tires. The brake caliper seems to be for much wider rims for gravel tires.
Most brakes can clear considerably larger tires than they're used with.

Originally Posted by mtb_addict View Post
Do they make conical washer for road brake? I never seen them.
Yes, conical washers are the standard method for adjusting brake pad angle on slot-mounted pad holders. Good brake pad holders are designed to use them.

https://www.amazon.com/Kool-Stop-Bic.../dp/B0014BRW6E
HTupolev is offline
Reply With Quote
Old 10-09-18, 01:46 PM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,233

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1283 Post(s)
A very common (for crooked ft brakes) reason that ft brake calipers are crooked is a bent center bolt. When the bars/ft wheel swing way past 90* and the caliper cable adjuster arm hits the down tube's side the center bolt can become bent. I've seen this many times, even some with today's dual pivot calipers (although less often). For this the solution is a simple bending the bolt back, easiest done with the bolt out of the caliper and held min a bench vice.

As to breaking the caliper with an adjustable wrench placed on the arm's pad slot portion, sure but most brakes accept this bending if done with care and attention. I have cracked a Campy arm (still it was used for many miles more with no effects) when the wrench wasn't overlapping both the front and rear vertical portions of the pad slot. I have broken off completely a couple of other caliper arms, including a Universal brand (should have known better on that one). But given the hundreds of arms I've realigned (that term sounds better) having a less then 1% failure rate (and a failure that shows right away) isn't a bad risk.

Of course using pads with built in angle adjusting washers is the first choice.

As to the caliper's being made for a wider tire- Generally longer reach calipers also have more tire clearance. Kind of chicken and egg. As the photo shows the pads pretty close to the slot's center points I say the calipers are the right ones for the frame, regardless of the tire width choice made by the rider. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 10-09-18, 03:24 PM
  #14
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
So...if I want to upgrade the brakes to decent entry-level dual-pivot...what brand do you guys recommend?

Is Origin8 Classic Road decent ($26 each)?

Last edited by mtb_addict; 10-09-18 at 03:28 PM.
mtb_addict is offline
Reply With Quote
Old 10-09-18, 03:28 PM
  #15
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: not sure
Posts: 5,555
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 636 Post(s)
Originally Posted by mtb_addict View Post
So...if I want to upgrade the brakes to decent entry-level dual-pivot...what brand do you guys recommend?
Is Tektro decent?
Tektro is just fine. I'd like to see a pic of this brake misalignment.

Origin 8 is fine too.
__________________
2014 Cannondale SuperSix EVO 2
2015 Cannondale SuperX Hi-Mod
2017 Raleigh Tamland 1
shoota is offline
Reply With Quote
Old 10-09-18, 05:02 PM
  #16
ClammyChamois
Road Rash Collector

Join Date: Sep 2013
Location: Going downhill screaming!
Posts: 12

Bikes: Colnago, Duranti, Davidson, Gitane, Bianchi, Special CNC

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Take a rod that barely fits the hole. If the hole is off this will tell you. Then it's either rework the hole or buy a good caliper. If the bridge has a flat welded on it may be off, grab a square and check it.

What's so hard? Did you attend college and forget common sense?
ClammyChamois is offline
Reply With Quote
Old 10-09-18, 06:04 PM
  #17
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,233

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1283 Post(s)
Originally Posted by ClammyChamois View Post
Take a rod that barely fits the hole. If the hole is off this will tell you. Then it's either rework the hole or buy a good caliper. If the bridge has a flat welded on it may be off, grab a square and check it.

What's so hard? Did you attend college and forget common sense?
What's hard for many is to figure out mechanical relationships and their interfacing shapes. This isn't what's taught, not what's important in most schools for quite a while. Well rounded educations give way to wanting better scores on tests that have less to do with real life then meeting some easily arranged bar/level (and then these scores are used for political causes). Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 10-09-18, 07:39 PM
  #18
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 19,556

Bikes: Several, mostly not name brands.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Originally Posted by mtb_addict View Post
So, it is okay to bend alloy aluminum? I was afraid it would snap off. I didn't know if aluminum alloy can be bend or not.
Forged aluminum calipers can be bent; cast ones shouldn't. The vast majority of modern brake calipers are forged. BITD, "Universal" calipers were cast and did break if bent.
JohnDThompson is offline
Reply With Quote
Old 10-09-18, 07:45 PM
  #19
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 19,556

Bikes: Several, mostly not name brands.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Originally Posted by mtb_addict View Post
Do they make conical washer for road brake? I never seen them.
BITD, Mathauser/Scott brake pads came with spherical washers to set toe-in. Nowadays, Yokozuna markets a copy of the old Mathauser pads including the spherical washers:


Yokozuna Premium Cables, Housing and Brake Pads
JohnDThompson is offline
Reply With Quote
Old 10-10-18, 08:45 AM
  #20
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
I cannot find good replacement brake calipers w/o recessed mounting. Help!
mtb_addict is offline
Reply With Quote
Old 10-10-18, 08:49 AM
  #21
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
Originally Posted by JohnDThompson View Post
Forged aluminum calipers can be bent; cast ones shouldn't. The vast majority of modern brake calipers are forged. BITD, "Universal" calipers were cast and did break if bent.
Is this forged or cast?

mtb_addict is offline
Reply With Quote
Old 10-10-18, 08:53 AM
  #22
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,233

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1283 Post(s)
Originally Posted by mtb_addict View Post
I cannot find good replacement brake calipers w/o recessed mounting. Help!
Tektro has some calipers with nice finishes available with either standard nutting or recessed nutting. Do you know the brake reach yet? Andy
__________________
AndrewRStewart

Last edited by Andrew R Stewart; 10-10-18 at 08:54 AM. Reason: clairity
Andrew R Stewart is offline
Reply With Quote
Old 10-10-18, 10:34 AM
  #23
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 2,938
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 2099 Post(s)
Originally Posted by Andrew R Stewart View Post
Tektro has some calipers with nice finishes available with either standard nutting or recessed nutting. Do you know the brake reach yet? Andy
Wow they are not cheap...like $40 each for R539. .

I'm guessing I need mid-reach calipers...judging by the large clearance between tire and fork crown.

I think I'm going to try to bend these cheapo no-name caliper first...if it snaps...then I buy the R539.

Last edited by mtb_addict; 10-10-18 at 10:39 AM.
mtb_addict is offline
Reply With Quote
Old 10-10-18, 06:09 PM
  #24
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 19,556

Bikes: Several, mostly not name brands.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Originally Posted by mtb_addict View Post
I cannot find good replacement brake calipers w/o recessed mounting. Help!
As Andrew notes, Tektro makes dual-pivot calipers for nutted mounting. There are more affordable models that the one Andrew identified, e.g. https://www.biketoolsetc.com/index.c...em_id=TK-800AF. And if those aren't to your liking, you can get the Allen-head mounting nuts for recessed calipers in a variety of lengths to provide the functional equivalent of traditional nutted mounting.

Originally Posted by mtb_addict View Post
Is this forged or cast?

Looks to be a forged caliper. Can you identify the brand and/or model?
JohnDThompson is offline
Reply With Quote
Old 10-11-18, 03:32 AM
  #25
dabac
Senior Member

Join Date: Mar 2008
Posts: 7,724
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 740 Post(s)
Originally Posted by mtb_addict View Post
I cannot find good replacement brake calipers w/o recessed mounting. Help!
There are after-market longer bolts sold to the Tektro and Shimano pattern to allow modern brakes to be fitted to old frames.
dabac is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
