I'm no expert...

Old 10-10-18, 08:27 AM
  #1
Berone
Member
Thread Starter

Join Date: May 2017
Location: Peekskill, NY
Posts: 28

Bikes: Trek Madonne 2.1, Dahon Mariner, Scott Aspect 980, Ross Bear Mountain

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm no expert...

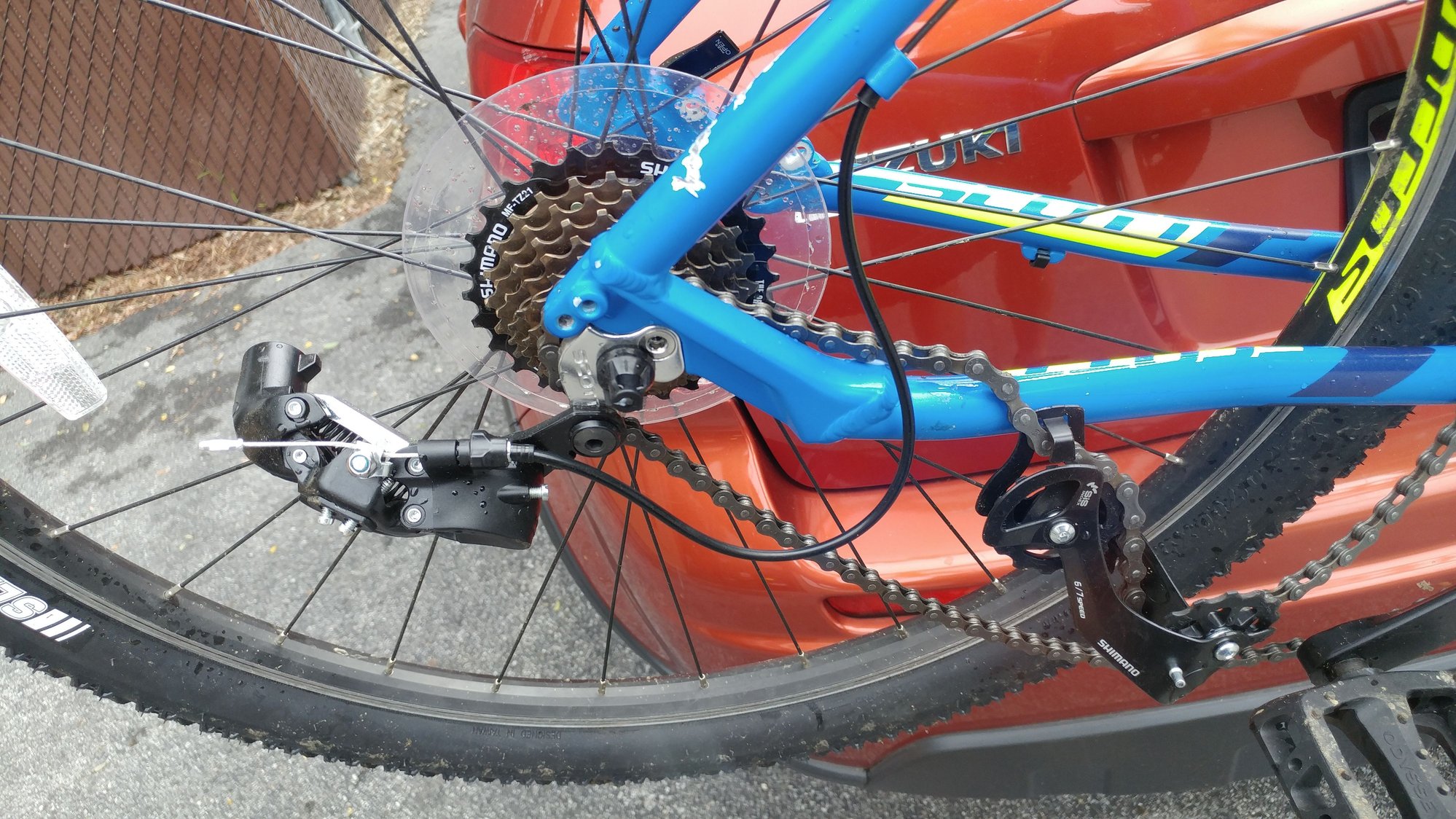

... but I think this derailleur has a problem.
Berone is offline
Old 10-10-18, 08:44 AM
  #2
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,683

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 793 Times in 445 Posts
Looks fine to me, but that scratch on the seat stay would really piss me off....
Litespud is offline
Old 10-10-18, 08:45 AM
  #3
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 2,991

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
it is broken.
nfmisso is offline
Old 10-10-18, 08:50 AM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,001

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3740 Post(s)
Liked 2,805 Times in 1,740 Posts
We see often enough to make some assumptions, usually they are correct.

Some how the wheel/spokes and the der cage engaged each other. Both the cage and the der body look to be twisted. The most common reason is a bent inward der/hanger allowing what was a correct low gear limit setting to now overlap with the spokes. Of course if the low limit setting wasn't correct (and people/shops that only use the shift control to cycle the der through it's range, during the limit adjustments, can make this mistake) and the cable got an extra tug or the der got an extra push then the der will enter the spokes. But a previous impact on the der's outer face, which bends the der inward, is a VERY common cause. The der/spoke engagement often happens some time later so the cause and effect cycle can be days, weeks or longer. Hence most riders won't connect the two.

Sometimes a power shift (not shifting during reduced pedal pressure) can cause the chain to jam or cause a chain link(s) to become damaged/twisted. But generally this won't tear off the cage and cause such twisting in the cage/der body. Sometimes a stick can be kicked up and enter the chain loop and the spokes and result in much the same as shown. (This happened to me, off road).

So what do you think happened?

Things to look for are a spoke with a wiggle/squiggle along it's length. Scratches on the der's outer face. The cage has a flair to the inner plate, usually next to the guide pulley.

Things to look for during the repairs are a bent axle, now out of true wheel (and maybe spoke replacement too), bent der hanger, bent drop out slot, twisted chain, mangled cable, and more. Andy

I have a sad/funny story about this kind of event for the asking.
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-10-18, 08:56 AM
  #5
Jon T
Senior Member

Join Date: Jun 2017
Location: West Orange County, CA
Posts: 1,112

Bikes: '84 Peugeot PH10LE

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Likes: 0
Liked 55 Times in 39 Posts
Good thing you have the dork disk on it. At least you saved the wheel.
Jon
Jon T is offline
Old 10-10-18, 09:26 AM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,001

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3740 Post(s)
Liked 2,805 Times in 1,740 Posts
Originally Posted by Jon T View Post
Good thing you have the dork disk on it. At least you saved the wheel.
Jon
Almost every der snagging the spokes I've seen happens beyond the spoke protector disk. The disk is to minimize chain/spoke overshifting damage, not cage/spoke issues. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-10-18, 12:41 PM
  #7
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,512

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4910 Post(s)
Liked 2,904 Times in 1,939 Posts
clean bike tho
rumrunn6 is offline
Old 10-10-18, 01:02 PM
  #8
Berone
Member
Thread Starter

Join Date: May 2017
Location: Peekskill, NY
Posts: 28

Bikes: Trek Madonne 2.1, Dahon Mariner, Scott Aspect 980, Ross Bear Mountain

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
So what do you think happened?
I don't have to think- I have the bruises! I'm not much of a trail rider and I was in over my head. The trail was slick and I wiped out. I didn't see how bent the rail hanger was, and I thought I could limp out of the park. I gently cycled through the gears okay, but when I put some pressure on I felt the derailleur explode under me. It's a pretty low end Scott that I bought new for not much. When I researched for a new derailleur I found a post where someone asked what would be an upgrade from a Shimano Tourney. The reply was, "literally anything on the market would be an upgrade from a Tourney!"
What's your story?
Berone is offline
Old 10-10-18, 01:03 PM
  #9
Berone
Member
Thread Starter

Join Date: May 2017
Location: Peekskill, NY
Posts: 28

Bikes: Trek Madonne 2.1, Dahon Mariner, Scott Aspect 980, Ross Bear Mountain

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Litespud View Post
Looks fine to me, but that scratch on the seat stay would really piss me off....
That's a custom scratch- I put it there to make the bike look trail worn!
Berone is offline
Old 10-10-18, 01:05 PM
  #10
Berone
Member
Thread Starter

Join Date: May 2017
Location: Peekskill, NY
Posts: 28

Bikes: Trek Madonne 2.1, Dahon Mariner, Scott Aspect 980, Ross Bear Mountain

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by nfmisso View Post
it is broken.
Don't rush to judgement!
Berone is offline
Old 10-10-18, 01:09 PM
  #11
Brofessor
Senior Member

Brofessor's Avatar

Join Date: Aug 2018
Location: IL
Posts: 136

Bikes: Schwinn Circuit 89'

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 1 Time in 1 Post
Yeah, pulleys are supposed to be inside the chain stay for proper chain line.
Brofessor is offline
Old 10-10-18, 01:33 PM
  #12
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,001

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3740 Post(s)
Liked 2,805 Times in 1,740 Posts
Originally Posted by Berone View Post
I don't have to think- I have the bruises! I'm not much of a trail rider and I was in over my head. The trail was slick and I wiped out. I didn't see how bent the rail hanger was, and I thought I could limp out of the park. I gently cycled through the gears okay, but when I put some pressure on I felt the derailleur explode under me. It's a pretty low end Scott that I bought new for not much. When I researched for a new derailleur I found a post where someone asked what would be an upgrade from a Shimano Tourney. The reply was, "literally anything on the market would be an upgrade from a Tourney!"
What's your story?

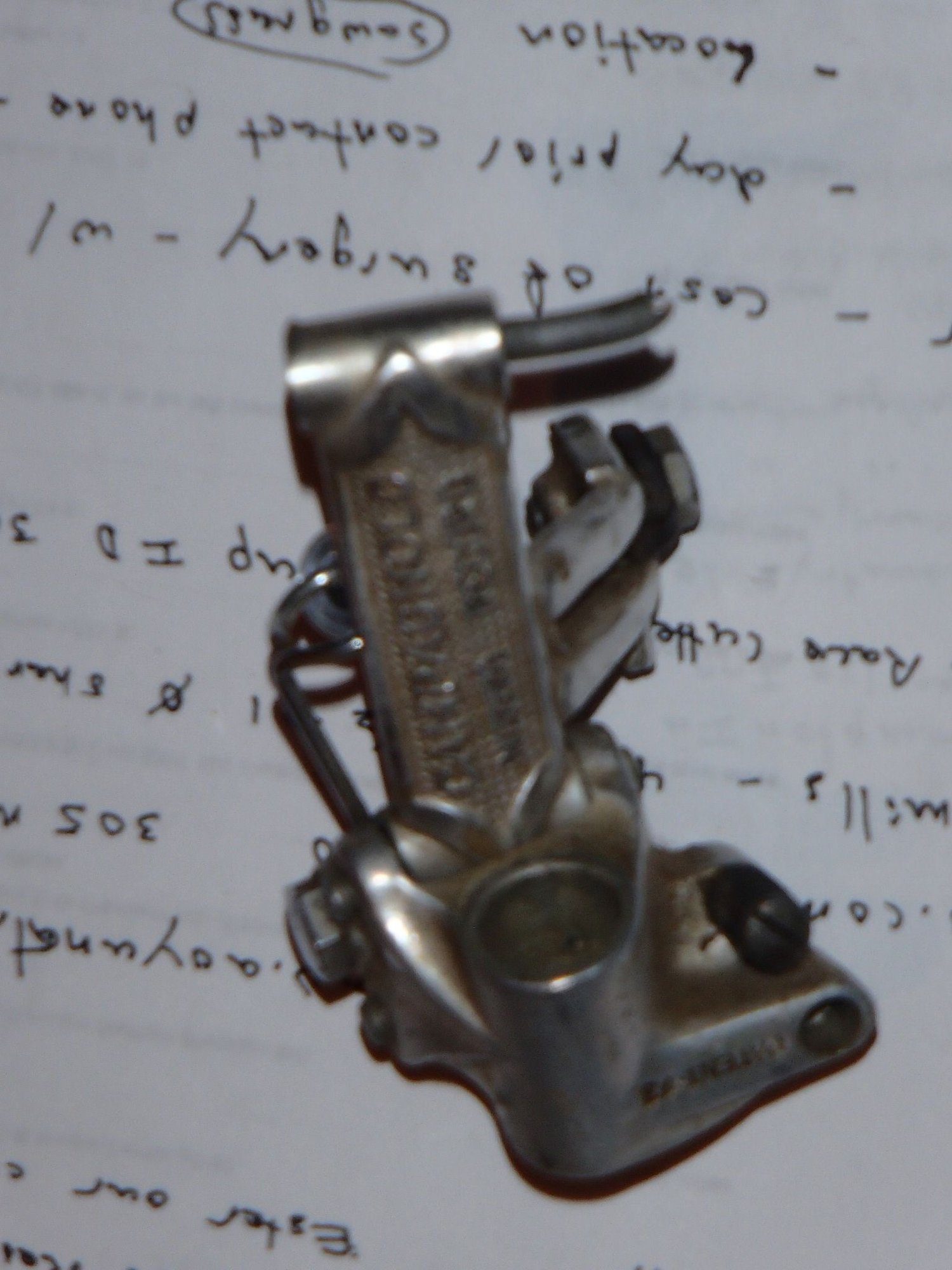

I was riding home one cold February evening, from our club's off season maintenance classes that I helped out with. Rode down a badly lit street and whacked a deep pot hole and promptly skidded to a stop. Seems that the rear wheel (ad front as it happened) had indented so far that the spoke splayed out, catching the der cage and tearing the body apart apart. Like the OP's results the der ended up above the drop out impacting the rack and fender struts. I cursed my poor observational abilities and bless that both tires still held air, their tubes just beginning to herniate. I dropped air pressure, removed the half der dangling from my chain, manually setting a rideable cog/ring combo and continued my ride home with the chain slapping against the tire's side. Wouldn't you know the other class helper who had also rode there passed me by soon. I hoped he didn't recognize me Here's a poor shot of the torn apart Campy der. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-10-18, 10:56 PM
  #13
ddeand
Senior Member

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 928
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 101 Times in 45 Posts
“It’s just a flesh wound!”
__________________
Some days, it's not even worth gnawing through the restraints.
ddeand is offline
Old 10-11-18, 12:16 AM
  #14
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,293

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1560 Post(s)
Liked 887 Times in 632 Posts
Originally Posted by Berone View Post
........ I found a post where someone asked what would be an upgrade from a Shimano Tourney. The reply was, "literally anything on the market would be an upgrade from a Tourney!"......
For a 7 speed, there's really nothing wrong with a Tourney. I think the next step up is 8 speed, which may be slightly narrower and a bit more prone to chain rub.

How did it perform until........

Looks like you need a replacement hangar too.
Bill Kapaun is offline
Old 10-11-18, 09:52 AM
  #15
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,947

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1111 Post(s)
Liked 300 Times in 225 Posts
Some duct tape, a bit of JBWeld, and it'll buff right out.
WizardOfBoz is offline
Old 10-11-18, 11:38 AM
  #16
wschruba
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,562
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 480 Post(s)
Liked 26 Times in 19 Posts
More damage could have happened. Those Tourneys tend to, as your picture shows, pull apart at the plastic knuckle. A more robust derailleur might twist itself into a pretzel and do more damage to the wheel, frame, or chain. I agree that the Tourney is a perfectly serviceable (if ugly looking) derailleur. It may look different, but shares quite a bit of design with the Lark, itself a cousin of the Campagnolo derailleur Andy posted.

$0.02
wschruba is offline
Old 10-11-18, 11:58 AM
  #17
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,343 Times in 850 Posts
Grab your Spare Bike and Go.
fietsbob is offline
Old 10-11-18, 12:58 PM
  #18
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,512

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4910 Post(s)
Liked 2,904 Times in 1,939 Posts

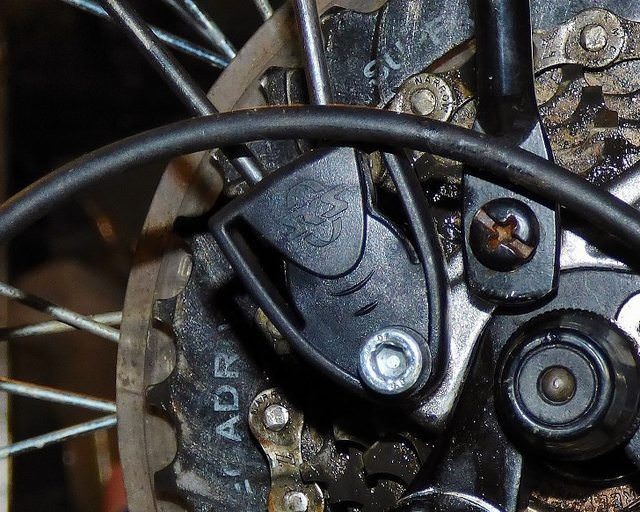

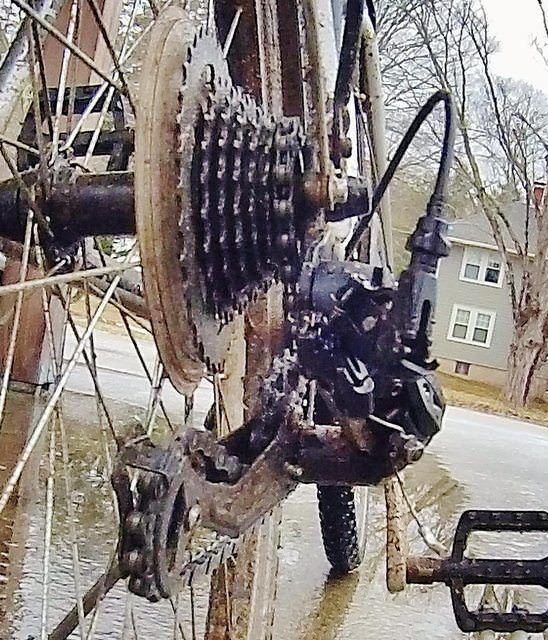

when this happened last spring

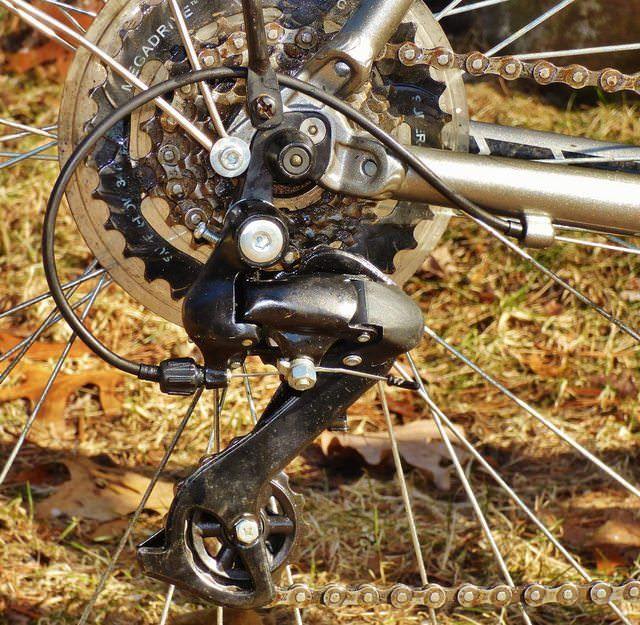

this is where mine broke



2 1/2 miles from my car I was able to smoosh it all back & limp in one gear





LBS fixed me up tho



& then I added quick release tabs to the fender stays

rumrunn6 is offline
Old 10-11-18, 10:51 PM
  #19
Berone
Member
Thread Starter

Join Date: May 2017
Location: Peekskill, NY
Posts: 28

Bikes: Trek Madonne 2.1, Dahon Mariner, Scott Aspect 980, Ross Bear Mountain

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
My LBS supplied an Altus. I straightened the rail hanger, installed the Altus, and replaced the chain and cable. I got everything up and running. On the stand. Riding it there's some problems that I can't identify. At this point I think I'll take it to the shop and have them take a look. I'm not an experienced enough mechanic, since I can't even find the problem. I'll see what they say, but I'd like to be able to ride the bike again!
Berone is offline
Old 10-12-18, 04:52 AM
  #20
FlMTNdude
Senior Member

Join Date: Mar 2017
Location: Williston FL
Posts: 531

Bikes: 1988 Panasonic, 1989 Fuji, Schwinn Beach Cruiser

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 60 Times in 45 Posts
Originally Posted by Bill Kapaun View Post
For a 7 speed, there's really nothing wrong with a Tourney. I think the next step up is 8 speed, which may be slightly narrower and a bit more prone to chain rub.

How did it perform until........

Looks like you need a replacement hangar too.
The Tourney has served me well the past two years. I know it gets a bad rap, but 70 miles of commuting per week plus if I ride the commuter on the weekend adds up. Has not had issues of going out of adjustment or anything. I keep my drivetrain pretty clean, so it also gets frequent inspections. There are a few Tourney derraillers out there, make sure it can handle your freewheel/cassette.
FlMTNdude is offline
Old 10-12-18, 05:16 AM
  #21
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 6,041

Bikes: RSO E-tire dropper fixie brifter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2,121 Times in 1,425 Posts
were you tubeless too? I hear it may cause more harm than good for a bicycle, which might suggest why you have that scratch on the chain stay?





that broken der is no good either.
__________________
-Oh Hey!
Troul is offline
Old 10-12-18, 06:56 AM
  #22
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,512

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4910 Post(s)
Liked 2,904 Times in 1,939 Posts
Originally Posted by Berone View Post
My LBS supplied an Altus. I straightened the rail hanger, installed the Altus, and replaced the chain and cable. I got everything up and running. On the stand. Riding it there's some problems that I can't identify. At this point I think I'll take it to the shop and have them take a look. I'm not an experienced enough mechanic, since I can't even find the problem. I'll see what they say, but I'd like to be able to ride the bike again!
was going to do my own as well. was either going to buy it on-line or from my LBS. decided I'd see the man down the street cuz there were so many choices on-line. he strongly encouraged me to let him do the work & I agreed. it was fun & educational to watch an experienced expert work. he had me road test it before I left. it's been flawless ever since
rumrunn6 is offline
Old 10-14-18, 07:43 PM
  #23
Berone
Member
Thread Starter

Join Date: May 2017
Location: Peekskill, NY
Posts: 28

Bikes: Trek Madonne 2.1, Dahon Mariner, Scott Aspect 980, Ross Bear Mountain

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I took it to my LBS. He said I had done a good job straightening the hanger, then tweaked the tuning a little and said it looked good. Then he discovered that I made the chain too short! I thought I had followed the Park Tools video pretty accurately, but turns out not. He added a couple of links back in and it runs like a dream.
Berone is offline
