What’s going on with this headset?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What’s going on with this headset?

Old 10-10-18, 10:45 AM
  #1
dickbandit
Senior Member
Thread Starter

dickbandit's Avatar

Join Date: May 2018
Location: Philadelphia, PA
Posts: 75

Bikes: 1980 Peugeot PFN-10, 1989 Bridgestone MB-3, 1988 Univega Alpina Uno, 1974 Velosolex Saint Tropez, 1995 Trek 830, 1986 Lotus Odyssey, 1987 Schwinn Mirada, 1987 Raleigh Elkhorn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 81 Times in 28 Posts
What’s going on with this headset?

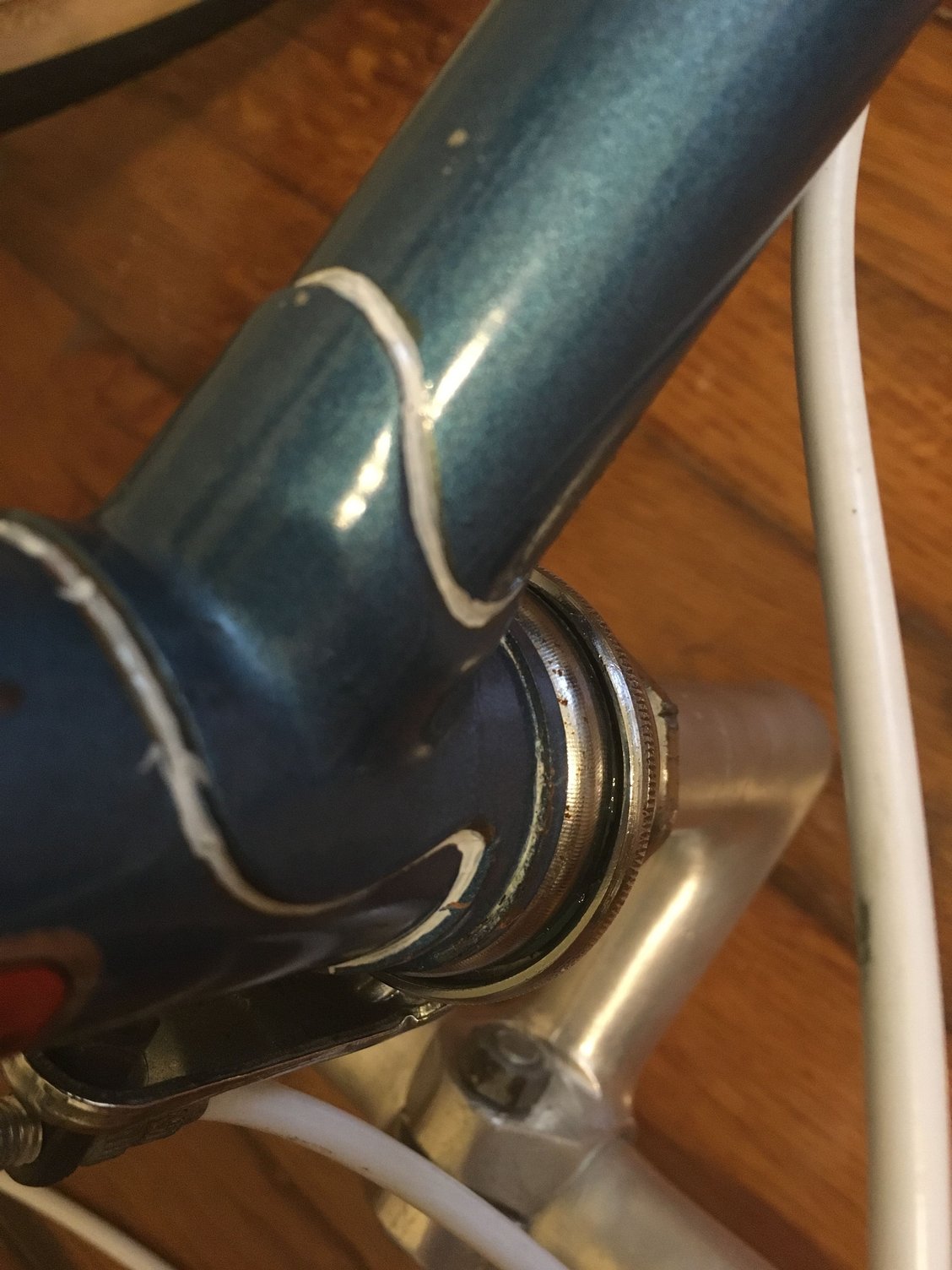

What could be causing this top race to not sit squarely in the cup? Is it necissarily a bent steerer?

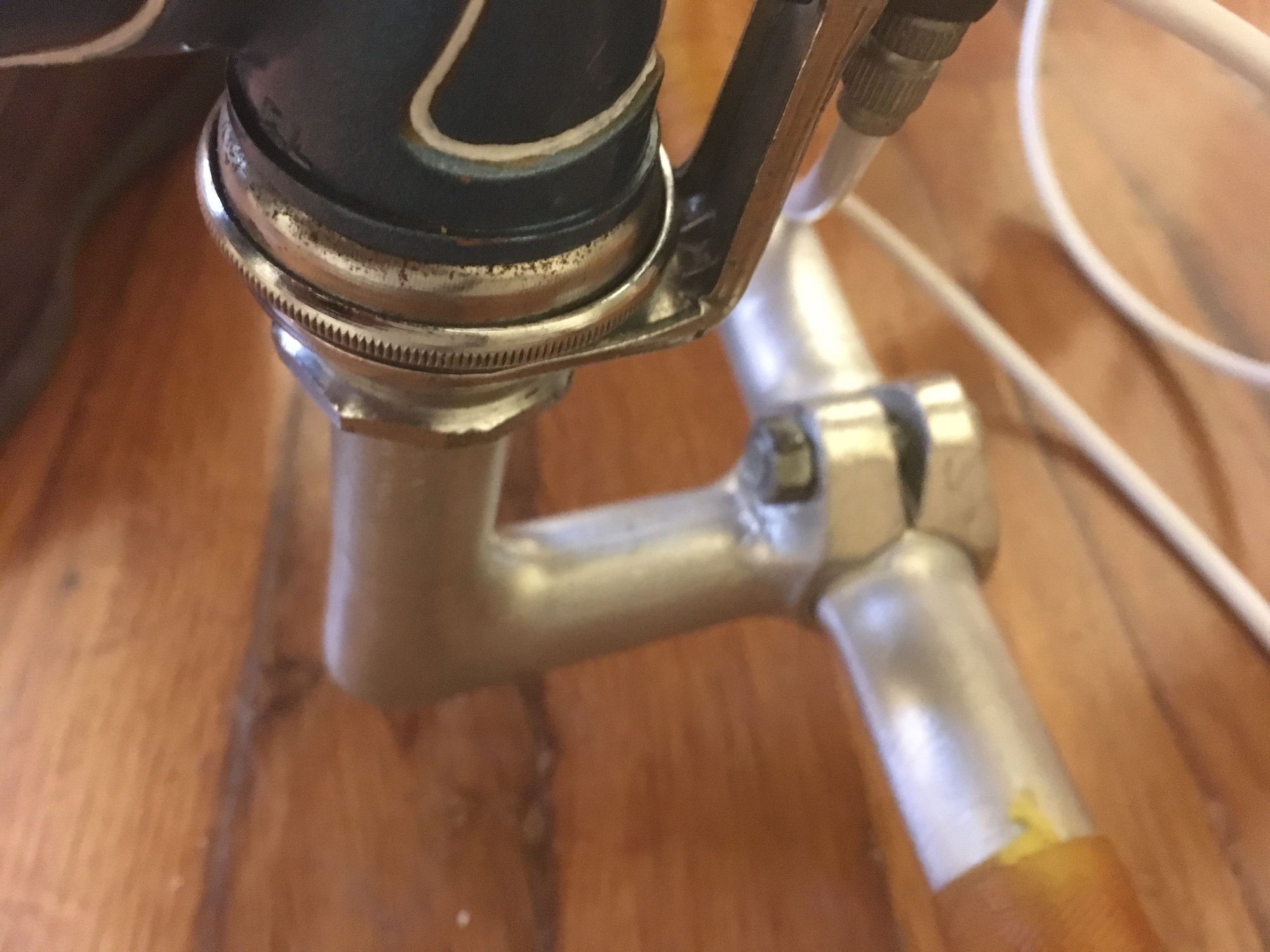

Crown race sits evenly in lower cup.
dickbandit is offline
Old 10-10-18, 01:28 PM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,318 Times in 828 Posts
Take it apart, rather than take a picture, and find out.
fietsbob is offline
Old 10-10-18, 01:36 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,042

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2971 Post(s)
Liked 1,255 Times in 880 Posts
Ovalized top cone or cup, Balls have gotten bunched up on themselves. If a retaining ring was holding the balls evenly spaced it might have failed. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-10-18, 01:52 PM
  #4
*Scuba
Made in Taiwan

Join Date: Sep 2008
Location: Vancouver
Posts: 193

Bikes: Camerotti ti roadbike, Old Sears Free Spirit Tange Hi-Ten Single Speed built from a 12 speed, 1997 Cannondale CAD3 r500 with Shimano 6400 groupset

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
In the extreme case, could be that the ends of the headtube are not parallel, there are tools to face the headtube. Or fork steerer might be bent. Another reason could be that the top race of the headset was not pressed in correctly and is not even.
__________________
All dogs want to be lap dogs doesn't matter the size
-Animal loving friend
*Scuba is offline
Old 10-11-18, 07:01 PM
  #5
dickbandit
Senior Member
Thread Starter

dickbandit's Avatar

Join Date: May 2018
Location: Philadelphia, PA
Posts: 75

Bikes: 1980 Peugeot PFN-10, 1989 Bridgestone MB-3, 1988 Univega Alpina Uno, 1974 Velosolex Saint Tropez, 1995 Trek 830, 1986 Lotus Odyssey, 1987 Schwinn Mirada, 1987 Raleigh Elkhorn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 81 Times in 28 Posts
Taking a closer look this evening— seems like the top race is not even in the headtube.

dickbandit is offline
