Bent chainstay

Old 10-20-18, 11:54 AM
  #1
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,546

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 682 Times in 442 Posts
Bent chainstay

After struggling and cursing at the BB cup to come it finally came loose. But inspecting the frame furthur I noticed the drive side chain stay is bent inward. Roughly 3 inches above the dropout is bent. Is there a quick fix for this. Luckily I dont see any cracks at any joints

Much thanks.

malcala622 is offline
Old 10-20-18, 12:10 PM
  #2
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 1,126

Bikes: Bianchi Ti Megatube; Colnago Competition; Planet-X EC-130E; Klein Pulse; Amp Research B4; Litespeed Catalyst; Fondriest Squadra Corse; Trek Y11

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 321 Times in 192 Posts
"Quick fix": bend it back? *Slowly* though. I've spread an old steel frame using the 2x4 and a chair method described by Sheldon Brown - maybe something similar could be done to put this back to where it should be?

https://www.sheldonbrown.com/frame-spacing.html
ridelikeaturtle is offline
Old 10-20-18, 12:17 PM
  #3
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 614

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 43 Times in 31 Posts
I had the same issue with my Valley Runner. I watched this:



It worked out well.
John Nolan is offline
Old 10-20-18, 02:03 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,619

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2807 Post(s)
Liked 1,018 Times in 725 Posts
I would try to work on the chainstay as it's looking fine. However that seat stay is a bit bent. But even this isn't a big deal. The bend is rather slight and likely has no structural impact (bad pun). In fact bending it back only compounds and structural aspect, however slight. But is cosmetics is what you're after then go ahead and do straighten it with no worries except as to how you do it. Park made a tool just for this purpose, don't remember it's number. basically a beam with three hooks/claws along it's length. The two at the ends could slide along the beam to be positioned at each end of the stay's bend. Then the center one would pull the bend back as that claw was on a threaded shaft. This tool was a bit unwieldy but worked quite well with some focus and care. As the straightening force was a screw produced one the chance for a booboo was less then using wood blocks and a big hammer.

I've done enough of each type of stay straightening before and much prefer the Park tool. But a skilled guy can do wonders with crude tools where an inexperienced guy can ruin a bike with expensive tools. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-20-18, 09:32 PM
  #5
peugeot mongrel
Senior Member

peugeot mongrel's Avatar

Join Date: Jul 2010
Location: San Antonio, Texas
Posts: 473

Bikes: 84 Coppi - 94 Hujsak - 82 Colnago Superissimo - 78 Ciöcc - 70's Galmozzi - 73 Lambert - 78 Motobecane Grand Record - 87 Peugeot Triathlon - 66 Peugeot H-40 - 78 Peugeot U08 - 85 Raleigh C-40 - 82 miyata 310 - 82 Univega - 85 Sterling SIS Mixte

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 21 Times in 11 Posts
Use caution, go slow, common sense is good, it's easy to fix.







turned into this


Last edited by peugeot mongrel; 10-20-18 at 09:55 PM.
peugeot mongrel is offline
Old 10-20-18, 11:54 PM
  #6
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,546

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 682 Times in 442 Posts
Thanks everyone for input. I did see that YouTube video earlier today.

i do have clamps so ill most likely try peugeot mongrels method.

Ill update with progress
malcala622 is offline
Old 10-21-18, 06:55 AM
  #7
mitchmellow62
Senior Member

Join Date: Aug 2014
Posts: 190
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 21 Times in 18 Posts
The Park Seat and Chainstay Straightener was the SS-1 and is discontinued. It's a great tool. My LBS has one. Straightened a bent chainstay in short order.
mitchmellow62 is offline
Old 10-21-18, 08:23 AM
  #8
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 5,232
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 78 Times in 59 Posts
Originally Posted by peugeot mongrel View Post
Use caution, go slow, common sense is good, it's easy to fix.

...snip...
Wow, the whole technique in three photos. And it's very easy to understand. Good post!
rm -rf is offline
Old 10-21-18, 09:46 AM
  #9
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,830

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 254 Times in 191 Posts
The bend I see in your picture seems to be the seat stay, not the chain stay, yes? In any case, check alignment, so that you don't take a misaligned frame and further derange it when straightening the stay.

Make sure you use something to spread the force when you try to bend the stay. So, for example, take a little block of 2x2 (say 1.5 inches long. Drill a hole just about the same size as the stay. Saw the wood block so that you end up with two blocks, each with a a groove that fits the stay. Make two more of these (you need three). Use these to apply force was suggested above.

After straightening make sure that you ensure alignment, spacing, and dropout parallelism. Good luck!
WizardOfBoz is offline
Old 10-21-18, 10:09 AM
  #10
peugeot mongrel
Senior Member

peugeot mongrel's Avatar

Join Date: Jul 2010
Location: San Antonio, Texas
Posts: 473

Bikes: 84 Coppi - 94 Hujsak - 82 Colnago Superissimo - 78 Ciöcc - 70's Galmozzi - 73 Lambert - 78 Motobecane Grand Record - 87 Peugeot Triathlon - 66 Peugeot H-40 - 78 Peugeot U08 - 85 Raleigh C-40 - 82 miyata 310 - 82 Univega - 85 Sterling SIS Mixte

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 21 Times in 11 Posts
Originally Posted by malcala622 View Post
Thanks everyone for input. I did see that YouTube video earlier today.

i do have clamps so ill most likely try peugeot mongrels method.

Ill update with progress
note the the hole in the block for the chain hanger. Also contact points to the frame are at the bridge and dropout. It takes very little force so shoot for under then take the block off and look at it
peugeot mongrel is offline
Old 10-21-18, 10:25 AM
  #11
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 614

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 43 Times in 31 Posts
FYI:
Park FF-2 Frame and Fork Straightener
John Nolan is offline
Old 10-24-18, 09:49 PM
  #12
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,546

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 682 Times in 442 Posts
Few days ago i was talking to my LBS owner and he needed a few bulbs and ballasts replaced in his shop. We made a deal that is do it for him and he fixes my frame seat stay. Id say it's an even trade since he did a great job on straightening it.

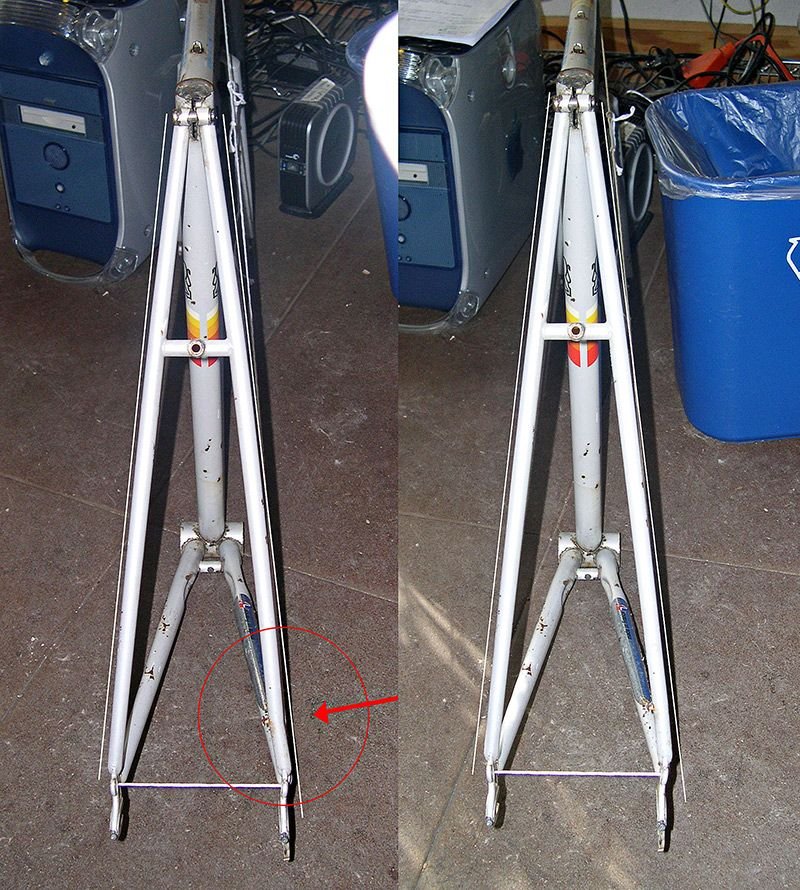

Before


After
malcala622 is offline
Old 10-24-18, 09:57 PM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,619

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2807 Post(s)
Liked 1,018 Times in 725 Posts
And it wasn't that shop owner bumping into the frame in his dark shop that bent the stay was it? Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-24-18, 10:13 PM
  #14
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,546

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 682 Times in 442 Posts
Originally Posted by Andrew R Stewart View Post
And it wasn't that shop owner bumping into the frame in his dark shop that bent the stay was it? Andy
Lol. No such thing.

I bring him donuts not alcohol
malcala622 is offline
