BB7 Road brake pad tabs hit IS mount

Hi - I'm currently mounting some Avid BB7 mechanical road disc brakes on a Black Mountain Cycles frame with IS mounts. I got an adapter from my LBS and it seems to be the right size/shape except for one key problem - when I put the front caliper on, the tab for the brake pad overlaps the adapter and causes the pad to be pushed forward, rubbing the rotor no matter how I adjust. Is this just a bad adapter? It's a tektro that the mechanic gave me. If this is something really basic that I'm missing please be gentle, this is my first disc brake build

benshares is offline
Old 10-21-18, 01:15 PM
  #2
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,692

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 137 Times in 114 Posts
I'd first check that the caliper is as far inboard as possible. I like to set up mechanical discs like this by loosening the cable anchor bolt and both caliper bolts (just enough that they can slide), backing off the fixed pad, and then inserting a business card between the moving pad and the rotor and tightening the fixed pad to fix it in place, then tightening the caliper bolts. This should result in just enough clearance to the moving pad without the cable installed that it doesn't rub--if it does (and it can't be fixed by truing the rotor) then loosen the caliper bolts slightly and nudge them until it doesn't. If in this caliper position the pad tab is still hitting the adapter I would, in this case, simply cut off a small amount of the tab so it clears. IS/Post adapters do vary a bit in shaping so a different adapter may work better. You could probably remove the current adapter, mark with a sharpie where the tab hits, and compare it to other IS/post adapters to see which one has a bit more clearance in that spot.
cpach is offline
Old 10-21-18, 02:17 PM
  #3
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,581

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7326 Post(s)
Liked 933 Times in 591 Posts
Consider if you will, .. take the pads out , bend the tab, out of the way,
then put the pads back in?

It is mostly a handle to put the pad into the caliper..


Last edited by fietsbob; 10-21-18 at 02:22 PM.
fietsbob is offline
Old 10-21-18, 03:33 PM
  #4
alias5000
Raised a new winter bike

Join Date: Apr 2016
Location: Ontario
Posts: 492

Bikes: HP Velotechnik Streetmachine GTE, 2015 Devinci Silverstone SL4, 2012 Cannondale Road Tandem 2, 2007 Trek 6000, Circe Morpheus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked 4 Times in 4 Posts
I've come across the exact same situation and have just cut off a bit of the tab. I don't see any problem with this, except that pliers are needed to pull that brake pad out for changing. The brakes work normal with this arrangement. It's also a Tektro adapter that I was working this. As I don't have another IS adapter bike with BB7s to compare with, I don't know if this is adapter-specific (though I doubt it).
alias5000 is offline
Old 10-21-18, 03:45 PM
  #5
wschruba
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,526
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Something doesn't quite look right. Is the adaptor facing the correct way? If it is, then yes, there is no harm in cutting the interfering tang off.
wschruba is offline
Old 10-21-18, 04:52 PM
  #6
benshares
Senior Member
Thread Starter

benshares's Avatar

Join Date: Nov 2016
Location: Brooklyn, NY
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by wschruba View Post
Something doesn't quite look right. Is the adaptor facing the correct way? If it is, then yes, there is no harm in cutting the interfering tang off.
I was worried about this - this is the only IS adapter I've seen that doesn't have any "up" indication anywhere. I'll try the adapter flipped the other way but the rotor looks pretty well centered on the caliper right now, so I can't imagine it will work. The adapter I have in the rear has a machined-out portion that is clearly there to avoid this exact issue, and I just ordered a front one online that has the same cut out. One way or another I'll figure this out.

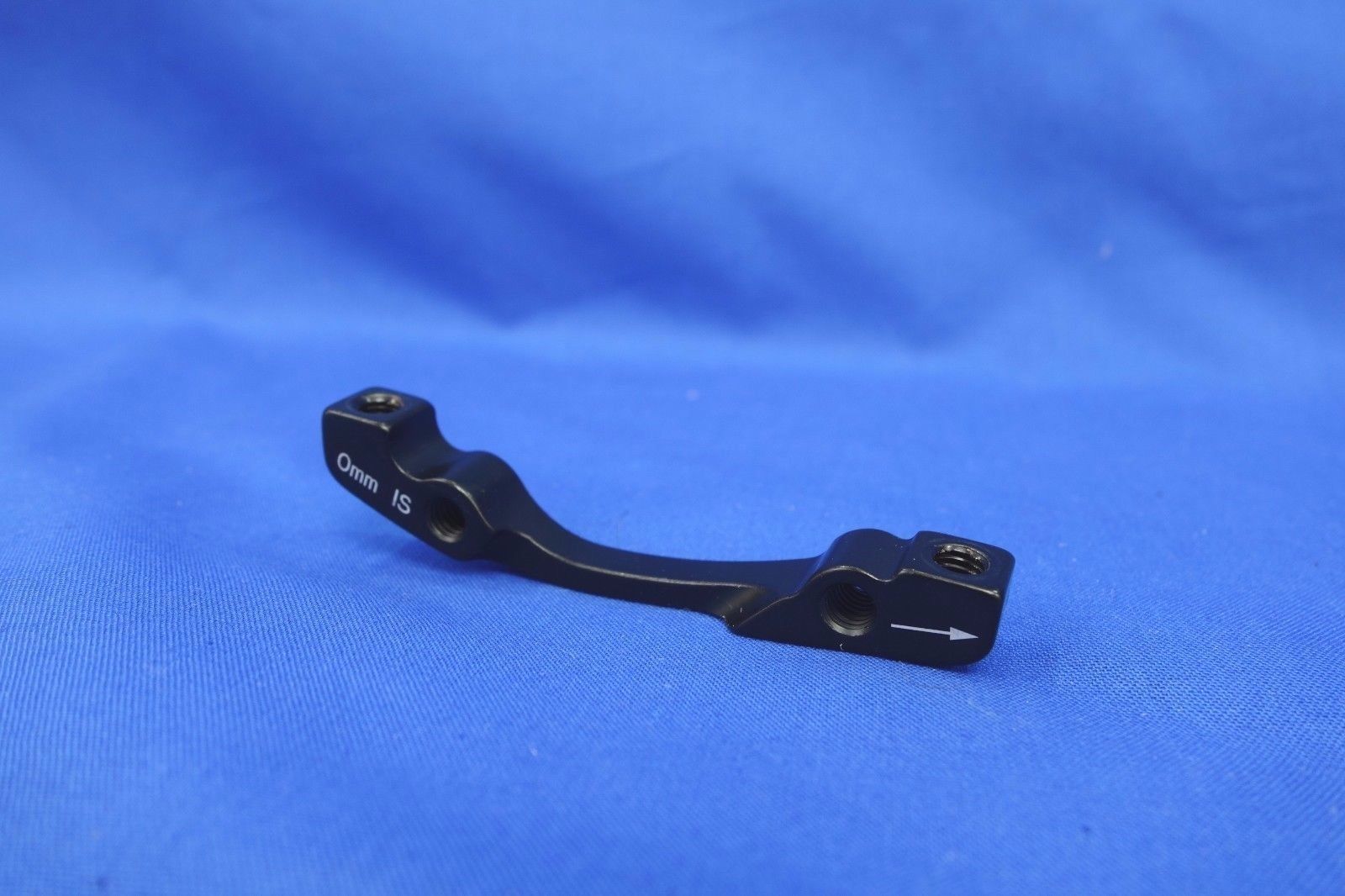

This is the one I ordered.
benshares is offline
Old 10-21-18, 07:15 PM
  #7
reptilezs
Senior Member

Join Date: Sep 2004
Location: boston, ma
Posts: 2,896
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
just snip the tang off with side cuts. done. you can still remove the pad with needle nose
reptilezs is offline
Old 10-21-18, 09:54 PM
  #8
alias5000
Raised a new winter bike

Join Date: Apr 2016
Location: Ontario
Posts: 492

Bikes: HP Velotechnik Streetmachine GTE, 2015 Devinci Silverstone SL4, 2012 Cannondale Road Tandem 2, 2007 Trek 6000, Circe Morpheus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by benshares View Post
I was worried about this - this is the only IS adapter I've seen that doesn't have any "up" indication anywhere. I'll try the adapter flipped the other way but the rotor looks pretty well centered on the caliper right now, so I can't imagine it will work. The adapter I have in the rear has a machined-out portion that is clearly there to avoid this exact issue, and I just ordered a front one online that has the same cut out. One way or another I'll figure this out.



This is the one I ordered.
At least for me, I was in the same situation with the adapter installed by the factory. Trying to flip it didn't help.
alias5000 is offline
Old 10-22-18, 05:47 AM
  #9
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,765
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Likes: 0
Liked 15 Times in 14 Posts
As previously said, just cut some of the pad tab off if you need to.


Why is there a gap between the washers and the adapter?

cobba is offline
Old 10-22-18, 08:34 AM
  #10
benshares
Senior Member
Thread Starter

benshares's Avatar

Join Date: Nov 2016
Location: Brooklyn, NY
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by cobba View Post
As previously said, just cut some of the pad tab off if you need to.


Why is there a gap between the washers and the adapter?
Good eye! Just took the pic while loosening and tightening the caliper to see where the overlap happens. It actually overlaps more when the caliper is tightened down.
