Shimano 105 5800 FD cable plastic tab

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shimano 105 5800 FD cable plastic tab

Old 11-04-18, 03:51 PM
  #1
reivilo
Junior Member
Thread Starter

Join Date: Nov 2018
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Shimano 105 5800 FD cable plastic tab

ey!

This is my first post.

I have a trak emonda sl5 with a shomano 105 8500 groupset. Earlier today I was cleaning it and noticed that something was rubbing against my rear tire. Inspecting it I realizad that it was the front derailleur cable, but not just the end cap but a little plastic tap that the cable is threaded into (i can move it up and down theand has a plastic prong and some clips, I figure that it is to tuck the excess cable and cable end cap away and it clips somewhere in the derailleur parts, but i cant figure out where and I don want to force somewhere it and break it or put it somewhere its not secure and it ends up popping out again and rubbing against the tire or cranks. Im attaching a couple of pictures but let me know if you need anything else.

Do any of you have any idea where dos this part clip into, and can you give me photos or a video so I know where to clip it. Sorry for the odd and specific question but im at a loss here.


Thanks
reivilo is offline
Old 11-04-18, 03:54 PM
  #2
reivilo
Junior Member
Thread Starter

Join Date: Nov 2018
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I cant upload the pictures it says i cant post URL until 10 posts . Does anyone know how do I attach them without this error
reivilo is offline
Old 11-04-18, 04:15 PM
  #3
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,618
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 33 Times in 31 Posts
Originally Posted by reivilo View Post
I cant upload the pictures it says i cant post URL until 10 posts . Does anyone know how do I attach them without this error
It's not an error, it stops new posters spamming, just post a few more times.

For your FD, bit confused with what your describing, as there is no plastic clip on the 5800 design, but there is similar to what your describing on the R7000, would be worth clarifying exactly what you have, also, have a look at the SI to see it's set up correctly Manuals & Technical Documents
jimc101 is offline
Old 11-04-18, 08:36 PM
  #4
Le Mechanic
Senior Member

Le Mechanic's Avatar

Join Date: Sep 2015
Location: Denver Colorado
Posts: 323

Bikes: 2020 Pivot Vault, 1983 Rossin Record, Garneau R1, Mesamods home built gravel/rain commuter bike, 1995 Barracuda A2V modified with Surley single speed dropouts, 1969 Bottecchia junkyard special fixed gear, Cervelo P4, Mesamods 650b klunker

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 57 Times in 44 Posts
I made this video a while back you might find helpful. Fast forward to about the 9:00 point st see how the plastic cover attaches if you don't want to see all the adjustment stuff.

Le Mechanic is offline
Old 11-05-18, 05:44 AM
  #5
redtires
Extra Medium Member

redtires's Avatar

Join Date: Jul 2006
Location: Erie, Co
Posts: 1,851

Bikes: Cannondal CAAD8; custom build carbon HT 29er.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post

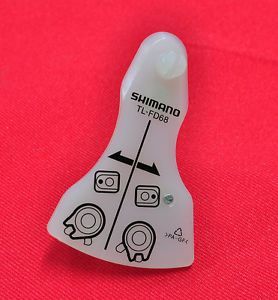

It's not this, is it (or a variant of it)? If it is, this is just the tool to make adjustments for cable routing, and is supposed to be removed after set-up.
__________________
Droping the hamer since '86
redtires is offline
