Question about chainring wear

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Question about chainring wear

Reply

Old 11-08-18, 08:34 PM
  #1
techie
Member
Thread Starter

Join Date: Sep 2009
Location: Halifax, NS
Posts: 34

Bikes: Nishiki Rally from the 80's and a 2010 Diamondback Insight 1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Question about chainring wear

I'm swapping some parts onto my bike and upon closer look at the chainring, it looks like some of the teeth are worn down a bit compared to the others. Is this an issue? It looks like I can unbolt the crank arms and replace the chain rings on here if I need to since they aren't riveted.

also, I currently have a 2x7 drivetrain with a 48t large chainring. Can I keep the front chain rings while swapping the 7 for an 8 in the rear? The one pictured below is 52t

Last edited by techie; 11-08-18 at 08:48 PM.
techie is offline
Reply With Quote
Old 11-08-18, 09:29 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,444

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1350 Post(s)
The large ring does show wear, but I doubt it will cause any issues for a while longer. Besides the different tooth profiles due to the shift sections the teeth the teeth at the point of power (with the RH arm at 3:00 the teeth at what would be the top of the ring, and with the LH arm forward the now different top teeth too) will wear faster then the teeth at the point of less pedal power. Back in the day we used to rotate our rings every so often to even out the wear. These days that would change the rotational locations of the shift gates, not a big deal for riders who know how to shift well.

As to the crank being compatible with an 8 speed cog set, Yes. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 11-08-18, 09:30 PM
  #3
sdmc530
Heft On Wheels

sdmc530's Avatar

Join Date: Nov 2014
Location: South Dakota
Posts: 1,367

Bikes: Specialized,Cannondale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
I am no means an expert but they do look pretty warn and "sharp" looking. I would probably replace those. Have you asked your LBS? I usually have my mech give me a the final word but they look warn to me. I am sure someone with more experience will chime in though.

Chain rings are defiantly a wear item.....I would bet most folks push them way to far
sdmc530 is offline
Reply With Quote
Old 11-08-18, 10:23 PM
  #4
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 179

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
I usually take a hard look at chainring wear whenever I replace the cassette/chains, and replace rings as necessary. Certainly for Campagnolo, loose chainrings are pretty expensive - it's usually more cost-effective for me to buy a whole NOS crankset, transfer the rings to my current crank arms, and eBay the new arms.
Litespud is offline
Reply With Quote
Old 11-09-18, 06:16 AM
  #5
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 5,808
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
They look worn to me too, but do they cause any problems? Swap them if you want. Or clean them too. Also, that set is 53/39 not 52.
zacster is offline
Reply With Quote
Old 11-09-18, 10:52 AM
  #6
Eggman84
Senior Member

Join Date: Nov 2016
Location: SoCal
Posts: 284

Bikes: 2014 Bruce Gordon Rock&Road, 1995 Santana Visa Tandem, 1990 Trek 520, 2012 Surly LHT

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
I think you large ring is fine. The teeth profile are different on "modern" chainrings, they are not uniform by design. The teeth just "after" the shift pins are lower to assist with the chain engaging with the large ring. I have seen this explained better elsewhere on the internet (believe there is even a video showing this). I only change the chainring if I start getting chain suck or, after installing a new chain, I get audible grinding/clicking or other unpleasant sounds indicating the new chain isn't meshing well on the old ring.
Eggman84 is offline
Reply With Quote
Old 11-09-18, 11:00 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 36,790

Bikes: 8

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 5388 Post(s)
Lay a brand new chain around it and see how much slop there is ... yet?
fietsbob is offline
Reply With Quote
Old 11-09-18, 11:02 AM
  #8
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,388

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1607 Post(s)
Originally Posted by techie View Post
I'm swapping some parts onto my bike and upon closer look at the chainring, it looks like some of the teeth are worn down a bit compared to the others. Is this an issue? It looks like I can unbolt the crank arms and replace the chain rings on here if I need to since they aren't riveted
The shorter teeth you see were like that when these chainrings left the factory. That's a feature, not wear.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 11-09-18, 11:21 AM
  #9
bikeaddiction1
Junior Member

Join Date: Jan 2015
Location: Calgary Alberta Canada
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I would clean them and use them, they look worn but not worn out. Also going from a 7 speed to 8 speed cassette will not effect your chain rings as the both use the same width chain.
bikeaddiction1 is offline
Reply With Quote
Old 11-09-18, 12:24 PM
  #10
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 4,877
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 541 Post(s)
( By the way, it's easier to diagnose in photos if the chainring is clean. )

Here's a crop, rotated, from your photo:
The two teeth on the right are machined to that truncated shape at the factory. It's designed to help shifting onto the big ring.

The shiny wear on the face of the teeth is normal, and doesn't affect performance.

The back sides of chainring teeth often look "rounded off" or "worn down", but the chain doesn't press against those sides. It's just shaping to help when shifting. The ring turns clockwise, so the chain rollers press against the right side of the teeth.

The teeth at the pink lines might be a little worn. But like the other comments, it's probably still okay.

rm -rf is offline
Reply With Quote
Old 11-09-18, 12:36 PM
  #11
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 4,877
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 541 Post(s)
Here's normal, minimal wear, an Ultegra 11-speed at 5000 miles.
The small ring has identical teeth, since the chain just lifts off this small ring. The big ring has factory shaped teeth.

This back side view rotates counter clockwise in this photo.


rm -rf is offline
Reply With Quote
Old 11-09-18, 04:35 PM
  #12
techie
Member
Thread Starter

Join Date: Sep 2009
Location: Halifax, NS
Posts: 34

Bikes: Nishiki Rally from the 80's and a 2010 Diamondback Insight 1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)

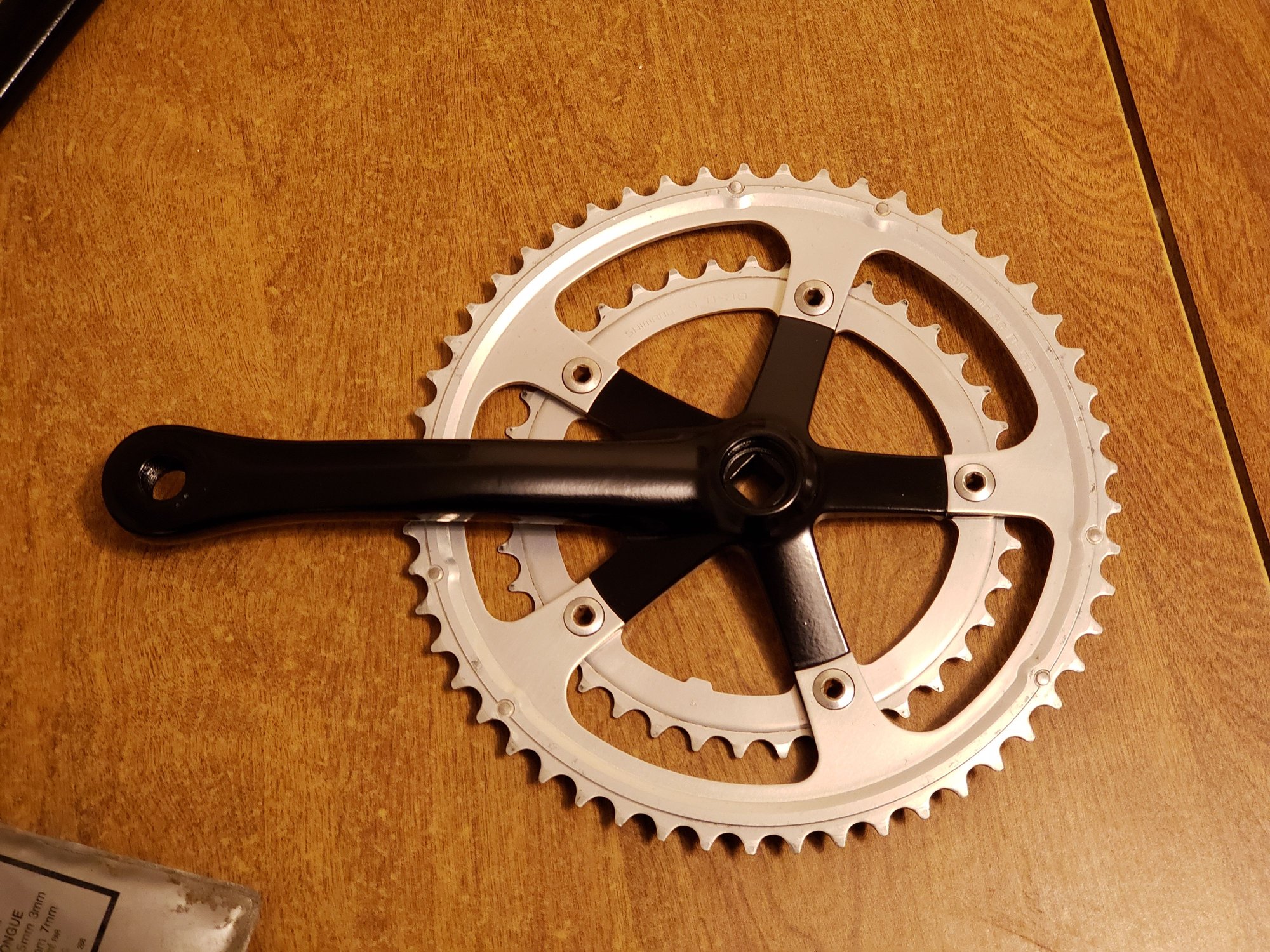

Thanks for the info! Got them apart, cleaned and painted the cranks with automotive paint at work with a matte clear.

techie is offline
Reply With Quote
Old 11-09-18, 05:50 PM
  #13
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,388

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1607 Post(s)
That looks good!

For best shifting, you'll want to remount the small ring one bolt hole clockwise from where it is now. See that little tab with the stamped triangle at about 6:30 in your pic? It's supposed to be hidden under the crank arm.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 11-10-18, 06:01 AM
  #14
techie
Member
Thread Starter

Join Date: Sep 2009
Location: Halifax, NS
Posts: 34

Bikes: Nishiki Rally from the 80's and a 2010 Diamondback Insight 1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Originally Posted by ThermionicScott View Post
That looks good!

For best shifting, you'll want to remount the small ring one bolt hole clockwise from where it is now. See that little tab with the stamped triangle at about 6:30 in your pic? It's supposed to be hidden under the crank arm.
thanks for the info! I saw the piece to line it up on the large ring but couldn't tell if there was one on the small one.
techie is offline
Reply With Quote
Old 11-13-18, 08:16 AM
  #15
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 28,909

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Are those the same chainrings? They don't look bad to me at all now that they're all cleaned up.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Reply With Quote
Old 11-13-18, 09:34 AM
  #16
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,444

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1350 Post(s)
Hence my thought that there's more miles left on that large ring. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 11-13-18, 11:23 AM
  #17
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,388

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1607 Post(s)
Originally Posted by Retro Grouch View Post
Are those the same chainrings? They don't look bad to me at all now that they're all cleaned up.
I always shake my head when I see someone offering up really grungy cranksets and freewheels for sale. It's like "c'mon, you're leaving money on the table by not doing a couple minutes of work to clean this stuff!"
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
