Would this crankset be OK for a 1x road conversion?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Would this crankset be OK for a 1x road conversion?

Old 11-16-18, 08:07 AM
  #1
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,369

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Would this crankset be OK for a 1x road conversion?



Hello all,

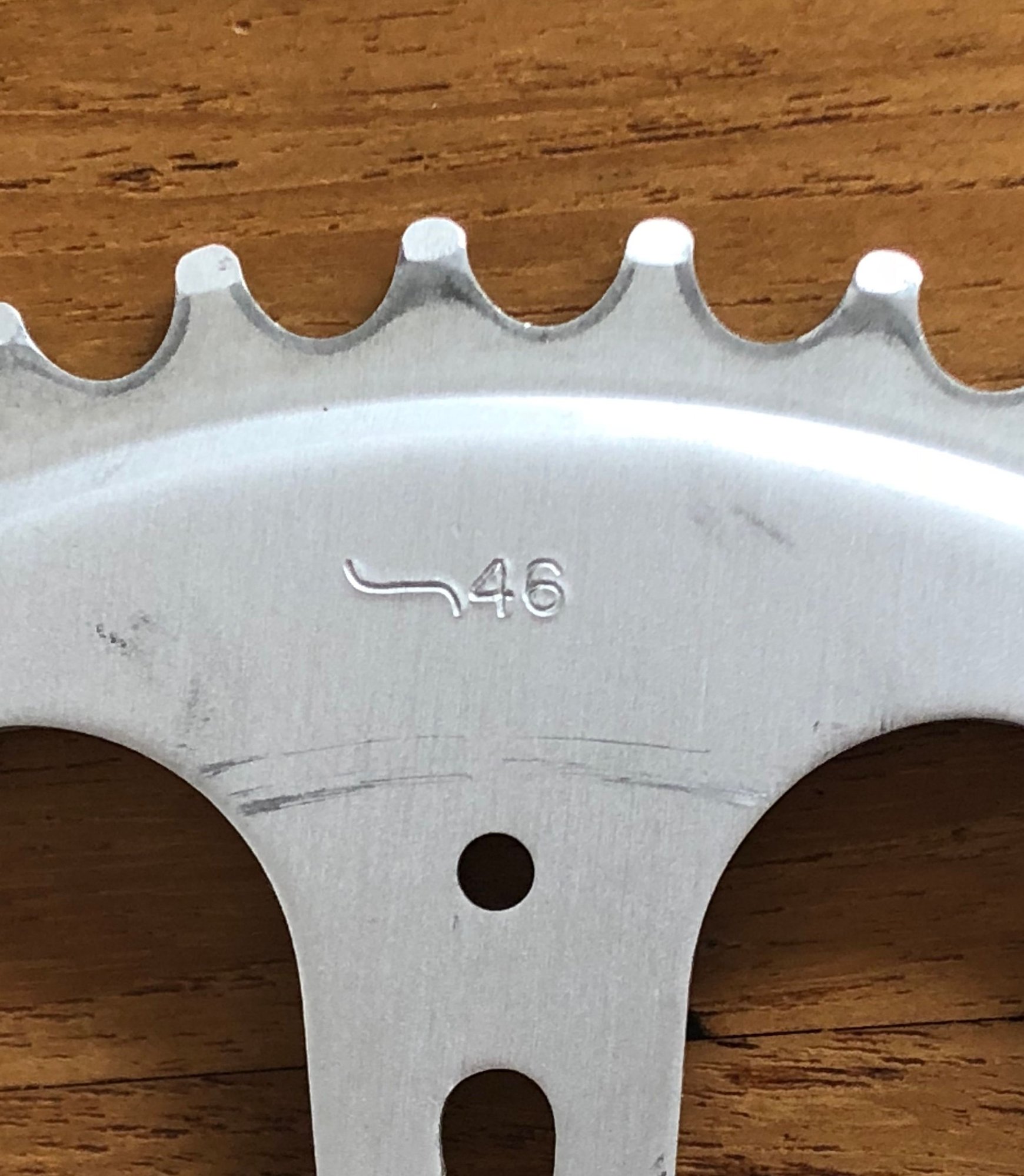

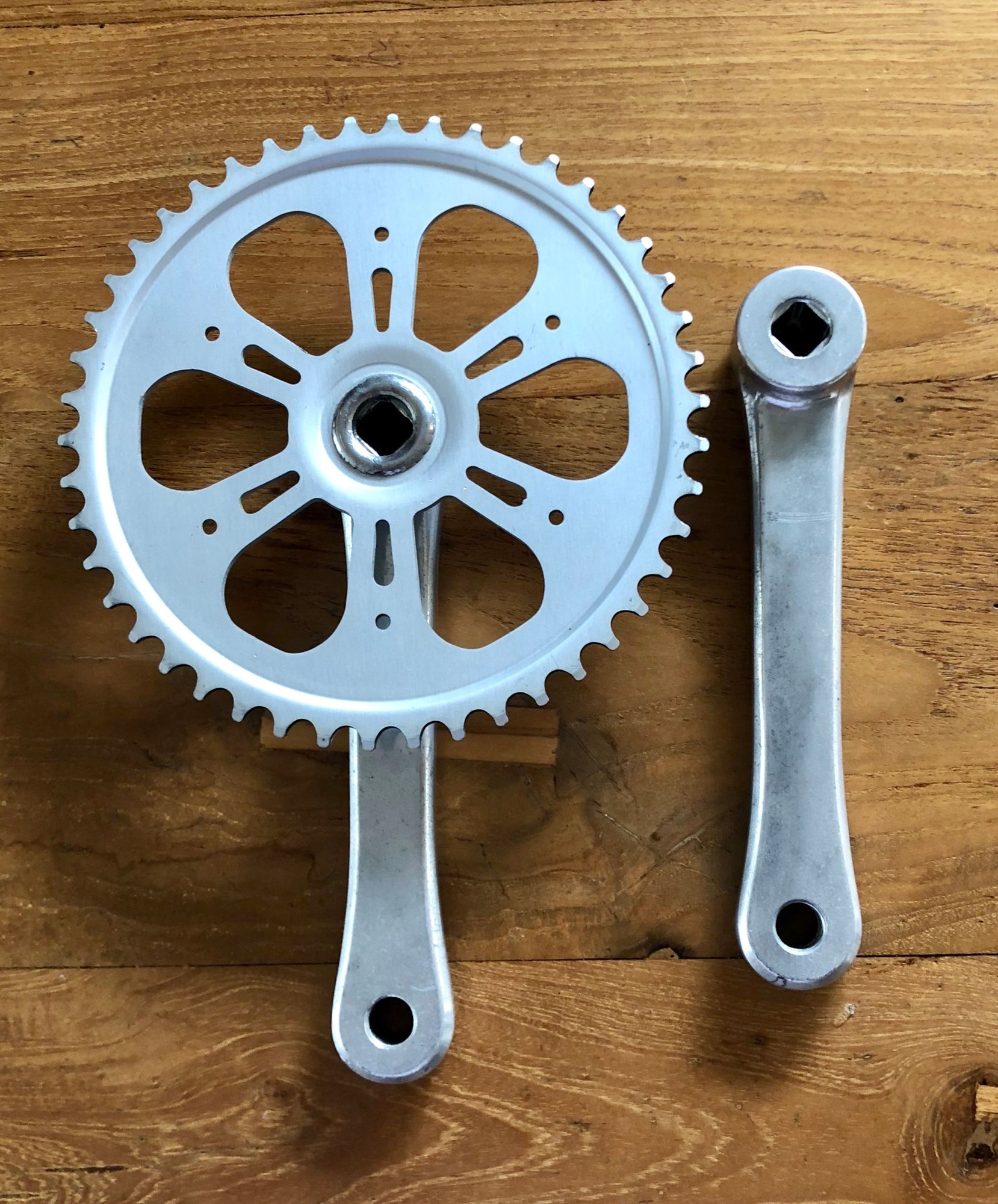

I picked up a swiss Titan road frame together with a box of parts which included the Ofmega 46 tooth crankset below and also a single Shimano 600 brake lever.

Looking at the teeth, do you think it would work for a 1x conversion?

I have a 10-speed Shimano STI shifter and a 12-34 cassette ready to go on, and would like to use what I have on hand.
Barchettaman is offline
Old 11-16-18, 09:08 AM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,228

Bikes: Several, mostly not name brands.

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Liked 9 Times in 8 Posts
Should be fine.
JohnDThompson is offline
Old 11-16-18, 09:23 AM
  #3
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,401

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Agree with John, should work well. You will have a 103 gear-inch high gear which should be plenty for almost anything but pedaling down hill. You will also have a 36 gear-inch low gear which should be adequate for all but very hilly riding.
HillRider is offline
Old 11-16-18, 10:12 AM
  #4
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,369

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thanks chaps. Will proceed with the Ofmega, as soon as the threadless ST BB has arrived.

The BB is Swiss-threaded and I canít find them anywhere, so I went with one of the threadless ones.

Iíll post a picture when itís all done.
Barchettaman is offline
Old 01-09-19, 03:41 AM
  #5
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,369

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 2 Times in 2 Posts


All done. The singlespeed crank fouled the NDS BB cup - it sat too far inboard - so I went with 2x10. Rides and shifts very nicely.
Barchettaman is offline
Old 01-09-19, 02:40 PM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,881

Bikes: 8

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 6545 Post(s)
Likes: 0
Liked 52 Times in 48 Posts
Yea you needed a longer BB axle.. to get the centered chain line
