Is there a MTB handlebar stem with ID of 35mm?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is there a MTB handlebar stem with ID of 35mm?

Old 11-18-18, 07:50 AM
  #1
timo888
Senior Member
Thread Starter

timo888's Avatar

Join Date: Jul 2008
Location: Near the Twelve Mile Circle in Pennsylvania
Posts: 700

Bikes: Xootr Swift. Birdy BD-1.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Is there a MTB handlebar stem with ID of 35mm?

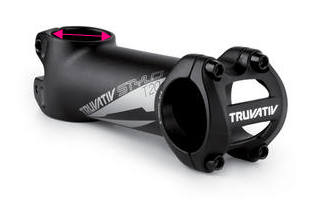

I am trying to come up with a workaround solution to a damaged handlebar clamp on a folding bike. The handlebar clamp cracked along the weld that joined the clamp to the vertical tube, so I was thinking of cutting that clamp section from the top of the tube and then fitting a MTB stem over the tube, which has a 35mm outer diameter. Are there any stems with a 35mm ++ ID as indicated in the photo? Much obliged for your help.
timo888 is offline
Old 11-18-18, 08:25 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,582

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2425 Post(s)
Liked 483 Times in 373 Posts
I doubt you'll find said stem. But there are still other options. First is whether a quill stem might be able to be used. If so what's the steerer's ID at the top? Next is a custom stem. There are some here, or in the Framebuilding Forum, that could make one for you. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 11-18-18, 08:52 AM
  #3
JonathanGennick
Senior Member

JonathanGennick's Avatar

Join Date: Apr 2007
Location: Munising, Michigan, USA
Posts: 4,130

Bikes: Priority 600, Priority Continuum, Devinci Dexter

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 53 Times in 35 Posts
There are apparently stems for Cannondale bikes that have a 1.5 inch (38.1 mm steering tube interface. Not sure that helps you though.
JonathanGennick is offline
Old 11-18-18, 09:39 AM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,582

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2425 Post(s)
Liked 483 Times in 373 Posts
I forgot about Crack n fail, good point. A shim could easily be made to size down. I just checked QBP's stock and they show Thompson X4/Elite in a 38.1 steerer clamp diameter. You might want to be seated before you look at the cost Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 11-18-18, 10:26 AM
  #5
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,509
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 653 Post(s)
Liked 128 Times in 88 Posts
Originally Posted by JonathanGennick View Post
There are apparently stems for Cannondale bikes that have a 1.5 inch (38.1 mm steering tube interface. Not sure that helps you though.
I have one of those here someplace. I'll see if I can find it and measure to verify.
EDIT: Found it. Without the pinch bolt, it measures just under 40mm. When I squeeze the tabs in the vise, I get 38.1. So, it could be shimmed to work.

Last edited by Dan Burkhart; 11-18-18 at 10:39 AM.
Dan Burkhart is offline
Old 11-18-18, 11:09 AM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,581

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7326 Post(s)
Liked 933 Times in 591 Posts
Read of 35mm handlebars, ... of course no levers fit so its impractical..
fietsbob is offline
Old 11-19-18, 07:52 AM
  #7
reptilezs
Senior Member

Join Date: Sep 2004
Location: boston, ma
Posts: 2,896
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
you can find old 1 .5 steerer clamp stuff around
reptilezs is offline
Old 11-19-18, 09:27 AM
  #8
timo888
Senior Member
Thread Starter

timo888's Avatar

Join Date: Jul 2008
Location: Near the Twelve Mile Circle in Pennsylvania
Posts: 700

Bikes: Xootr Swift. Birdy BD-1.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks for all the suggestions and info. I am following up on a lead -- there may be someone selling a used part. But if that doesn't pan out, I will check out these various options, shimming a Cannondale or maybe even having one fabricated using the existing post if possible as a foundation. It would be good to find someone experienced in TIG-welding aluminum. It looks as though this fracture happened because the metal had been weakened in the HAZ.
timo888 is offline
Old 11-19-18, 10:47 AM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,582

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2425 Post(s)
Liked 483 Times in 373 Posts
Since I work with steel I'll do the obvious wrong and blame the failure on the use of Al Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
