Removing Vintage Bianchi Fixed Cup

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Removing Vintage Bianchi Fixed Cup

Old 12-15-18, 11:11 AM
  #1
Freqman1
Member
Thread Starter

Join Date: Nov 2018
Location: Evans, Georgia
Posts: 47

Bikes: Bunches

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 7 Times in 3 Posts
Removing Vintage Bianchi Fixed Cup

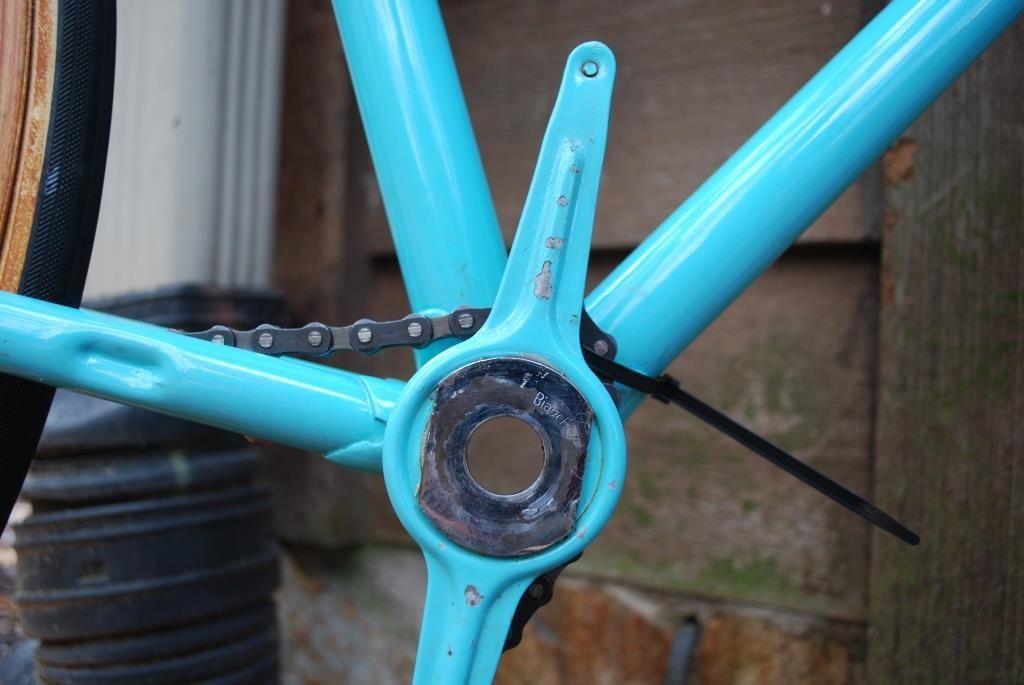

Ok my problem is I need to remove the fixed cup so I can remove the chain guard bracket. The problem is that the lip of the bracket prevents using a standard BB tool. Is there a special tool for this? Also is this a lefty loosy/righty tighty or reverse thread on the drive side? I spent about an hour at my local LBS and tried every tool he had with no success. Any help is much appreciated. V/r Shawn

Freqman1 is offline
Old 12-15-18, 11:34 AM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,331 Times in 839 Posts
DIY tool ..

Bianchi USA, has long ,several decades, used Asian OEM Factories, Got the Left one out ? what is it ? British thread,* I expect, then the fixed cup is Left hand threaded..

*1.370 x 24 tpi _ Italian thread is bigger ; at 36mm [metric equivalent of 1.37" is 34.8mm ]

Only Italian Bianchi would be importing (a very few) race bike frames.. So no chainguard..

Sheldon's BB tool https://sheldonbrown.com/tooltips/bbcups.html







...

Last edited by fietsbob; 12-15-18 at 11:45 AM.
fietsbob is offline
Old 12-15-18, 11:50 AM
  #3
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 1,222

Bikes: Bianchi Ti Megatube; Colnago Competition; Planet-X EC-130E; Klein Pulse; Amp Research B4; Litespeed Catalyst; Fondriest Squadra Corse; Trek Y11

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 402 Times in 235 Posts
Good video here.

ridelikeaturtle is offline
Old 12-15-18, 02:30 PM
  #4
Freqman1
Member
Thread Starter

Join Date: Nov 2018
Location: Evans, Georgia
Posts: 47

Bikes: Bunches

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 7 Times in 3 Posts
Originally Posted by fietsbob View Post
Bianchi USA, has long ,several decades, used Asian OEM Factories, Got the Left one out ? what is it ? British thread,* I expect, then the fixed cup is Left hand threaded..

*1.370 x 24 tpi _ Italian thread is bigger ; at 36mm [metric equivalent of 1.37" is 34.8mm ]

Only Italian Bianchi would be importing (a very few) race bike frames.. So no chainguard..

Sheldon's BB tool https://sheldonbrown.com/tooltips/bbcups.html







...
This is a 1948. It wasn't imported back in the day. This bike spent its early life, at least, in France. So the video shows loosening clockwise. The other of this is counter-clockwise to loosen. I'm headed to the hardware store for bolt, nut, and washers. V/r Shawn

Last edited by Freqman1; 12-15-18 at 09:26 PM.
Freqman1 is offline
Old 12-15-18, 04:44 PM
  #5
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,331 Times in 839 Posts
OK same tool just unscrew The 36mm Italian threaded Fixed cup Lefty Loosie CCW,, since it being Italian both sides are right hand thread.. CW.
fietsbob is offline
Old 12-15-18, 09:33 PM
  #6
Freqman1
Member
Thread Starter

Join Date: Nov 2018
Location: Evans, Georgia
Posts: 47

Bikes: Bunches

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 7 Times in 3 Posts
Yep that did the trick! Thanks a bunch. V/r Shawn
