Go Back  Bike Forums > Bike Forums > Bicycle Mechanics
Reload this Page >

What spacers for 10 speed MTB cassette on 11 speed hub?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What spacers for 10 speed MTB cassette on 11 speed hub?

Old 12-15-18, 09:25 PM
  #1
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
What spacers for 10 speed MTB cassette on 11 speed hub?

I have this cassette https://www.microshift.com/en/product/mtb-cs-h100-2/

on a 11 speed Shimano RS10 hub

with the 1.85mm spacer that came wit
the wheelset.

Everything shifts great but on the smallest cog when under load the chain falls of the $outside$ when on the largest chain ring! Edit, it stays on the Cog but the chain falls off the crankset!. It 1 x so no FD

Last edited by raria; 12-16-18 at 05:14 AM.
raria is offline
Old 12-15-18, 10:20 PM
  #2
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 2,058

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1057 Post(s)
Liked 345 Times in 258 Posts
You need to adjust your rear derailleur's high limit screw.

Edit: Oh falls off the front. Well nevermind, I need to stop responding until Andrew "voice of reason" Stewart has!

Last edited by GrainBrain; 12-22-18 at 07:44 AM.
GrainBrain is offline
Old 12-15-18, 10:25 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
"Falls to the outside" in the rear or the front? This reference is usually for the front. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-15-18, 10:46 PM
  #4
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Front

It stays on the rear Cog but falls off the chain rings on the outside Towards the pedals

Originally Posted by Andrew R Stewart View Post
"Falls to the outside" in the rear or the front? This reference is usually for the front. Andy
raria is offline
Old 12-15-18, 11:01 PM
  #5
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,768

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1369 Post(s)
Liked 597 Times in 446 Posts
Originally Posted by raria View Post
It stays on the rear Cog but falls off the chain rings on the outside Towards the pedals
You need to adjust the FRONT DER.
That's obviously where the problem is!
Bill Kapaun is online now
Old 12-16-18, 12:58 AM
  #6
Elvo
Senior Member

Join Date: Oct 2006
Location: Orange County, CA
Posts: 4,682
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Likes: 0
Liked 306 Times in 169 Posts
Chain might be too long, FD high limit screw might need adjustment, FD angle might need adjustment
Elvo is offline
Old 12-16-18, 05:17 AM
  #7
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Except its 1x!

Also the chain doesnt fall off the front ring when i change gears.

It falls off only after I pedal underload.

Originally Posted by Elvo View Post
Chain might be too long, FD high limit screw might need adjustment, FD angle might need adjustment
Originally Posted by Bill Kapaun View Post
You need to adjust the FRONT DER.
That's obviously where the problem is!
raria is offline
Old 12-16-18, 05:29 AM
  #8
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 7,188

Bikes: Kuota Kredo/Chorus, Trek 7000 commuter, Trek 8000 MTB and a few others

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 258 Times in 207 Posts
I would try it without the 1.8 spacer or replace it with a smaller one so that the cassette moves in by that amount. Adjust your limit screws and cable accordingly. Apparently the smallest cog is so far out of alignment with your chainring that it just pulls off. 1.85 is the spec, but that is what would work with a double in front.
zacster is offline
Old 12-16-18, 05:39 AM
  #9
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
But surely Shimano has guidelines?

The mlx 7000 RD is meant for 1 x

Originally Posted by zacster View Post
I would try it without the 1.8 spacer or replace it with a smaller one so that the cassette moves in by that amount. Adjust your limit screws and cable accordingly. Apparently the smallest cog is so far out of alignment with your chainring that it just pulls off. 1.85 is the spec, but that is what would work with a double in front.
but
raria is offline
Old 12-16-18, 07:21 AM
  #10
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,950
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 586 Post(s)
Liked 457 Times in 311 Posts
More info is needed. If it is falling off the front, the cassette is not the problem. What crankset are you using?(so we can determine what the chainline is) If it is a 2x crankset with a single ring, what position is the ring? What chainring? (needs to be a narrow/wide ring designed for 1x)
dsaul is offline
Old 12-16-18, 10:31 AM
  #11
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
dsaul makes the same points that I was thinking of. Additionally this is why many 1x systems have a chain guide on the top of the ring. Sometimes the grass on that other side of the fence is just a different type and not greener. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-16-18, 11:05 AM
  #12
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,768

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1369 Post(s)
Liked 597 Times in 446 Posts
Did you happen to swap the crank without changing the BB?
Bill Kapaun is online now
Old 12-16-18, 05:29 PM
  #13
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks!

I'm not sure the cassette has nothing to do with the problem. The bike ride fines when in everything *but* the smallest cog. It only slips of the crankset when: i) On the smallest cog and ii) Pedaling under load

The crankset is a 2 x here https://www.chainreactioncycles.com/.../rp-prod129442 Both rings are on the crankset and I'm talking only of when its on the largest chain ring.

According to this the chainline is 46.5mm https://shop.fullspeedahead.com/en/f...1ef946daba161/

I'm installing it on an RXC Pro Cyclocross bike

Originally Posted by dsaul View Post
More info is needed. If it is falling off the front, the cassette is not the problem. What crankset are you using?(so we can determine what the chainline is) If it is a 2x crankset with a single ring, what position is the ring? What chainring? (needs to be a narrow/wide ring designed for 1x)
raria is offline
Old 12-16-18, 05:43 PM
  #14
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,950
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 586 Post(s)
Liked 457 Times in 311 Posts
That crankset has chainrings that were designed to be used with a front derailleur. The teeth are shaped to allow the chain to fall off for the purpose of smooth shifting and they are shorter than the teeth on a dedicated 1x chainring. It is not surprising that the chain does not stay on the chainring when you are at the extreme end of the cassette. The front derailleur not only shifts the chain between the chainrings, it also keeps it from falling off the chainring.

You need to use a narrow/wide chainring that was designed for 1x use or use a chain guide.
dsaul is offline
Old 12-16-18, 05:46 PM
  #15
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
Thanks for the better detail. Till now we thought that the bike had just one ring and no ft der. But now you're talking about a different bike? "I'm installing it on an RXC Pro Cyclocross bike" Or have you just installed it on this bike. This has been a fairly confusing thread to understand what's really happening to which sprocket on what bike Andy (who will now sit back and see what else comes up)
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-17-18, 09:58 PM
  #16
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Think I found the Culprit

Thanks for all your help. You are all great!

So its an unusual frameset (Cyclocross but with 130mm rear hub spacing)

I purchased a Cyclocross crankset to go with the bike and the fine print of the documentation says its designed for 135mm rear hub spacings and for 130mm hub spacing use a traditional road crank!

So is there anything I can do to fix this?

To make it every more crazy: the bike has a PF30 and the crankset is BB386 Evo.

So I have these spacers directly placed against the BB (as required by FSA).
And the crankset requires two additional smaller spacers and a wavy compression ring on the NDS!

Should I try removing the small spacers on the DS?

Originally Posted by Andrew R Stewart View Post
Thanks for the better detail. Till now we thought that the bike had just one ring and no ft der. But now you're talking about a different bike? "I'm installing it on an RXC Pro Cyclocross bike" Or have you just installed it on this bike. This has been a fairly confusing thread to understand what's really happening to which sprocket on what bike Andy (who will now sit back and see what else comes up)
raria is offline
Old 12-18-18, 04:22 AM
  #17
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,950
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 586 Post(s)
Liked 457 Times in 311 Posts
The "culprit" is that you are using a double crankset without a derailleur. You can't just stick the chain on one of the chainrings and call it a 1x. You need to take off those chainrings and put on a chainring that was designed for 1x use.
dsaul is offline
Old 12-18-18, 08:01 AM
  #18
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I tried putting a FD on

Unfortunately, it's not that simple. I tried putting on a FD and it didn't solve the problem and now the chain gets jammed between the outer of the chainring and the front derailleur when in the lowest gear under load.

I also notice that the chain runs quite noisy rough through the RD lower jockey particularly lower gears.

it's hard to believe but would 5 millimeters make such a big difference?

Originally Posted by dsaul View Post
The "culprit" is that you are using a double crankset without a derailleur. You can't just stick the chain on one of the chainrings and call it a 1x. You need to take off those chainrings and put on a chainring that was designed for 1x use.
raria is offline
Old 12-18-18, 08:27 AM
  #19
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,689

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1804 Post(s)
Liked 583 Times in 344 Posts
Time for pictures
trailangel is offline
Old 12-18-18, 10:20 AM
  #20
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,950
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 586 Post(s)
Liked 457 Times in 311 Posts
The 5mm is actually only 2.5mm, because you are only concerned with the drive side of the hub. In any case, the narrower rear end would help the issue you are seeing. Your issue(aside from what I've already pointed out) seems to stem from the smallest cog being too far from the centerline of the bike and the 130mm rear wheel brings it 2.5mm closer to the centerline than it would be on a 135mm rear wheel.

I'm currently running a road double crankset with a 135mm rear wheel on my gravel bike with no issues and have mixed and matched various road and MTB components on several other gravel frames I've built. I know from experience that the chainline difference between road and MTB components should not cause the problems you are having.

We are going to need photos or you need to take the bike to a professional mechanic to sort out the problem.
dsaul is offline
Old 12-18-18, 11:23 AM
  #21
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by trailangel View Post
Time for pictures
Here we go. Thanks in advance.

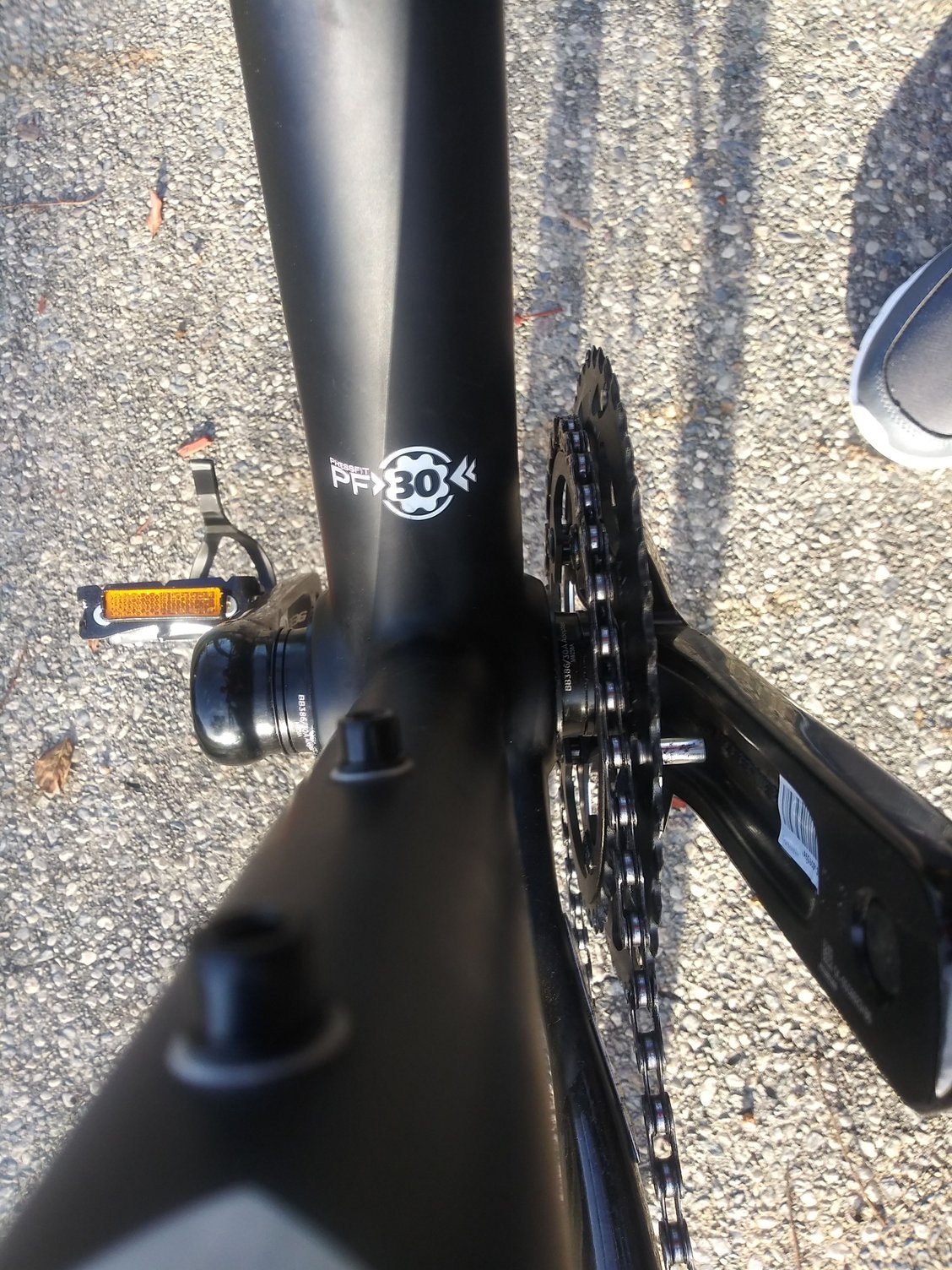

This is the spacers on the crankset. I need them all according to the installation instructions, but recall its for a 135mm hub size and my hub is 130mm

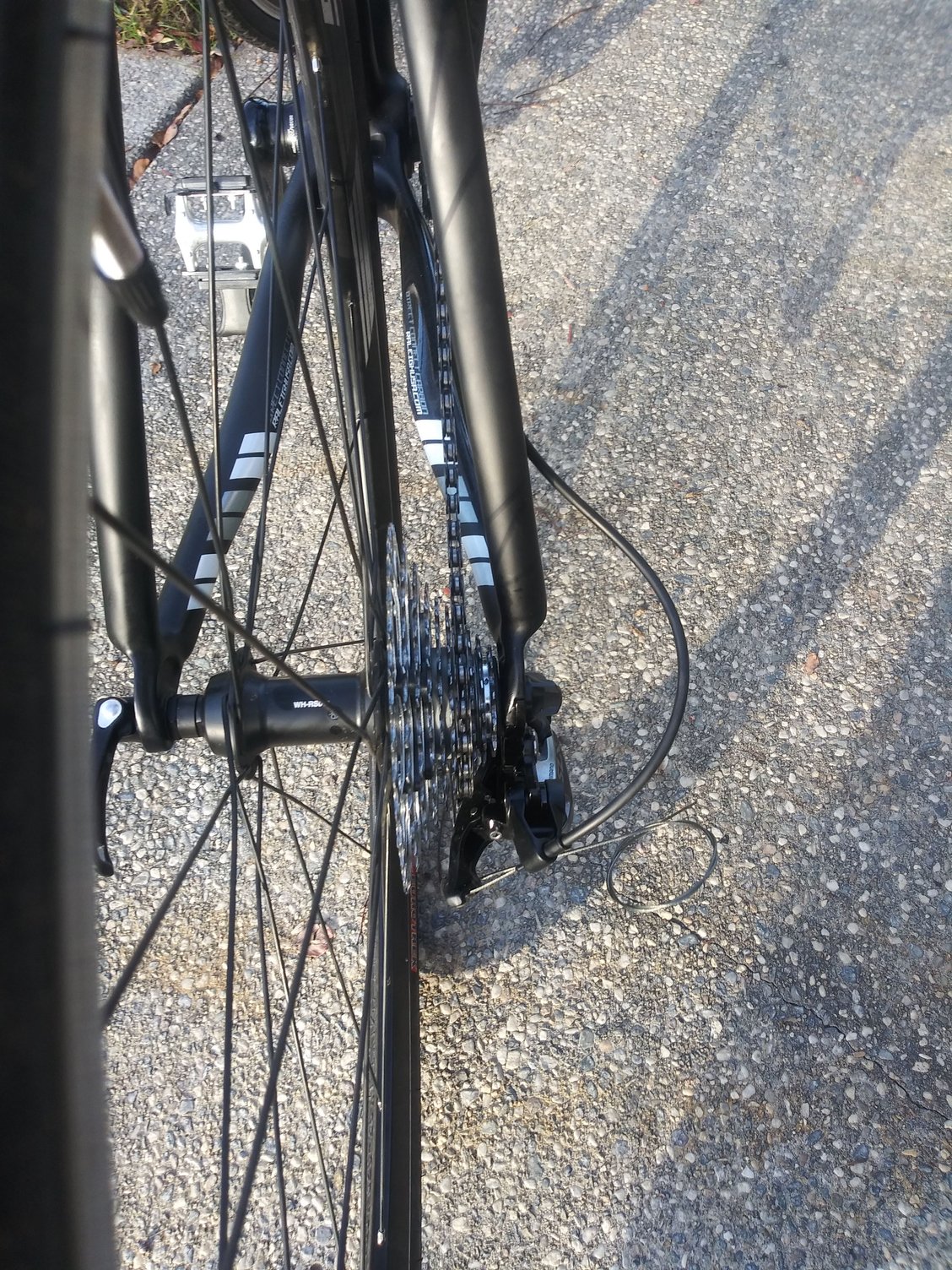

Here is the chain line with on the big ring and larger gear the RD is noisy here.

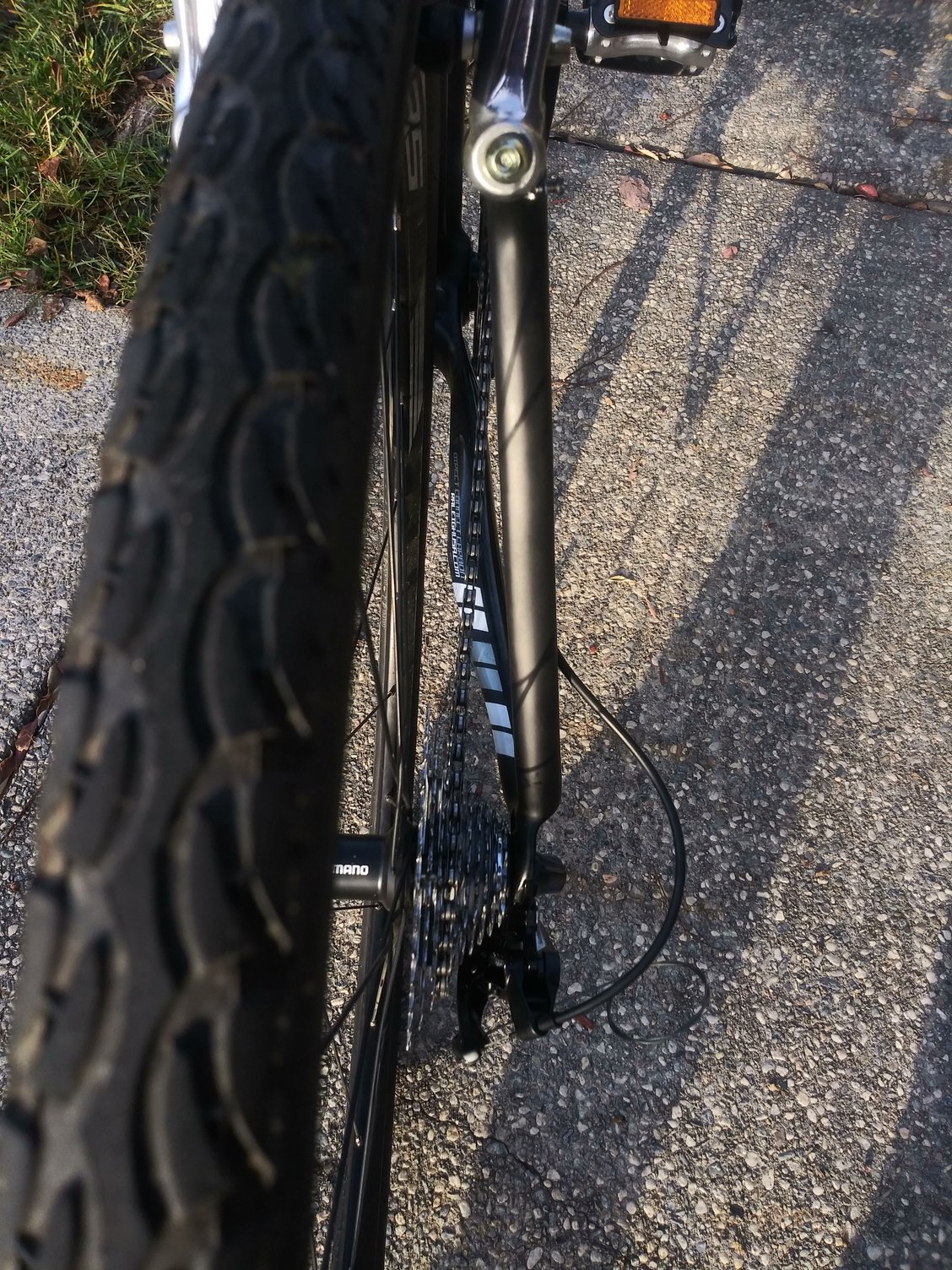

Here is the chain line on the big ring and a smaller gear. The RD is quiet but the chain falls on the outside of the cranks.


Here is the RD. The chain path is correct as far as I know (i.e. no simple errors like threading it over the tab)
raria is offline
Old 12-18-18, 11:53 AM
  #22
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,689

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1804 Post(s)
Liked 583 Times in 344 Posts
Can you post pics with Big/Big and Small/Small?
Big ring in front with big cog in rear, small ring in front with small cog in rear.
trailangel is offline
Old 12-18-18, 03:23 PM
  #23
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Okay. Will do this when I get home. I'll also post a link to a video to show you what I mean by the RD running noisy.

Originally Posted by trailangel View Post
Can you post pics with Big/Big and Small/Small?
Big ring in front with big cog in rear, small ring in front with small cog in rear.
raria is offline
Old 12-18-18, 07:08 PM
  #24
raria
Senior Member
Thread Starter

Join Date: Jul 2017
Posts: 918
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 761 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Here it is

Video link of running Big back Big front and how noisy it is at https://www.dropbox.com/s/aek60vw83q...62229.mp4?dl=0 the grinding sound is from the RD the creaking sound is from the clamp for the stand I'm using.

Picture of big back and big front here



and small to small here




Originally Posted by trailangel View Post
Can you post pics with Big/Big and Small/Small?
Big ring in front with big cog in rear, small ring in front with small cog in rear.

Last edited by raria; 12-18-18 at 07:12 PM.
raria is offline
Old 12-18-18, 07:15 PM
  #25
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,689

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1804 Post(s)
Liked 583 Times in 344 Posts
What is that noise??
Is your chain bend?
new chain?
10 sp chain?
trailangel is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
