DuraAce rear hub rebuild = chain suck!

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

DuraAce rear hub rebuild = chain suck!

Reply

Old 01-10-19, 12:33 PM
  #1
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
DuraAce rear hub rebuild = chain suck!

I have Shimano DA 9000 wheels on my road bike, and after 2 years of use, ~6000 miles, I decided to clean out the bearings and rebuild. The front came together with no problems. The rear on the other hand... I'm experiencing chain suck when I freewheel, most frequently when I need to make small 1/8 rotation backpedal movements which we do regularly while riding.
  • I first rebuilt it using my tub of Lucas Xtra Heavy Duty Grease (thick green stuff) which is great for many spots on bikes where grease is appropriate. I did not replace the bearings...everything looked very good, no signs of pitting or wear, etc. Upon rebuild, I tightened it up just to the point of no apparently movement in the hub when pushing on the sides of the wheel. Wheel rotation was about normal, but freewheel rotation was slow and immediately caused chain suck to the point that it couldn't be ridden.
  • I loosened it up to the point where there was just a small amount of play in the hub...not sure how to measure it, but it's there. It's more than I think is right, but I don't recall exactly what it was before it and don't have someone else with DA9000 hubs to check with as a reference. I still get chain suck when riding on the large front gear. In the small front gear...most of the time no chain suck. This is still not acceptable to me.
  • I cleaned everything out again, and ordered some Phil Wood grease as people seem to swear by it. Not sure it's much thinner than the Lucas grease I use, but why not. Same problem...to make the wheel usable, I have to loosen it up enough that there is some play.
  • I also tried loosening up to the point that I could freewheel without any chain suck at all. There was definitely too much play in the hub for my comfort.
Other things... I replaced my chain. I checked the derailleur guide sprockets...spin freely. Derailleur isn't bent. Cassette and front rings are all good. This did NOT happen before I rebuilt the hub, with the old chain, so everything points to the hub just not freewheeling as easy as it should after the rebuild, but don't know of a fix besides loosening it up more than I think is correct.

Anybody out there who has rebuilt DA or Ultegra hubs experienced this? Comment on how much play is okay? I could probably get a video of the play I have now...but it would be hard to see though you can definitely hear it click back and forth when I push on the wheel from side to side.

Thanks!
JamesInSJ is offline
Reply With Quote
Old 01-10-19, 01:08 PM
  #2
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 425

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Sounds like a freehub issue.
If it was working fine before the overhaul it's something you did.
Did you put the cones and spacers back as they where. They might be binding against the freehub.
The freehub should spin freely and it may pull the axle around with it as it moves round but shouldn't bind. Or perhaps the cassette is incorectly installed and is binding agaainst the hub.
Or cassette is rubbing of the drop out.
But anyway probably worth redoing the rebuild with tech docs as a guide.
Check Shimano tech dics for a diagram.
Lube the freehub with light oil if everything else checks out.
blamester is offline
Reply With Quote
Old 01-10-19, 02:14 PM
  #3
wschruba
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,456
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Page 11 of this PDF covers the exploded view/vital information for that hub. There isn't much you can do to mess up the reinstallation of the parts. Unfortunately, it sounds like the freehub itself needs some lubricant or work. If you take it down as far as the EV notes (the freehub is held on with a, I believe, 12mm hex, normal RH threading) you can then drop some light oil/mineral spirits into the gap to help flush any contaminants out. When it's running clear, relubricate with some 20wt oil, or so.
wschruba is offline
Reply With Quote
Old 01-11-19, 01:28 PM
  #4
BarryVee
Senior Member

BarryVee's Avatar

Join Date: Apr 2015
Location: N. California
Posts: 126

Bikes: Trek Emonda SL6, Santa Cruz Tallboy 27.5+

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
FWIW I have 10k miles on DA 9000 C24s. Bearings have been lubed with Park PPL-1 a couple times and the freewheel gets alight oil dripped into it more frequently, (Marvel Mystery Oil because it is on my shelf and smells nice), and has never been apart.
BarryVee is offline
Reply With Quote
Old 01-11-19, 01:40 PM
  #5
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Thanks for the PDF explosion and references about light oil. I'll try to drip a little into the freewheel and see if that loosens it up. If not, might need to flush it as suggested and go from there.

Last edited by JamesInSJ; 01-14-19 at 11:18 AM.
JamesInSJ is offline
Reply With Quote
Old 01-13-19, 05:27 AM
  #6
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 3,261

Bikes: Schwinn Varsity

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1075 Post(s)
Light oil/mineral spirits... not the same as mineral oil
trailangel is online now
Reply With Quote
Old 01-13-19, 11:41 AM
  #7
davidad
Senior Member

Join Date: Feb 2009
Posts: 5,649
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
https://si.shimano.com/pdfs/dm/DM-HB0003-05-ENG.pdf
davidad is offline
Reply With Quote
Old 01-13-19, 11:56 AM
  #8
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 3,902
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 904 Post(s)
New chain/used cassette can result in chainsuck.
woodcraft is offline
Reply With Quote
Old 01-14-19, 11:16 AM
  #9
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Originally Posted by woodcraft View Post
New chain/used cassette can result in chainsuck.
Used chain (nearing end of life) and used cassette had zero chain suck before I rebuilt the bearings. New chain actually reduced the chain suck, and the cassette doesn't show any wear that would indicate it's nearing end of life (about 6k miles...should be good for about 10k). I can loosen up the bearings enough to eliminate chain suck, but that creates too much play, so it just seems that the freehub isn't spinning as freely as it should.

Tri-Flow arrives in a few days and I'll try getting that into the freehub to see if that loosens things up.
JamesInSJ is offline
Reply With Quote
Old 01-14-19, 12:04 PM
  #10
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 425

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
What's odd is the axle bearing adjustment noticeably affecting the freehub.
So if the freehub worked fine before the rebuild and you didn't go near it what changed?
blamester is offline
Reply With Quote
Old 01-14-19, 12:09 PM
  #11
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 3,902
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 904 Post(s)
Originally Posted by JamesInSJ View Post
Used chain (nearing end of life) and used cassette had zero chain suck before I rebuilt the bearings. New chain actually reduced the chain suck, and the cassette doesn't show any wear that would indicate it's nearing end of life (about 6k miles...should be good for about 10k). I can loosen up the bearings enough to eliminate chain suck, but that creates too much play, so it just seems that the freehub isn't spinning as freely as it should.

Tri-Flow arrives in a few days and I'll try getting that into the freehub to see if that loosens things up.


Chain suck is the chain failing to disengage from the chainring. I don't follow how the new chain reduced the problem to less than the zero that it was before.

If you greased the freehub when it should have light oil, that could be corrected. Some freehubs have a washer inside that is easily misplaced, & the freehub binds if it's not there.
woodcraft is offline
Reply With Quote
Old 01-14-19, 12:37 PM
  #12
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 1,871

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Did you remove the freehub body when you serviced the bearings? If so, I noticed in the tech docs provided that they recommend changing the bolt when removing the freehub body. Honestly, I can’t imagine why you couldn’t reuse this bolt but I have not rebuilt the newer designed Shimano hubs yet.
masi61 is online now
Reply With Quote
Old 01-14-19, 12:47 PM
  #13
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Thanks for all the input. I'll update the thread when I have a chance in the next few days to pull it all apart and re-do it again, and a little tri-flow dripped down into the hub.

Chain suck...follow the order: 1) used chain/cassette, no suck. 2) rebuilt axle bearings, got lots of chain suck. 3) put new chain on, less chain suck, but still there.

If I loosen the axle bearings enough, I can eliminate chain suck. Anybody know if the Shimano DA grease is significantly lighter than Phil Wood? Perhaps it's really that simple that Shimano uses a thinner grease?
JamesInSJ is offline
Reply With Quote
Old 01-14-19, 12:49 PM
  #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 38,228

Bikes: 8

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 5836 Post(s)
viscosity

Freehub driver (solvent) flushed of grease and re lubed with 90wt gear oil? cold grease can do it..

reverse it in warmer weather, maybe pick up a spare driver.. ?
fietsbob is offline
Reply With Quote
Old 01-14-19, 12:58 PM
  #15
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Originally Posted by blamester View Post
What's odd is the axle bearing adjustment noticeably affecting the freehub.
So if the freehub worked fine before the rebuild and you didn't go near it what changed?
Grease on the axle bearings, and tightness of that settings, changes how easily the freehub spins. So 2 things changed: my grease (using Phil Wood), and the tightness (I think it's actually lighter now, with more play, than it was before). I'm not comfortable running the axle any looser than it is right now, but I can loosen it up a little more and eliminate the chain suck. I worry that it's way too loose given the amount of axle play, so I'm currently at what I consider an acceptable balance of chain suck and axle play until I get this sorted it.
JamesInSJ is offline
Reply With Quote
Old 01-14-19, 01:44 PM
  #16
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,619
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
What several posters have attempted to explain (see, e.g., post #14 ) is that, whereas hub bearings should be lubricated with grease, freehubs are designed to be lubricated with oil. The grease that you used is likely causing the freehub to rotate with the hub, resulting in what you're describing as "chain suck." (That term is usually reserved for chains hanging up on chainwheel teeth.)

So, as suggested, replace the grease in the freehub with medium-weight oil.
Trakhak is offline
Reply With Quote
Old 01-14-19, 01:59 PM
  #17
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 425

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
freehub bearings are seperate from axle bearings and one adjustment should not effect the other.
As you adjust the axle bearings will the freehub eventually bind up tight?


blamester is offline
Reply With Quote
Old 01-15-19, 06:04 PM
  #18
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)

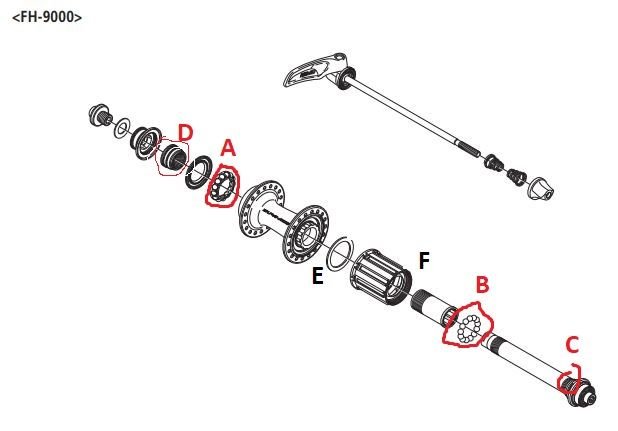

Okay, using the picture from the Shimano doc, I put grease on the cups/cones and balls only of the axle bearings. Those are A, B, C and D in red here, plus the cups of the hub itself (a little bit of grease at F in the axle bearing cup, and the other side near A).

I did not touch the internal workings of the freehub, no cleaner/solvent, and didn't touch the locking bolt.

JamesInSJ is offline
Reply With Quote
Old 01-15-19, 10:16 PM
  #19
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 20,620
Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 7353 Post(s)
The term "Chain Suck" normally isn't applied to the rear cassette.

There are two different issues:

1) Coasting chain slack. This would be a friction issue with the freewheel or freehub.

2) Backpedaling slack. I find this is generally due to either cross-chaining, or a derailleur that is poorly adjusted. Anyway, make sure you aren't cross-chained, and if you feel the slack, then check your gears.
CliffordK is offline
Reply With Quote
Old 01-16-19, 12:33 AM
  #20
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 7,790

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Sure is a weird one.

My only thought is that maybe one of the seals in the DS cone is slightly out of place, or perhaps the dustcap in the freehub body has shifted, causing excess friction between the two. Did you remove the dustcap when you lubed the cup? If it's a similar design to earlier ones, it's easy to deform.
Kimmo is offline
Reply With Quote
Old 01-16-19, 11:01 AM
  #21
JamesInSJ
Senior Member
Thread Starter

Join Date: May 2013
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Originally Posted by CliffordK View Post
The term "Chain Suck" normally isn't applied to the rear cassette.

There are two different issues:

1) Coasting chain slack. This would be a friction issue with the freewheel or freehub.

2) Backpedaling slack. I find this is generally due to either cross-chaining, or a derailleur that is poorly adjusted. Anyway, make sure you aren't cross-chained, and if you feel the slack, then check your gears.
Thanks for helping with terminology. I would say main issue is #1 , because short backpedal movements that are fairly common in regular riding immediately cause chain slack (and slap against the chainstay). While backpedaling, it typically isn't any worse, though there is enough friction to still cause varying amounts of slack.

The other comment about a deformed seal is interesting...gives me one more thing to look at while I'm rebuilding again.
JamesInSJ is offline
Reply With Quote
Old 01-16-19, 02:16 PM
  #22
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 38,228

Bikes: 8

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 5836 Post(s)
Then part # F may be where the excess drag is ... see my reply # 14..
fietsbob is offline
Reply With Quote
Old 01-16-19, 02:54 PM
  #23
ljsense
Senior Member

ljsense's Avatar

Join Date: Sep 2009
Location: Madison, Wis.
Posts: 301
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
You left out the spacer between the hub shell and freehub cassette body. That's why tightening the hub causes the problem -- you're making the freehub cassette body bind.

If it were a problem with what lubricant or grease you used, adjusting the hub would not cause the issue to present in this way. Your freehub body can only spin freely when the hub is loose. Disassemble and reassemble following the parts diagram.

The new chain is a red herring -- it sounds like you were doing other troubleshooting before trying the chain, and I'd bet that part of that was loosening the hub adjustment.
ljsense is offline
Reply With Quote
Old 01-17-19, 12:23 AM
  #24
BarryVee
Senior Member

BarryVee's Avatar

Join Date: Apr 2015
Location: N. California
Posts: 126

Bikes: Trek Emonda SL6, Santa Cruz Tallboy 27.5+

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Bearing adjustment

Originally Posted by BarryVee View Post
FWIW I have 10k miles on DA 9000 C24s. Bearings have been lubed with Park PPL-1 a couple times and the freewheel gets alight oil dripped into it more frequently, (Marvel Mystery Oil because it is on my shelf and smells nice), and has never been apart.
Also my bearings are adjusted for zero lash (no preload).
BarryVee is offline
Reply With Quote
Old 01-17-19, 02:11 AM
  #25
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 425

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
See post two it was pretty obvious from the begiining.
If it was working fine before the rebuild it was something you did during the rebuild.
The freehub spins independent of the axle bearings and one adjustment cannot effect the other.
Start over.
