Front end "suddenly" sways from right to left

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Front end "suddenly" sways from right to left

Old 01-17-19, 03:25 AM
  #1
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Front end "suddenly" sways from right to left (shimmy)

I am experiencing a bewildering issue with my commuter.

When pedalling, the bike sways left and right, left and right, 3/4 of an Inch approximately.

First I thought It was just an impression, but once identified it is actually very noticeable.

I can’t pinpoint exactly when the issue arised (maybe one month ago)), but I had been riding this frame since one year at last and it never bothered me before.

The front end (1 1/8 — 1 1/2 steerer) was very stable before,

Riding no hand is very difficult (I never had issues before on this particular bike)

I’ve tried to find a specific event triggering this behaviour but nothing seems really relevant. (I’ve swapped wheelset sometime ago though)


EDIT.

it is shimmy and I mostly get rid of it doing the following:
  • cleaning and readjusting the headset
  • Making sure the wheels are properly aligned and sitting in the dropouts.
For future reference, here it is what I’ve learned so far regarding shimmy :

What is shimmy ?



What can cause shimmy?

Wheels
  • Loose spokes
  • Loose quick releases
  • Play in the bearings
  • Tyre/s not seated
  • Wheels not seated/ misaligned in dropouts
Weight distribution (rear bias)
  • Loaded rear end (panniers, racks)
  • Upright riding position
  • Short stem
  • Sweptback bars
Front end
  • Damaged headset bearings
  • Headset need overhaul (dirt)
  • Headset is too tight
  • Misaligned handlebars
Frameset
  • Bent Forks
  • Asymmetric fork blades
  • Cracked fork pivot
  • Cracked steerer
  • Bent Frame
  • Cracked seat/chain stays
  • Cracked bottom bracket

Last edited by Luc_D; 02-01-19 at 07:47 AM.
Luc_D is offline
Old 01-17-19, 03:36 AM
  #2
rubenextra300
Junior Member

Join Date: Jan 2019
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Maybe you have a problem with any front wheel spoke?
rubenextra300 is offline
Old 01-17-19, 03:42 AM
  #3
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rubenextra300 View Post
Maybe you have a problem with any front wheel spoke?
Nope, I have even changed the wheel, both are straight with reasonably tight spokes.

In the meanwhile I will check again the headset...
Luc_D is offline
Old 01-17-19, 04:03 AM
  #4
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 663

Bikes: Bianchi Ti Megatube, M Alloy Pro, Sprint 76; Amp Research B4; Colnago Crystal; Klein Pulse; Litespeed Catalyst

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 38 Times in 25 Posts
This sounds like what you'd experience on a motorcycle, called "head shake" or a "tank slapper". There are a lot of causes, from misalignment to poor suspension to bad road conditions... and the bike's geometry counts for a lot. I'd check the straightness of the frame and fork first. It would seem to me that the front wheel and rear wheel are not "on the same path", causing the bike to want to correct constantly, causing the "head shake" problem.
ridelikeaturtle is offline
Old 01-17-19, 05:58 AM
  #5
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ridelikeaturtle View Post
This sounds like what you'd experience on a motorcycle, called "head shake" or a "tank slapper". There are a lot of causes, from misalignment to poor suspension to bad road conditions... and the bike's geometry counts for a lot. I'd check the straightness of the frame and fork first. It would seem to me that the front wheel and rear wheel are not "on the same path", causing the bike to want to correct constantly, causing the "head shake" problem.
Thanks a lot, misalignment it is what I feared.

Road conditions are good, I run 40mm tyres and the forks are rigid

Frame and forks are aluminum and carbon, and very sturdy. I never crashed them either, so what could have caused them to go out of alignment?!

The bike tracked straight like and arrow and was remarkably stable at the point of being boring until not a long ago...
Luc_D is offline
Old 01-17-19, 06:07 AM
  #6
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,040
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 32 Times in 23 Posts
That is a classic sign of a tight headset. When we pedal, the front wheel is constantly turning slightly to the left and right. If the headset is properly adjusted, the wheel corrects itself and you never notice it. If the headset is tight, the wheel stays turned and you have to physically pull it back to keep from turning in that direction. It is a very uncomfortable feeling.

The fact that this happened suddenly points to a rusted lower headset bearing, possibly from riding in the rain or washing the bike.
dsaul is offline
Old 01-17-19, 06:13 AM
  #7
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dsaul View Post
That is a classic sign of a tight headset. When we pedal, the front wheel is constantly turning slightly to the left and right. If the headset is properly adjusted, the wheel corrects itself and you never notice it. If the headset is tight, the wheel stays turned and you have to physically pull it back to keep from turning in that direction. It is a very uncomfortable feeling.

The fact that this happened suddenly points to a rusted lower headset bearing, possibly from riding in the rain or washing the bike.
Will try to readjust it shortly
Luc_D is offline
Old 01-17-19, 06:55 AM
  #8
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 663

Bikes: Bianchi Ti Megatube, M Alloy Pro, Sprint 76; Amp Research B4; Colnago Crystal; Klein Pulse; Litespeed Catalyst

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 38 Times in 25 Posts
Originally Posted by Luc_D View Post
Thanks a lot, misalignment it is what I feared.

Road conditions are good, I run 40mm tyres and the forks are rigid

Frame and forks are aluminum and carbon, and very sturdy. I never crashed them either, so what could have caused them to go out of alignment?!

The bike tracked straight like and arrow and was remarkably stable at the point of being boring until not a long ago...
It's something I'd check, to eliminate as a possibility. You can do it with some string, then measure the distances from the center to see if either of the chain stays is slightly bent. Here's a youtube video showing how:

With luck, the frame will be OK, and it's the headset (at others have posted), or maybe a wheel bearing, lumpy tyre, wheel out of true, etc.
ridelikeaturtle is offline
Old 01-17-19, 07:12 AM
  #9
Koyote
Senior Member

Join Date: Sep 2017
Posts: 736
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 118 Times in 67 Posts
Bent frame would be a longshot. If the swaying is roughly rhythmic with the pedal stroke, my money is on the headset. Remember that you want to tighten the bearing just enough to remove any slop...And not any more than that.

If that doesn't do it, and you can't find another source, pull out the headset (or have a shop do it) and check the bearings.
Koyote is offline
Old 01-17-19, 07:59 AM
  #10
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,479

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1143 Post(s)
Likes: 0
Liked 24 Times in 22 Posts
Have you checked for a cracked frame tube, particularly in the rear triangle?
HillRider is offline
Old 01-17-19, 08:10 AM
  #11
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,699
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 16 Times in 11 Posts
Disassemble the headset and examine the bearing surfaces. If you see tiny dents corresponding to the bearing positions, you should either replace the original caged bearings with free bearings (or vice versa) or replace the headset.
Trakhak is offline
Old 01-17-19, 01:26 PM
  #12
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 467

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by dsaul View Post
That is a classic sign of a tight headset. When we pedal, the front wheel is constantly turning slightly to the left and right. If the headset is properly adjusted, the wheel corrects itself and you never notice it. If the headset is tight, the wheel stays turned and you have to physically pull it back to keep from turning in that direction. It is a very uncomfortable feeling.

The fact that this happened suddenly points to a rusted lower headset bearing, possibly from riding in the rain or washing the bike.
This. Start with the simple things.
blamester is offline
Old 01-17-19, 04:15 PM
  #13
ljsense
Senior Member

ljsense's Avatar

Join Date: Sep 2009
Location: Madison, Wis.
Posts: 418
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's speed wobble. One of the more fascinating problems in bicycle physics. It's a whole system at play, and even experts disagree on aspects of it. The same gyroscopic magic that allows a bike to stay upright, stable, lean through corners suddenly turns maniacal through a combination of factors, and changing your headset bearings isn't likely to put this demon back to bed.

Here's one article of many on this fascinating, frustrating and frightening phenomenon:

https://road.cc/content/feature/2198...-speed-wobbles
ljsense is offline
Old 01-17-19, 05:37 PM
  #14
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,699
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 16 Times in 11 Posts
Originally Posted by ljsense View Post
It's speed wobble. One of the more fascinating problems in bicycle physics. It's a whole system at play, and even experts disagree on aspects of it. The same gyroscopic magic that allows a bike to stay upright, stable, lean through corners suddenly turns maniacal through a combination of factors, and changing your headset bearings isn't likely to put this demon back to bed.

Here's one article of many on this fascinating, frustrating and frightening phenomenon:

https://road.cc/content/feature/2198...-speed-wobbles
Probably not in this case. As the OP said: "I canít pinpoint exactly when the issue [arose] (maybe one month ago), but . . . it never bothered me before."

Frames don't suddenly develop speed wobble. As noted by many experienced folk in this thread, headset damage is much more likely.
Trakhak is offline
Old 01-17-19, 08:28 PM
  #15
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Trakhak View Post
Frames don't suddenly develop speed wobble. As noted by many experienced folk in this thread, headset damage is much more likely.
Maybe his fitness is improving, and he is riding much faster than he was a month ago?
Reynolds 531 is online now
Old 01-17-19, 08:32 PM
  #16
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,616

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
What I sort of "reject" is the assumption of nothing changing in the total system, this includes the rider, from previous riding. I have had speedman's wobble off and on with a number of bikes and have spent a LOT of time, in the saddle and at the computer, trying to make sense out of it. I can say with full confidence that, like ljsense says, it's a system thing. Weather, weight distribution, air pressures, cadence, road surface, are some of the factors. Then there's the bike's steering geometry, the tubing, spoke tensions and general harmonics. The best understanding that I have (and supported by far smarter people then post here, sorry this includes me too) is that the wobbles are a harmonic vibration that enters a reinforcing cycle. Interestingly one common frequency is around that of a shivering body.

I have no idea if the OP's bike, him or the headset went through a sudden change recently to tip the balance and wobble became far more likely. I hope that simple money tossing solves the problem. I look forward to follow up by the OP if he discovers the solution that works for him. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-18-19, 04:11 AM
  #17
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
What I sort of "reject" is the assumption of nothing changing in the total system, this includes the rider, from previous riding. I have had speedman's wobble off and on with a number of bikes and have spent a LOT of time, in the saddle and at the computer, trying to make sense out of it. I can say with full confidence that, like ljsense says, it's a system thing. Weather, weight distribution, air pressures, cadence, road surface, are some of the factors. Then there's the bike's steering geometry, the tubing, spoke tensions and general harmonics. The best understanding that I have (and supported by far smarter people then post here, sorry this includes me too) is that the wobbles are a harmonic vibration that enters a reinforcing cycle. Interestingly one common frequency is around that of a shivering body.


I have no idea if the OP's bike, him or the headset went through a sudden change recently to tip the balance and wobble became far more likely. I hope that simple money tossing solves the problem. I look forward to follow up by the OP if he discovers the solution that works for him. Andy

Thanks Andrew. Bewildering it is indeed. I already experienced speed wobble or shimmy and this is slightly different, it increases with speed and cadence, and nearly goes away when coasting.
Luc_D is offline
Old 01-18-19, 04:12 AM
  #18
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Reynolds 531 View Post
Maybe his fitness is improving, and he is riding much faster than he was a month ago?
Not really...this week I am suffering from lower back pain and taking it easy...

Last edited by Luc_D; 01-18-19 at 04:19 AM.
Luc_D is offline
Old 01-18-19, 04:17 AM
  #19
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Trakhak View Post
Probably not in this case. As the OP said: "I can’t pinpoint exactly when the issue [arose] (maybe one month ago), but . . . it never bothered me before."

Frames don't suddenly develop speed wobble. As noted by many experienced folk in this thread, headset damage is much more likely.

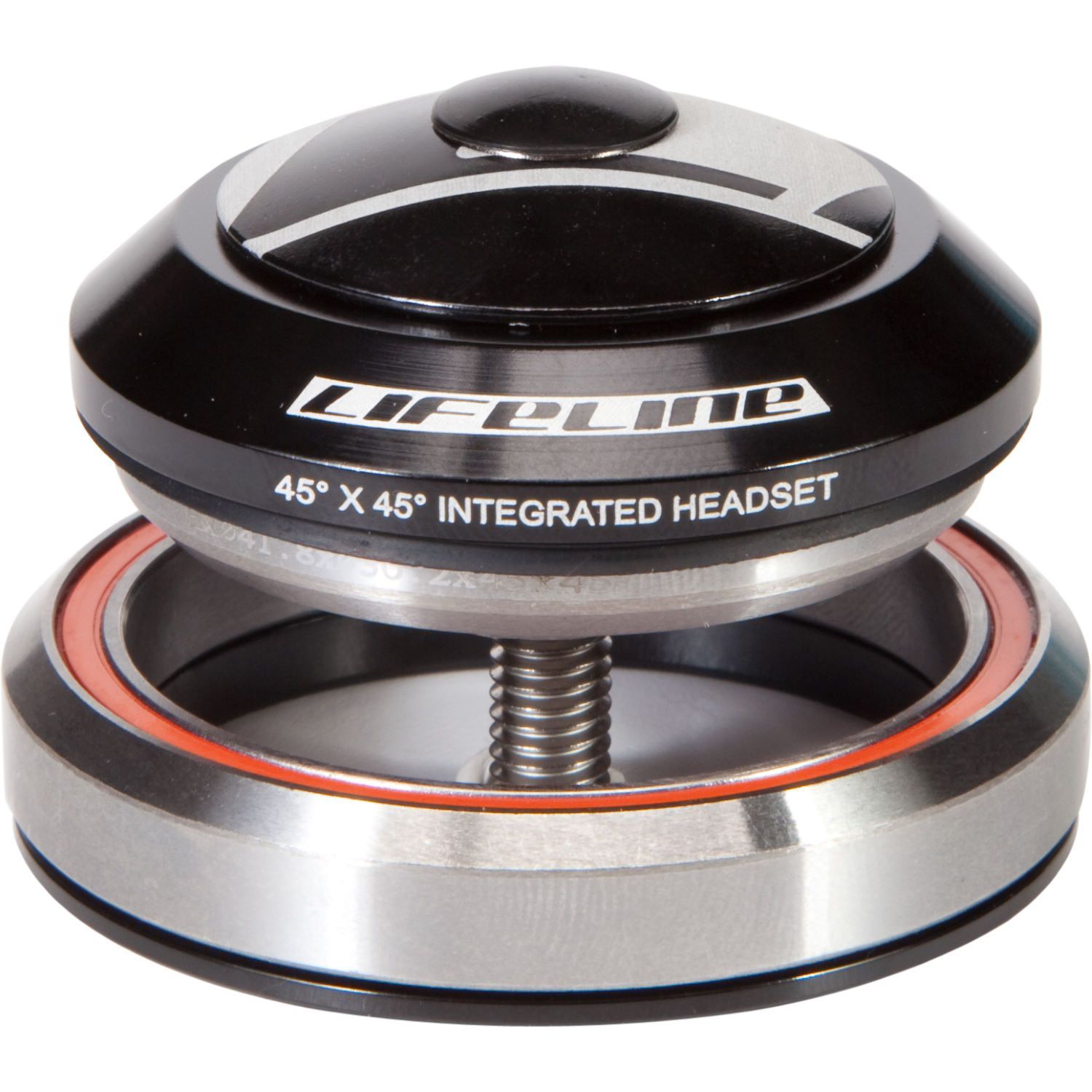

Possibily so. the headset is relatively new (less than one year old). it is an integrated 1 1/8 — 1 1/2 headset like this one.

It seems strange to me it broke down already, there is no noticebale roughness.

Also, I've tried to readjust it a couple of time, even letting it slightly loose for a couple of times for a short time but the issue persists.

Luc_D is offline
Old 01-18-19, 04:20 AM
  #20
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by HillRider View Post
Have you checked for a cracked frame tube, particularly in the rear triangle?
Will take a look during the weekend...
Luc_D is offline
Old 01-18-19, 10:27 AM
  #21
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 1,852

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked 27 Times in 23 Posts
I'd go back to the suggestion above to check the frame carefully for any cracks or weakness. It's a pretty new frame, so this could still be infant mortality of the frame.
I'd probably remove the fork and check the steerer-tube-to-fork-crown and blade-to-fork-crown joints. See if they wiggle. Listen to hear any crackling or creaking.

Clearly could be a headset, but unless you ride near a body of saltwater or sweat perfusely, or drive the thing through a salt marsh daily, I'd be surprised if the bearings were corroded. But stranger things have happened.

After that, check QR and wheel bearings,
WizardOfBoz is offline
Old 01-18-19, 10:49 AM
  #22
Luc_D
Member
Thread Starter

Join Date: Oct 2014
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by WizardOfBoz View Post
I'd go back to the suggestion above to check the frame carefully for any cracks or weakness. It's a pretty new frame, so this could still be infant mortality of the frame.
I'd probably remove the fork and check the steerer-tube-to-fork-crown and blade-to-fork-crown joints. See if they wiggle. Listen to hear any crackling or creaking.

Clearly could be a headset, but unless you ride near a body of saltwater or sweat perfusely, or drive the thing through a salt marsh daily, I'd be surprised if the bearings were corroded. But stranger things have happened.

After that, check QR and wheel bearings,
Thanks, I was planning to check frame and fork for cracks during the weekend and bearings too.
Luc_D is offline
Old 01-18-19, 12:38 PM
  #23
base2
Senior Member

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 968

Bikes: N+1

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Likes: 0
Liked 65 Times in 45 Posts
Another simple possibility: Too much weight on the rear, not enough weight on the front. Such an imbalance can cause the front to wander. The corrective action of trail is not able to be put to good use as it could be.

It can be un-nerving to have two totally different bikes depending if the rack/panniers are full or not. The same effect can be caused by rider position. It's the center of gravity being too far aft at fault.

Try moving your seat forward or using your hoods/drops or get a longer stem. Or a combination to move the CG to a more central location on the bike. A loaded front basket would work too if that's how you use your bike anyway and don't want to adjust fit.

With a light front end, you may also be feeling the effect of literally levering the front end around from the torque generated between the seat that is in line with the frame centerline and the contact point on the pedals that are off set from the frame centerline.
base2 is offline
Old 01-18-19, 03:41 PM
  #24
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 663

Bikes: Bianchi Ti Megatube, M Alloy Pro, Sprint 76; Amp Research B4; Colnago Crystal; Klein Pulse; Litespeed Catalyst

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 38 Times in 25 Posts
It's easy to overthink these things. Before tearing things apart, check all the "easy" things you can first. To me, checking frame alignment is pretty quick and easy, just to tick that off so you don't have to worry about it. Same with examining for cracks (I do this whenever I clean my bikes).

Another simple thing: are the wheels aligned in the dropouts properly? How easy is it to get the wheel cocked after fixing a flat or swapping a cassette! Or maybe a QR slipped a little. It's the easiest fix in the world, and only takes a few seconds to check - and it's a lot easier than taking the headset apart.

I'm really curious now to see how this turns out
ridelikeaturtle is offline
Old 01-18-19, 08:12 PM
  #25
grayEZrider
Senior Member

Join Date: Dec 2016
Location: tennessee
Posts: 273

Bikes: '13 Specialized Elite, KHS 223, '94 Trek 2120, 92 Raleigh technium, '88 Centurion LeMans, '86 Centurion IronMan,'84 Redcay Ross 508

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by ridelikeaturtle View Post
It's easy to overthink these things. Before tearing things apart, check all the "easy" things you can first. To me, checking frame alignment is pretty quick and easy, just to tick that off so you don't have to worry about it. Same with examining for cracks (I do this whenever I clean my bikes).

Another simple thing: are the wheels aligned in the dropouts properly? How easy is it to get the wheel cocked after fixing a flat or swapping a cassette! Or maybe a QR slipped a little. It's the easiest fix in the world, and only takes a few seconds to check - and it's a lot easier than taking the headset apart.

I'm really curious now to see how this turns out
Also the fact you mentioned the change when coasting tends to indicate problem (alignment or bearing play) at the REAR of the bike. Pedal pressure of any kind will pull the wheel to misalignment with that.
grayEZrider is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
