18c or 20c rim for 28mm tires

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

18c or 20c rim for 28mm tires

Old 01-25-19, 12:42 PM
  #1
NeoY2k
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
18c or 20c rim for 28mm tires

Hello,
I posted a week ago about rim choice but decided to reconsider my options to stouter rims.
I want to use Continental GP4000/GP5000 28mm tires (tubed). For loaded touring with a medium load.
I already tour on these tires and I like them, I don't want to go wider (I had, but prefer the 28s)

Rims considered:
DT R460db - 18mm internal, 22mm ext, 23mm height
DT X392 - 20mm internal, 24mm ext, 18mm height

I was going to go with the R460, but noticed the tendency toward wider rims. Would the X392 then be better suited?
If I am to follow DT's specs, 28mm is the "max optimum" for 18c rims, and "min optimum" for 20c rims.
Would the tire shape be better on the wider rim, or is it too wide?

Thanks,
Nicolas
NeoY2k is offline
Old 01-25-19, 12:54 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,357

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1650 Post(s)
Tires change from model rears to new versions/choices. Generally rims will see any number of tires over the miles. Perhaps what future tire width you might be considering should be at play.

I take tire and rim width recommended combos to be as much about trends as they are about actual tire fit. I've toured on fat "32" tires mounted on Mavic MA2s (22mm outer width) for thousands of miles with no issues. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-25-19, 01:17 PM
  #3
TimothyH
- Soli Deo Gloria -

TimothyH's Avatar

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 13,197

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 5887 Post(s)
18 or 20 mm inside width rims will work with either tire.

The tire is not too wide for 18 mm rims. You will be safe either way.
TimothyH is offline
Old 01-25-19, 01:18 PM
  #4
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,307

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 2856 Post(s)

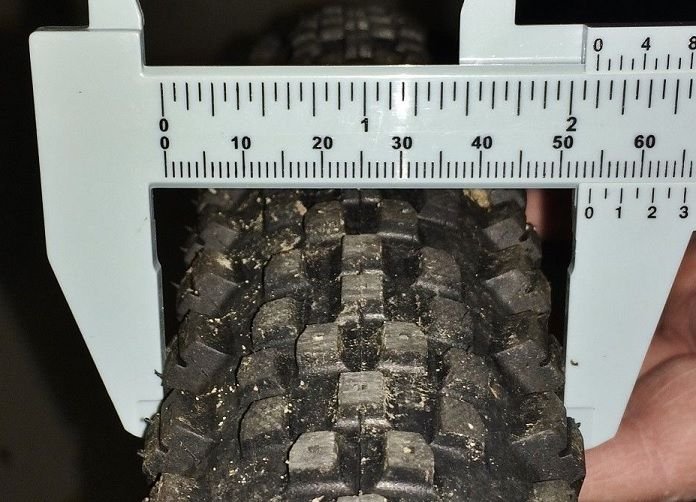

on my my MTB I measured the rims inside @ 18mm & they hold 2.25" tires w/tubes which measure 54mm just fine. go figure ...




Last edited by rumrunn6; 01-29-19 at 08:28 AM.
rumrunn6 is online now
Old 01-25-19, 01:50 PM
  #5
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,614

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
I'd have no qualms about using 28mm tires on my 13.5mm internal width Sun Rims M13II's.
Bill Kapaun is offline
Old 01-25-19, 02:23 PM
  #6
NeoY2k
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Yes, I use them on my old Open Pros for the moment, so I know they work on 15c.
But trend seems toward larger rims respective to tire width, for claimed better cornering behavior (and aerodynamics).
How larger is the question... People seem to have moved to 18c for 25mm tires. Was wondering if going to 20c was better for 28mm tires...
NeoY2k is offline
Old 01-25-19, 04:33 PM
  #7
Bill in VA
Senior Member

Bill in VA's Avatar

Join Date: Aug 2017
Location: Northern Virginia
Posts: 198

Bikes: 2016 Bianchi Volpe; 1973 Peugeot UO-8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
I am using 18.5 internal width for Compass 28mm tires with plans to move up to 32mm. I have a wheel set with Alex A23 rims with 18mm internal with Continental GP4000SII in 28mm. These tires actually run 30.4mm wide. I am not sure if the GP5000 will be the same. It is not an issue on my bike, but on my wife's bike they will not fit on the front fork (height) and her brakes QR do not open wide enough for 30.5 width.
Bill in VA is offline
Old 01-28-19, 09:17 AM
  #8
NeoY2k
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Thanks.
Larger tire with smaller rims: this is no problem.
But 28mm tires on 21mm internal width rim vs 18mm rim, will the 21mm provide any advantage, or vice-versa?
Should have put it that way.

Thanks,
Nicolas
NeoY2k is offline
Old 01-28-19, 09:21 AM
  #9
Marcus_Ti
Frozen Solid.

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 4,439

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1787 Post(s)
Originally Posted by NeoY2k View Post
Hello,
I posted a week ago about rim choice but decided to reconsider my options to stouter rims.
I want to use Continental GP4000/GP5000 28mm tires (tubed). For loaded touring with a medium load.
I already tour on these tires and I like them, I don't want to go wider (I had, but prefer the 28s)

Rims considered:
DT R460db - 18mm internal, 22mm ext, 23mm height
DT X392 - 20mm internal, 24mm ext, 18mm height

I was going to go with the R460, but noticed the tendency toward wider rims. Would the X392 then be better suited?
If I am to follow DT's specs, 28mm is the "max optimum" for 18c rims, and "min optimum" for 20c rims.
Would the tire shape be better on the wider rim, or is it too wide?

Thanks,
Nicolas
What tire pressure do you need for your 28s?

Be warned with 20mm internal rims, they max out at 90-100PSI maximum tire pressure (max pressure goes down as internal width goes up). To use wider format rims, you may need a wider tire to get the necessary/desired pressure number for your rig's load.
Marcus_Ti is offline
Old 01-28-19, 09:24 AM
  #10
daoswald
Senior Member

Join Date: Apr 2008
Location: Salt Lake City, UT (Formerly Los Angeles, CA)
Posts: 946

Bikes: 2008 Cannondale Synapse -- 2014 Cannondale Quick CX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
I wanted to mention that although I love my GP4000s II 28mm tires, their propensity for attracting goat heads like a magnet wrapped with fly paper would make me pass on them for touring.

Not as long-wearing, GP4Season tires which I have on my hybrid seem to be less prone. And they come in sizes up to 32mm.
daoswald is offline
Old 01-28-19, 09:48 AM
  #11
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 5,020
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Originally Posted by daoswald View Post
I wanted to mention that although I love my GP4000s II 28mm tires, their propensity for attracting goat heads like a magnet wrapped with fly paper would make me pass on them for touring.

Not as long-wearing, GP4Season tires which I have on my hybrid seem to be less prone. And they come in sizes up to 32mm.
That's interesting that you see such a difference. I thought that, compared to GP4000S, the GP4Season adds a bigger wrap of protection layer, up around the sidewall, and has a bit of tread.

The Continental website says:
>> excellent puncture protection thanks to double Vectran™ puncture protection insert.
>>excellent grip and longevity along with robust DuraSkin® side protection.

So, it seems that the double Vectran is effective.
rm -rf is offline
Old 01-28-19, 10:31 AM
  #12
Elvo
Senior Member

Join Date: Oct 2006
Location: Orange County, CA
Posts: 4,007
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
My GP4K II S 28mm measure 32mm on 20C wheels
Elvo is offline
Old 01-28-19, 10:40 AM
  #13
daoswald
Senior Member

Join Date: Apr 2008
Location: Salt Lake City, UT (Formerly Los Angeles, CA)
Posts: 946

Bikes: 2008 Cannondale Synapse -- 2014 Cannondale Quick CX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Originally Posted by rm -rf View Post
That's interesting that you see such a difference. I thought that, compared to GP4000S, the GP4Season adds a bigger wrap of protection layer, up around the sidewall, and has a bit of tread.

The Continental website says:
>> excellent puncture protection thanks to double Vectran™ puncture protection insert.
>>excellent grip and longevity along with robust DuraSkin® side protection.

So, it seems that the double Vectran is effective.
It seems more effective than single Vectran. Of course anecdotal evidence is the worst kind. I've had better luck with them, but it could be due to any number of factors including luck.

The 4 Season tires have a softer rubber so they grip better in adverse (wet) conditions. And there's the double Vectran. But the softer rubber probably wears a little quicker than the Black Chili compound used in the GP 4000s II tires.

I can confirm that on 17mm (internal) rims my GP4000sII measure 31mm, which is only a half millimeter shy of how my 32mm GP 4 Season tires measure on another set of 17mm rims. The GP 4 season should be a slightly harsher ride due to their additional protection, but I find it hard to detect much difference in actual riding, particularly since I use them on different bikes, with different geometry, different wheels, and different frame stiffness characteristics.
daoswald is offline
Old 01-28-19, 12:30 PM
  #14
NeoY2k
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Originally Posted by Elvo View Post
My GP4K II S 28mm measure 32mm on 20C wheels
Thank you. Do you have a picture of how they sit on the rim?
NeoY2k is offline
Old 01-28-19, 01:09 PM
  #15
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,307

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 2856 Post(s)
fwiw

VUELTA XRP PRO Clincher rims
Width: 15mm internal, 20mm external
Depth: 30mm
25mm Michelin Pro4 Endurance measure 27mm
& look like this (I guess they're not aerodynamic? even w bladed spokes?)




Last edited by rumrunn6; 01-29-19 at 08:29 AM.
rumrunn6 is online now
Old 01-28-19, 01:22 PM
  #16
NeoY2k
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Originally Posted by Marcus_Ti View Post
What tire pressure do you need for your 28s?

Be warned with 20mm internal rims, they max out at 90-100PSI maximum tire pressure (max pressure goes down as internal width goes up). To use wider format rims, you may need a wider tire to get the necessary/desired pressure number for your rig's load.
Granted, 6 to 7 bars.
I seen even lower pressure restrictions on tubeless compatible (hookless) rims, which narrowed down my choice to hooked rims.
According to DT Swiss's Chart, 28mm tube on 20c rim is 7.8 bars (113 psi) max when tubed, 6.3 (91) when tubeless.
If I choose a hookless rim, that goes down to 5 bars (73 psi) so no hookless rims for me!
NeoY2k is offline
Old 01-28-19, 03:54 PM
  #17
davidad
Senior Member

Join Date: Feb 2009
Posts: 5,707
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Mavic open elite with 36 double butted spokes for reliability.
davidad is offline
Old 01-28-19, 05:30 PM
  #18
TallRider
Senior Member

TallRider's Avatar

Join Date: Oct 2005
Location: Fresno, CA
Posts: 4,430
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Just a note to say that "c" is not a unit if width measurement. Kudos for actually referring to 28mm tires.
TallRider is offline
Old 01-28-19, 07:12 PM
  #19
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,119
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 588 Post(s)
Been running Conti 37mm tires on 20mm rims for a decade with zero flats or rim problems. They are on my long commute/touring bike. Also have a customer on 20mm rim with 38mm tire. The bike is a comfort bike. Zero problems for 7 years.

The whole wider is better thing is very much blown out of proportion, but it does sell new rims!
TiHabanero is offline
