Another question/Ochsner

[SPOILER] I do not know what tools I need for pulling the bottom bracket. NDS lock ring has 6 nothches, stamped 36 X 24, and the inner plate has 4 holes, for spanner? Stamped on it is 36 X 24 and VIA- LL. Thanks for the help to all.

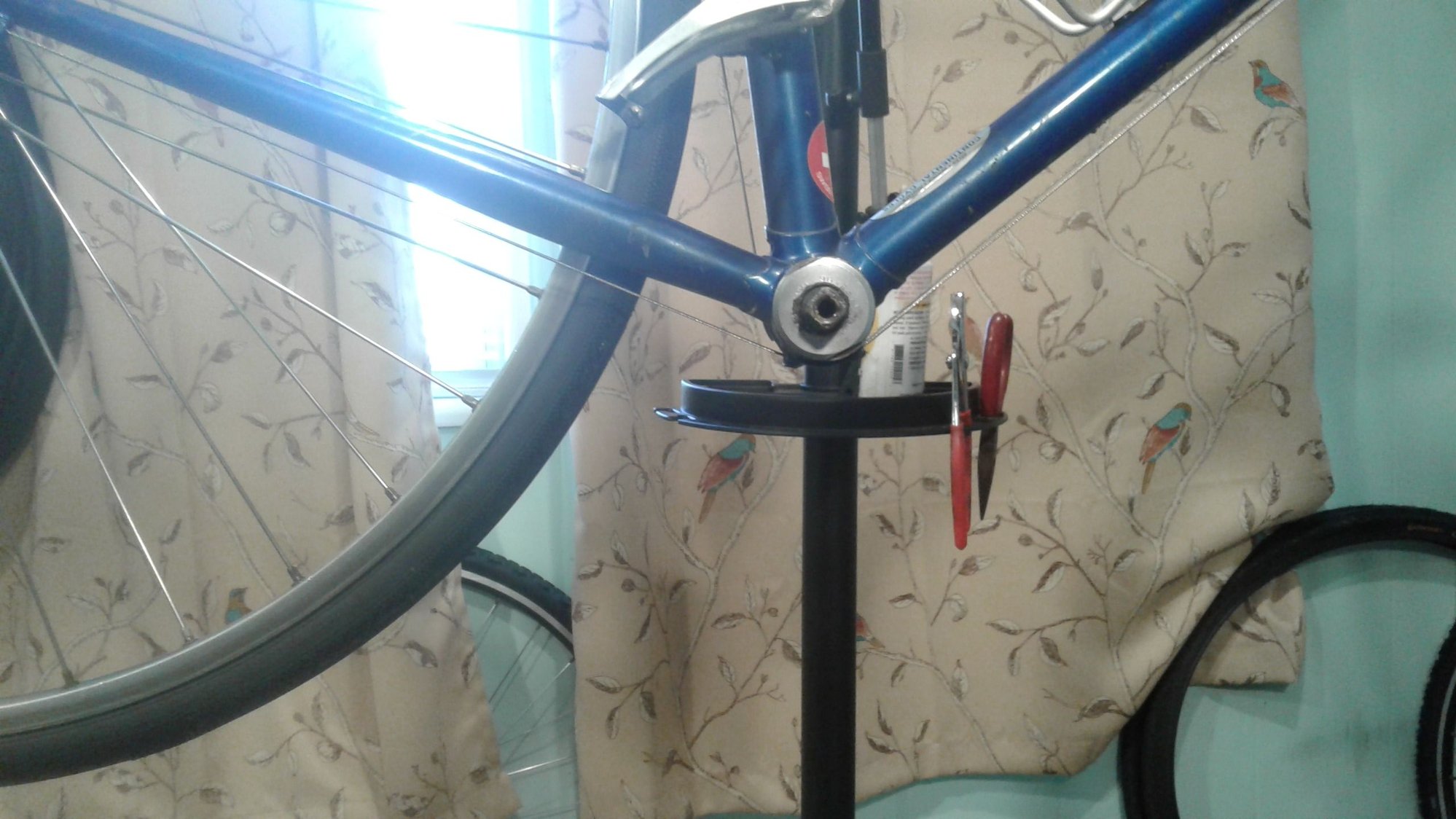

closer NDS

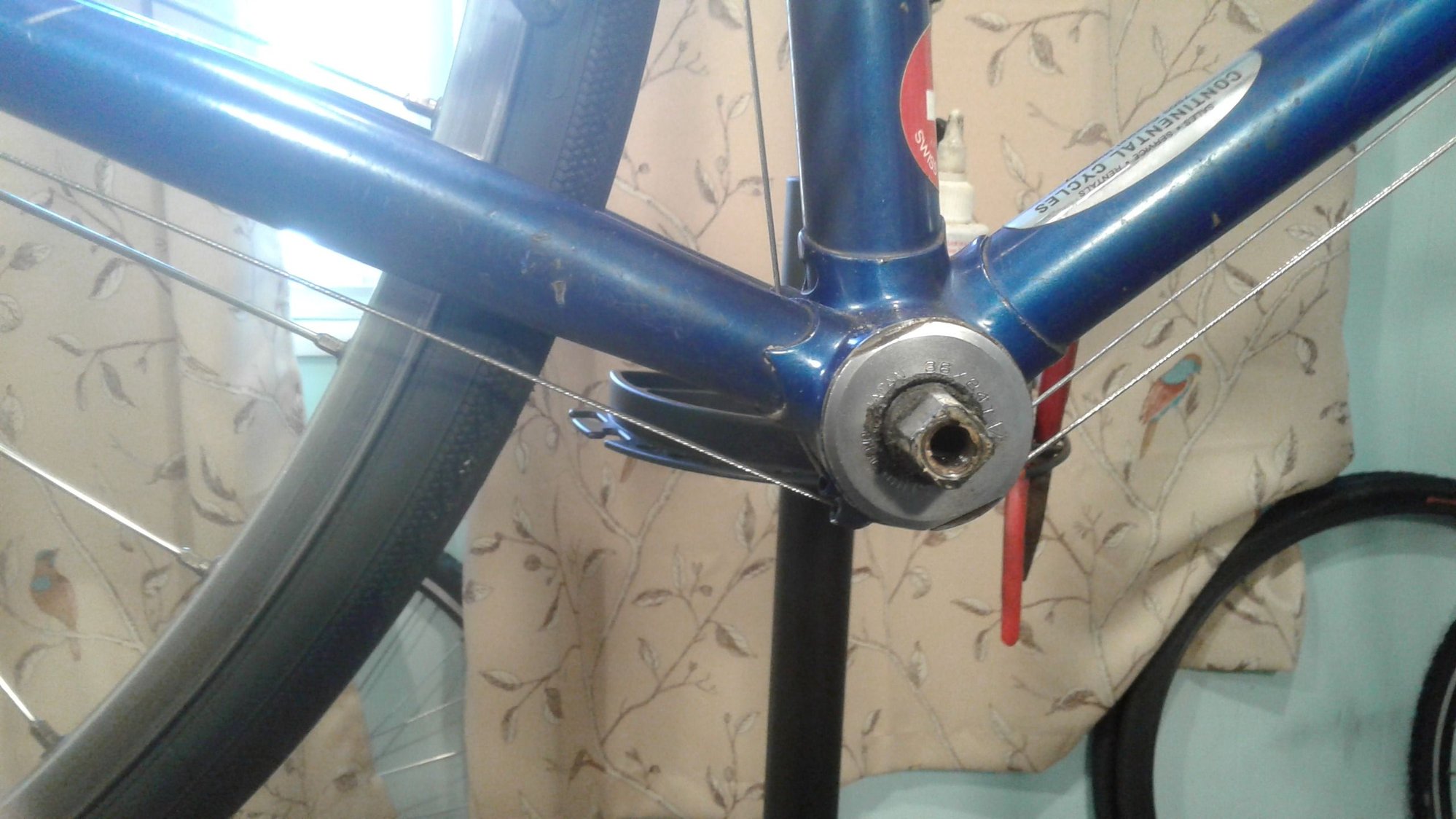

Drive-side

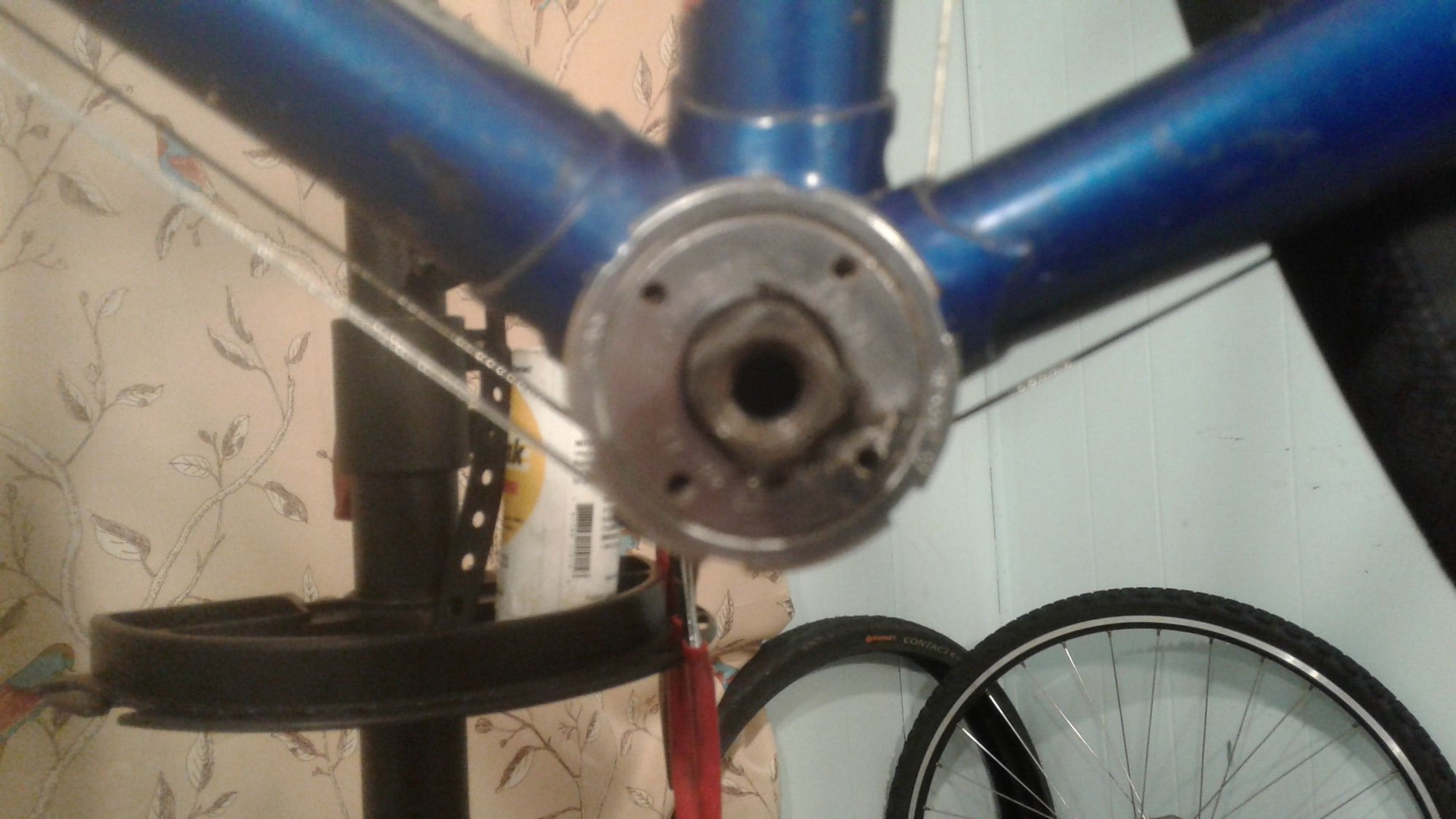

Closer DS
delbiker1 is offline
Old 02-04-19, 12:41 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,316

Bikes: 8

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 6358 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Kids these days...

Well you can choose A) go to a bike shop , have them do it.. .. advantage if you will not use that one again ..
adopting new cartridge types , use a different tool ..
Or B ) buy the old school tools that were common when that was the BB type in common use..
[I'm Old I have some from BITD ]



Not sure why so many want others to use the web, to do the search for them after they find this forum
fietsbob is offline
Old 02-04-19, 12:45 PM
  #3
Steelman54
Senior Member

Join Date: Jun 2014
Location: SW Ohio
Posts: 63
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
NDS = pin wrench and wrench to loosen locknut (can also be a small brass drift.

DS = special wrench which i have never used. I set up workbench vise and carefully set flats on cup in vise and carefully rotate frame in the correct direction.

To clean and regrease BB, no need to undo DS cup if cups are fine. Clean up old grease, i'd use new balls (1/4") and put back together, use NDS cup to adjust and lock nut to well lock it in position.

Your BB seems Italian, if Italian both are right hand threaded.

Best of luck.
Steelman54 is offline
Old 02-04-19, 12:53 PM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,316

Bikes: 8

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 6358 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
1.37" turn to the right to loosen , left to tighten , left hand thread.. British/ international.

36mm is right hand thread , for both sides, so, Lefty loosie, Righty tighty.. if Italian

Unknown is spindle condition if pitted you wont want to use it again ...
fietsbob is offline
Old 02-04-19, 05:05 PM
  #5
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 614

Bikes: old school 531c & campy

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I linked the tool (Park hcw-5) in your other thread, which I cannot now find. Was it deleted?

You may not need a pin spanner, though. It's nice to have, but you can probably disassemble/reassemble without it. If you do get it, it's the one with the green Park handle.

Last edited by SurferRosa; 02-04-19 at 05:14 PM.
SurferRosa is offline
Old 02-04-19, 05:20 PM
  #6
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 431

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks SurferRosa

Originally Posted by SurferRosa View Post
I linked the tool (Park hcw-5) in your other thread, which I cannot now find. Was it deleted?

You may not need a pin spanner, though. It's nice to have, but you can probably disassemble/reassemble without it. If you do get it, it's the one with the green Park handle.
Thanks for your help. The OP was deleted because it seemed to me that this post had duplicated it. I did get the info for the HCW-5. I already have a pin spanner , Park Tool SPA-2. that has a red handle. I had purchased it for the lockring on the freewheel that I replaced.
delbiker1 is offline
Old 02-04-19, 05:47 PM
  #7
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 431

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Another thank you to fietsbob! BIKE FORUMS ROCKS!!
delbiker1 is offline
Old 02-04-19, 06:07 PM
  #8
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,316

Bikes: 8

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 6358 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Once you get the left cup out https://www.sheldonbrown.com/ shows a hardware store collection of nuts, bolts and split washers
to take out the fixed cup W/O buying a special BB wrench

[But mine have a 15mm pedal wrench on the other end , so it can have ongoing usefulness.. ]
