Spoke tension vs rim cracking

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Spoke tension vs rim cracking

Old 02-05-19, 02:34 PM
  #1
MiloFrance
Not riding enough
Thread Starter

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,138

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Spoke tension vs rim cracking

Greetings all. I built this wheel nearly 20 years ago, and found last week that it could disintegrate at any moment. I found another rim and have swapped them, but not before checking the tension. The tool I have equated to 99-110kgf, with reasonable consistency around the wheel. Looking at this thread that should be about right, so why the cracking? Should I just tension lower (like 90kgf) or stick with what was ordained by the greats?
King hub, F519 rim, DT Supercomp spokes and nipples, replaced in the rebuild.
Cheers
Milo


F519
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-05-19, 03:01 PM
  #2
ljsense
Senior Member

ljsense's Avatar

Join Date: Sep 2009
Location: Madison, Wis.
Posts: 418
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'd guess that the spoke tension isn't really to blame. In 20 years, a wheel goes through a lot. Aluminum alloy rims tend to crack at some point, if subjected to enough stress.
ljsense is offline
Old 02-05-19, 03:28 PM
  #3
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,618

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
For a symmetrical front wheel, I don't go over 90 kgf. If I wasn't "hefty", I'd go a little less.
Bill Kapaun is offline
Old 02-05-19, 03:38 PM
  #4
MiloFrance
Not riding enough
Thread Starter

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,138

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's a symetrical rear, and I'm about 190/92kg. It's done the Test of metal in Squamish, a couple of team 24hr races and 2 Fruita Fat tyres (tires..) plus quite a lot of other stuff. I suppose I can put it down to wear and tear. 20 odd years older now so I think 90 is what I'll aim at. Thanks for the replies.
Milo
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-05-19, 03:48 PM
  #5
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,949

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1816 Post(s)
Liked 0 Times in 0 Posts
Any chance your tool is out of calibration? I read a thread a year or so about a guy who thought he had built his wheels within spec, but his tensiometer read at least 10kgf low, and that was just enough to crack them after some miles.

I see that these Mavics don't have double-eyelets, so it's all up to those exterior walls to carry the spoke tension.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 02-05-19 at 03:53 PM.
ThermionicScott is offline
Old 02-05-19, 10:58 PM
  #6
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,305

Bikes: 1964 Legnano Roma, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

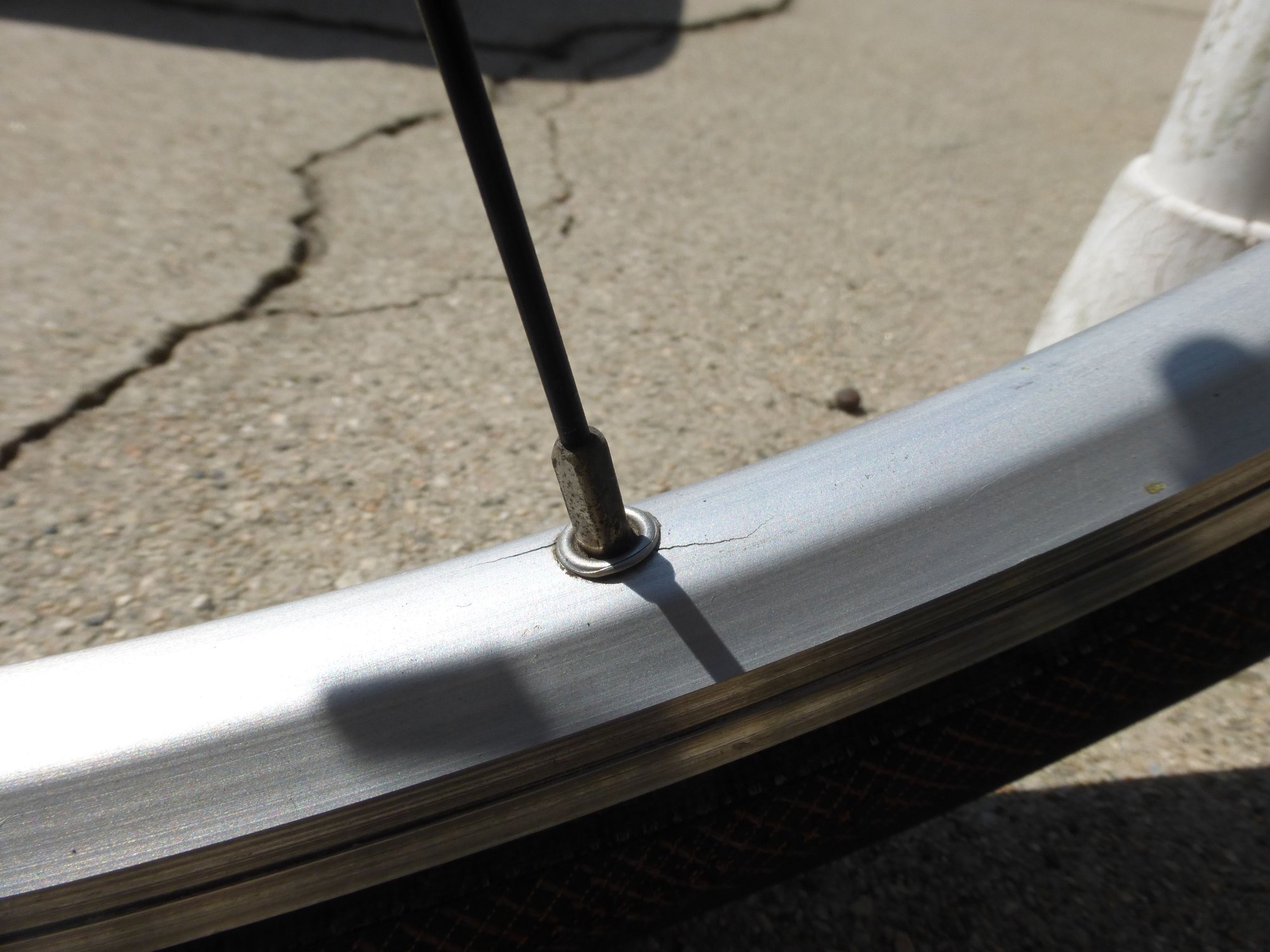

My Mavic Open Sport rear rim had two cracks like that after 10 years of riding. I used to weigh around 240 lbs., under 200 now. I thought it might be my weight, but it did hold up for 10 years. I never checked the spoke tension or broke any spokes on the wheel, it just developed cracks one day. Mine weren't as severe and yours, still worrying.

Two spokes had cracks like this.

Last edited by Slightspeed; 02-05-19 at 11:13 PM.
Slightspeed is offline
Old 02-06-19, 09:44 AM
  #7
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 5,006

Bikes: Fuji Touring, Novara Randonee

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 887 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
See, this is why you need to use rim brakes and ride through mud every so often. Wear the brake track out so the rim needs to be replaced before it cracks from old age.

pdlamb is offline
Old 02-06-19, 10:07 AM
  #8
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,010

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's just fatigue cracking, nothing lasts forever... especially aluminum.
Trevtassie is offline
Old 02-06-19, 11:31 AM
  #9
MiloFrance
Not riding enough
Thread Starter

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,138

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
So this one is done, and at lower kgf than before. My tensioner is a Park tool, with an adjustable screw on the spring. In theory, if I lock the elbow in place and hang a weight on the other end (I weigh just over 90kg!) I could calibrate it!

Discuss...
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-06-19, 11:32 AM
  #10
MiloFrance
Not riding enough
Thread Starter

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,138

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Trevtassie View Post
It's just fatigue cracking, nothing lasts forever... especially aluminum.
Have you read any Nevil Shute?
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-06-19, 11:34 AM
  #11
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,214

Bikes: old clunker

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Twenty years on light weight rims? The tension must have been as close to perfect as it could have been. Going forward, what unintended consequences will reduced tension bring? And when?
AnkleWork is offline
Old 02-06-19, 11:58 AM
  #12
MiloFrance
Not riding enough
Thread Starter

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,138

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by AnkleWork View Post
Twenty years on light weight rims? The tension must have been as close to perfect as it could have been. Going forward, what unintended consequences will reduced tension bring? And when?
I'm 20 years older, I don't expect them to get anything remotely like the abuse they had!
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-07-19, 04:02 AM
  #13
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,010

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by MiloFrance View Post
Have you read any Nevil Shute?
Read On the Beach but haven't read No Highway.... wonder if it's on Kindle?
Trevtassie is offline
Old 02-07-19, 12:58 PM
  #14
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,949

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1816 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by MiloFrance View Post
I'm 20 years older, I don't expect them to get anything remotely like the abuse they had!
What tire widths and pressures were you using? In principle, these shouldn't affect a good wheel, but we know that a bigger tire at lower pressure passes less stress onto the rim and spokes.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 02-07-19, 01:10 PM
  #15
Koyote
Senior Member

Join Date: Sep 2017
Posts: 578
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 273 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hell, I had a wheel develop those cracks after one year/4k miles. WTB rim, 32h/3x. And if anything, the spoke tension always seemed a little low. If you got 20 years out of it, well done!
Koyote is offline
Old 02-07-19, 02:23 PM
  #16
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,316

Bikes: 8

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 6358 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
More spokes , wheel load is shared , fewer the tension has to support a bigger quadrant of Rim..
fietsbob is offline
Old 02-07-19, 02:53 PM
  #17
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,677
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Butted 15-gauge spokes tend to be easier on rims. To DT's credit, back when I still worked in a bike shop in the 1990s, they listed 14-gauge spokes in their catalog as "tandem" spokes. Don't know whether they still list them that way.
Trakhak is online now
