Crack near bottom bracket

I was repairing a broken bottom bracket on my Raleigh Montage when I discovered a small crack on the junction of the right chain stay and the little bridge between the chain stays. I wish I can post a picture but the forum doesn't let me. I've already sanded away a little bit of the rust, so it is only on the surface, but you can still see some of the rust that has formed because of the crack.

My bike is a 1985 Raleigh Montage with Reynolds 501 tubing. I recently (approx. half a year ago) repainted it and put on some new parts and really love it (and I certainly don't want to get rid of it).

What should I do?
OlofJens is offline
Reply With Quote
Old 02-08-19, 01:28 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,610

Bikes: 8

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 6183 Post(s)
Replace the frame * Hang that one on the wall, It cracked from metal fatigue ,, & perhaps interior rust

I doubt you want to burn through some serious money having a professional frame builder re place a frame tube then get it repainted find replica decals and all that ?


* Maybe just get a new bike.. for all the latest components others spend extra , to 'Upgrade'/..





....
fietsbob is offline
Reply With Quote
Old 02-08-19, 02:31 PM
  #3
OlofJens
Newbie
Thread Starter

Join Date: Feb 2019
Posts: 4
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Argh, it was kind of my baby, but yes, makes sense to replace. I just checked and when slightly pulling on the chain stay the gap actually widens, so it is not just a superficial crack.

That said, do you think that this can be welded?
OlofJens is offline
Reply With Quote
Old 02-08-19, 02:38 PM
  #4
San Rensho
Senior Member

Join Date: Oct 2005
Posts: 5,655
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
I would try to fix it. I think two things could happen, if the tube is very thin, then when you try to weld it it's going to open a big hole in the tube and then the bike is junk. Your paragraph if the weld holds, then the frame is fixed.
And I guess the other option is just to leave it as it is. when you put a wheel in the frame, that makes a very strong structure that probably will not fail.
San Rensho is offline
Reply With Quote
Old 02-08-19, 02:57 PM
  #5
Aubergine
Senior Member

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,637
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
If I understand your post, the crack is at the joint between the chainstay and the chainstay bridge, not in either tube. If that is the case, I would think it easy enough to have a framebuilder re-braze the joint.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Reply With Quote
Old 02-08-19, 03:01 PM
  #6
OlofJens
Newbie
Thread Starter

Join Date: Feb 2019
Posts: 4
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Thanks for your help! Hmm, I discovered that the crack actually extends into in the chain stay tube... I'm gonna bring it to a mechanic tomorrow, see what he says.
OlofJens is offline
Reply With Quote
Old 02-08-19, 03:44 PM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,610

Bikes: 8

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 6183 Post(s)
Originally Posted by OlofJens View Post
Argh, it was kind of my baby, but yes, makes sense to replace. I just checked and when slightly pulling on the chain stay the gap actually widens, so it is not just a superficial crack.

That said, do you think that this can be welded?
I'd have to see it in person to say..

so Yes physically taking it to a professional bike shop is your next step..
fietsbob is offline
Reply With Quote
Old 02-08-19, 03:52 PM
  #8
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,610

Bikes: 8

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 6183 Post(s)
Originally Posted by OlofJens View Post
Argh, it was kind of my baby, but yes, makes sense to replace. I just checked and when slightly pulling on the chain stay the gap actually widens, so it is not just a superficial crack.

That said, do you think that this can be welded?
I'd have to see it in person to say..

so Yes physically taking it to a professional bike shop is your next step..


you need to see how rusty the inside of the tubing is , too so Removal of BB is required
fietsbob is offline
Reply With Quote
Old 02-08-19, 04:08 PM
  #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,303

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1073 Post(s)
You don't want to have it welded but brazing is a possible fix if the tubes are otherwise sound. Any frame builder could do the job and you will have to repaint the area around the repair.
HillRider is offline
Reply With Quote
Old 02-08-19, 05:20 PM
  #10
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 21,428
Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 7805 Post(s)
@OlofJens;'s
gallery/album




It could be paint damage. You could try to strip a small portion of the rear dropouts and try to determine the cause.

If it is a real crack, probably time for a new frame, although you might be able to weld/braze it.
CliffordK is offline
Reply With Quote
Old 02-08-19, 05:27 PM
  #11
Aubergine
Senior Member

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,637
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)

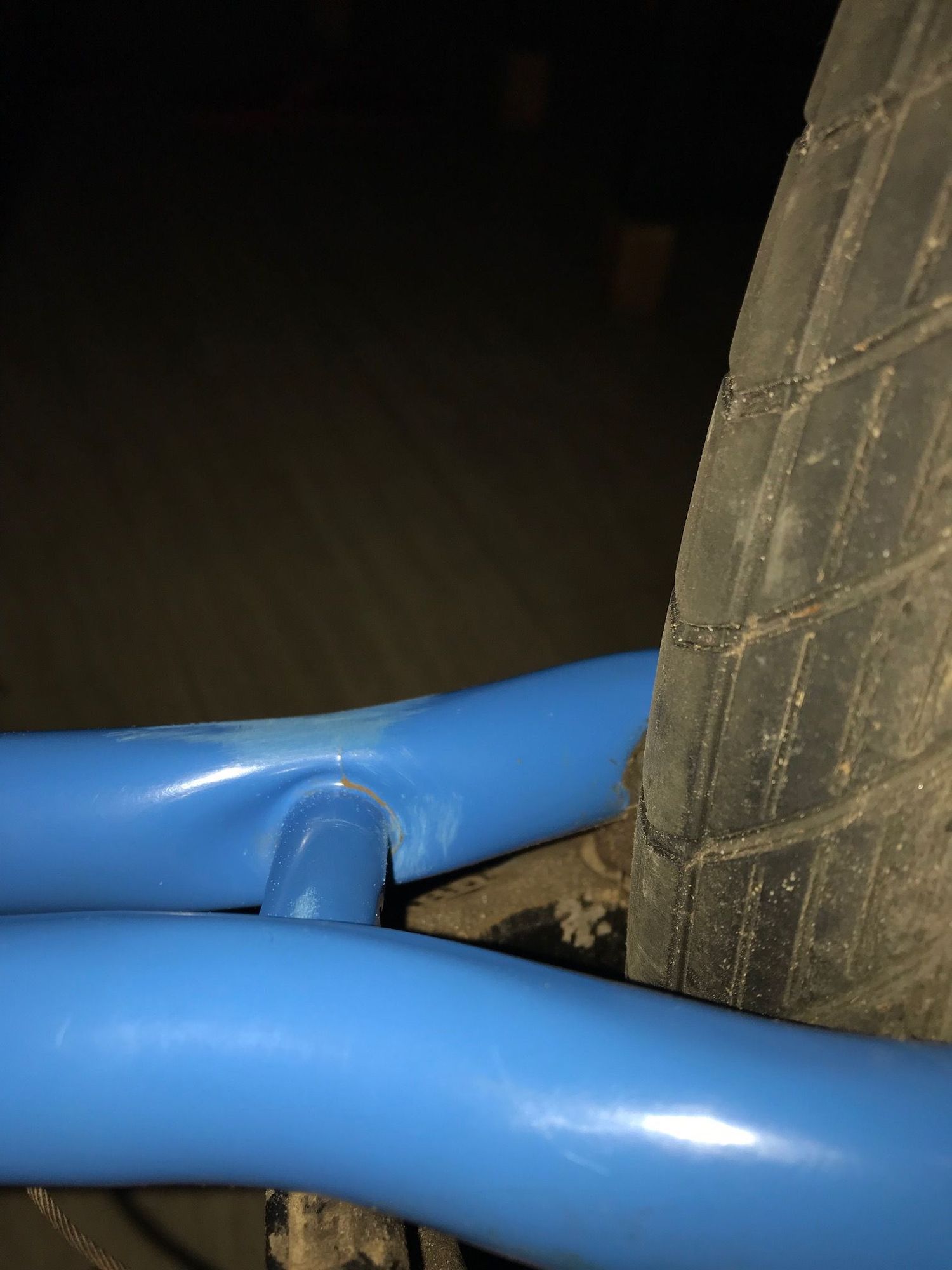

Looks to me like that stay has been dented.
