Shimano 600 HG Freewheel teeth broken or supposed to be like this?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shimano 600 HG Freewheel teeth broken or supposed to be like this?

Reply

Old 02-08-19, 05:18 PM
  #1
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Shimano 600 HG Freewheel teeth broken or supposed to be like this?

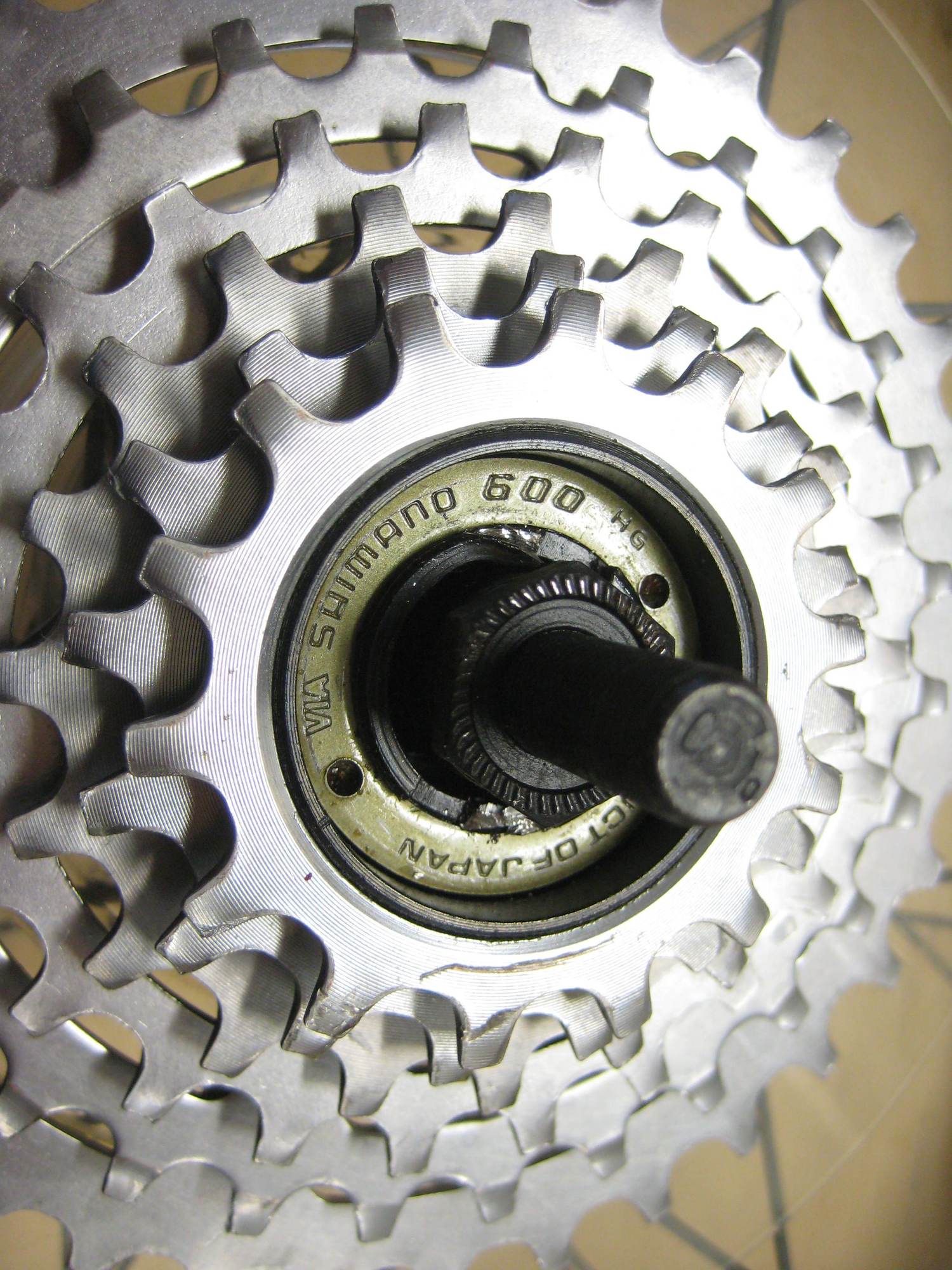

Cleaned up the freewheel and noticed some of the teeth are shorter than others. The tooth does not appear to be broken off but looks more like it was made that way. Thought I would check with you folks. If broken what effect would this have on shifting?

There is one short at about 2 o'clock on cog number 1 and at about 12 o'clock on cog number 3. There are a few others.
cyclehealth is offline
Reply With Quote
Old 02-08-19, 05:42 PM
  #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,303

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1073 Post(s)
They are made that way intentionally to improve shifting.
HillRider is offline
Reply With Quote
Old 02-08-19, 06:38 PM
  #3
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,115

Bikes: I'd rather not count how many, thank you

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 920 Post(s)
...and that's UG, not HG
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 02-08-19, 06:54 PM
  #4
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Originally Posted by rccardr View Post
...and that's UG, not HG
Looks like an HG to me.
cyclehealth is offline
Reply With Quote
Old 02-08-19, 06:55 PM
  #5
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Originally Posted by HillRider View Post
They are made that way intentionally to improve shifting.
Thank you! I was hoping that was the case.
cyclehealth is offline
Reply With Quote
Old 02-08-19, 06:58 PM
  #6
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,115

Bikes: I'd rather not count how many, thank you

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 920 Post(s)
Nah. HyperGlide has shaped teeth, some of which are partially different thicknesses to assist in shifting.
Still used in Shimano cassettes today, widely copied.
UltraGlide is twisted tooth technology, prior to HG, much wider variety of freewheels made. Used in early freehub cassettes, gone on road bikes after 1987 or so.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 02-08-19, 08:23 PM
  #7
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
If it is a 600 UG then why is it stamped 600 HG on the ring around the center? Confusing, at least to me. If it makes a difference, the freewheel is from an 1984 mt bike.
cyclehealth is offline
Reply With Quote
Old 02-08-19, 10:11 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)
I suspect the "HG" stamp is a date code and not a design/model reference. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Reply With Quote
Old 02-08-19, 10:48 PM
  #9
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,591

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 595 Post(s)
On your "short" teeth.
Notice how evenly spaced they are? Kinda...
Bill Kapaun is offline
Reply With Quote
Old 02-09-19, 01:19 AM
  #10
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,676

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1730 Post(s)
Originally Posted by cyclehealth View Post
If it is a 600 UG then why is it stamped 600 HG on the ring around the center? Confusing, at least to me. If it makes a difference, the freewheel is from an 1984 mt bike.
Originally Posted by Andrew R Stewart View Post
I suspect the "HG" stamp is a date code and not a design/model reference. Andy
+1. "HG" would be July 1983, perfect timing to go on a 1984 bike.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 02-09-19, 01:20 AM
  #11
oliver1850
Member

Join Date: Oct 2011
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
With Doc on this one, despite the interesting HG stamp. This FW is UG, and relied on twisted teeth and the noted shortened teeth to improve shifting over previous designs. Hyperglide FWs and cassettes revert to straight teeth with ramps and cutouts on the faces to improve shifting.

Posted FW looks to be in nice shape, don't know as I've ever seen a 14-34 before. Would look great on my 1990 Stumpjumper.
oliver1850 is offline
Reply With Quote
Old 02-10-19, 08:12 AM
  #12
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,884

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Whichever the correct model designator or date code it is, the op should keep that FW and install it. If the gear counts are correct for your use and all else is good in the drivetrain, that FW should shift very well.
Road Fan is offline
Reply With Quote
Old 02-10-19, 05:45 PM
  #13
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I am afraid I ruined the freewheel when trying to remove it this AM. I was using the correct Shimano tool, I purchased one new old stock just for the job. Man, that freewheel is tight. I tried the method of turning the wheel with the tool clamped within the vise, would not budge. I resorted to a large adjustable wrench with a three foot breaker bar. It moved a smidgen and so I had to loosen the axle nut just a little to allow the tool some room to rotate when loosening and it moved a smidgen more. I removed the tool and my heart sank when I saw what allowed the rotation of the tool. I was chewing away the freewheel hub. Now I do not know the best way to remove it.

Note the chewed up steel from the removal tool. Bummer.
cyclehealth is offline
Reply With Quote
Old 02-10-19, 11:38 PM
  #14
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)
At this point of damaging the tool's lands (on the freewheel) the two choices I know of are: Dremel the tool notches/lands square and diametrically opposed again to let the tool best engage both at the same time... OR remove the freewheel outer body/cogs (LH threading on the threaded race wit the two pin holes, use a drift punch and hammer as it's really tight) and than use a pipe wrench on the remaining inner core.

Did you have the QR skewer holding the tool tight against the FW? Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Reply With Quote
Old 02-11-19, 07:10 AM
  #15
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Originally Posted by Andrew R Stewart View Post
At this point of damaging the tool's lands (on the freewheel) the two choices I know of are: Dremel the tool notches/lands square and diametrically opposed again to let the tool best engage both at the same time... OR remove the freewheel outer body/cogs (LH threading on the threaded race wit the two pin holes, use a drift punch and hammer as it's really tight) and than use a pipe wrench on the remaining inner core.


Did you have the QR skewer holding the tool tight against the FW? Andy

Yes, I am considering the dremel and was thinking it would be easier to access if the outer cogs were removed.



You mention "LH threading on the threaded race with the two pin holes" does this mean that I rotate it clockwise to loosen? And wouldn't there be a special tool to fit the two holes or is a "drift punch and hammer" a better choice?


I used the axle nut on the end of the solid thru axle to hold the freewheel removal tool snug. I am usually pretty good with those kinda details. I am now wondering if the solid thru axle in anyway interfered with the removal of the freewheel. Should the solid axle have been removed and a QR skewer used in it's place?
cyclehealth is offline
Reply With Quote
Old 02-11-19, 07:50 AM
  #16
subgrade
Senior Member

Join Date: Apr 2018
Location: Rīga, Latvia
Posts: 135

Bikes: Focus Crater Lake

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Originally Posted by Andrew R Stewart View Post
remove the freewheel outer body/cogs (LH threading on the threaded race wit the two pin holes, use a drift punch and hammer as it's really tight) and than use a pipe wrench on the remaining inner core
This was exactly the method we used to remove freewheels back in the day, as nobody had any proper tools. Worked each time.
subgrade is offline
Reply With Quote
Old 03-09-19, 02:37 PM
  #17
cyclehealth
Member
Thread Starter

Join Date: May 2014
Location: Maine
Posts: 37

Bikes: 2003 Easy Racers Fold Rush 2004 Burley Django Recumbent 2003 Burley Duet Tandem 2013 Specialized Roubaix Sport SL2 1987 Miyata 215 ST 1987 Schwinn Sierra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Well I did get the freewheel off in one piece. I took AndrewRStewert's suggestion and using a dremel I was able to recut the lands. Worked great! Thanks to everyone for your help!
cyclehealth is offline
Reply With Quote
