Wellgo pedal rebuild? Ideas?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Wellgo pedal rebuild? Ideas?

Old 04-05-19, 05:27 PM
  #1
psychling78
Old school MAMIL
Thread Starter

psychling78's Avatar

Join Date: Aug 2010
Location: Goshen, Indiana, USA
Posts: 33

Bikes: 1997 Cannondale CAAD2 R300, Late 80s Bill Davidson Touring bike, old-school hard-tail Specialized Hardrock, circa 1987, Trek Sporttrack Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 0 Times in 0 Posts
Wellgo pedal rebuild? Ideas?

Okay, before anyone gives me grief, I LIKE my cheap little SPD Wellgo pedals. They're what I need right now, and I'd like to be able to keep them for a while longer. I simply can't figure out how to remove the spindle and service the BBs on this guy. Please take a look and toss some new ideas at me. Thanks!

No end cap as is found on many models.


Shows model number RC-703
psychling78 is offline
Old 04-05-19, 09:37 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,050

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,259 Times in 882 Posts
3 things to do. Keep the body screws tight, Keep the cleat jaws lubed and keep the bearings lubed. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-05-19, 11:01 PM
  #3
Sapperc
Senior Member

Join Date: Feb 2019
Location: Lompoc, CA
Posts: 143

Bikes: Specialized Roubaix SL4 Comp, Trek 930, Nishiki International

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 11 Posts
Your thumb in the second photo is beside what passes for a lock nut on those pedals. You will need to unscrew it to get at the spindle and bearings. You will need to brace the pedal to remove the nut. May not come apart easily. May not go back together easily. Good luck.
Sapperc is offline
Old 04-05-19, 11:14 PM
  #4
Litespeedlouie
Senior Member

Join Date: Sep 2007
Location: Seattle
Posts: 311

Bikes: Litespeed, O'Brien, Specialized, Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
I believe you unscrew the grey part with the flats from the black body, and the whole bearing assembly should come out. On my Shimano PD-M520, it works that way, but they use a custom "reeding" instead of flats, and I had to buy their custom tool, a plastic disc with the same reeding plus flats for a wrench.

Is the pedal bearing actually loose? I have never actually found any of my pedals needing service - Shimano road, SPD or Speedplays. These are sealed pretty good. I take them apart, regrease and adjust the bearing, and they seem just like before.
Litespeedlouie is offline
Old 04-09-19, 11:15 AM
  #5
psychling78
Old school MAMIL
Thread Starter

psychling78's Avatar

Join Date: Aug 2010
Location: Goshen, Indiana, USA
Posts: 33

Bikes: 1997 Cannondale CAAD2 R300, Late 80s Bill Davidson Touring bike, old-school hard-tail Specialized Hardrock, circa 1987, Trek Sporttrack Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 0 Times in 0 Posts
Yeah, that *looks* like a lock nut but isn't. It's actually a plastic thing that collapses when you put a wrench on it.
Originally Posted by Sapperc View Post
Your thumb in the second photo is beside what passes for a lock nut on those pedals. You will need to unscrew it to get at the spindle and bearings. You will need to brace the pedal to remove the nut. May not come apart easily. May not go back together easily. Good luck.
psychling78 is offline
Old 04-09-19, 12:32 PM
  #6
Sapperc
Senior Member

Join Date: Feb 2019
Location: Lompoc, CA
Posts: 143

Bikes: Specialized Roubaix SL4 Comp, Trek 930, Nishiki International

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 11 Posts
Right I know itís plastic. To get the peddle spindle our that has to come off. Probably easier to squire new peddles. Best of luck.
Sapperc is offline
Old 04-09-19, 01:45 PM
  #7
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 25,799
Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 13984 Post(s)
Liked 2,170 Times in 1,622 Posts
That looks a lot like the Shimano pedals.

The grey part with the flats on it next to the black pedal body is what unscrews, and it takes quite a bit of unscrewing to pull the guts out of the pedal.

The outer grey sleeve is just a spacer. There is no lock nut.

You should find a sleeve with cones and bearings inside that should be relatively easy to disassemble, clean, and repack.

For Shimano, it unscrews normal (counterclockwise to loosen, clockwise to tighten), both sides.

For the Shimano pedals, the cheap plastic ones use a special multi-faucet tool. The more expensive ones use a titanium bolt, I think.

Anyways, on yours, would a deep 6 point socket fit? Either 16mm or 17mm? Or maybe a 6 point box-end wrench if it will fit over the top.

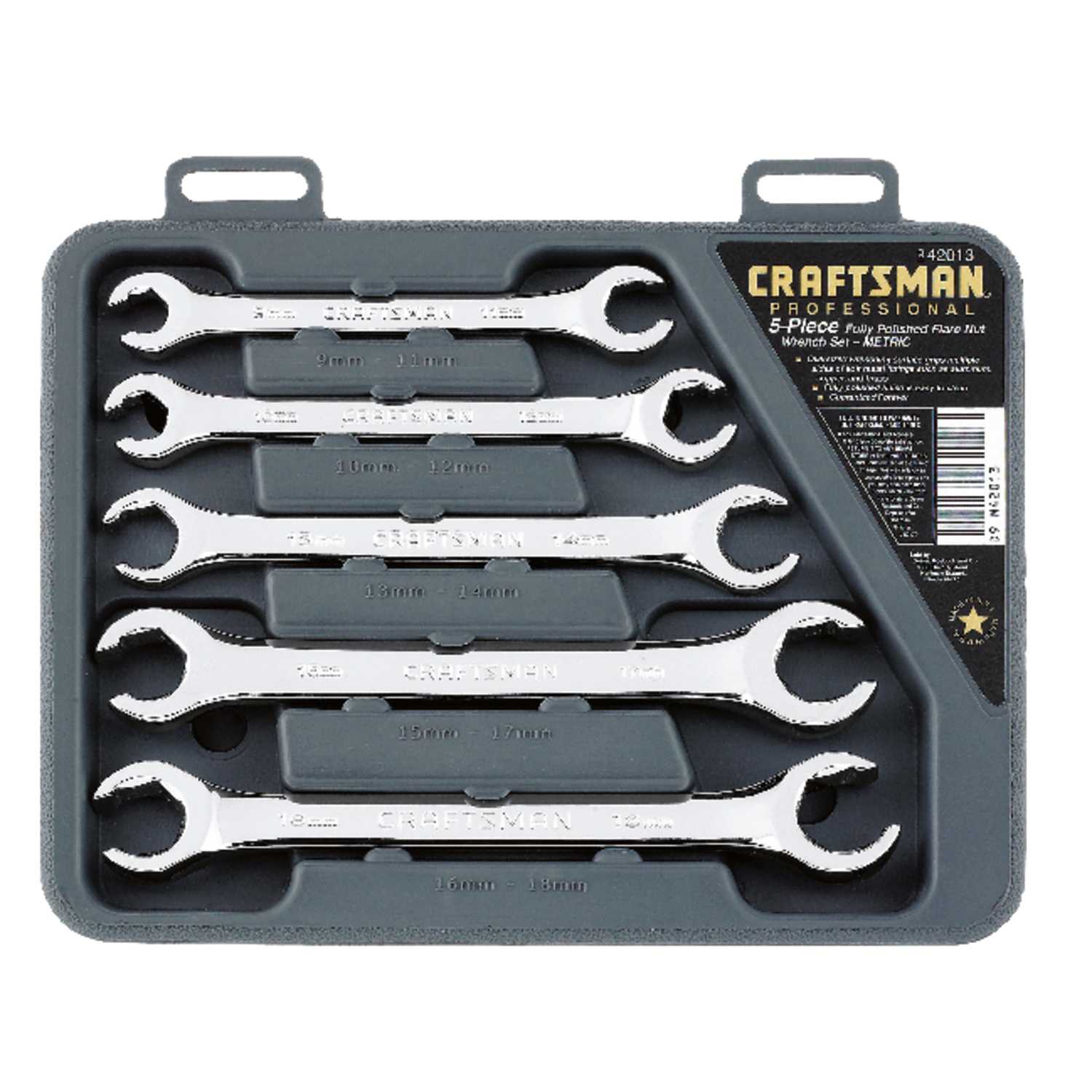

You can also purchase 6 point "flare nut" wrenches.

https://www.acehardware.com/departme...enches/2298347



That is assuming you can get them slipped onto/off of the pedal.
CliffordK is online now
Old 04-09-19, 03:00 PM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,693

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2635 Post(s)
Liked 1,300 Times in 813 Posts
Originally Posted by Litespeedlouie View Post
I believe you unscrew the grey part with the flats from the black body, and the whole bearing assembly should come out. On my Shimano PD-M520, it works that way, but they use a custom "reeding" instead of flats, and I had to buy their custom tool, a plastic disc with the same reeding plus flats for a wrench.
For Shimano pedals, you use the Shimano TL-PD40 tool for this:



But every manufacturer seems to have their own proprietary tool for this purpose. I haven't seen a Wellgo version, but that doesn't mean there isn't one out there someplace.
JohnDThompson is offline
Old 04-10-19, 08:39 AM
  #9
Koyote
Senior Member

Join Date: Sep 2017
Posts: 3,857
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 3314 Post(s)
Liked 4,373 Times in 1,928 Posts
If you ever manage to get it open and remove the spindle, the bearings will probably come out with it in a retainer...In which case, servicing is easy. Just fill the pedal opening (where the spindle fits) with grease, then thread the spindle (with bearings) back in and watch the old dirty grease be expelled from the pedal.
Koyote is offline
Old 04-10-19, 12:15 PM
  #10
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 917

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 83 Times in 61 Posts
FWIW, I love Wellgo pedals. Although mine are MG-5 flats.
bakerjw is offline
Old 04-12-19, 01:57 PM
  #11
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,813

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 4185 Post(s)
Liked 2,088 Times in 1,336 Posts
Some pedals are such a PITA to service it's tempting to just wear them out and buy new. I tell myself that every time I consider servicing my old Look clipless pedals. They seem to be okay so I'm just gonna leave 'em alone.

I just serviced a nice set of Wellgo aluminum platform pedals and everything was pretty easy other than the cone/bearing surface and separate lock nut. The only way to hold the cone in place while tightening the lock nut was to jam a thin but stiff bit of metal into the tiny space between the socket and pedal body. I think I used an old mismatched table knife because every other makeshift tool I tried bent. Took half a dozen tries with each pedal to get it right. And I'll still need to check the pedals every ride to be sure it's holding securely. The pedals are too nice to discard but without the appropriate tool to hold the cone in place it's a real chore.

Another reason I'm a fan of Stolen Brand Thermalite platform pedals. Cheap, good, just ride 'em 'til they wear out and buy another set.

In the case of the Wellgo clipless pedal above, I'd write or call Wellgo and ask 'em if the pedals are serviceable. Maybe they'll offer tips or point to the correct tool.
