Advice re: replacing brake levers

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Advice re: replacing brake levers

Old 04-07-19, 06:03 AM
  #1
Black Mamba
Junior Member
Thread Starter

Black Mamba's Avatar

Join Date: Mar 2019
Location: London, UK
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Advice re: replacing brake levers

I'd be grateful for any advice you can give me about replacing my current brake levers. I am not looking for a high end replacement - ideally I'm looking to spend around £25 ($32). I had my eye on Dia-Compe DC204N levers, because you can get them with a brown hood (my preference, if possible). Do you think these would work?

I will be replacing my rim brakes at some point, too, so any low-budget recommendations for those would be welcomed too.

.
Black Mamba is offline
Old 04-07-19, 06:15 AM
  #2
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,938
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1140 Post(s)
Liked 448 Times in 302 Posts
Tektro has some nice aero hoods in brown, in several versions, love the ergonomics on these compared to anything made in the last century. Very cheap too, around $20 for a pair.

Lemond1985 is offline
Old 04-07-19, 07:28 AM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,255

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 749 Post(s)
Liked 109 Times in 85 Posts
If you replace the brakes you won't go wrong with some Tektro dual pivot calipers. YOu'd have to measure the reach, those look fairly long, but they make long reach ones.
dedhed is offline
Old 04-07-19, 09:15 AM
  #4
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 23,284
Mentioned: 181 Post(s)
Tagged: 0 Thread(s)
Quoted: 9527 Post(s)
Liked 261 Times in 202 Posts
I'll second the newer levers.

Origin8 Classique
Tektro RL340
TRP RRL
Cane Creek Levers
etc.

They do typically pull a bit extra cable, which may or may not be good.
CliffordK is online now
Old 04-07-19, 10:46 AM
  #5
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6942 Post(s)
Liked 253 Times in 208 Posts
these should do fine, ( your link image )






...
fietsbob is offline
Old 04-07-19, 11:02 AM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6942 Post(s)
Liked 253 Times in 208 Posts
FWIW as a step thru frame with the cable routing up from beneath , you could adopt one of the dual pivot brakes for Bromptons,
because they use tn up from beneath design based on Tekrto Dual pivot which they supply to brompton..

and use a regular long bolt and nut fixed one on the front, where the cable comes down from the top ..

Of course braking Physics being what It is*, that rear should be adequate, just update the front ..

A decelerating mass , you, unweights the rear wheel .. and any lack of stiffness in thosre calipers is made up for by
having a back up bumper , that contacts the frame stays.. back then bikes had them ,


(fresh brake pads and new cable/housing should improve whats there, saving money on the brakes .. by keeping them ..
fietsbob is offline
Old 04-07-19, 11:33 AM
  #7
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,511
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 318 Post(s)
Liked 5 Times in 5 Posts
As Fietsbob mentioned you will need new cables (inners and outers), as you planning to get new brake pads, would see getting new pads as a false economy, you may as well just get new brakes, which include them, your also going to need new bar tape, unless you know how to do this/have the time/patience to learn, it may be worth looking at getting an LBS to do this part for you.
jimc101 is offline
Old 04-07-19, 11:59 AM
  #8
Black Mamba
Junior Member
Thread Starter

Black Mamba's Avatar

Join Date: Mar 2019
Location: London, UK
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dedhed View Post
If you replace the brakes you won't go wrong with some Tektro dual pivot calipers. YOu'd have to measure the reach, those look fairly long, but they make long reach ones.
Thanks for this recommendation. The ones I had in mind were these Tektro ones so it's reassuring that I am thinking along the right lines.

Originally Posted by fietsbob View Post
(fresh brake pads and new cable/housing should improve whats there, saving money on the brakes .. by keeping them ..
Originally Posted by jimc101 View Post
As Fietsbob mentioned you will need new cables (inners and outers), as you planning to get new brake pads, would see getting new pads as a false economy, you may as well just get new brakes, which include them, your also going to need new bar tape, unless you know how to do this/have the time/patience to learn, it may be worth looking at getting an LBS to do this part for you.
Thanks both - and thanks Fietsbob for confirming the brake levers I linked to should be OK. I thought they probably were, but it's easy to overlook things when it's new to you.

I'm in the process of learning some basic bike mechanics, and bought this bike as a do-er upper - so the goal is to do things I've never done before, even if it's not strictly necessary or cost effective. New brake pads, cabling and housing I'm already able to do.

New bar tape, I've never done before. I've watched a few YouTube videos and it looks... fairly straightforward? Or is it one of those things that looks easy but is actually difficult. If it's the latter, I'll be sure to buy some cheap and nasty tape for a practice run before attempting to replace it properly.
Black Mamba is offline
Old 04-07-19, 01:36 PM
  #9
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6942 Post(s)
Liked 253 Times in 208 Posts
the Tekrto ones will increase the reach to the brake lever..
because the body is shaped like Brifters Which needed the extra length and volume

for the shifter 'clockworks' to fit inside ..

Cotton Twill bar tape will be good to practise on ....
applying plastic foam tapes involves some stretching so too much and it will tear ..



.. NB Rear, upturned housing lets Water In , but a bellows boot from V brakes will reduce that substantially

it goes in between the 2 side pull arms..




...

Last edited by fietsbob; 04-07-19 at 01:45 PM.
fietsbob is offline
Old 04-07-19, 02:34 PM
  #10
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,255

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 749 Post(s)
Liked 109 Times in 85 Posts
Know if you need nutted or recessed calipers also
dedhed is offline
Old 04-07-19, 02:37 PM
  #11
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,930
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 17 Times in 14 Posts
IMO there is nothing wrong with your existing levers. Unbolt the turkey wings, cut off any mounting stud, and put a set of Rustines hoods on them. After that they will work well and look great, and it will be cheaper than getting new levers.

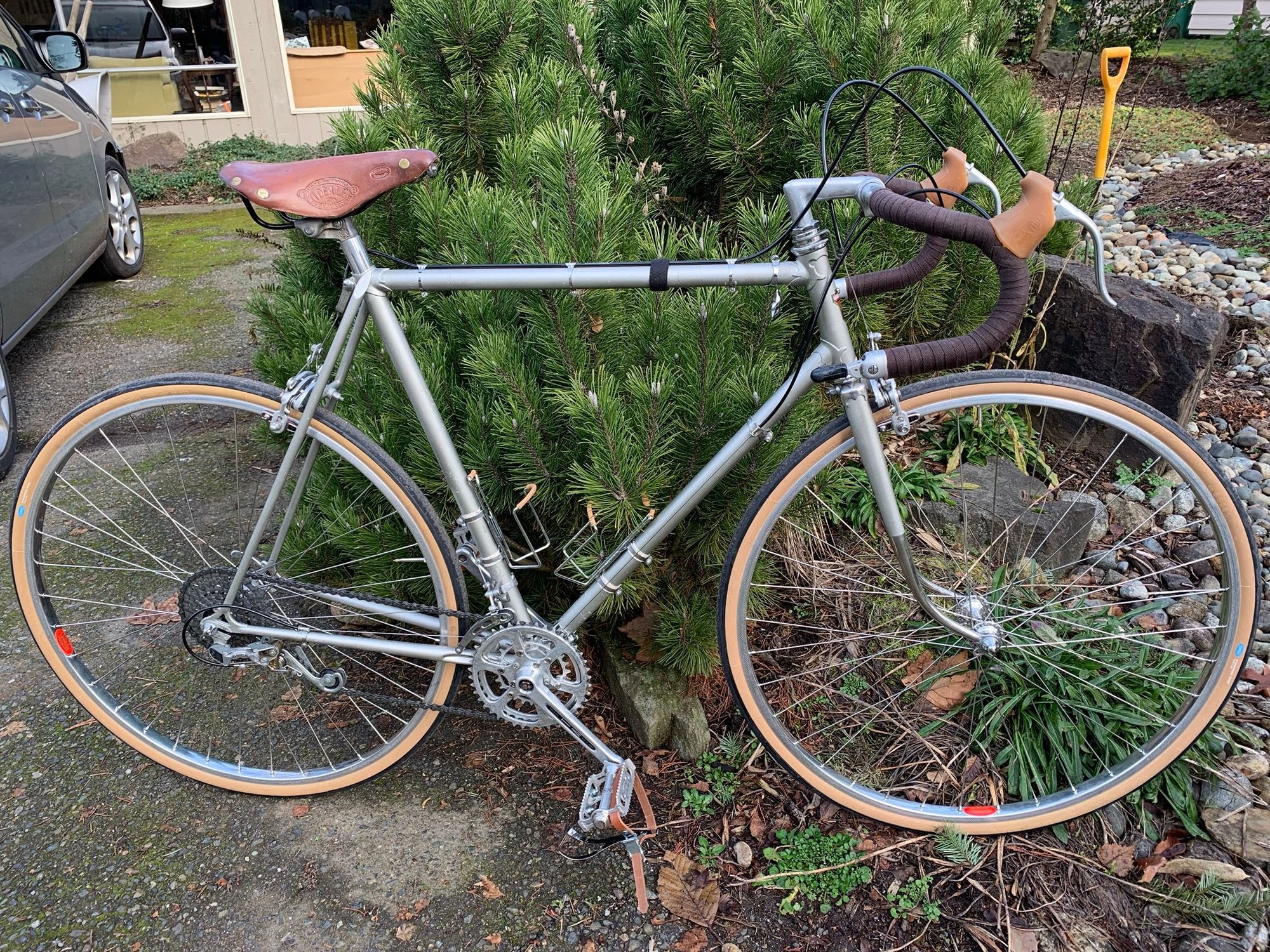

My Motobécane shown below uses Weinmann levers, which are almost identical to Dia-Compe levers. They have Rustines hoods.


__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 04-07-19, 02:41 PM
  #12
Viich
Hack

Join Date: Sep 2015
Location: Ottawa, Ontario, Canada
Posts: 789

Bikes: 88 Bianchi Strada (currently Sturmey'd), 90's Giant Innova (now with drop bars), FMF Race BMX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 16 Times in 12 Posts
I really like the TRP levers - use them on my winter bike.

I also have shimano 105 1055 brake levers on the bike I ride the most. I think the Tektro levers are similarly shaped. Also like them.
Viich is offline
